3-36 Options

Minitower 5 1/4-Inch Diskette Drive Cabling

Cable an optional 5 1/4-inch diskette drive as follows.
1. Locate the diskette drive signal cable (connected to the 3 1/2-inch diskette drive)
and plug middle connector into the 5 1/4-inch diskette drive signal connector (see
Figure Section 3-46).
2. Locate the power connector coming from the power supply and plug correct fit-
ting power cable into the device power connector (see Figure Section 3-46).

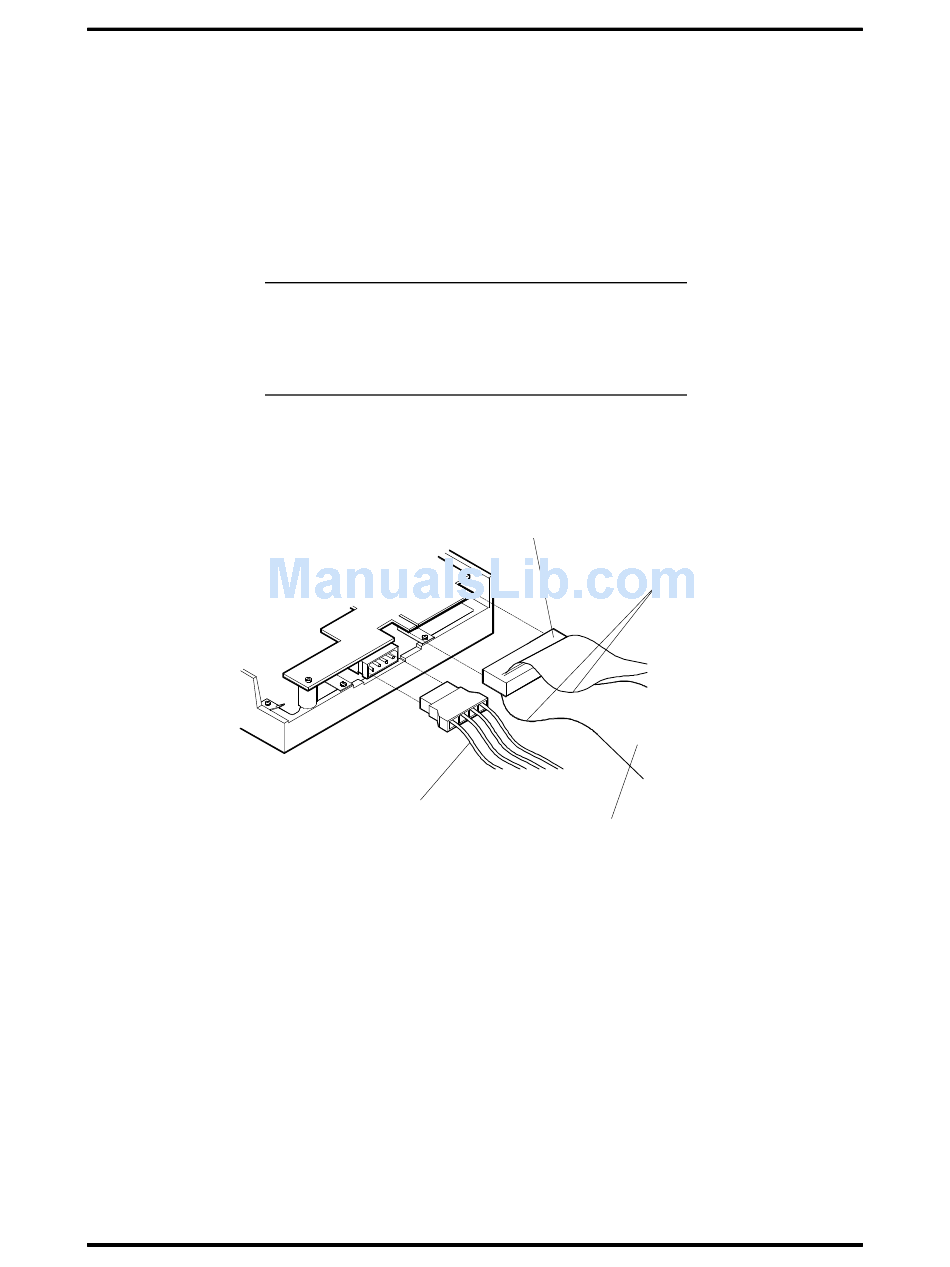

Figure Section 3-46 Minitower 5 1/4-Inch Diskette Drive Cables
NOTE: When cabling the 5 1/4-inch device,
note that all power cables are keyed to fit only in
the correct position. The red edge of the diskette
drive signal cable is positioned as shown.
Power Cable
1.2-MB Diskette
Drive Connector
Red Edge
Diskette Drive
Signal Cable
