Getting Started

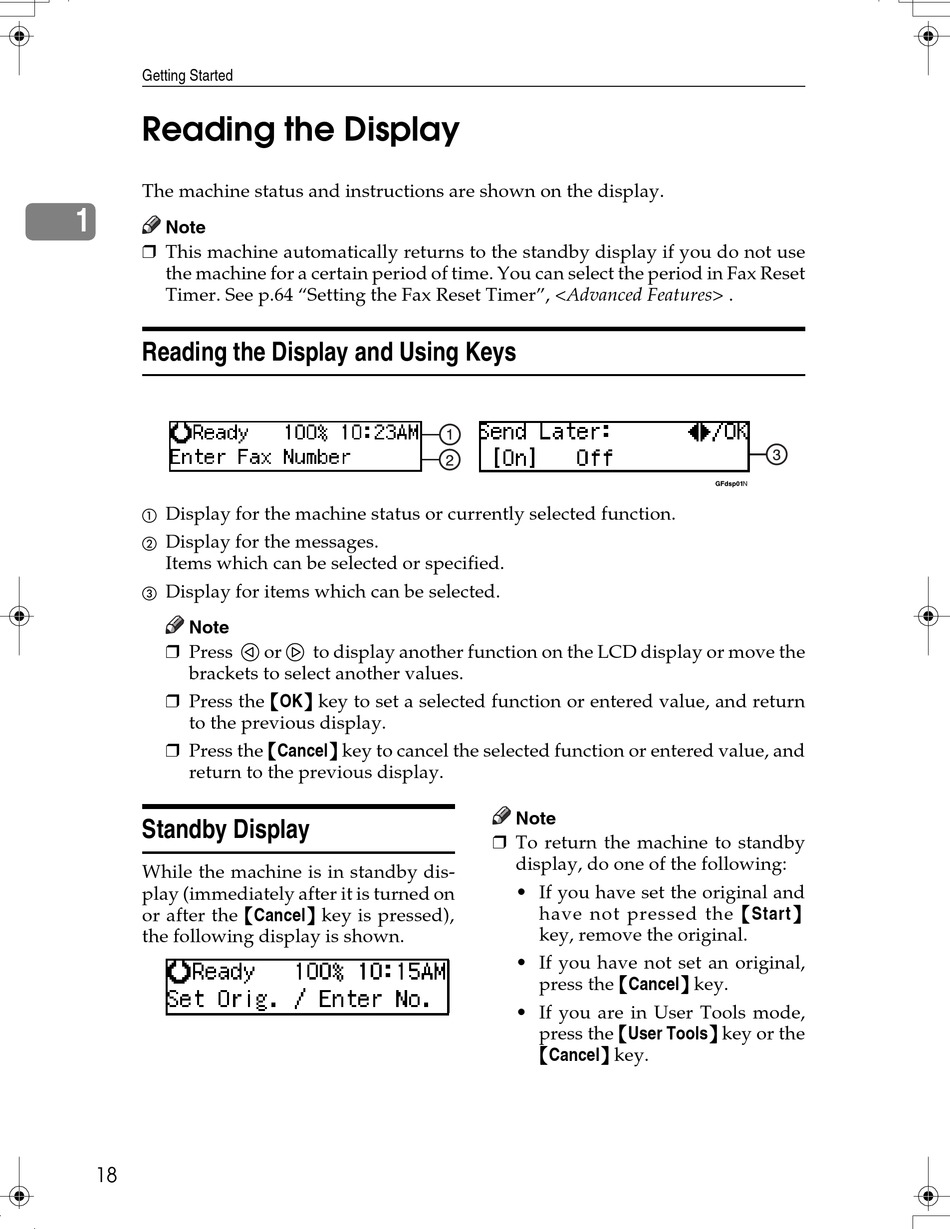

Reading the Display

The machine status and instructions are shown on the display.
1
Note
❒ This machine automatically returns to the standby display if you do not use
the machine for a certain period of time. You can select the period in Fax Reset
Timer. See p.64 "Setting the Fax Reset Timer", <Advanced Features> .

Reading the Display and Using Keys

A Display for the machine status or currently selected function.
B Display for the messages.
Items which can be selected or specified.
C
Display for items which can be selected.
Note
❒ Press 0 or 1 to display another function on the LCD display or move the
brackets to select another values.
❒ Press the { { { { OK} } } } key to set a selected function or entered value, and return
to the previous display.
❒ Press the { { { { Cancel} } } } key to cancel the selected function or entered value, and
return to the previous display.

Standby Display

While the machine is in standby dis-
play (immediately after it is turned on
or after the { { { { Cancel} } } } key is pressed),
the following display is shown.
18
Note
❒ To return the machine to standby
display, do one of the following:
• If you have set the original and
have not pressed the { { { { Start} } } }
key, remove the original.
• If you have not set an original,
press the { { { { Cancel} } } } key.
• If you are in User Tools mode,
press the { { { { User Tools} } } } key or the
{ { { { Cancel} } } } key.
