Quick Links

Download this manual

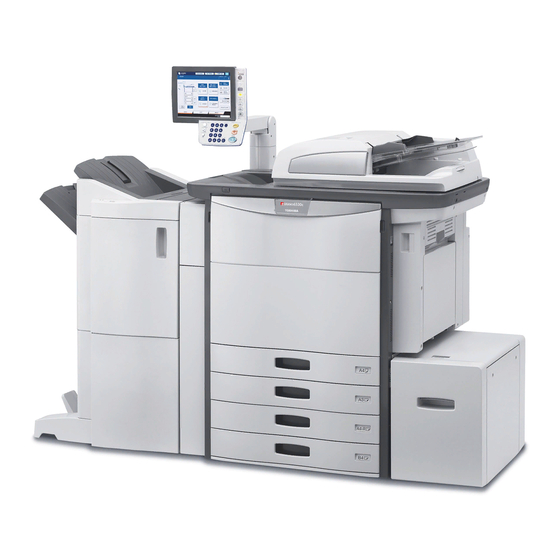

SERVICE MANUAL
MULTIFUNCTIONAL DIGITAL COLOR SYSTEMS
e-STUDIO5540C/6540C/6550C
e-STUDIO5560C/6560C/6570C
Model: FC-5540C/6540C/6550C/5560C/6560C/6570C
Publish Date: April 2011
File No. SME100009H0
R100321I6504-TTEC
Ver08 F_2014-08

Advertisement

loading

Related Manuals for Toshiba e-STUDIO5540C

Summary of Contents for Toshiba e-STUDIO5540C

  • Page 1 SERVICE MANUAL MULTIFUNCTIONAL DIGITAL COLOR SYSTEMS e-STUDIO5540C/6540C/6550C e-STUDIO5560C/6560C/6570C Model: FC-5540C/6540C/6550C/5560C/6560C/6570C Publish Date: April 2011 File No. SME100009H0 R100321I6504-TTEC Ver08 F_2014-08...
  • Page 2 If a problem continues even after performing all troubleshooting and technical tips, report the problem to the appropriate Toshiba service center along with the following information. This information will help the service center understand your problem and take quick action to find the solution.
  • Page 3 If there is no beeping after the LED starts blinking (about 20 minutes), try procedure from step 1 again. • If the USB device is inserted when the MFP is not ready, the debug logs cannot be collected. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 2...
  • Page 4 SS= second) After the debug logs have been collected, be sure to send them to the service center together with a report. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 3...
  • Page 5 4th drawer is incorrect. E075 Option LCF media type mis-setting jam: P. 8-67 The media type setting of the option LCF is incorrect. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 4...
  • Page 6 P. 8-50 reaching the registration sensor): The paper does not reach the registration sensor after it has passed the 1st drawer feed sensor. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 5...
  • Page 7 2nd drawer feed sensor): The paper does not reach the 2nd drawer transport sensor after it has passed the 3rd drawer feed sensor. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 6...
  • Page 8 P. 8-57 reaching the tandem LCF feed sensor): Paper fed from the Tandem LCF does not reach the tandem LCF transport sensor. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 7...
  • Page 9 (when scanning obverse side) or the reverse sensor (when scanning reverse side). e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 8...
  • Page 10 RADF open jam P. 8-83 E871 Cover open jam in the read ready status P. 8-83 E890 ADF time out jam P. 8-83 © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 9...
  • Page 11 [MJ-1103/1104] EA28 Paper transport jam (assisting arm P. 8-90 operation delay): [MJ-1103/1104] EA29 Paper transport jam (stack transport delay): P. 8-90 [MJ-1103/1104] e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 10...
  • Page 12 Sideways adjustment motor (M2) home P. 8-98 position detection error ED12 Shutter home position error P. 8-99 ED13 Front alignment plate home position error P. 8-99 © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 11...
  • Page 13 Hole Punch Unit paper trailing edge skew P. 8-108 detection abnormality: One of the 2 skew sensors cannot detect the paper within a fixed time. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 12...
  • Page 14 EF28 Hole Punch Unit paper edge detection P. 8-109 order abnormality-2: The paper trailing edge is detected before its skew is detected. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 13...
  • Page 15 LCF) C1C0 Option LCF tray-up motor abnormality: The P. 8-112 option LCF tray-up motor is not moving normally e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 14...
  • Page 16 (high temperature abnormality) C461 Pressure roller heater 40°C detection (Not P. 8-118 determined) C462 Pressure roller heater 40°C detection P. 8-118 (Determined) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 15...
  • Page 17 C8B0 RADF original exit motor abnormality: An error P. 8-130 signal has been detected when the motor is rotating. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 16...
  • Page 18 Paper holding arm motor abnormality P. 8-141 CB30 Movable tray shift motor abnormality P. 8-141 [MJ-1103/1104] CB31 Movable tray paper-full detection error P. 8-141 [MJ-1103/1104] © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 17...
  • Page 19 Stack transport motor abnormality: The stack P. 8-149 transport motor is not rotating or the stack transport belt is not moving normally. [MJ- 1103/1104] e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 18...
  • Page 20 P. 8-180 CDE0 Paddle motor abnormality: The paddle motor P. 8-153 is not rotating or the paddle is not rotating normally. [MJ-1103/1104] © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 19...
  • Page 21 CFA1 Media sensor output abnormality during paper P. 8-138 passing: The sensor output value while paper is being passed is not normal. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 20...
  • Page 22 F104 HDD data error: Abnormality is detected in the P. 8-192 data of HDD. F105 HDD other error P. 8-192 © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 21...
  • Page 23 Data Overwrite option (GP-1070) disabled P. 8-205 F350 Circuit related SLG board abnormality P. 8-135 service call F400 SYS board cooling fan abnormality P. 8-135 e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 22...
  • Page 24 F600 Software update error P. 8-207 F700 Overwrite error P. 8-208 F800 Date error P. 8-208 F900 Model information error P. 8-209 © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 23...
  • Page 25 Bad sequence of commands Destination mail address error P. 8-216 (RFC: 503) 2504 Command parameter not HOST NAME error P. 8-216 implemented (RFC: 504) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 24...
  • Page 26 Exceeding maximum number of P. 8-220 range is reached. documents 2BF2 Maximum number of folder range Exceeding maximum number of P. 8-221 is reached. folders © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 25...
  • Page 27 Failed to process your Job. HDD full failure during P. 8-226 Insufficient disk space. processing 2C61 Failed to read AddressBook Address Book reading failure P. 8-227 e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 26...
  • Page 28 Encryption PDF enforced P. 8-233 permitted. mode error 2D45 Failed in making meta data. Meta data creation error (Scan P. 8-234 to File) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 27...
  • Page 29 USB storage 2E45 Failed in making meta data. Meta data creation error in P. 8-240 USB storage (Scan to File) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 28...
  • Page 30 Offramp security error P. 8-245 detected in the received mail. 3C70 Power Failure has been occurred Power failure error P. 8-245 in Email receiving. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 29...
  • Page 31 File I/O Error has been occurred in File I/O error P. 8-247 this mail. The mail could not be 3F20 P. 8-247 received until File I/O is recovered. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 30...
  • Page 32 4321 No privilege for print settings: No privilege to print with the specified P. 8-251 settings is given. (Print setting permission) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 31...
  • Page 33 5017 TOSHIBA Remote monitoring Other SSL certificate related P. 8-255 system error error: SSL certificate is invalid. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 32...
  • Page 34 Failed to connect on the Connection failure to the P. 8-260 authentication server authentication server: Failed to connect to the authentication server © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 33...
  • Page 35 Failed to update HDD Data HDD data installation failure P. 8-263 7117 Failed to update Reversing DF firmware installation failure P. 8-263 Automatic Document Feeder e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 34...
  • Page 36 Ipsec error if certificate are not P. 8-268 avialable 8038 No ISAKMP SA established Ipsec error for SA is not present P. 8-268 © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 35...
  • Page 37 IPv6 secondary DDNS update P. 8-273 failed. error 8067 IPv4 Update to Primary DDNS IPv4 primary DDNS update error P. 8-273 failed. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 36...
  • Page 38 Active Directory Domain - The Active Directory Domain P. 8-276 Domain specified could not be Authentication Error - The found Domain specified could not be found © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 37...
  • Page 39 Color mode 0: Auto color1: Full color 2: Black 3: Unused 4: Twin color copy 5: Gray scale 6: Unused 7: Image smoothing e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 38...
  • Page 40 H: Special paper 2/ reverse I: Envelope J: Tab paper Z: Unused RADF size mixed 0: Unused 1: Size mixed 2: Single-size document Workflow ID: 10-digit ID © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 39...
  • Page 41 • Connector check (CN309) • Board check Replace parts Remarks Upper paper exit sensor Exit motor PFC board DRV board LGC board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 40...
  • Page 42 PFC board • Connector check (CN500, CN515, CN516) • Board check DRV board • Connector check (CN537, CN539, CN540) • Board check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 41...
  • Page 43 Connector check (CN309) • Board check Replace parts Remarks Lower paper exit sensor exit motor PFC board DRV board LGC board Exit roller e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 42...
  • Page 44 • Connector check • Harness check Bypass motor • Motor check (Perform the output check: 03-126) • Connector check • Harness check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 43...
  • Page 45 Board check Drive unit, Rollers • Gear check • Roller check Replace parts Remarks 1st drawer feed sensor Feed motor PFC roller Rollers e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 44...
  • Page 46 • Harness check PFC board • Connector check (CN502, CN505) • Board check Drive unit, Rollers • Gear check • Roller check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 45...
  • Page 47 Paper fed from the LCF does not reach the LCF feed sensor. Check item Measures Option LCF feed sensor • Sensor check (Perform the input check: 03-[SCAN]ON/[5]/[E]) • Connector check • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 46...
  • Page 48 Board check Drive unit, Rollers • Gear check • Roller check Replace parts Remarks LCF feed sensor LCF feed clutch PFC board Rollers © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 47...
  • Page 49 After these codes are changed, perform solid duplex- printing and check that there is no faint or void image on the leading/trailing edge of the paper. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 48...
  • Page 50 Drive unit, Rollers • Gear check • Roller check Replace parts Remarks Fuser transport sensor LGC board ADU board PFC board Rollers © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 49...
  • Page 51 Board check Drive unit, Rollers • Gear check • Roller check Replace parts Remarks Registration sensor Transport motor-1 PFC board LGC board Rollers e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 50...
  • Page 52 Check item Measures 1st drawer transport sensor • Sensor check (Perform the input check: 03-[SCAN]ON/[1]/[D]) • Connector check • Harness check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 51...
  • Page 53 Drive unit, Rollers • Gear check • Roller check Replace parts Remarks 2nd drawer transport sensor Transport motor-2 Feed motor PFC board Rollers e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 52...
  • Page 54 Connector check • Harness check LCF transport motor • Motor check (Perform the output check: 03-127) • Connector check • Harness check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 53...
  • Page 55 3rd drawer transport clutch • Clutch check (Perform the output check: 03-252) • Connector check • Harness check Replace parts Remarks 3rd drawer transport clutch e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 54...
  • Page 56 [E370] 3rd drawer transport jam (Paper not reaching the 3rd drawer transport sensor) Classification Error item Paper transport jam Paper fed from the 3rd drawer does not reach the 3rd drawer transport sensor. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 55...
  • Page 57 Motor check (Perform the output check: 03-122) • Connector check • Harness check PFC board • Connector check (CN502, CN506) • Board check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 56...
  • Page 58 Roller check Replace parts Remarks Tandem LCF transport sensor Tandem LCF transport clutch Tandem LCF feed clutch Feed/transport motor PFC board Rollers © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 57...
  • Page 59 Connector check (CN491, CN497) • Harness check Reverse motor • Motor check (Perform the output check: 03-132/134) • Connector check (CN537, CN539) • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 58...
  • Page 60 Drive unit, Rollers • Gear check • Roller check Replace parts Remarks Duplexing unit path exit sensor ADU motor-1 ADU motor-2 PFC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 59...
  • Page 61 • Connector check • Harness check Reverse motor • Motor check (Perform the output check: 03-132/134) • Connector check • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 60...
  • Page 62 Connector check (CN514, CN515) • Board check Drive unit, Rollers • Gear check • Roller check Replace parts Remarks Registration sensor Registration motor PFC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 61...
  • Page 63 1st drawer feed sensor Bypass feed sensor ADU exit sensor Registration sensor 1st drawer feed sensor 2nd drawer feed sensor ADU board LGC board Rollers e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 62...
  • Page 64 Connector check (CN516) • Board check Drive unit, Rollers • Gear check • Roller check Replace parts Remarks Registration sensor PFC board Rollers © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 63...
  • Page 65 After these codes are changed, perform solid duplex- printing and check that there is no faint or void image on the leading/trailing edge of the paper. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 64...
  • Page 66 03-[ALL]OFF/[9]/[D] clinging detection sensor 1st drawer transport sensor 03-[SCAN]ON/[1]/[D] Fuser Duplexing unit Fuser transport sensor 03-[ALL]OFF/[2]/[C] 03-[COPY]ON/[5]/[F] Reverse path sensor 03-[ALL]OFF/[1]/[C] 03-[SCAN]ON/[3]/[E] © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 65...
  • Page 67 Paper size detection is performed at the first sheet of paper when the drawer is opened or closed, or when the power of the equipment is turned ON. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 66...
  • Page 68 If the error still occurs, check the following. Power • Check if the error is cleared by turning the power OFF and then back ON. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 67...
  • Page 69 Connector check (CN319, CN320) • Harness check • Board check • Connector check • HDD check Replace parts Remarks SYS board IMG board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 68...
  • Page 70 Sensor in the jamming area • Sensor check (Refer to the table below) • Harness check • Connector check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 69...
  • Page 71 Lower paper exit sensor 03-[ALL]OFF/[4]/[C] 03-[COPY]ON/[5]/[G] Reverse section Reverse path Reverse section paper 03-[COPY]ON/[8]/[F] cover transport detection sensor Finisher Finisher door Sensors in the finisher e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 70...
  • Page 72 03-[SCAN]ON/[1]/[A] (equipment) cover 3rd drawer/tandem LCF 03-[SCAN]ON/[1]/[B] transport sensor 2nd drawer transport sensor 03-[SCAN]ON/[1]/[C] LCF side cover Option LCF feed sensor 03-[SCAN]ON/[5]/[E] © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 71...
  • Page 73 Lower paper exit sensor 03-[ALL]OFF/[4]/[C] 03-[COPY]ON/[5]/[G] Reverse section Reverse path Reverse section paper 03-[COPY]ON/[8]/[F] cover transport detection sensor Finisher Finisher door Sensors in the finisher e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 72...
  • Page 74 • Board check LGC board • Connector check (CN338) • Board check Replace parts Remarks ADU opening/closing switch ADU board LGC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 73...
  • Page 75 Measures Bridge unit • Close the bridge unit if it is opened. • Remove if there is any paper before closing it. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 74...
  • Page 76 Switch check (Perform the input check: 03-[COPYON]/[8]/[A]) • Connector check • Harness check LGC board • Connector check (CN331) • Board check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 75...
  • Page 77 Connector check • Harness check RADF board • Connector check (CN74) • Board check Drive unit, Rollers • Gear check • Roller check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 76...
  • Page 78 Connector check • Harness check RADF board • Connector check (CN75) • Board check Drive unit, Rollers • Gear check • Roller check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 77...
  • Page 79 If a jam still occurs, turn the power OFF and then back ON to check if the equipment operates normally. [E727] Jam not reaching the original reading end sensor Classification Error item RADF jam e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 78...
  • Page 80 RADF jam The trailing edge of the original does not pass the original exit/reverse sensor after its leading edge has reached this sensor. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 79...
  • Page 81 [E745] Jam not reaching the original exit reverse sensor Classification Error item RADF jam Check item Measures Intermediate transport roller • Cleaning e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 80...
  • Page 82 • Harness check Original width detection sensor-3 • Sensor check (Perform the input check: 03: [FAX]/ON/[5]/[D]) • Connector check • Harness check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 81...
  • Page 83 Harness check RADF board • Connector check (CN74) • Board check Replace parts Remarks Original exit reverse sensor RADF board Perform the 05-3210 e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 82...
  • Page 84 ADF time out jam Check item Measures RADF • Check if there is any paper in the RADF. Remove it if there © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 83...
  • Page 85 Board check Replace parts Remarks Bridge unit transport sensor-1 Bridge unit transport entrance motor Bridge unit transport exit motor LGC board DRV board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 84...
  • Page 86 • Harness check • Board check Replace parts Remarks Bridge unit transport sensor-2 LGC board Roller Transport roller of the bridge unit © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 85...
  • Page 87 Entrance sensor (S1) • Sensor check • Connector check • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 86...
  • Page 88 • Sensor check • Connector check • Harness check Paper position sensor (S6-2) • Sensor check • Connector check • Harness check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 87...
  • Page 89 Entrance motor (M1) • Motor check • Connector check • Harness check Finisher controller board • Connector check(CN6, CN26) • Board check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 88...
  • Page 90 Connector check • Harness check Finisher controller board • Connector check(CN26) • Board check Replace parts Remarks Entrance sensor (S1) Finisher controller board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 89...
  • Page 91 Error item Finisher jam The paper which has passed through the inlet sensor does (Finisher section) not reach the transport sensor. [MJ-1103/1104] e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 90...
  • Page 92 Sensor check • Connector check • Harness check Stationary tray opening/closing • Sensor check switch (SW2) • Connector check • Harness check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 91...
  • Page 93 Connector check • Harness check Finisher controller board • Connector check(CN7) • Board check Replace parts Remarks Entrance sensor (S1) Finisher controller board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 92...
  • Page 94 • Connector check(J10, J11) • Board check Replace parts Remarks Delivery cover sensor (PI3) Inlet cover sensor (PI9) Saddle stitcher controller board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 93...
  • Page 95 Remove it if there is. No. 1 paper sensor (PI18) • Sensor check • Connector check • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 94...
  • Page 96 • Board check Saddle stitcher controller board • Connector check(CN20) • Board check Finisher controller board • Connector check • Board check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 95...
  • Page 97 The printing has not finished normally because of an error occurring on the interface between the SYS board and the engine firmware at the end of printing. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 96...
  • Page 98 • Connector check • Board check LGC board • Connector check • Board check Replace parts Remarks Finisher controller board LGC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 97...
  • Page 99 Punch controller board • Connector check • Board check Replace parts Remarks Sideways adjustment motor (M2) Sideways deviation HP sensor (S3 Punch controller board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 98...
  • Page 100 Connector check • Board check Replace parts Remarks Front alignment plate home position sensor (S7) Front alignment motor (M9) Finisher controller board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 99...
  • Page 101 [ED16] Buffer tray home position error Classification Error item Finisher jam (Finisher section) The buffer tray is not at the home position. [MJ-1103/1104] e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 100...
  • Page 102 Buffer tray guide motor (M3) Saddle controller board [EF11] Saddle Stitch Finisher stapling error (front) Classification Error item Finisher jam (Saddle section) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 101...
  • Page 103 Is there any mechanical problem when the paper holding cam is rotated? Paper holding home position sensor • Sensor check (S38) • Connector check • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 102...
  • Page 104 Connector check (CN5) • Board check Replace parts Remarks Side alignment home position sensor (S36) Side alignment motor (M15) Saddle controller board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 103...
  • Page 105 Folding blade clutch (CLT3) Saddle controller board [EF18] Saddle Stitch Finisher additional folding roller home position detection abnormality Classification Error item Finisher jam (Saddle section) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 104...
  • Page 106 Stacker paper detection sensor (S30) • Sensor check • Connector check • Harness check Saddle controller board • Connector check (CN19) • Board check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 105...
  • Page 107 • Harness check Punch controller board • Connector check (CN19) • Board check Replace parts Remarks Skew sensor (S7-1/S7-2) Punch controller board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 106...
  • Page 108 • Sensor check • Connector check • Harness check Sideways adjustment motor (M2) • Motor check • Connector check • Harness check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 107...
  • Page 109 Skew sensor (S7-1/S7-2) Punch controller board [EF25] Hole Punch Unit paper leading edge detection abnormality Classification Error item Finisher jam (Saddle section) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 108...
  • Page 110 Connector check • Harness check Punch controller board • Connector check • Board check Replace parts Remarks Skew sensor (S7-1/S7-2) Punch controller board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 109...
  • Page 111 Connector check • Harness check Tray-up sensor • Sensor check (Perform the input check: 03-[COPY]ON/[9]/[F], /[9]/[E]) • Connector check • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 110...
  • Page 112 LCF) Check item Measures LCF end fence motor • Motor check (Perform the output check: 03-256) • Connector check • Harness check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 111...
  • Page 113 Connector check (CN503) • Harness check • Board check Replace parts Remarks Option LCF bottom sensor Option LCF top sensor LCF board PFC board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 112...
  • Page 114 2. Check if the harness is scratched or open circuited. Parts to be replaced Remark Lens unit SLG board Exposure lamp Supply harness © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 113...
  • Page 115 1. Check if the harness is properly connected to the sensor sensor 2. Check if the harness is caught or open circuited. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 114...
  • Page 116 1. Check if the fuse on the LVPS is open circuited. Parts to be replaced Remark SLG board Fuse Supply harness LVPS © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 115...
  • Page 117 4. Turn the power OFF and then back ON. Make sure that the equipment enters the normal ready state. Replace parts Remarks Thermopiles Fuser unit IH coil IH board LGC board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 116...
  • Page 118 The error occurred during printing: “24” or “25” • The error occurred during energy saving: “27” • A paper jam occurred: “29” © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 117...
  • Page 119 [C462] Pressure roller temperature detection (40 degrees C) abnormality (determined) [C464] Pressure roller thermistor temperature difference abnormality Classification Error item Fuser unit related service call e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 118...
  • Page 120 Pressure roller thermistor • Sensor check • Install check • Is the pressure roller rear thermistor contacted with the pressure roller surface securely? © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 119...
  • Page 121 Switch check • Install check Thermostat • Sensor check • Install check Fuser unit • Unit check • Connector check • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 120...
  • Page 122 “16” to “0”. Replace parts Remarks Power supply IH board [C480] IGBT high temperature abnormality Classification Error item Fuser unit related service call © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 121...
  • Page 123 Check if the power voltage is normal.(Is the voltage during the operation ±10% of the rated voltage?) • Connector check (CN403, CN409) IH board • Connector check • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 122...
  • Page 124 Connector check (CN404) • Harness check IH board • Connector check • Board check Replace parts Remarks Fuser unit LGC board Switching regulator © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 123...
  • Page 125 [C4E2] Fuser belt rotation detection sensor abnormality Classification Error item Fuser unit related service call The fuser belt does not rotate or does so incorrectly. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 124...
  • Page 126 Measures RADF board • Connector check (CN70, CN71) • Harness check • Board check SLG board • Connector check • Board check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 125...
  • Page 127 Check item Measures Finisher • Check if the specified finisher is attached. LGC board • Connector check • Board check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 126...
  • Page 128 Connector check • Harness check Finisher controller board • Connector check • Board check Replace parts Remarks LGC board Finisher controller board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 127...
  • Page 129 Check the version of the scanner ROM. • Connector check IMG board • Connector check Replace parts Remarks SYS board SLG board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 128...
  • Page 130 Harness check • Board check RADF read motor (MR2) • Motor check (Perform the output check: 03-283) • Connector check • Harness check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 129...
  • Page 131 RADF exit motor RADF board Replace the RADF board, and then perform the automatic adjustment for the original reading start sensor (05-3210). e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 130...
  • Page 132 SRAM board • Connector check • Board check LGC board • Connector check • Board check Replace parts Remarks SRAM board LGC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 131...
  • Page 133 Does service call still occur even after turning OFF the main power switch then back ON? SLG board • Connector check (CN12) • Board check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 132...
  • Page 134 [C963] Connection detection error between the IMG board and the LGC board Classification Error item Circuit related service call 3.3V output from the IMG board not detected on the LGC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 133...
  • Page 135 SYS board [F090] SRAM abnormality on the SYS board Classification Error item Circuit related service call SRAM abnormality on the SYS board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 134...
  • Page 136 SLG board. [F400] SYS board cooling fan abnormality Classification Error item Circuit related service call SYS board cooling fan abnormality © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 135...
  • Page 137 Replace parts Remarks Polygonal motor Laser unit cooling fan (front) Laser unit cooling fan (rear) LGC board Laser optical unit. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 136...
  • Page 138 • Check if the equipment is grounded. Replace parts Remarks Shutter motor Shutter sensor (home position) Shutter sensor (end position) LGC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 137...
  • Page 139 Even if the media sensor is in a faulty condition, any message notifying this will not be appear. Check the condition with the error history. Replace parts Remarks Media sensor (S69) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 138...
  • Page 140 The buffer tray guide motor is not rotating or the buffer tray guide is not moving normally. [MJ-1103/1104] You receive a [CB11] error when the [ED16] error occurs three times in succession. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 139...
  • Page 141 Motor check • Connector check • Harness check Finisher control board • Connector check (CN13) • Board check Replace parts Remarks Exit motor e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 140...
  • Page 142 [CB31] Movable tray paper-full detection error Classification Error item Finisher related service call The actuator of the movable tray paper-full detection sensor does not move smoothly. [MJ-1103/1104] © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 141...
  • Page 143 You receive a [CB50] error when the [EA50] error occurs three times in succession. Check item Measures Stapler • Connector check • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 142...
  • Page 144 Stapler unit shift motor (M4) • Motor check • Connector check • Harness check Finisher control board • Connector check (CN1, CN5) • Board check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 143...
  • Page 145 Measures Finisher control board • Update the firmware version of the finisher control PC board (FIN). • Connector check • Board check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 144...
  • Page 146 Check if the conductor pattern on the saddle controller PC board (SDL) is open circuited or short circuited. • Connector check • Board check Replace parts Remarks Saddle controller PC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 145...
  • Page 147 Saddle transport motor (M16) • Motor check • Connector check • Harness check Saddle control PC board (SDL) • Connector check (CN18) • Board check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 146...
  • Page 148 Saddle control PC board (SDL) • Connector check • Board check Replace parts Remarks Stitcher home position switch Stitcher motor Saddle control PC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 147...
  • Page 149 Board check Replace parts Remarks Paper folding motor clock sensor Paper folding home position sensor Paper folding motor Saddle control PC board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 148...
  • Page 150 -1 and -2 is not rotating normally. [MJ-1103/1104] You receive a [CC31] error when the [ED12] error occurs three times in succession. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 149...
  • Page 151 Motor check • Connector check • Harness check Sideways deviation home position • Sensor check sensor (S3) • Connector check • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 150...
  • Page 152 Punch motor clock sensor (PI62) • Sensor check • Connector check • Harness check Punch motor (M3) • Motor check • Connector check • Harness check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 151...
  • Page 153 6102] Abnormality of checksum value on Hole punch controller PC board is detected when the power is turned on. (CC72) [MJ- 6102] e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 152...
  • Page 154 Connector check • Harness check Finisher control PC board (FIN) • Connector check (CN6) • Board check Replace parts Remarks Paddle motor © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 153...
  • Page 155 Connector check (when MJ-6102 is installed) • Board check Replace parts Remarks Finisher control PC board Hole punch control PC board (when MJ-6102 is installed) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 154...
  • Page 156 Set the value to “0” (not performed automatically). Power OFF < Checking the abnormal status on image position alignment > [0] [5] Power ON [4720] [START] © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 155...
  • Page 157  K on the front side / C on the rear side / Y on the front side detection abnormality Press the [START] button After [1] is pressed, then press the [START] button. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 156...
  • Page 158 (03-117: Image position aligning sensor / LED Press the [START] button. Check how items [G] and [H] are displayed while [8] is pressed. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 157...
  • Page 159 If the image position aligning sensors on all sides are operating normally, proceed to step (30). In other cases, proceed to step (29). e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 158...
  • Page 160 Select “C”, “M”, “Y” or “K”, then press the [START] button. Press the [CLEAR] button after one sheet of test pattern has been exited. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 159...
  • Page 161 Is the image printed normally without white streaks in the secondary scanning direction? Check if the slit glass of the laser optical unit is stained. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 160...
  • Page 162 Check if any of the springs for supplying power to the transfer belt unit is deformed. Replace the spring if it is deformed. Replace parts Remarks © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 161...
  • Page 163 Correct it if needed. Proceed to step (9). (to step (5) for the second time) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 162...
  • Page 164 Set the values of “Image quality closed-loop control / Contrast voltage (08-2486)” and “Drum surface potential sensor control setting (08- 2561)” to “0” (Invalid). © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 163...
  • Page 165 Use “Image quality control abnormal detection counter Y to K display/0 clearing (08- 2528 to 2531)” to check the abnormal occurring condition for each color. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 164...
  • Page 166 Set the values of “Image quality closed-loop control / Contrast voltage (08-2486)” and “Image quality closed- loop control / Laser power (08-2561)” to “1” (Valid). © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 165...
  • Page 167 [CE41] Image quality TRC control test pattern abnormality Classification Error item Image control related service call The image quality TRC control test pattern is not printed normally. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 166...
  • Page 168 3. Return both values of the codes 08-2600 and 08-8103 to 1. Then proceed to step 3. If it is the second time, proceed to step 4. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING...
  • Page 169 [CE42] Image quality TRC control test pattern abnormality (EFI printer board) Classification Error item Image control related service call Image quality TRC control test pattern is not printed normally. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 168...
  • Page 170 The output value of the drum thermistor-K is out of a specified range. (CE90) Check item Measures EPU tray (process unit) • Connection check (05-2788) • Connector check(CN551, CN553, CN556) • Harness check © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 169...
  • Page 171 Drum (Y, M, C, K) • Drum check (Check if the aluminum section of the drum flange is worn out.) Replace parts Remarks Drum motor (K) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 170...
  • Page 172 K drum phase sensor Color drum phase sensor LGC board Cleaning blade (Y, M, C, K) Needle electrode Drum (Y, M, C, K) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 171...
  • Page 173 (Perform the output check: 03-115) • Connector check • Driving section check (Is there any abnormality on the rotation?) • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 172...
  • Page 174 Check if the contact section between the gear and the shaft is worn out. Replace parts Remarks Developer unit motor-K LGC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 173...
  • Page 175 Check if the needle electrode cleaner detection sensors (S30 - S33) are coming off of the plate of the EPU tray. • Connector check • Harness check e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 174...
  • Page 176 LGC board [C380] Auto-toner sensor (K) abnormality (upper limit) [C381] Auto-toner sensor (K) abnormality (lower limit) [C382] Auto-toner sensor (K) connection error © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 175...
  • Page 177 Connector check (CN551) • Board check LGC board • Connector check (CN308) • Board check Replace parts Remarks EPU board LGC board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 176...
  • Page 178 • Board check LGC board • Connector check (CN308) • Board check Replace parts Remarks Sub-hopper toner sensor-K/-C/-M/-Y EPU board LGC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 177...
  • Page 179 • Board check LGC board • Connector check (CN308) • Board check Replace parts Remarks Sub-hopper toner motor-K/-C/-M/-Y EPU board LGC board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 178...
  • Page 180 [CD80] Waste toner motor locking error Classification Error item Process related service call The auger (TRU side) in the TRU waste toner transport path does not rotate. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 179...
  • Page 181 TRU waste toner box • Check if the TRU waste toner box is full of used toner. Replace it, if it is full. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 180...
  • Page 182 Check that the cam is not damaged. Replace parts Remarks 2nd transfer roller position detection sensor 2nd transfer cam motor LGC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 181...
  • Page 183 08-4664: 0, 1 or 2 to 3 Resetting incorrect cam position error count Replace parts Remarks Actuator in the TRU Sensors in the TRU e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 182...
  • Page 184 Replace the SRAM board (for the SYS board).  P. 9-35"9.2.6 Precautions and Procedures when replacing SRAM board (for SYS board)" (all steps) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 183...
  • Page 185 Procedures when replacing the SYS board”. [E] Restore ADI key (only when ADI-HDD is installed) [F] Restore encryption key [G]Restore license * AccessFailed, KeyNull or KeyBroken e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 184...
  • Page 186 5. If the error persists even after step 4, replace the SATA harness. 6. If the error persists even after step 5, replace the SYS board. Replacement part Measure SATA harness SYS board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 185...
  • Page 187 7. If the error persists even after step 6, replace the SATA harness. 8. If the error persists even after step 7, replace the SYS board. Replacement part Measure SATA harness SYS board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 186...
  • Page 188 7. If the error persists even after step 6, replace the SATA harness. 8. If the error persists even after step 7, replace the SYS board. Replacement part Measure SATA harness SYS board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 187...
  • Page 189 7. If the error persists even after step 6, replace the SATA harness. 8. If the error persists even after step 7, replace the SYS board. Replacement part Measure SATA harness SYS board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 188...
  • Page 190 7. If the error persists even after step 6, replace the SATA harness. 8. If the error persists even after step 7, replace the SYS board. Replacement part Measure SATA harness SYS board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 189...
  • Page 191 7. If the error persists even after step 6, replace the SATA harness. 8. If the error persists even after step 7, replace the SYS board. Replacement part Measure SATA harness SYS board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 190...
  • Page 192 7. If the error persists even after step 6, replace the SATA harness. 8. If the error persists even after step 7, replace the SYS board. Replacement part Measure SATA harness SYS board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 191...
  • Page 193 Perform the bad sector check (08-9072). If the check result is OK, recover the data in the HDD. If the check result fails, replace the HDD. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 192...
  • Page 194 • In case both of the SRAM ADIKey and FROM ADIKey status are other than OK Reinstall the master data (HD Data). © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 193...
  • Page 195 F106_0 to 5 errors Classification Error item Other service call ADI-HDD error: Error caused by reason other than F106_0 to 5 errors e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 194...
  • Page 196 If it cannot be recovered, reinstall the software in the following procedure. Install the OS data. Reinstall the master data and application program. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 195...
  • Page 197 If it cannot be recovered, reinstall the software in the following procedure. Install the OS data. Reinstall the master data and application program. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 196...
  • Page 198 Recover the encryption key on the SRAM board. KeyBroken  P. 9-35"9.2.6 Precautions and Procedures when replacing SRAM board (for SYS board)" (for the SYS board, [H]Backup encryption key) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 197...
  • Page 199 [G]Restore license AccessFailed Replace the SYS board.  P. 9-35"9.2.6 Precautions and Procedures when replacing SRAM board (for SYS board)" (all steps) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 198...
  • Page 200 Recover the ADI key on the SYS board. KeyBroken  P. 9-30"9.2.4 Precautions and Procedures when replacing the SYS board" ([E]Restore ADI key) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 199...
  • Page 201 SYS-FROM to SYS-SRAM.)  P. 9-35"9.2.6 Precautions and Procedures when replacing SRAM board (for SYS board)"([G]Backup ADI key) * AccessFailed or KeyMismatch e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 200...
  • Page 202 Recover the encryption key on the SRAM board. KeyBroken  P. 9-35"9.2.6 Precautions and Procedures when replacing SRAM board (for SYS board)" ([G]Backup ADI key) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 201...
  • Page 203 SYS-FROM to SYS-SRAM.)  P. 9-35"9.2.6 Precautions and Procedures when replacing SRAM board (for SYS board)"([G]Backup ADI key) * AccessFailed or KeyMismatch e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 202...
  • Page 204 If you back up the data in advance, they will be recovered by restoring them after rebuilding the database. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 203...
  • Page 205 Error item Other service call The filtering function is not working properly due to the damage to the file for the filtering setting. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 204...
  • Page 206 When the function of the Data Overwrite option (GP- 1070) is deleted from the equipment, the service call “F200” occurs Replace parts Remarks SYS board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 205...
  • Page 207  3, and then reinstall the HDD software. Notes: User data will be deleted when [3] + [C] + [POWER]  3 is performed. Replace parts Remarks e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 206...
  • Page 208 1. Perform [3] + [C] + [POWER] -> [1] -> [START] for “Clear Error Flag in Software Installation”. 2. Reinstall the firmware in error displayed on the F600 error screen. Replace parts Remarks © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 207...
  • Page 209 3. Press the [START] button on the confirmation screen displayed. (The date is set to January 1st, 2011.) 4. Request the administrator to set the date and time. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 208...
  • Page 210 7. Key in [2] to select “2. Key FROM to SRAM”, and then press the [START] button. 8. After the operation is completed, shut down the equipment by pressing the [ON/OFF] button. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 209...
  • Page 211 ON, and perform the job again. Replace parts Remarks [1C12] Message reception error [1C13] Message transmission error Classification Error item Internet FAX related error e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 210...
  • Page 212 Check if the access privilege to the storage directory is writable. • Check if the server or local disk has a sufficient space in disk capacity. Replace parts Remarks © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 211...
  • Page 213 Reset the data in the Address Book and perform the job again. Replace parts Remarks [1C63] Terminal IP address unset Classification Error item Internet FAX related error e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 212...
  • Page 214 Error item Internet FAX related error Check item Measures Setting • Check if the SMTP server is operating properly. Replace parts Remarks © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 213...
  • Page 215 Delete the illegal character and reset the appropriate Destination mail address, then perform the job again. Replace parts Remarks [1C6D] System error Classification Error item Internet FAX related error e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 214...
  • Page 216 Setting • Check that both the POP Before SMTP setting and POP3 setting are correct, then perform authentication again. Replace parts Remarks © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 215...
  • Page 217 Turn the power OFF and then back ON. Perform the job in error again. • If the error still occurs, replace the SYS board. Replace parts Remarks e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 216...
  • Page 218 [2B20] File library function error [2B30] Insufficient disk space in BOX partition [2BC0] Fatal failure occurred Classification Error item Electronic Filing related error © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 217...
  • Page 219 Check that there is no other job in progress, and initialize the Electronic Filing with [5] + [C] + [POWER]. Replace parts Remarks e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 218...
  • Page 220 Check item Measures Setting • The specified paper size, color mode or resolution cannot be used. Check the setting. Replace parts Remarks © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 219...
  • Page 221 Electronic Filing related error Check item Measures Setting • Backup the documents in the box or folder to PC or delete them. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 220...
  • Page 222 TopAccess screen. If it is disabled, enable it. Replace parts Remarks [2A40] System error Classification Error item Remote scanning related error © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 221...
  • Page 223 A job is performed by a user without Remote Scan privilege. Check item Measures Setting Check if correct privilege is given to the user. Replace parts Remarks e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 222...
  • Page 224 If the error still occurs, check that there is no job, and format the HDD with [5] + [C] + [POWER]. Replace parts Remarks [2C11] Insufficient memory Classification Error item E-mail related error © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 223...
  • Page 225 Reset and extend the “Maximum send to E-mail/iFAX size” or reduce the number of pages and perform the job again. Replace parts Remarks e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 224...
  • Page 226 Turn the power OFF and then back ON. Perform the job in error again. • Replace the main memory and perform the job again. Replace parts Remarks Main memory © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 225...
  • Page 227 Replace parts Remarks [2C60] HDD full failure during processing Classification Error item E-mail related error e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 226...
  • Page 228 Setting • Reset the Terminal mail address. • Turn the power OFF and then back ON. Perform the job in error again. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 227...
  • Page 229 Check if the SMTP server is operating properly. Replace parts Remarks [2C6A] HOST NAME error (No RFC error) Classification Error item E-mail related error e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 228...
  • Page 230 [2C70] SMTP client OFF Classification Error item E-mail related error Check item Measures Setting • Set the SMTP valid and perform the job again. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 229...
  • Page 231 Classification Error item E-mail related error Check item Measures Setting • Reset the setting of the mail box or “Received InternetFax Forward”. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 230...
  • Page 232 • If the error still occurs, turn the power OFF and then back ON, and perform the job again. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 231...
  • Page 233 Replace parts Remarks [2D30] Directory creation failure [2D31] File creation failure [2D33] File access failure Classification Error item File sharing related error e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 232...
  • Page 234 Reset the encryption and perform the job in error again. • If an image file not encrypted is created, consult your administrators. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 233...
  • Page 235 If the path is correct, turn the power OFF and then back ON, and perform the job again. Replace parts Remarks [2D64] Login failure Classification Error item File sharing related error e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 234...
  • Page 236 Error item File sharing related error Check item Measures Setting • Check if the setting of FTP service is valid. Replace parts Remarks © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 235...
  • Page 237 If the error still occurs, check that there is no job, and format the HDD with [5] + [C] + [POWER]. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 236...
  • Page 238 Replace parts Remarks [2E15] Exceeding maximum file capacity Classification Error item File sharing related error There are too many files in the folder. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 237...
  • Page 239 If the error still occurs, check that there is no job, and format the HDD with [5] + [C] + [POWER]. Replace parts Remarks e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 238...
  • Page 240 Measures Setting Reset the encryption and perform the job in error again. To create an image file not encrypted, consult your administrator. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 239...
  • Page 241 Check that there is enough space in the USB memory. Replace parts Remarks [2EC1] Power failure in USB storage Classification Error item File sharing related error Power failure occurred. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 240...
  • Page 242 The partial mail is not received in a specified period of time. • Request the sender to retransmit the partial mail, or set the time-out period of the partial mail longer. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 241...
  • Page 243 OFF during the partial mail reception. • Reset the partial mail reception setting ON and then request the sender to retransmit the mail. Replace parts Remarks e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 242...
  • Page 244 • Request the sender to retransmit the mail. Replace parts Remarks [3C20] TIFF compression error Classification Error item E-mail reception related error © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 243...
  • Page 245 These errors occur when the FAX number of the offramp destination is incorrect. • Request the sender to correct the FAX number of offramp destination and then retransmit the mail. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 244...
  • Page 246 Correct if any of the setting is incorrect. • When the content of the setting is correct, confirm the sender if the destination is correct. Replace parts Remarks © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 245...
  • Page 247 Measures Setting • Check if POP3 server to be connected is operating properly. • Check if the LAN cable is correctly connected. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 246...
  • Page 248 • Request the sender to retransmit the mail. • Replace the HDD if the error still occurs after retransmission. Replace parts Remarks © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 247...
  • Page 249 [4042] Department authentication error Classification Error item Printer function error Check item Measures Setting • Check department information registered in this equipment. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 248...
  • Page 250 0. Assign the number of the pages again or perform initialization. [4121]Job canceling due to external counter error Classification Error item Printer function error © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 249...
  • Page 251 Printer function error Check item Measures Setting • Check the settings of this equipment. [4221] Private-print-only error Classification Error item Printer function error e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 250...
  • Page 252 Check the privilege given, or request the administrator to add the necessary privilege. [4411] Image data creation failure) Classification Error item Printer function error © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 251...
  • Page 253 Printer function error Check item Measures Setting • Check if the font to be deleted is registered (or pre- registered) in this equipment. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 252...
  • Page 254 2. Collect the debug log with USB media. P. 8-2 3. Initialize HDD. Refer to step 3 and later in "[E] Replace / Format HDD" in P. 9-25. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 253...
  • Page 255 Error item Communication error with external There is no SSL certificate or the certificate is not in a correct application file format. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 254...
  • Page 256 SSL certificate is expired. application Check item Measures Setting Set the correct time. Replace parts Remarks [5017] TOSHIBA Remote monitoring system error (Other SSL certificate related error) Classification Error item Communication error with external SSL certificate is invalid. application Check item Measures Setting Install the correct SSL certificate.
  • Page 257 Set the correct IP address or port for the proxy setting. If any setting is needed in proxy, consult your administrators. Replace parts Remarks [501B] TOSHIBA Remote monitoring system error (No URL (host/port) or invalid path) Classification Error item Communication error with external Initial URL is invalid.
  • Page 258 Reattempt the restoration of the database (Address Book, templates, F-code (Mailbox) or user information). Replace parts Remarks [5C10] FAX Unit attachment error Classification Error item TopAccess related error © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 257...
  • Page 259 Book, department or user information) is incorrect or damaged. Check if the file is incorrect or damaged, and then reattempt the import. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 258...
  • Page 260 Address Book are deleted. If you back up the data in advance, they will be recovered by restoring them after rebuilding the database. Replace parts Remarks © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 259...
  • Page 261 08- 8788 passes or the power of the equipment is turned OFF and back ON. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 260...
  • Page 262 The self-diagnostic code required for card authentication is not set in this equipment correctly. Check item Measures MFP access error Set the correct self-diagnostic code. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 261...
  • Page 263 Check that the path to the time server is properly operating. • Check that the following is correctly set: TopAccess -> [Administrator] -> [Setup] -> [General] -> [SNTP Service] e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 262...
  • Page 264 Setting Point and Print data may have a problem or may be corrupted. Check the package file and then reattempt the upload. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 263...
  • Page 265 [71AA] Unidentified error during certificate acquisition from SCEP server Classification Error item Maintenance error Unidentified error occurred during certificate acquisition from SCEP server. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 264...
  • Page 266 Error item Network error IPv4 address overlaps. Check item Measures Setting Check if the same IP address is not used by other machine. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 265...
  • Page 267 Check the user credential. [8023] Can not contact Authentication Server/Switch Classification Error item Network error Failed in connection to authentication server and switch. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 266...
  • Page 268 Mismatch in IKEv1 Pre Shared Key. Check the PSK in MFP and remote machine. [8034] IKEv1 invalid certificate Classification Error item Network error Ipsec error if invalid certificate uploaded © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 267...
  • Page 269 1. CA and user certificate in both MFP and remote peer - certificate timestamp and IPsec Certificatetem. [8039] IKEv1 invalid signature Classification Error item Network error Ipsec error for invalid signaturer for certificate e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 268...
  • Page 270 Ipsec error if peer dosent support IKEv2 and falling back to IKEv1 Check item Measures Setting Remote machine is not supporting IKEv2. Going back to use IKEv1. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 269...
  • Page 271 Ipsec error if auth method is not matching Check item Measures Setting Mismatch in IKE authentication type. Check the Authentication type in MFP and peer. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 270...
  • Page 272 Check the user certificate in MFP [8048] IPsec Remote ID mismatch Classification Error item Network error Ipsec error for remote id mismatch © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 271...
  • Page 273 Ipsec error id manual key is not valid Check item Measures Setting Check the Inbound and Outbound (ESP Encryption/ Authentication and AH Authentication) keys in MFP and Remote PC. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 272...
  • Page 274 MFP not able to contact the Access point with the specified SSID Check item Measures Setting Verify the access point name setting and mechanism used for association same as Access Point setting. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 273...
  • Page 275 Check if the user name and the password for this equipment are correct. Specify upper- and lower-case characters correctly when you enter them. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 274...
  • Page 276 Check item Measures Setting Check the logon hour setting for the user account noted in the Active Directory Users and Computers window. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 275...
  • Page 277 Check if the realm name of this equipment for the Active Directory server is correct. If the error still occurs, ask your Windows Server administrator. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 276...
  • Page 278 Check that 08-2561 (Drum surface potential control setting) is set to “2”. Notes: For e-STUDIO5540C/6540C and e-STUDIO5560C/6560C in which no VO sensor is installed, “0” is set for 08-2561. [ 2 ] Check for abnormal contents (V0 sensor controlling / V0 sensor shutter closing) and abnormal stations.
  • Page 279 Replace the shutter and then perform “4. Image quality closed-loop control (05-2742) / check the controlling status” (described later). When an adjustment error occurs e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 278...
  • Page 280 <Example> The opened drum surface potential sensor shutter cannot be closed. Repeat 2-1 above (sensor shutter not opened) and then perform “4. Image quality closed-loop control (05-2742) / check the controlling status” (described later). © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING...
  • Page 281 If the “Image quality closed-loop control (05-2742)” is performed while “0: Disabled” is selected for 08-2561 (Drum surface potential control setting), drum surface potential control measurement will not be performed. However, if the image quality control is completed normally, the screen returns to the test mode. (e-STUDIO5540C/6540C/6550C, e- STUDIO5560C/6560C/6570C) •...
  • Page 282 [ 1 ] If any abnormality in V0 sensor control is detected, the controlling status and the “ERROR” message shown below are displayed approx. 30 to 60 seconds after “Automatic image quality control initialization (05-2742)” is performed. Then © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING...
  • Page 283 Connector between the drum surface potential sensor and the V0S board Connector between the drum shutter solenoid and the EPU board Connectors CN308 and CN310 of the LGC board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 282...
  • Page 284 Replace the solenoid and then perform “4. Image quality control initialization (05-2742) and checking controlling status” (described later). When an adjustment error occurs © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 283...
  • Page 285 The connection state and settings of the Wireless LAN can be checked with [USER FUNCTIONS] [ADMIN] [WIRELESS LAN] [SETTING CHECK]. Confirm the settings with the administrator. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 284...
  • Page 286 1070, optional) is installed. 3. When you reinstall the Data Overwrite Enabler (GP-1070, optional), follow the designated reinstallation procedure (the same procedure as that of board replacement) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING...
  • Page 287 2. Check that the edges of the simplex/duplex printed sheets are located within the allowable range of the scale (B). 3. If they are not, adjust the position according to the following procedure. ((A): recommended range) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 286...
  • Page 288 After the above adjustment, install the finisher according to the Unpacking Instructions. When installing MJ-1103/1104, be sure to make the height adjustment in *29 to *30 in the Unpacking Instructions. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING...
  • Page 289 2. Check if there are any abnormalities in the following parts. Temperature/humidity sensor Fuser belt thermopile Pressure roller thermistor (center/rear) IH coil IH board LGC board e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 288...
  • Page 290 Fuse check (F210) LGC board • Board check • Connector check (CN301, CN302) • Harness check Replace parts Remarks Switching regulator LGC board © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 289...
  • Page 291 © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 290...
  • Page 292 - Reinstall the laser optical unit. - Or, replace the laser optical unit © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 291...
  • Page 293 Fuser belt Check if the fuser belt is Replace the fuser belt. scratched or deformed.) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 292...
  • Page 294 135mm pitch in cyan and optical unit cooling fan magenta (front) is installed properly. Replace the fan if there is an abnormality. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 293...
  • Page 295 Remove the foreign matter, there adhesion of foreign or replace the transfer belt matter on the transfer belt cleaning facing roller. cleaning facing rollers? e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 294...
  • Page 296 Parameter Check the image processing Adjust the color balance (color). adjustment parameters. Adjust the image density. value © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 295...
  • Page 297 If the trouble is not solved at the step 1 and the step 2 or followings (excluding the parameter adjustment) are performed, make sure to perform “Image quality closed-loop control” and then “Automatic gamma adjustment” after taking a measure. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 296...
  • Page 298 Color: using 04-231 for each defects color occur. Black: using 04-113 Scanner Check if the original glass, Clean it. mirrors or lens is dirty. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 297...
  • Page 299 If the trouble is not solved at the step 2 and the step 3 or followings (excluding the parameter adjustment) are performed, make sure to perform “Image quality closed-loop control” and then “Automatic gamma adjustment” after taking a measure. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 298...
  • Page 300 Remarks Density Check the gradation Perform the forced reproduction reproduction. performing of image quality closed-loop control (05-2742) and then automatic gamma adjustment. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 299...
  • Page 301 If the trouble is not solved at the step 1 and the step 2 or followings (excluding the parameter adjustment) are performed, make sure to perform “Image quality closed-loop control” and then “Automatic gamma adjustment” after taking a measure. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 300...
  • Page 302 Density Is the density too high? Perform the forced performing of image quality closed-loop control (05-2742) and then automatic gamma adjustment. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 301...
  • Page 303 When defects output image. check them. occur, Color: perform the using 04-231 for each color correspondin Black: using 04-113 troubleshootin g procedures. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 302...
  • Page 304 Check if the main charger grid is Replace the main charger grid. corroded, or rusted, or there is any fouling on the grid. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 303...
  • Page 305 Is the paper type corresponding to its Use the proper type of paper or select mode? the proper mode. Using the recommended paper? Use the recommended paper. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 304...
  • Page 306 Check that the drum shaft is inserted. Check the drum drive system. Is the drum grounded? Check the contact of the grounding plate. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 305...
  • Page 307 Laser optical Was the protection seal of slit Remove the protection seal. unit removed when replacing the unit? e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 306...
  • Page 308 Is the scanner or the drum bedewed? Clean the mirrors, lens and drum. scanner and Keep the power cord plugged so that drum the damp heater can work. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 307...
  • Page 309 Scrape off foreign matter and developer material on the developer sleeve.  P. 7-26"7.6.7 Developer unit (K, Y, M, and C)" e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 308...
  • Page 310 Transport path Does the toner image touch foreign Remove foreign matter. matter after transfer, before entering the fuser unit? © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 309...
  • Page 311 Is there any abnormalities on the sleeve surface? Is the connection of developer bias Correct it. supply terminal normal? e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 310...
  • Page 312 (main charger If the high-voltage transformer does needle not work, replace it. electrode/grid, 1st/2nd transfer roller and developer bias) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 311...
  • Page 313 Is the RADF installed and adjusted Reinstall and readjust it. properly? Transfer unit Is the transfer belt unit installed Correct it. properly? e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 312...
  • Page 314 Is there any foreign matter on the Clean or replace the drum cleaning drum cleaning blade edge? blade. Is toner recovery defective? Clean the toner recovery auger section. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 313...
  • Page 315 Back side, black mode Decrease the value of the code 05-2937-0 to -9 by 1 while you are checking how the streaks have changed. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 314...
  • Page 316 Clean the roller area or replace the roller normally? roller. Scanner Is there foreign matter on the carriage Remove foreign matter. rail? © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 315...
  • Page 317 Is there foreign matter on the transfer Clean the 2nd transfer facing roller belt or 2nd transfer facing roller? and the transfer belt. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 316...
  • Page 318 Paper Is the paper type corresponding to its Use the proper type of paper or select mode? the proper mode. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 317...
  • Page 319 Check the circuit and adjust the transformer defective? transformer output. (1st/2nd Are the high-voltage harness and Correct them if loosened. transfer roller terminals in proper contact? bias) e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 318...
  • Page 320 “1” to “0” for 08-4663.), and check if the transfer failure is cleared. If it still persists, perform step 12 again. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 319...
  • Page 321 Discharge LED 8 Is the Discharge LED dirty? Clean it. Has any LED of Discharge LED gone Replace it. out? e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 320...
  • Page 322 Is the RADF open? a. Close the RADF. section b. Is the original glass, mirrors, or b. Clean them. lens dirty? © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 321...
  • Page 323 8.5.20 Uneven image density 2 Fig.8-27 Fig.8-28 e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 322...
  • Page 324 Does uneven image density occur Adjust the doctor-sleeve gap close to again? the upper limit value of the adjustment standard.See “6.4.3 Adjustment of the doctor-sleeve gap”. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 323...
  • Page 325 Clean the transfer belt and the 1st roller dirty? transfers roller. Is the 2nd transfer roller reached its Replace the 2nd transfer roller. PM life? e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 324...
  • Page 326 “1” to “0” for 08-4663.), and check if the transfer failure is cleared. If it still persists, perform step 16 again. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 325...
  • Page 327 Is the roller surface dirty? Clean the roller surface with alcohol or replace it. Registration Is the registration guide improperly Reinstall the guide. guide installed? e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 326...
  • Page 328 Is the drum drive system Check the drum drive system. system malfunctioning? Clean or replace the belts, pulleys, bushings if they have dirt or scratches. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 327...
  • Page 329 Replace the driving gear if it is worn out. Remove any developer material from the driving gear, and then reapply grease. e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 328...
  • Page 330 Is the temperature of fuser belt Check/correct the setting value of proper? fuser belt temperature. Clean or replace the thermopiles. Check and correct the circuit. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 329...
  • Page 331 Remove the foreign material. foreign material adhering to the doctor blade area of the developer unit or the charger case of the main charger? e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 330...
  • Page 332 High-voltage Is the high-voltage transformer output Adjust the output. Replace the transformer abnormal? transformer, if necessary. (1st/2nd transfer roller bias) © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 331...
  • Page 333 Stain on the paper back side Printing side of 1st page The edge of image cut off. Back side of 2nd page Fig.8-35 e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 332...
  • Page 334 Replace the 2nd transfer roller or the transfer roller cleaning blade 2nd transfer roller cleaning blade. reached the end of its PM life? © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 333...
  • Page 335 (08-2179-0 operation at print end (08-2179-0 to to 2) “0” (Invalid)? 2) to “0” (Invalid). e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 334...
  • Page 336 2nd transfer unit Are the plastic part and the sensor Install them correctly. area bracket in the 2nd transfer rear guide installed properly? © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 335...
  • Page 337 If the paper wrinkle still appears, proceed to NO. 1. Adjust the inlet guide of the fuser unit and check if the paper wrinkle disappears. (Fig. 5-28) Fig.8-37 e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 336...
  • Page 338 * Decrease the corresponding 1st transfer bias output as follows according to the phenomena which occurred, and check if the residual image has changed and adjust the value accordingly. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C...
  • Page 339 If the model is the e-STUDIO6550C, decrease the value of the code 05-2905-12 by 1 while you are checking how the residual image has changed. If the model is the e-STUDIO5540C or 6540C, decrease the value of the code 05-2905-5 by 1 while you are checking how the residual image has changed.
  • Page 340 (rear side) Most of the surface of the mixer shaft is exposed. Lack of developer material layer Developer material Fig.8-40 Fig.8-41 © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 339...
  • Page 341 If the plate is adjusted to the end, turn it counterclockwise by the amount equivalent to 1 scale. (Do not turn it more than 1 scale.) Fig.8-42 e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 340...
  • Page 342 The amount of the developer material is proper (rear side) (rear side) Developer material Developer material Fig.8-44 Fig.8-45 2) Investigating cause / taking measures © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 341...
  • Page 343 Never turn the coupling in the opposite direction because the scraper will be damaged. Coupling Scraper (for Developer sleeve) Hole Coupling (for Mixer) Fig.8-46 e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 342...
  • Page 344 Measures Fuser unit Is the satellite roller for e- Install the heat pipe roller. STUDIO5520C/6520C/6530C installed instead of the heat pipe roller? © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 343...
  • Page 345 Image tilting on the leading edge can be adjusted in the range of 1 mm or less by adjusting the bracket of the TBU. (Note that the improvement volume may decrease depending on the equipment.) Lower Upper Bracket Fig.8-49 e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 344...
  • Page 346 Install the transfer belt unit. Confirm that there is no image tilting with the grid pattern. © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C ERROR CODE and TROUBLESHOOTING 8 - 345...
  • Page 347 © 2011 - 2014 TOSHIBA TEC CORPORATION All rights reserved ERROR CODE and TROUBLESHOOTING 8 - 346...
  • Page 348 SYS When color deviation is found in gradation reproduction, t mode Processing gamma the gradation reproduction of 4 colors can be corrected adjustment with the automatic gamma adjustment. The result of the correction above will be applied for each media type. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 349 The result of the correction above will be applied for each media type. Adjustmen Image Maximum PPC(color) 7889 0-10 SYS The larger the value, the darker the text becomes. t mode Processing text density adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 350 Adjustmen Image Maximum PPC(color) 7907 Thick paper3 0-255 SYS The smaller the value, the less toner is adhered to the t mode Processing toner high-density section of the image. density adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 351 SYS The larger the value, the larger the maximum amount of t mode Processing toner toner to be adhered becomes. density The smaller the value, the smaller the maximum threshold amount of toner to be adhered becomes. setting e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 352 SYS The larger the value, the larger the maximum amount of t mode Processing toner toner to be adhered becomes. density The smaller the value, the smaller the maximum threshold amount of toner to be adhered becomes. setting e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 353 Adjustmen Image Gamma PPC(auto color & Text 7958 High density 0-255 SYS The larger the value, the darker the image of the area t mode Processing balance black) surrounding the target area becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 354 Processing balance as the value increases. adjustment Adjustmen Image Color PPC(color) "Y" Printed image 7962 Medium density 0-255 SYS The target color, mode and density area become darker t mode Processing balance as the value increases. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 355 Processing balance as the value increases. adjustment Adjustmen Image Color PPC(color) "M" Text 7966 Low density 0-255 SYS The target color, mode and density area become darker t mode Processing balance as the value increases. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 356 SYS The target color, mode and density area become darker t mode Processing balance as the value increases. adjustment Adjustmen Image Color PPC(color) "M" 7969 High density 0-255 SYS The target color, mode and density area become darker t mode Processing balance as the value increases. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 357 Adjustmen Image Color PPC(color) "C" Photo (developing 7973 Medium density 0-255 SYS The target color, mode and density area become darker t mode Processing balance paper) as the value increases. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 358 Processing balance as the value increases. adjustment Adjustmen Image Color PPC(color) "K" Printed image 7977 Low density 0-255 SYS The target color, mode and density area become darker t mode Processing balance as the value increases. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 359 Processing balance as the value increases. adjustment Adjustmen Image Color PPC(color) "Y" User custom 7980 High density 0-255 SYS The target color, mode and density area become darker t mode Processing balance as the value increases. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 360 SYS When color deviation is found in gradation reproduction, t mode Processing gamma the gradation reproduction of 4 colors can be corrected adjustment with the automatic gamma adjustment. The result of the correction above will be applied for each media type. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 361 SYS When color deviation is found in gradation reproduction, t mode Processing gamma the gradation reproduction of 4 colors can be corrected adjustment with the automatic gamma adjustment. The result of the correction above will be applied for each media type. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 362 SYS When color deviation is found in gradation reproduction, t mode Processing gamma the gradation reproduction of 4 colors can be corrected adjustment with the automatic gamma adjustment. The result of the correction above will be applied for each media type. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 363 SYS When color deviation is found in gradation reproduction, t mode Processing gamma the gradation reproduction of 4 colors can be corrected adjustment with the automatic gamma adjustment. The result of the correction above will be applied to all media types. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 364 The smaller the value, the lighter the background Adjustmen Image Backgroun PRT(color) Detail/Twin 8014 0-255 SYS The larger the value, the darker the background t mode Processing color/600dpi becomes. adjustment The smaller the value, the lighter the background e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 365 Processing balance color printing becomes. adjustment Adjustmen Image Color PRT(color) "M" for two PS/Smooth/600dpi 8027 Medium density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance color printing becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 366 Processing balance color printing becomes. adjustment Adjustmen Image Color PRT(color) "M" for two PS/Detail/600dpi 8031 Low density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance color printing becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 367 Processing balance color printing becomes. adjustment Adjustmen Image Color PRT(color) "Y" for two PCL/Smooth/600dpi 8034 High density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance color printing becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 368 Processing balance color printing becomes. adjustment Adjustmen Image Color PRT(color) "Y" for two PCL/Detail/600dpi 8038 Medium density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance color printing becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 369 SYS The larger the value, the darker only the target color t mode Processing balance color printing becomes. adjustment Adjustmen Image Color PRT(color) "Y" XPS/Smooth/600dpi 8042 Low density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 370 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment Adjustmen Image Color PRT(color) "K" XPS/Smooth/600dpi 8045 High density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 371 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment Adjustmen Image Color PRT(color) "K" XPS/Detail/600dpi 8049 Medium density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 372 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment Adjustmen Image Color PRT(color) "K" PS/Smooth/600dpi 8053 Low density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 373 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment Adjustmen Image Color PRT(color) "C" PS/Detail/600dpi 8056 High density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 374 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment Adjustmen Image Color PRT(color) "C" PCL/Smooth/600dpi 8060 Medium density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 375 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment Adjustmen Image Color PRT(color) "C" PCL/Detail/600dpi 8064 Low density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 376 SYS The larger the value, the larger the maximum amount of t mode Processing toner toner to be adhered becomes. density The smaller the value, the smaller the maximum threshold amount of toner to be adhered becomes. adj. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 377 SYS The larger the value, the larger the maximum amount of t mode Processing toner toner to be adhered becomes. density The smaller the value, the smaller the maximum threshold amount of toner to be adhered becomes. adj. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 378 SYS The larger the value, the larger the maximum amount of t mode Processing toner toner to be adhered becomes. density The smaller the value, the smaller the maximum threshold amount of toner to be adhered becomes. adj. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 379 SYS The larger the value, the larger the maximum amount of t mode Processing toner toner to be adhered becomes. density The smaller the value, the smaller the maximum threshold amount of toner to be adhered becomes. adj. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 380 SYS The larger the value, the larger the maximum amount of t mode Processing toner toner to be adhered becomes. density The smaller the value, the smaller the maximum threshold amount of toner to be adhered becomes. adj. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 381 SYS The larger the value, the larger the maximum amount of t mode Processing toner toner to be adhered becomes. density The smaller the value, the smaller the maximum threshold amount of toner to be adhered becomes. adj. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 382 SYS The larger the value, the larger the maximum amount of t mode Processing toner toner to be adhered becomes. density The smaller the value, the smaller the maximum threshold amount of toner to be adhered becomes. adj. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 383 Processing enhancem switchover Adjustmen Image Sharpness PRT(color) 8110 Text 0-255 SYS The larger the value, the sharper the image becomes. t mode Processing adjustment BRIDGE/PS/General The smaller the value, the softer the image becomes. 0: No adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 384 0: No adjustment Adjustmen Image Sharpness PRT(color) e-BRIDGE/PS/Line art 8113 Image 0-255 SYS The larger the value, the sharper the image becomes. t mode Processing adjustment The smaller the value, the softer the image becomes. 0: No adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 385 Adjustmen Image Smudged/f PRT(color) 8132 SYS The larger the value, the darker the small text and fine t mode Processing aint text lines become and the more faint text is suppressed. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 386 Processing balance color printing becomes. adjustment Adjustmen Image Color PRT(color) "C" for two XPS/Smooth/600dpi 8152 Low density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance color printing becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 387 Processing balance color printing becomes. adjustment Adjustmen Image Color PRT(color) "M" for two XPS/Detail/600dpi 8155 High density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance color printing becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 388 Processing value in (600 dpi) becomes. toner saving mode Adjustmen Image Upper limit PRT color/two-color 8160 0-255 SYS The smaller the value, the lighter the printed image t mode Processing value in (600 dpi) becomes. toner saving mode e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 389 Pure PRT(color) PCL/Text 8210 Presentation 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray replaced with black becomes. threshold The smaller the value, the narrower the range becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 390 Pure PRT(color) PCL/Image 8212 Presentation 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray replaced with black becomes. threshold The smaller the value, the narrower the range becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 391 If this setting is disabled, there will be an increase in cases in which the width of fine lines becomes thicker by 1 dot when they are printed. 0: Disabled 1: Enabled 2: Forcibly disabled (Ignores command in printing data) 3: Forcibly enabled (Ignores command in printing data) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 392 If this setting is disabled, there will be an increase in cases in which the width of fine lines becomes thicker by 1 dot when they are printed. 0: Disabled 1: Enabled 2: Forcibly disabled (Ignores command in printing data) 3: Forcibly enabled (Ignores command in printing data) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 393 (0-255). adjustment(1200dpi) Adjustmen Image Image Effective range of 8243 Color (CMYK) 0-255 SYS Sets the value in which 05-8242 is effective from the t mode Processing graphic line density lower limit value density range (0-255). adjustment(1200dpi) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 394 PRT(color) XPS/Text 8249 Line art 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray replaced with black becomes. threshold The smaller the value, the narrower the range becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 395 Pure PRT(color) XPS/Image 8251 Photo 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray replaced with black becomes. threshold The smaller the value, the narrower the range becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 396 Pure PRT(color) PS/Text 8252 Advanced 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray replaced with black becomes. threshold The smaller the value, the narrower the range becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 397 Pure PRT(color) PS/Image 8254 Presentation 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray replaced with black becomes. threshold The smaller the value, the narrower the range becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 398 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment Adjustmen Image Color PRT(color) "C" PS/Smooth/1200dpi 8270 Medium density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 399 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment Adjustmen Image Color PRT(color) "C" PS/Detail/1200dpi 8274 Low density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance becomes. adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 400 Processing adjustment image becomes. of black density Adjustmen Image Fine SCN(color) 8317 Photo (developing SYS The larger the value, the darker the black side of the t mode Processing adjustment paper) image becomes. of black density e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 401 Processing correction density adjustment paper) 1: Background peak - Varied adjustment Adjustmen Image Range SCN(color) Full color/Automatic 8334 User custom SYS 0: Background peak - Fixed 1: Background peak - Varied t mode Processing correction density adjustment adjustment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 402 Text 0-255 SYS Sets the changing amount per step of the density t mode Processing adjustment adjustment/Dark step adjustment buttons on the control panel. value The larger the value, the darker the image of the “dark” step becomes. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 403 1: AppleRGB selection 2: ROMMRGB 3: AdobeRGB Adjustmen Image Saturation SCN(color) 8373 User custom 0-255 SYS The larger the value, the brighter the image becomes. t mode Processing adjustment The smaller the value, the duller the image becomes. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 404 Text 0-255 SYS The larger the value, the less easily the background t mode Processing d offset adjustment (low density area) is printed. adjustment The smaller the value, the more easily the background (low density area) is printed. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 405 Text/Photo 0-255 SYS The larger the value, the less easily the background t mode Processing d offset adjustment (low density area) is printed. adjustment The smaller the value, the more easily the background (low density area) is printed. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 406 (set with 08-8300) becomes larger. When the value increases, the effect of reducing streaks (set with 08-8300) becomes smaller. When the value is too small, text might be blurry. When "0" is set, this function is disabled. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 407 3: 200dpi Adjustmen System Maintenan 9960 Display of equipment Refer to SYS Displays the equipment information in SRAM. t mode information (SRAM) contents 0: Not set 1: Destinations other than NAD/NAC 2: NAD/NAC <Default value> NAD/NAC: 2 Others: 1 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 408 (when recovered from 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º status (Heat sleep mode) BAM not C 11: 175ºC 12: 180ºC 13: 185ºC 14: 190ºC 15: 195 roller/Center) supported ºC 16: 200ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 409 On time paper 1 to 10: Setting value * 1 (sec.) Setting Process Fuser Thick paper 2: Heater 2014 Heat roller: Long size 0-10 0: Invalid Mode forced On time paper 1 to 10: Setting value * 1 (sec.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 410 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode (Center / Fuser belt / Extra long size paper 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º Special paper) C 11: 175ºC 12: 180ºC 13: 185ºC 14: 190ºC 15: 195 ºC 16: 200ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 411 Extra long size paper sec. 6: 6 sec. 7: 7 sec. 8: 8 sec. 9: 10 sec. 10: 12 paper) sec. 11: 14 sec. 12: 16 sec. 13: 18 sec. 14: 20 sec. 15: 25 sec. 16: 30 sec. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 412 (Thick sec. 6: 6 sec. 7: 7 sec. 8: 8 sec. 9: 10 sec. 10: 12 paper 3) sec. 11: 14 sec. 12: 16 sec. 13: 18 sec. 14: 20 sec. 15: 25 sec. 16: 30 sec. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 413 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode during printing (Center 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º / Fuser belt / Thick C 11: 175ºC 12: 180ºC 13: 185ºC 14: 190ºC 15: 195 paper 1) ºC 16: 200ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 414 (Thick sec. 6: 6 sec. 7: 7 sec. 8: 8 sec. 9: 10 sec. 10: 12 paper 1) sec. 11: 14 sec. 12: 16 sec. 13: 18 sec. 14: 20 sec. 15: 25 sec. 16: 30 sec. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 415 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode Temperature setting thermistor paper 2 (one-side 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º to start error handling printing) C 11: 175ºC 12: Invalid (normal temperature environment) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 416 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode Temperature setting thermistor paper 1 (duplex 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º to start error handling printing) C 11: 175ºC 12: Invalid (normal temperature environment) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 417 0: Disabled (always ON) 1: 0 min. 2: 0.5 min. 3: 1 min. Mode first printing (Plain 4: 2 min. 5: 3 min. 6: 5 min. 7: 7 min. 8: 10 min. 9: paper/ Low 15 min. 10: 30 min. 11: 60 min. temperature) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 418 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode Temperature setting paper 2 (one-side 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º to start error handling printing) C 11: 175ºC 12: Invalid (low temperature) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 419 0: 3 sec. 1: 6 sec. 2: 9 sec. 3: 12 sec. 4: 15 sec. 5: 4 Mode first printing in ready sec. 6: 5 sec. 7: 7 sec. 8: 8 sec. 9: 10 sec. 10: 11 status sec. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 420 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode during printing (Center 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º / Pressure roller / C 11: 175ºC 12: 180ºC 13: 185ºC 14: 190ºC 15: 195 Thick paper 1) ºC 16: 200ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 421 0: Invalid 1: 10 sec. 2: 20 sec. 3: 30 sec. 4: 40 sec. Mode temperature for print 5: 50 sec. 6: 60 sec. 7: 90 sec. 8: 120 sec. 9: 150 operation at print end sec. 10: 180 sec. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 422 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature (Plain CK mode/one-side 6: 110ºC 7: 115ºC 8: 120ºC 9: 125ºC 10: 130ºC 11: paper/normal printing 135ºC 12: 140ºC 13: 145ºC 14: 150ºC 15: 155ºC 16: temperature 160ºC 17: 165ºC 18: 170ºC environment) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 423 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature (Plain CK mode/duplex 6: 110ºC 7: 115ºC 8: 120ºC 9: 125ºC 10: 130ºC 11: paper/normal printing 135ºC 12: 140ºC 13: 145ºC 14: 150ºC 15: 155ºC 16: temperature 160ºC 17: 165ºC 18: 170ºC environment) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 424 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature (Plain mode/duplex printing 6: 110ºC 7: 115ºC 8: 120ºC 9: 125ºC 10: 130ºC 11: paper/Low 135ºC 12: 140ºC 13: 145ºC 14: 150ºC 15: 155ºC 16: temperature 160ºC 17: 165ºC 18: 170ºC environment) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 425 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature (Thick center/duplex printing 6: 110ºC 7: 115ºC 8: 120ºC 9: 125ºC 10: 130ºC 11: paper 1) 135ºC 12: 140ºC 13: 145ºC 14: 150ºC 15: 155ºC 16: 160ºC 17: 165ºC 18: 170ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 426 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature (Thick side/duplex printing 6: 110ºC 7: 115ºC 8: 120ºC 9: 125ºC 10: 130ºC 11: paper 2) 135ºC 12: 140ºC 13: 145ºC 14: 150ºC 15: 155ºC 16: 160ºC 17: 165ºC 18: 170ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 427 Special paper 1 0-12 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode Temperature setting thermistor 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º to start error handling C 11: 175ºC 12: Invalid e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 428 Setting Process Fuser Allowable range Ready status starting 2256 Pressure roller/ Upper 0: 0ºC 1: +5ºC 2: +10ºC 3: +15ºC 4: +20ºC 5: +25ºC Mode correction temperature after limit (for MJD model) energy saving mode e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 429 5: 40 sec. 6: 50 sec. 7: 60 sec. 8: 90 sec. 9: 2 min. 10: 3 min. Setting Process Main 2380 Setting for control of 0: OFF 1: ON Mode charger drum rotation without fusing in standby mode e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 430 1: Mode 1 is enabled of sheets * Maximum number of times for Vc closed-loop control correction is set by 05-2675. 2: Mode 2 is enabled * Maximum number of times for Vc closed-loop control correction is set by 05-2670. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 431 Image quality closed- 3-50 Starts the drum surface potential sensor control when Mode control loop control automatic the drum thermistor temperature exceeds the default start-up/ Starting temperature since the last control. temperature for drum surface potential sensor control e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 432 Setting Process Image 2515 Contrast voltage 0-10 0: -80 1: -60 2: -40 3: -20 4: -10 5: 0 6: +10 7: +20 Mode control offset correction 8: +40 9: +60 10: +80 (Unit: V) setting (High speed) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 433 Counts the abnormality detection of image quality Mode control control. Accumulating total of [CE10], [CE20] and [CE40] Setting Process Image Abnormality detection 2530 (C)Display/0 clearing <0-16> Counts the abnormality detection of image quality Mode control control. Accumulating total of [CE10], [CE20] and [CE40] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 434 8: +15 9: +20 10: +25 (Unit: μW) (Decelerating 2) Setting Process Image Potential on white 2548 0-10 Offset amount for 05-2651 Mode control background/Correctio 0：-50 1：-40 2：-30 3：-20 4：-10 5：0 6：10 7：20 8： n setting 30 9：40 10：50 (Unit: V) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 435 Displays the number of drum surface potential sensor Mode control surface potential control abnormalities. sensor control abnormalities Counter setting Setting Process Image Number of drum 2560 Displays the number of drum surface potential sensor Mode control surface potential control abnormalities. sensor control abnormalities Counter setting e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 436 0: Disabled 1: Enabled (Performed on Y/M/C/K station) 2: Enabled (Performed on K station) <Default value> e-STUDIO5540C/6540C: 0 e-STUDIO6550C: 2 Setting Process Image Number of drum 2577 Displays the number of drum surface potential sensor...
  • Page 437 Setting Process Developm Toner refreshing after Setting of number of 2679 Level 1 Sets the number of toner refresh patterns to be printed Mode leaving repeated executions on the transfer belt in level 1 toner refreshing after leaving. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 438 Threshold for 2nd judgment Setting Scanner 3015 Pre-scan setting <0-1> SYS 0: Not performing pre-scanning Mode switchover 1: Performing pre-scanning Setting Scanner RADF 3017 Automatic A4/LT SYS 0: A4/LT detected Mode detection 1: A4/LT not detected e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 439 3025 Correction of carriage SYS 0: No correction Mode position 1: Performs correction before scanning 2: Performs correction after scanning Setting Scanner RADF 3075 Allowing of trailing SYS 0: Not allowed Mode edge adjustment of 1: Allowed scanning e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 440 SYS To access the data in the noncontact IC card, the Key Mode interface 429496729 Information "LLLL" and the Sector Number "MMMM" should be set. The "LLLL" should be set first, and then "MMMM". <KP-2005> LLLL: Key information MMMM: Sector number (hexadecimal number) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 441 SYS Displays PG DevicePureGrayTRC attribute for the Mode display current RGBInkSim profile and the same sub-code. Setting System General Available profile 3600 BP_IS34_05.icc SYS Displays PG DevicePureGrayTRC attribute for the Mode display current RGBInkSim profile and the same sub-code. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 442 SYS Displays PG DevicePureGrayTRC attribute for the Mode display current RGBInkSim profile and the same sub-code. Setting System General Available profile 3600 BP_IS34_21.icc SYS Displays PG DevicePureGrayTRC attribute for the Mode display current RGBInkSim profile and the same sub-code. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 443 SYS Displays PG DevicePureGrayTRC attribute for the Mode display current RGBInkSim profile and the same sub-code. Setting System General Available profile 3600 BP_IS34_37.icc SYS Displays PG DevicePureGrayTRC attribute for the Mode display current RGBInkSim profile and the same sub-code. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 444 SYS Displays PG DevicePureGrayTRC attribute for the Mode display current RGBInkSim profile and the same sub-code. Setting System General Available profile 3600 BP_IS34_53.icc SYS Displays PG DevicePureGrayTRC attribute for the Mode display current RGBInkSim profile and the same sub-code. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 445 33: BP_IS34_33 34: BP_IS34_34 35: BP_IS34_35 36: BP_IS34_36 37: BP_IS34_37 38: BP_IS34_38 39: BP_IS34_39 40: BP_IS34_40 41: BP_IS34_41 42: BP_IS34_42 43: BP_IS34_43 44: BP_IS34_44 45: BP_IS34_45 46: BP_IS34_46 47: BP_IS34_47 48: BP_IS34_48 49: BP_IS34_49 50: BP_IS34_50 51: BP_IS34_51 52: BP_IS34_52 53: BP_IS34_53 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 446 33: BP_IS34_33 34: BP_IS34_34 35: BP_IS34_35 36: BP_IS34_36 37: BP_IS34_37 38: BP_IS34_38 39: BP_IS34_39 40: BP_IS34_40 41: BP_IS34_41 42: BP_IS34_42 43: BP_IS34_43 44: BP_IS34_44 45: BP_IS34_45 46: BP_IS34_46 47: BP_IS34_47 48: BP_IS34_48 49: BP_IS34_49 50: BP_IS34_50 51: BP_IS34_51 52: BP_IS34_52 53: BP_IS34_53 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 447 DevicePureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 3604 BP_IS34_03.000 SYS Displays the default RGBInkSim profile and PG Mode attribute of the profile DevicePureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 448 DevicePureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 3604 BP_IS34_14.000 SYS Displays the default RGBInkSim profile and PG Mode attribute of the profile DevicePureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 449 DevicePureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 3604 BP_IS34_25.000 SYS Displays the default RGBInkSim profile and PG Mode attribute of the profile DevicePureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 450 DevicePureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 3604 BP_IS34_36.000 SYS Displays the default RGBInkSim profile and PG Mode attribute of the profile DevicePureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 451 DevicePureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 3604 BP_IS34_47.000 SYS Displays the default RGBInkSim profile and PG Mode attribute of the profile DevicePureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 452 DevicePureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 3604 BP_IS34_53.000 SYS Displays the default RGBInkSim profile and PG Mode attribute of the profile DevicePureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 453 33: BP_IS34_33 34: BP_IS34_34 35: BP_IS34_35 36: BP_IS34_36 37: BP_IS34_37 38: BP_IS34_38 39: BP_IS34_39 40: BP_IS34_40 41: BP_IS34_41 42: BP_IS34_42 43: BP_IS34_43 44: BP_IS34_44 45: BP_IS34_45 46: BP_IS34_46 47: BP_IS34_47 48: BP_IS34_48 49: BP_IS34_49 50: BP_IS34_50 51: BP_IS34_51 52: BP_IS34_52 53: BP_IS34_53 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 454 33: BP_IS34_33 34: BP_IS34_34 35: BP_IS34_35 36: BP_IS34_36 37: BP_IS34_37 38: BP_IS34_38 39: BP_IS34_39 40: BP_IS34_40 41: BP_IS34_41 42: BP_IS34_42 43: BP_IS34_43 44: BP_IS34_44 45: BP_IS34_45 46: BP_IS34_46 47: BP_IS34_47 48: BP_IS34_48 49: BP_IS34_49 50: BP_IS34_50 51: BP_IS34_51 52: BP_IS34_52 53: BP_IS34_53 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 455 CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 3608 BP_IS34_03.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 456 CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 3608 BP_IS34_14.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 457 CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 3608 BP_IS34_25.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 458 CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 3608 BP_IS34_36.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 459 CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 3608 BP_IS34_47.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 460 SYS Changes the target type of jobs for notification in real Mode notification function time log notification function. Setting System General Real time log 3624 Log item filtering 2147483 SYS Changes target log items for notification in real time log Mode notification function setting 429496729 notification function. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 461 3629 Enable/Disable setting SYS 0: Disabled mode of standard EWB 1: Enabled function * This code is valid for the following model: - e-STUDIO5540CSE/6540CSE/6550CSE - e-STUDIO5540C/6540C/6550C for MJD Setting System Network 3631 Remote Access SYS 0: Disabled Mode (SNMP) 1: Enabled...
  • Page 462 Network 3722 PDC/BDC timeout 1-180 NIC Applied to the device authentication Mode value of Windows Domain Authentication (Unit: Seconds) Setting System Network 3723 User authentication 1-180 NIC Applied to the user authentication Mode PDC/BDC time-out period (Unit: Seconds) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 463 Network 3729 ATalk PS max 1-16 Mode Connection Setting System Network 3730 ATalk PS active 1-16 Mode Connection Setting System Network 3731 Raw TCP max 1-16 Mode Connection Setting System Network 3732 Raw TCP active 1-16 Mode connection e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 464 1-20 NIC Maximum numbers of data received from more than Mode numbers of reception one clients in the DPWS print Setting System Network IPv6 3767 Switching IPv6 setting NIC IPv6 function is switched. Mode 1: Enabled 2: Disabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 465 3780 Stateful Option setting NIC An option is acquired from DHCPv6 server. Mode 1: Enabled 2: Disabled Setting System Network IPv6 3781 Primary DNS Server Registration of Primary DNS Server Address. Maximum Mode Address 40 characters (byte). Registration(IPv6) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 466 A3 6: A4 7: A5 9: B4 10: B5 11: Folio 12: Legal13" 13: LetterSquare <Default value> NAD: 2 Others: 6 Setting System General 3803 USB media direct SYS Sets the USB media direct printing function.0: Mode printing function Disabled1: Enabled setting e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 467 If "1: Enabled" is set in 08-3810, set "1: Enabled" in 08- 3812 as well. Setting System Network Direct SMTP 3811 Image encrypting at <0-1> SYS When Direct SMTP communication is performed, an Mode the Direct SMTP attached image is encrypted. 0: Disabled 1: Enabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 468 1: ON (Enabled) Setting System Option 3848 Restriction on <0-1> SYS Sets whether the address in the address book is Mode Address Book selectable or not for the FAX mis-transmission destination prevention function. 0: OFF (Disabled) 1: ON (Enabled) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 469 (Starting week) contents <Default value> MJC/MJD: 5 NAC/NAD: 2 Other: 1 Setting System General 3856 Summer time Setting SYS 0: Sun 1: Mon 2: Tue 3: Wed 4: Thu 5: Fri 6: Sat Mode value (Starting day) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 470 SYS 0 to 59 Mode value (Starting minute) Setting System Network 3864 Disclosure of telnet SYS 0: Not disclosed 1: Disclosed Mode function When this value is set at "0", the value of code 08-3865 must be "2". e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 471 RADF or the RADF is opened. 0: Valid (when using RADF and the original is set manually) 1: Invalid 2: Valid (when using RADF only) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 472 Sets the number of times feeding retry occurs from the Mode feeding setting 1st drawer. Setting Printer Paper Feeding retry number 1st drawer 4020 Others paper <0-5> Sets the number of times feeding retry occurs from the Mode feeding setting 1st drawer. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 473 Press the button on the LCD to select the size. Mode system / contents This code is reset every time a paper size is detected Paper automatically. transport 4: A4 20: A4-R 80: LT-R <Default value> NAD/NAC: 80 MJD/MJC/JPC: 4 Others: 20 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 474 Press the button on the LCD to select the size. Mode system / contents This code is reset every time a paper size is detected Paper automatically. transport 4: A4 52: B4 81: LD <Default value> NAD/NAC: 81 JPC: 52 Others: 4 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 475 432/140- Paper direction transport Setting Printer Feeding 4110 Paper size (B5- 257/182 182- Mode system / R)feeding/widthwise 432/140- Paper direction transport Setting Printer Feeding 4111 Paper size (LT-R) 279/216 182- Mode system / feeding/widthwise 432/140- Paper direction transport e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 476 Setting Printer Feeding 4118 Paper size (8.5" X 216/216 182- Mode system / 8.5")feeding/widthwise 432/140- Paper direction transport Setting Printer Feeding 4119 Paper size (Non- 432/279 148- Mode system / standard) 432/105- Paper feeding/widthwise transport direction e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 477 SYS Press the button on the LCD to select the size. Mode system / feed 255: UNDEF Paper transport Setting Printer Feeding 4205 Paper size (305 x 457 457/305 148- Mode system / 457/105- Paper feeding/widthwise transport direction e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 478 (Temperature of the fuser belt side thermopile) Setting Printer Fuser 4532 Fusing error 0-255 Mode temperature (Temperature of the Fuser belt edge thermistor) Setting Printer Fuser 4533 Fusing error 0-255 Mode temperature (Temperature of the pressure roller center thermopiles) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 479 (c) Performs the adjustment automatically at ready status after a specified period of time, or at a forcible interruption of large amount of printing. Setting Printer Feeding 4547 Manual stapling time- 3-30 3-30sec.(In increments of 1sec.) Mode system / out period Paper transport e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 480 (Pressure roller side thermistor) Setting Printer Developm 4575 Waste toner box near- 0: Disabled 1: Enabled Mode full status Display setting Setting Printer Feeding 4585 Paper size (13 X 483/330 148- Mode system / 19inch- 483/105- Paper R)feeding/widthwise transport direction e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 481 UI Setting Printer General 4586 Checking of SRAM Refer to 130-132 130: H130 (TOSHIBA e-STUDIO5540C) Mode board data on LGC contents 131: H131 (TOSHIBA e-STUDIO6540C) board No. 1 (Models) 132: H132 (TOSHIBA e-STUDIO6550C) Setting Printer Transfer 4596...
  • Page 482 Setting Printer Main Needle electrode 4606 0-255 0: Normal Mode charger cleaner operating 1: Abnormality occurred during movement from rear status side to front side 2: Abnormality occurred during movement from front side to rear side e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 483 7: Not defined (empty) <Default value> JPC: 2 NAD/NAC: 0 MJD/MJC: 1 ASD/ARD: 3 AUD: 5 CND: 4 Setting Printer Laser 4609 Laser shutter counter 8 digits 1 movement of opening and closing is counted as 1. Mode e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 484 35 to 49: Not used 50: C452 error 51: C452 error 52 to 60: Not used 61: C461 error 62: C462 error 63 to 69: Not used 70: C464 error 71: C464 error 72 to 255: Not used e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 485 35 to 49: Not used 50: C452 error 51: C452 error 52 to 60: Not used 61: C461 error 62: C462 error 63 to 69: Not used 70: C464 error 71: C464 error 72 to 255: Not used e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 486 35 to 49: Not used 50: C452 error 51: C452 error 52 to 60: Not used 61: C461 error 62: C462 error 63 to 69: Not used 70: C464 error 71: C464 error 72 to 255: Not used e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 487 35 to 49: Not used 50: C452 error 51: C452 error 52 to 60: Not used 61: C461 error 62: C462 error 63 to 69: Not used 70: C464 error 71: C464 error 72 to 255: Not used e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 488 35 to 49: Not used 50: C452 error 51: C452 error 52 to 60: Not used 61: C461 error 62: C462 error 63 to 69: Not used 70: C464 error 71: C464 error 72 to 255: Not used e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 489 (no paper jam occurs). If the bypass paper size detection is not working, the equipment can be used without any size detection by disabling this setting. After repair, re-enable this setting. 0: Enabled 1: Disabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 490 0: MJD/MJC 1: NAD/NAC 2: JPC 3: AUD/AUC 4: CND 5: KRD 6: TWD 7: SAD 8: ASU 9: ASD 10: ARD <Default value> MJD/MJC: 0 NAD/NAC: 1 JPC: 2 ASD: 9 AUD: 3 CND: 4 ARD: 10 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 491 Switching of the 0: Disabled Mode feeding display of jam location 1: Enabled in the drawer when paper feed jam occurs Setting Printer Feeding 4766 Drum phase 0: Invalid 1: Valid Mode system / adjustment control Paper setting transport e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 492 Display threshold value = default threshold value x toner and toner near setting value/100 (unit: %) empty Setting Process Fuser 5207 Warming-up period 0: Valid 1: Invalid Mode extension control setting e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 493 0: 0ºC 1: +5ºC 2: +10ºC 3: +15ºC 4: +20ºC 5: +25ºC Mode correction temperature after limit (for MJD model) sleep mode Setting Process Fuser Pre-running time at 5248 Pressure roller 0: Contact Mode ready status contact / release 1: Release setting e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 494 100ºC 7: 105ºC 8: 110ºC 9: 115ºC 10: 120ºC 11: paper) 125ºC 12: 130ºC 13: 135ºC 14: 140ºC 15: 145ºC 16: 150ºC 17: 155ºC 18: 160ºC 19: 165ºC 20: 170ºC 21: 175ºC 22: 180ºC 23: 185ºC 24: 190ºC 25: 195ºC 26: 200ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 495 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode during printing (Thick 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º paper 4 / Extra long C 11: 175ºC 12: 180ºC 13: 185ºC 14: 190ºC 15: 195 size paper) ºC 16: 200ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 496 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode during printing (Side / 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º Pressure roller / Thick C 11: 175ºC 12: 180ºC 13: 185ºC 14: 190ºC 15: 195 paper 2) ºC 16: 200ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 497 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode (Side / Pressure roller Extra long size paper 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º / Special paper) C 11: 175ºC 12: 180ºC 13: 185ºC 14: 190ºC 15: 195 ºC 16: 200ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 498 7: Enabled - Thick paper 2 (Fuser belt and pressure roller at the normal temperature) 8: Enabled - Thick paper 2, thick paper 3 (Fuser belt and pressure roller at the normal temperature) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 499 Fuser Fusing temperature Black 5289 Center / Pressure 0: -15ºC 1: -10ºC 2: -5ºC 3: 0ºC 4: +5ºC 5: +10ºC 6: Mode correction setting roller +15ºC 7: +20ºC 8: +25ºC during printing (Manual adjustment / Plain paper 2) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 500 Fuser Fusing temperature Black 5291 Center / Pressure 0: -15ºC 1: -10ºC 2: -5ºC 3: 0ºC 4: +5ºC 5: +10ºC 6: Mode correction setting roller +15ºC 7: +20ºC 8: +25ºC during printing (Automatic adjustment / Plain paper 1) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 501 Fuser Fusing temperature black 5292 Center / Pressure 0: -15ºC 1: -10ºC 2: -5ºC 3: 0ºC 4: +5ºC 5: +10ºC 6: Mode correction setting roller +15ºC 7: +20ºC 8: +25ºC during printing (Automatic adjustment / Plain paper 2) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 502 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode during printing 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º (Pressure roller / C 11: 175ºC 12: 180ºC 13: 185ºC 14: 190ºC 15: 195 Recycled paper) ºC 16: 200ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 503 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature CK mode/one-side 6: 110ºC 7: 115ºC 8: 120ºC 9: 125ºC 10: 130ºC 11: (Recycled printing 135ºC 12: 140ºC 13: 145ºC 14: 150ºC 15: 155ºC 16: paper/normal 160ºC 17: 165ºC 18: 170ºC temperature environment) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 504 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature CK mode/duplex 6: 110ºC 7: 115ºC 8: 120ºC 9: 125ºC 10: 130ºC 11: (Recycled printing 135ºC 12: 140ºC 13: 145ºC 14: 150ºC 15: 155ºC 16: paper/normal 160ºC 17: 165ºC 18: 170ºC temperature environment) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 505 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature mode/one-side 6: 110ºC 7: 115ºC 8: 120ºC 9: 125ºC 10: 130ºC 11: (Recycled paper/low printing 135ºC 12: 140ºC 13: 145ºC 14: 150ºC 15: 155ºC 16: temperature 160ºC 17: 165ºC 18: 170ºC environment) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 506 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature mode/duplex printing 6: 110ºC 7: 115ºC 8: 120ºC 9: 125ºC 10: 130ºC 11: (Recycled paper/low 135ºC 12: 140ºC 13: 145ºC 14: 150ºC 15: 155ºC 16: temperature 160ºC 17: 165ºC 18: 170ºC environment) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 507 6: 6 sec. 7: 7 sec. 8: 8 sec. 9: 10 sec. 10: 12 mode for waterproof sec. 11: 14 sec. 12: 16 sec. 13: 18 sec. 14: 20 sec. paper) 15: 25 sec. 16: 30 sec. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 508 2 (duplex 100ºC 7: 105ºC 8: 110ºC 9: 115ºC 10: 120ºC 11: (Press roller side) printing) 125ºC 12: 130ºC 13: 135ºC 14: 140ºC 15: 145ºC 16: 150ºC 17: 155ºC 18: 160ºC 19: 165ºC 20: 170ºC 21: 175ºC 22: Invalid e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 509 100ºC 7: 105ºC 8: 110ºC 9: 115ºC 10: 120ºC 11: environment 125ºC 12: 130ºC 13: 135ºC 14: 140ºC 15: 145ºC 16: 150ºC 17: 155ºC 18: 160ºC 19: 165ºC 20: 170ºC 21: 175ºC 22: Invalid e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 510 100ºC 7: 105ºC 8: 110ºC 9: 115ºC 10: 120ºC 11: special paper 125ºC 12: 130ºC 13: 135ºC 14: 140ºC 15: 145ºC 16: 150ºC 17: 155ºC 18: 160ºC 19: 165ºC 20: 170ºC 21: 175ºC 22: Invalid e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 511 100ºC 7: 105ºC 8: 110ºC 9: 115ºC 10: 120ºC 11: special paper temperature/duplex 125ºC 12: 130ºC 13: 135ºC 14: 140ºC 15: 145ºC 16: printing 150ºC 17: 155ºC 18: 160ºC 19: 165ºC 20: 170ºC 21: 175ºC 22: Invalid e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 512 100ºC 7: 105ºC 8: 110ºC 9: 115ºC 10: 120ºC 11: fuser roller side 125ºC 12: 130ºC 13: 135ºC 14: 140ºC 15: 145ºC 16: 150ºC 17: 155ºC 18: 160ºC 19: 165ºC 20: 170ºC 21: 175ºC 22: 180ºC 23: 185ºC 24: 190ºC 25: 195ºC 26: 200ºC e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 513 0-14 0: 0 1: 0.5 2: 1 3: 2 4: 3 5: 5 6: 10 7: 15 8: 30 9: Mode energy saving mode 45 10: 60 11: 75 12: 90 13: 120 14: No limitation (Unit: Minute) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 514 5550 Setting value Refer to <8 digits> Sets the threshold for displaying a message for PM Mode contents timing. 0: Not displayed <Default> e-STUDIO5540C: 248,000 e-STUDIO6540C: 275,000 e-STUDIO6550C: 303,000 [Unit: page] Setting Counter Maintenan PM drive counter 5551 Setting value 314000 <8 digits>...
  • Page 515 8 digits Sets the threshold for displaying a message for PM Mode counter / 2nd transfer contents timing. roller 0: Not displayed <Default> e-STUDIO5540C: 248,000 e-STUDIO6540C: 275,000 e-STUDIO6550C: 303,000 [Unit: page] Setting Counter Maintenan 5563 Setting value of PM 266000...
  • Page 516 Setting Counter VOC filter (1) 5608 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 496,000 pages for e-STUDIO6540C: 550,000 replacement e-STUDIO6550C: 606,000 Setting Counter VOC filter (1) 5608 Number of output 8 digits mode...
  • Page 517 Setting Counter VOC filter (2) 5610 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 496,000 pages for e-STUDIO6540C: 550,000 replacement e-STUDIO6550C: 606,000 Setting Counter VOC filter (2) 5610 Number of output 8 digits mode...
  • Page 518 "5". Use this code to specify the threshold value (unit: setting (number of number of sheets) for displaying the toner near-empty sheets) status. The accuracy of value is influenced by usage environment or originals. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 519 Mode in the Copier Function according to its size Color Mode in Copier (large/small) Large: Number of output pages of large- Function sized paper defined at 08-6011 Small: Number of output pages other than set as large- sized paper e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 520 Black in the Printer Function according to its size Mode in Printer (large/small). Large: Number of output pages of large- Function sized paper defined at 08-6011 Small: Number of output pages other than set as large- sized paper e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 521 Mode in the Copier Function according to its size Black Mode in Copier (large/small). Large: Number of output pages of large- Function sized paper defined at 08-6011 Small: Number of output pages other than set as large- sized paper e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 522 Refer to SYS Sets the weight of fee charging count for printing per Mode count contents page. Scan counter and fax counter are not influenced. setting for 0: Single paper type 1: Double <Default value> JPC/CND: 0 Others: 1 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 523 Refer to SYS Sets the weight of fee charging count for printing per Mode count contents page. Scan counter and fax counter are not influenced. setting for 0: Single paper type 1: Double <Default value> JPC/CND: 0 Others: 1 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 524 0 (weight: 0.00) – 9999 (weight: 99.99) Setting Counter Custom For administrator Weighting/Print 6085 Twin 0-9999 SYS Weights subtraction of printing from department/user Mode counter/Jo Color/Monocolor/Larg Job Quota and addition of printing to Custom Counter. b Quota 0 (weight: 0.00) – 9999 (weight: 99.99) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 525 SYS Weights addition of print to Custom Counter (Total Mode counter Counter). Since the count is calculated based on the existing Large/Small counter, the count before changing this setting is also included in the count. 0 (weight: 0.00) – 9999 (weight: 99.99) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 526 (total value of each color) is sum of the truncated custom counter value of each color. Note that the value slightly decreases compared to display with decimal point. 0: Displays 2 decimal places. 1: Displays integer (Truncation after decimal point) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 527 (EFI)/ 0 clearing Setting Counter Maintenan PM counter 6190 Setting value Refer to <8 digits> Sets the threshold for displaying a message for PM Mode contents timing. 0: Not displayed <Default> e-STUDIO5540C: 248,000 e-STUDIO6540C: 275,000 e-STUDIO6550C: 303,000 [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 528 6192 Setting value Refer to <8 digits> Sets the threshold for displaying a message for PM Mode contents timing. 0: Not displayed <Default> e-STUDIO5540C: 248,000 e-STUDIO6540C: 275,000 e-STUDIO6550C: 303,000 [Unit: page] Setting Counter Maintenan PM drive counter 6193 Setting value 314000 <8 digits>...
  • Page 529 Counts the number of times of the feeding retry from Mode feeding the 2nd drawer. Setting Counter Paper Feeding retry counter 6232 3rd drawer <8 digits> Counts the number of times of the feeding retry from Mode feeding the 3rd drawer. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 530 “0” (no limit).The toner is also consumed wastefully when the paper misfeeding occurs. Replace the roller at earlier timing if the paper misfeedings have occurred frequently. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 531 “0” (no limit).The toner is also consumed wastefully when the paper misfeeding occurs. Replace the roller at earlier timing if the paper misfeedings have occurred frequently. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 532 “0” (no limit).The toner is also consumed wastefully when the paper misfeeding occurs. Replace the roller at earlier timing if the paper misfeedings have occurred frequently. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 533 “0” (no limit).The toner is also consumed wastefully when the paper misfeeding occurs. Replace the roller at earlier timing if the paper misfeedings have occurred frequently. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 534 “0” (no limit).The toner is also consumed wastefully when the paper misfeeding occurs. Replace the roller at earlier timing if the paper misfeedings have occurred frequently. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 535 Counts the number of times of the feeding retry from Mode system / (O-LCF) the O-LCF. Paper transport Setting Counter Counter 6243 Counter for special 8 digits Counts up when the registration sensor is ON in the Mode paper special paper mode. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 536 8 digits The rotation time of toner refill motor is stored when the mode rotation time of toner toner cartridge becomes empty. refill motor Setting Counter Photoconductive 6250 Present number of 8 digits mode counter drum(K) output pages e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 537 UI Setting Counter Photoconductive 6250 Recommended Refer to 8 digits <Default value> mode counter drum(K) number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Photoconductive 6250 Number of output 8 digits mode counter drum(K)
  • Page 538 Setting Counter Photoconductive 6254 Recommended Refer to 8 digits <Default value> mode counter drum(M) number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Photoconductive 6254 Number of output 8 digits mode counter drum(M)
  • Page 539 Setting Counter Photoconductive 6256 Recommended Refer to 8 digits <Default value> mode counter drum(C) number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Photoconductive 6256 Number of output 8 digits mode counter drum(C)
  • Page 540 Setting Counter Drum cleaning 6260 Recommended Refer to 8 digits <Default value> mode counter blade(Y) number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Drum cleaning 6260 Number of output 8 digits mode counter...
  • Page 541 Setting Counter Drum cleaning 6262 Recommended Refer to 8 digits <Default value> mode counter blade(M) number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Drum cleaning 6262 Number of output 8 digits mode counter...
  • Page 542 Setting Counter Ozone filter-2 6268 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Ozone filter-2 6268 Number of output 8 digits mode counter...
  • Page 543 Transfer belt facing 6270 Recommended Refer to 8 digits <Default value> mode counter roller cleaner number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Transfer belt facing 6270 Number of output 8 digits mode...
  • Page 544 Setting Counter Charger grid(Y) 6276 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Charger grid(Y) 6276 Number of output 8 digits mode counter...
  • Page 545 Setting Counter Charger grid(M) 6278 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Charger grid(M) 6278 Number of output 8 digits mode counter...
  • Page 546 UI Setting Counter Charger grid(C) 6280 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Charger grid(C) 6280 Number of output 8 digits mode counter...
  • Page 547 Setting Counter Charger (Wire/ 6284 Recommended Refer to 8 digits <Default value> mode counter needle)(Y) number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Charger (Wire/ 6284 Number of output 8 digits mode counter...
  • Page 548 Setting Counter Charger (Wire/ 6286 Recommended Refer to 8 digits <Default value> mode counter needle)(M) number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Charger (Wire/ 6286 Number of output 8 digits mode counter...
  • Page 549 Setting Counter Charger cleaning 6290 Recommended Refer to 8 digits <Default value> mode counter pad(K) number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Charger cleaning 6290 Number of output 8 digits mode counter...
  • Page 550 Setting Counter Charger cleaning 6292 Recommended Refer to 8 digits <Default value> mode counter pad(Y) number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Charger cleaning 6292 Number of output 8 digits mode counter...
  • Page 551 Setting Counter Charger cleaning 6296 Recommended Refer to 8 digits <Default value> mode counter pad(C) number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Charger cleaning 6296 Number of output 8 digits mode counter...
  • Page 552 Setting Counter Ozone filter-1 6298 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Ozone filter-1 6298 Number of output 8 digits mode counter...
  • Page 553 Present number of 8 digits mode counter output pages Setting Counter Developer material(M) 6304 Number of output 8 digits mode counter pages at the last replacement Setting Counter Developer material(M) 6304 Present driving counts 8 digits mode counter e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 554 Toner filter 6308 Present number of 8 digits mode counter output pages Setting Counter Toner filter 6308 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 555 6314 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 900,000 pages for e-STUDIO6540C: 1,000,000 replacement e-STUDIO6550C: 1,100,000 * This part is not set to be controlled in the PM support mode. Setting Counter 1st transfer roller(K)
  • Page 556 6316 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 900,000 pages for e-STUDIO6540C: 1,000,000 replacement e-STUDIO6550C: 1,100,000 * This part is not set to be controlled in the PM support mode. Setting Counter 1st transfer roller(Y)
  • Page 557 6318 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 900,000 pages for e-STUDIO6540C: 1,000,000 replacement e-STUDIO6550C: 1,100,000 * This part is not set to be controlled in the PM support mode. Setting Counter 1st transfer roller(M)
  • Page 558 6328 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 900,000 pages for e-STUDIO6540C: 1,000,000 replacement e-STUDIO6550C: 1,100,000 * This part is not set to be controlled in the PM support mode. Setting Counter Transfer belt...
  • Page 559 Counter Transfer belt cleaning 6332 Recommended Refer to 8 digits <Default value> mode counter blade number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter Transfer belt cleaning 6332 Number of output 8 digits mode...
  • Page 560 2nd transfer roller 6342 Recommended Refer to 8 digits <Default value> mode counter blade cleaner number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter 2nd transfer roller 6342 Number of output 8 digits mode...
  • Page 561 Setting Counter Pressure roller 6350 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 450,000 pages for e-STUDIO6540C: 500,000 replacement e-STUDIO6550C: 550,000 Setting Counter Pressure roller 6350 Number of output 8 digits mode counter...
  • Page 562 Setting Counter Fuser belt 6372 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 225,000 pages for e-STUDIO6540C: 250,000 replacement e-STUDIO6550C: 275,000 Setting Counter Fuser belt 6372 Number of output 8 digits mode counter...
  • Page 563 Setting Counter Fuser roller 6374 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 225,000 pages for e-STUDIO6540C: 250,000 replacement e-STUDIO6550C: 275,000 Setting Counter Fuser roller 6374 Number of output 8 digits mode counter...
  • Page 564 Setting Counter Fuser belt guide 6376 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 225,000 pages for e-STUDIO6540C: 250,000 replacement e-STUDIO6550C: 275,000 Setting Counter Fuser belt guide 6376 Number of output 8 digits mode...
  • Page 565 Number of times 8 digits mode counter replaced Setting Counter Pickup roller (T-LCF) 6389 Date of previous 8 digits mode counter replacement Setting Counter Pickup roller (1st 6390 Present number of 8 digits mode counter drawer) output pages e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 566 6394 Number of times 8 digits mode counter replaced Setting Counter Pickup roller (O-LCF) 6395 Date of previous 8 digits mode counter replacement Setting Counter Feed roller (T-LCF) 6396 Present number of 8 digits mode counter output pages e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 567 Number of times 8 digits mode counter drawer) replaced Setting Counter Feed roller (2nd 6401 Date of previous 8 digits mode counter drawer) replacement Setting Counter Feed roller (O-LCF) 6402 Present number of 8 digits mode counter output pages e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 568 Number of times 8 digits mode counter drawer) replaced Setting Counter Separation roller (1st 6407 Date of previous 8 digits mode counter drawer) replacement Setting Counter Separation roller (2nd 6408 Present number of 8 digits mode counter drawer) output pages e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 569 Number of times 8 digits mode counter drawer) replaced Setting Counter Separation roller (3rd 6413 Date of previous 8 digits mode counter drawer) replacement Setting Counter Separation roller (4th 6414 Present number of 8 digits mode counter drawer) output pages e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 570 Number of times 8 digits mode counter drawer) replaced Setting Counter Feed roller (3rd 6421 Date of previous 8 digits mode counter drawer) replacement Setting Counter Feed roller (4th 6422 Present number of 8 digits mode counter drawer) output pages e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 571 Number of times 8 digits mode counter drawer) replaced Setting Counter Pickup roller (3rd 6429 Date of previous 8 digits mode counter drawer) replacement Setting Counter Pickup roller (4th 6430 Present number of 8 digits mode counter drawer) output pages e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 572 [Unit: 1 count = 500 ms] Setting Counter Threshold K toner 6451 Remaining level 1545 8 digits Sets the timing for when the toner remaining level is Mode for nearly threshold: 25 25% appears. empty [Unit: 1 count = 500 ms] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 573 [Unit: 1 count = 500 ms] Setting Counter Threshold Y toner 6452 Remaining level 8 digits Sets the timing for when the toner remaining level is Mode for nearly threshold: 25 25% appears. empty [Unit: 1 count = 500 ms] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 574 [Unit: 1 count = 500 ms] Setting Counter Threshold M toner 6453 Remaining level 8 digits Sets the timing for when the toner remaining level is Mode for nearly threshold: 25 25% appears. empty [Unit: 1 count = 500 ms] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 575 [Unit: 1 count = 500 ms] Setting Counter Threshold C toner 6454 Remaining level 8 digits Sets the timing for when the toner remaining level is Mode for nearly threshold: 25 25% appears. empty [Unit: 1 count = 500 ms] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 576 Toner / carrier supply 6469 8 digits Counts the driving time of each sub-hopper toner motor. Mode motor driving time This value is the accumulation since the start of use or counter display the last replacement of developer material. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 577 2nd transfer roller 6482 Recommended Refer to 8 digits <Default value> mode counter lubricant unit number of output contents e-STUDIO5540C: 248,000 pages for e-STUDIO6540C: 275,000 replacement e-STUDIO6550C: 303,000 Setting Counter 2nd transfer roller 6482 Number of output 8 digits mode...
  • Page 578 Counter TRU waste toner box 6484 Recommended Refer to 8 digits <Default value> mode counter number of output contents e-STUDIO5540C: 496,000 pages for e-STUDIO6540C: 550,000 replacement e-STUDIO6550C: 606,000 Setting Counter TRU waste toner box 6484 Number of output 8 digits...
  • Page 579 Cleared date Toner cartridge 6514 SYS Displays the date on which 08-6503 was performed. Mode counter reference Setting Pixel Display Count started date Toner cartridge 6519 SYS Displays the date on which 08-6503 was performed. Mode counter reference e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 580 Number of Toner cartridge 6565 Black 8 digits SYS Counts the number of output pages converted to the Mode counter output reference standard paper size in the printer function, black mode pages and toner cartridge reference. [Unit. page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 581 Setting Pixel Counter Average pixel 6587 Full color (Y+M+C+K) 0-10000 SYS Displays the average pixel count in the copy function, Mode counter count/Service full color mode, all toner and service technician technician reference reference. [Unit: 0.01%] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 582 [Unit: 0.01%] Setting Pixel Counter Average pixel PPC/PRT 6598 Full color (Y) 0-10000 SYS Displays the average pixel count in the copy/printer Mode counter count/Service function, full color mode, toner Y and service technician technician reference reference. [Unit: 0.01%] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 583 [Unit: 0.01%] Setting Pixel Counter Latest pixel 6609 Full color (C) 0-10000 SYS Displays the latest pixel count in the copy function, full Mode counter count/Service color mode, toner C and service technician reference. technician reference [Unit: 0.01%] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 584 [Unit: 0.01%] Setting Pixel Counter Average pixel 6620 Full color (M) 0-10000 SYS Displays the average pixel count in the copy function, Mode counter count/Toner cartridge full color mode, toner M and toner cartridge reference. reference [Unit: 0.01%] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 585 [Unit: 0.01%] Setting Pixel Counter Average pixel PPC/PRT 6631 Full color (Y) 0-10000 SYS Displays the average pixel count in the copy/printer Mode counter count/Toner cartridge function, full color mode, toner Y and toner cartridge reference reference. [Unit: 0.01%] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 586 K and toner cartridge reference. [Unit: reference 0.01%] Setting Pixel Counter Latest pixel 6644 Black 0-10000 SYS Displays the latest pixel count in the FAX function, black Mode counter count/Toner cartridge mode and toner cartridge reference. [Unit: 0.01%] reference e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 587 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/full color number of output pages in each range is displayed. In this code, the distributions in the copy function, full color mode and toner Y are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 588 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/full color number of output pages in each range is displayed. In this code, the distributions in the copy function, full color mode and toner M are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 589 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/full color number of output pages in each range is displayed. In this code, the distributions in the copy function, full color mode and toner C are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 590 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/full color number of output pages in each range is displayed. In this code, the distributions in the copy function, full color mode and toner K are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 591 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/full color number of output pages in each range is displayed. In this code, the distributions in the copy function, full color mode and toner K are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 592 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/full color number of output pages in each range is displayed. In this code, the distributions in the printer function, full color mode and toner Y are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 593 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/full color number of output pages in each range is displayed. In this code, the distributions in the printer function, full color mode and toner M are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 594 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/full color number of output pages in each range is displayed. In this code, the distributions in the printer function, full color mode and toner C are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 595 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/full color number of output pages in each range is displayed. In this code, the distributions in the printer function, full color mode and toner K are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 596 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/full color number of output pages in each range is displayed. In this code, the distributions in the printer function, full color mode and toner K are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 597 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/black number of output pages in each range is displayed. In this code, the distributions in the copy function and black mode are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 598 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/black number of output pages in each range is displayed. In this code, the distributions in the printer function and black mode are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 599 SYS The pixel count data are divided into 10 ranges. The Mode counter distribution/black number of output pages in each range is displayed. In this code, the distributions in the FAX function and black mode are displayed. [Unit: page] e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 600 [Unit: 0.01%] reference Setting Pixel Counter Latest pixel 6725 Black 0-10000 SYS Displays the latest pixel count in the printer function, Mode counter count/Toner cartridge black mode and toner cartridge reference. [Unit: 0.01%] reference e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 601 Setting Image Image Process switching for 7031 Process switching for SYS Sets whether or not performing a smoothing process Mode Processing image smoothing image smoothing (primary scanning direction, 2,400 dpi or equivalent). (Text/Photo) (Text/Photo) 0: Invalid 1: Valid e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 602 Last updated date Monochrome PPC 7051 Thick paper4 SYS Last updated date and time of automatic tone correction Mode Processing tone and time 421231235 data. correction YYMMDDHHMM data YY: year, MM: month, DD: day, HH: hour, MM: minute e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 603 Last updated date Color PPC 7052 Thick paper3 SYS Last updated date and time of automatic tone correction Mode Processing tone and time 421231235 data. correction YYMMDDHHMM data YY: year, MM: month, DD: day, HH: hour, MM: minute e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 604 Last updated date NW printer/600dpi 7352 Recycled paper SYS Last updated date and time of automatic tone correction Mode Processing tone and time 421231235 data. correction YYMMDDHHMM data YY: year, MM: month, DD: day, HH: hour, MM: minute e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 605 Last updated date NW printer/1200dpi 7354 Plain paper2 SYS Last updated date and time of automatic tone correction Mode Processing tone and time 421231235 data. correction YYMMDDHHMM data YY: year, MM: month, DD: day, HH: hour, MM: minute e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 606 YY: year, MM: month, DD: day, HH: hour, MM: minute Setting Image Image Clearing of 7400 Network scan SYS Clears the values of the following codes: Mode Processing adjustment values of 05-7400 to 05-7499 all image process 05-8300 to 05-8399 05/08 codes 08-7401, 8303, 8304 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 607 This code is valid in the Text/Photo mode and Text mode for monochrome copying. Setting Image Image 7625 Scanning operation SYS Application of monochrome result at integrated pattern Mode Processing switching at automatic tone correction calibration 0: Result is applied 1: Result is not applied e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 608 Standard JPEG the larger the value, the lower the compression ratio images becomes. Setting System General 8503 Media sensor Displays the latest 20 events detected by the media Mode detection history sensor on the LCD screen. display e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 609 PDF files. 0: OFF 1: ON 2: ON (only for PDF/X files) Setting System General Overprint function 8513 For PostScript printing SYS Enables or disables the overprinting function setting Mode setting when printing with PostScript. 0: OFF 1: ON e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 610 1: \ / > < " | ? * : * 0: Existing model standard 1: Windows standard Since setting the value to "1" allows some prohibited characters, filename might not be processed in external application or server. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 611 System General ACS release 8529 Number of pages Refer to SYS <Default value> Mode threshold (Short size) released (Copier) contents e-STUDIO5540C: 4 e-STUDIO6540C/6550C: 5 Setting System General ACS release 8529 Number of pages Refer to SYS <Default value> Mode threshold (Short size)
  • Page 612 Sleep mode started during that mode. Unit: Second Setting System User 8546 Input setting of minus SYS 0: Inputting a minus value is disabled. Mode interface value for image shift 1: Inputting a minus value is enabled. when copying e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 613 (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13) (14) (15) (16) 1: Pattern 2 (1) (2) (9) (10) (3) (4) (11) (12) (5) (6) (13) (14) (7) (8) (15) (16) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 614 Switchover of display SYS Switches the display method of filename. Mode interface method of filename 0: Displays the filename from the beginning 1: Displays the trailing characters 2: Displays the beginning and trailing characters 3: Displays the filename without abbreviation e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 615 8645 LDAP attribute name eBMUse SYS Maximum 32 characters (ASCII). Mode interface settings 5 rCard Setting System User Card reading device LDAP authentication 8646 LDAP attribute name eBMUse SYS Maximum 32 characters (ASCII). Mode interface settings 6 rCard e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 616 (except for FAX) 1: ON Setting System User Sound 8661 End of warming- SYS 0: OFF Mode interface up/prewarming/sleep 1: ON Setting System User Sound 8662 Job interrupt (out of SYS 0: OFF Mode interface paper) 1: ON e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 617 SYS The transmission may succeed when the retry interval Mode transfer becomes longer. However, it takes longer time to complete the job. (Unit: sec.) Setting System General 8673 Disclosure of image SSDK 0: Not opened to public Mode log function 1: Opened to public e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 618 [USER FUNCTIONS] -> [ADMIN] -> [SERVICE]. 0: Disabled 1: Enabled <Default value> JPC/NAD/NAC/MJD/MJC: 1 Others: 0 Setting System Scanning 8710 Setting of character SYS 0: Automatic selection Mode code for Scan to FTP 1: UTF8 2: Shift-JIS e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 619 Service notification 8715 Password for zip file #104810 SYS Password for zip file with password of service interface information with password notification information. Minimum number of digits: 0, maximum number of digits: 20 Available character: alphanumeric characters and symbols e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 620 Home Directory cannot be obtained depending on the user. 0: Displays the pop-up dialog when user logs in 1: Displays the message in the guidance area when the Scan to File screen is displayed e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 621 SYS 0: Disabled 1: Enabled Mode printing of setting in TopAccess user name Setting System Forced 8728 Enable/Disable setting SYS Normally this setting is made in TopAccess. Mode printing of of forced printing 0: Disabled 1: Enabled user name e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 622 System Forced 8728 Font color setting SYS Normally this setting is made in TopAccess. Mode printing of 0: Black 1: Gray 2: Red 3: Green 4: Blue 5: Light red user name 6: Light green 7: Light blue e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 623 SNMP trap. If the port is used when using the real time sending trap log notification function, change the port number. Setting System User 8748 Input of department SYS 0: Not required Mode interface code at user 1: Required authentication e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 624 (for RDMS/MMDT) Setting System Maintenan Display of remaining 8762 0-100 SYS 0 to 100% Mode amount of toner (for RDMS/MMDT) Setting System Maintenan Display of remaining 8762 0-100 SYS 0 to 100% Mode amount of toner (for RDMS/MMDT) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 625 SYS Sets the prioritized authentication server to be mode authentication server searched. Setting System User Display setting 8781 Default setting of print SYS 0: Disabled (The setting of 08-9236 is used) mode interface screen when USB is 1: USB print screen inserted e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 626 0: Disabled 1: Enabled Setting System Network 8792 Format of host name SYS 0: IP address Mode used for Scan To URL 1: Host name (FQDN) 2: NetBIOS name e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 627 NIC 1: Enable CRL Mode 2: Disable CRL Setting System Network 8824 FTP client mode NIC Sets the FTP transfer mode when FTP is selected for mode "FILE" to save the scanned data. 0: Automatic 1: Passive mode 2: Active mode e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 628 SYS Sets the default display method on the preview screen Mode method of fax preview when using the fax function. 0: Fit to page 1: Fit to width Setting System 8904 Job jump instruction SYS 0: Disabled Mode setting 1: Enabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 629 System Maintenan General 8912 Serial number display FIN S/N: XXXXXXXXX Mode of finisher Setting System Maintenan General 8913 Warning display for 0-30 SYS 0: None Mode password expiration 1-30: Remaining days until the password expiration for warning start. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 630 Fax function is enabled or disabled. setting 0: Disabled 1: Enabled Setting System 8914 Save to USB Media SYS Sets whether the function that saves scanned data of Mode function originals to USB media is enabled or disabled. setting 0: Disabled 1: Enabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 631 SYS Sets whether the function that saves data to the Mode function Controller external server is enabled or disabled. setting 0: Disabled 1: Enabled Setting System 8914 Network Fax SYS Sets whether the Network Fax function is enabled or Mode function disabled. setting 0: Disabled 1: Enabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 632 1: Allowed managem counter Setting System User 8922 Email header print SYS Sets whether the header of an Email or an Internet Fax Mode interface setting is printed or not as they are received. 0: Not printed 1: Printed e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 633 SYS The default password is set. When "3: High level" is set Mode password reset for code 08-8911, the default password is set as a temporary password. Setting System User Off Device 8931 Output Management SYS 0: Disabled Mode interface Customization Service setting 1: Enabled Architecture e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 634 1: Enabled authentication Setting System User General 8948 Language package Displays the information of the installed language Mode interface information package. Setting System Version 8952 External version of External version of file system for system software Mode HD data e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 635 Setting System General Self-certificate 8973 Length of public key SYS 0: 1024 bit Mode 1: 2048 bit Setting System General Self-certificate 8974 Signature algorithm SYS 0: SHA1 Mode 1: SHA224 2: SHA256 3: SHA384 4: SHA512 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 636 NIC Sets whether the remote scanning is enabled or Mode Scan while control disabled if the user is logged in using the control panel panel is operated when user authentication or department management is enabled. 0: Disabled 1: Enabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 637 NFC reader 8986 Usage type SYS 0011ZZZZ (First 4 digits are fixed) Mode interface 429496729 -ZZZZ: Sub code 0000: No authentication using card 0001: IDm (Felica/NFC-FeliCa) and (or) UID (Mifare/NFC-Mifare) are used 0002: Data (Felica/NFC-FeliCa/Mifare/NFC-Mifare) 0003: SSFC mode e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 638 SYS 1st to 31th. Input "0" to disable this setting. Mode equipment information Setting System Maintenan Notification of Notification day 2 8993 Notification day 2 0-31 SYS 1st to 31th. Input "0" to disable this setting. Mode equipment information e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 639 Maintenan Notification of Pixel counter list 8999 Service engineer SYS 0: Disabled Mode equipment information reference 1: Enabled Setting System Maintenan Notification of Error history list 8999 Maximum 1000 items SYS 0: Disabled Mode equipment information 1: Enabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 640 Poland 21: Hungary 22: Czech 23: Turkey 24: South Africa 25: Taiwan <Default value> NAD/NAC: 4 MJD/MJC: 5 JPC: 0 Others: 1 Setting System General 9010 Line adjustment mode 0: For factory shipment Mode 1: For line Field: "0" must be selected e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 641 3: Copier/Fax 4: Printer 5: Copier/Printer 6: Fax/Printer 7: Copier/Fax/Printer Setting System General Memory 9020 Size information of SYS Displays the sizes of the main memory and page Mode memory memory. Enables to check if each memory is properly e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 642 Setting System User Screen setting 9051 Panel calibration <0-1> SYS Switches whether the screen for displaying panel Mode interface setting value calibration setting values is displayed or not. 0: Disabled (screen not displayed) 1: Enabled (screen displayed) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 643 ARD: 10 Setting System 9065 HDD diagnostic menu SYS Display the HDD information Mode display Setting System 9072 Performing HDD SYS Checks the bad sector. It may take more than 30 Mode testing minutes to finish the checking. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 644 "Day" - "0" is for "Sunday". Proceeds Monday through Saturday from "1" to "6". Setting System User 9102 Date display format Refer to SYS 0: YYYY.MM.DD Mode interface contents 1: DD.MM.YYYY 2: MM.DD.YYYY <Default value> MJD/MJC: 1 JPC: 0 Others: 2 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 645 25 min. 6: 30 min. 7: 40 min. 8: 50 min. 9: 60 min. 10: 70 min. 11: 80 min. 12: 90 min. 13: 100 min. 14: 110 min. 15: 120 min. 16: 150 min. 17: 180 min. 18: 210 min. 19: 240 min. 20: Invalid 21: 1 min. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 646 SYS 0: Disabled Mode interface 1: Enabled Setting System User Department setting 9125 Scanning <0-1> SYS 0: Disabled Mode interface 1: Enabled Setting System User Department setting 9126 List print <0-1> SYS 0: Disabled Mode interface 1: Enabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 647 SYS 0: Continuous feeding (by pressing the [START] button) Mode interface RADF mode 1: Single feeding (by setting original on the tray) Setting System User 9135 Book type original SYS 0: Left page to right page 1: Right page to left page Mode interface priority e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 648 Inner receiving tray SYS 0: Normal 1: Inner receiving tray Mode interface priority at Non-sort Mode Setting System User 9149 Width setting for SYS 0: ON 1: OFF Mode interface image shift copying (linkage of front side and back side) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 649 1: Enabled Setting System User Cascade operation PPC / FAX 9158 Operation setting SYS 0: Once mode interface setting 1: Circulation (Loop) Setting System User Cascade operation Printer/Box 9159 Enable/Disable setting SYS 0: Disabled mode interface setting 1: Enabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 650 System Option 9183 Adaptation of paper SYS 0: Not subjected for APS judgment Mode source 1: Subjected for APS judgment Setting System User 9184 Centering printing of SYS 0: Invalid 1: Valid Mode interface primary/secondary direction at AMS e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 651 9193 Web data retention <3 digits> SYS When a certain period of time has passed without Mode period operation after accessing TopAccess, the data being registered is automatically reset. This period is set at this code. (Unit: minute) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 652 The binarizing level of each step is set at 08-9230. Setting System Electronic 9207 Default setting of user 0-999 SYS Sets the data retention period when creating a user Mode filing box retention period box.0: Not deleted 1 to 999: Retention period (Unit: Day) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 653 1: Step -5 2: Step -4 3: Step -3 4: Step -2 5: Step -1 6: Step 0 (center) 7: Step +1 8: Step +2 9: Step +3 10: Step +4 11: Step +5 (1 to 11: Manual density) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 654 5: 100 dpi Setting System User Default mode setting Default setting (SCN) 9219 Original mode (Full SYS 0: Text Mode interface color) 1: Photo 2: Print 3: Custom (Valid only when a setting other than "0" is set for 08-8303) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 655 (Gray Scale) Setting System User Default setting of filing E-mail 9227 Black SYS 0: TIFF (Multi) Mode interface format 1: PDF (Multi) 2: Not used 3: TIFF (Single) 4: PDF (Single) 5: XPS (Multi) 6: XPS (Single) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 656 0-255 SYS Sets the binarizing level of each step. When the value Mode (When judging as increases, the image becomes darker. When the value black in the ACS decreases, the image becomes lighter. Refer to 08- Mode) 9204. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 657 (08-9264) from OFF to ON. Setting System User 9236 Default setting of print SYS Sets the default screen when the [PRINT] key is Mode interface screen (EFI) pressed. 1: Private 2: Hold e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 658 Electronic 1: Cleared by Auto Clear Filing Agent Setting System Feeding 9253 Setting of paper size SYS 0: Not switched Mode system / switching to 13" LG 1: LG -> 13"LG Paper 2: FOLIO -> 13"LG transport e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 659 9269 Tab/cover sheet-FAX <0-1> SYS Sets ON or OFF of the printing function of special Mode Printing stop function sheets such as tab or cover sheet of FAX, Email or list print. 0: Function OFF 1: Function ON e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 660 General 9289 User data 7 digits SYS 0-9,999,999: 0-9,999,999 sheets Mode management limitation Setting by number of printouts (Color) Setting System General 9293 User authentication SYS 0: Local authentication Mode method 1: Windows domain authentication 2: LDAP authentication e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 661 SYS 0: Plain paper 1: Thick paper 1 2: Thick paper 2 Mode system / information 3: Thick paper 3 8: Recycled paper 9: Plain paper 1 Paper 10: Plain paper 2 transport Only 0 to 3 and 8 to 10 are acceptable. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 662 31: 1 hour 32: 2 hours 33: 4 hours 34: 8 hours 35: 12 hours 50: 5 min. 51: 10 min. 52: 15 min. 53: 30 min. Setting System Network 9308 Raw printing job SYS 0: Valid 1: Invalid Mode (Duplex) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 663 400-99975 SYS Sets the font size from 4 to 999.75.(A hundredfold of Mode font size) the font size is defined as the setting value.) Setting System Network 9317 Raw printing job (PCL 0-9999 SYS Sets the PCL font number. Mode font number) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 664 (ex. coated paper) is used. The occurrence of misfeeding is reduced by lengthening the jam detection time. However, the printing speed is lowered since the printing cycle is also lengthened with the lengthened jam detection time. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 665 (ex. coated paper) is used. The occurrence of misfeeding is reduced by lengthening the jam detection time. However, the printing speed is lowered since the printing cycle is also lengthened with the lengthened jam detection time. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 666 2.) <Default value> MJD/MJC: 2 Others: 0 Setting System Network 9334 PCL line feed code SYS Sets the PCL line feed code. Mode setting 0: Automatic setting 1: CR=CR, LF=LF 2: CR=CR+LF, LF=LF 3: CR=CR, LF=CR+LF e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 667 (Unit: mm) Setting System User Binding margin setting 9341 Top binding front 0-100 SYS Sets the binding margin displayed as default on the Mode interface (Bottom binding back) setting screen for the top/bottom/left/right binding function when copying. (Unit: mm) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 668 1: Resume by users Setting System General Available profile 9361 BP_OP_00.icc SYS Displaying the current Output Profile and PG Mode display CIEBasedPureGrayTRC attribute (PG CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 669 Setting System General Available profile 9361 BP_OP_11.icc SYS Displaying the current Output Profile and PG Mode display CIEBasedPureGrayTRC attribute (PG CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 670 Setting System General Available profile 9361 BP_OP_22.icc SYS Displaying the current Output Profile and PG Mode display CIEBasedPureGrayTRC attribute (PG CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 671 Setting System General Available profile 9361 BP_OP_33.icc SYS Displaying the current Output Profile and PG Mode display CIEBasedPureGrayTRC attribute (PG CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 672 Setting System General Available profile 9361 BP_OP_44.icc SYS Displaying the current Output Profile and PG Mode display CIEBasedPureGrayTRC attribute (PG CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 673 Setting System General Available profile 9361 BP_OP_53.icc SYS Displaying the current Output Profile and PG Mode display CIEBasedPureGrayTRC attribute (PG CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 674 33: BP_OP_33 34: BP_OP_34 35: BP_OP_35 36: BP_OP_36 37: BP_OP_37 38: BP_OP_38 39: BP_OP_39 40: BP_OP_40 41: BP_OP_41 42: BP_OP_42 43: BP_OP_43 44: BP_OP_44 45: BP_OP_45 46: BP_OP_46 47: BP_OP_47 48: BP_OP_48 49: BP_OP_49 50: BP_OP_50 51: BP_OP_51 52: BP_OP_52 53: BP_OP_53 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 675 33: BP_OP_33 34: BP_OP_34 35: BP_OP_35 36: BP_OP_36 37: BP_OP_37 38: BP_OP_38 39: BP_OP_39 40: BP_OP_40 41: BP_OP_41 42: BP_OP_42 43: BP_OP_43 44: BP_OP_44 45: BP_OP_45 46: BP_OP_46 47: BP_OP_47 48: BP_OP_48 49: BP_OP_49 50: BP_OP_50 51: BP_OP_51 52: BP_OP_52 53: BP_OP_53 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 676 Setting System General Displaying the 9365 BP_OP_00.002 SYS Displays the default Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute. (PG at the shipment CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 677 Setting System General Displaying the 9365 BP_OP_00.010 SYS Displays the default Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute. (PG at the shipment CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 678 Setting System General Displaying the 9365 BP_OP_00.018 SYS Displays the default Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute. (PG at the shipment CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 679 Setting System General Displaying the 9365 BP_OP_00.026 SYS Displays the default Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute. (PG at the shipment CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 680 Setting System General Displaying the 9365 BP_OP_00.034 SYS Displays the default Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute. (PG at the shipment CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 681 Setting System General Displaying the 9365 BP_OP_00.042 SYS Displays the default Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute. (PG at the shipment CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 682 Setting System General Displaying the 9365 BP_OP_00.050 SYS Displays the default Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute. (PG at the shipment CIEBasedPureGrayTRC attribute in the same sub-code is displayed at the same time.) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 683 33: BP_OP_33 34: BP_OP_34 35: BP_OP_35 36: BP_OP_36 37: BP_OP_37 38: BP_OP_38 39: BP_OP_39 40: BP_OP_40 41: BP_OP_41 42: BP_OP_42 43: BP_OP_43 44: BP_OP_44 45: BP_OP_45 46: BP_OP_46 47: BP_OP_47 48: BP_OP_48 49: BP_OP_49 50: BP_OP_50 51: BP_OP_51 52: BP_OP_52 53: BP_OP_53 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 684 33: BP_OP_33 34: BP_OP_34 35: BP_OP_35 36: BP_OP_36 37: BP_OP_37 38: BP_OP_38 39: BP_OP_39 40: BP_OP_40 41: BP_OP_41 42: BP_OP_42 43: BP_OP_43 44: BP_OP_44 45: BP_OP_45 46: BP_OP_46 47: BP_OP_47 48: BP_OP_48 49: BP_OP_49 50: BP_OP_50 51: BP_OP_51 52: BP_OP_52 53: BP_OP_53 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 685 CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 9369 BP_OP_03.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 686 CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 9369 BP_OP_14.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 687 CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 9369 BP_OP_25.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 688 CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 9369 BP_OP_36.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 689 CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment Setting System General Displaying the 9369 BP_OP_47.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code. at the shipment e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 690 General 9381 Custom size (Photo 148/100 10-434/10- SYS Feeding/Widthwise Mode size) Feeding / Widthwise Setting System Image 9382 Erasing leading edge SYS 0: Whole page copied (No void) 1: Leading edge Mode shade on A3-wide masked (full-page copying) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 691 Email transmission. as file" and Email 0: [YYYY][MM][DD][HH][mm][SS] transmission 1: [YY][MM][DD][HH][mm][SS] 2: [YYYY][MM][DD] 3: [YY][MM][DD] 4: [HH][mm][SS] 5: [YYYY][MM][DD][HH][mm][SS][mm0] The order of [YY], [MM] and [DD] varies depending on the setting of the code 08-9102 (Data display format). e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 692 4: 100MBPS Half Duplex 5: 100MBPS Full Duplex 6: Not used 7: 1000MBPS Full Duplex Setting System Network Address 9406 Address Mode <1-3> NIC 1: Fixed IP address Mode 2: Dynamic IP address 3: Dynamic IP address without Auto IP e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 693 9410 Gateway (EFI) NIC 000.000.000.000-255.255.255.255 Mode (Default value 10.250.250.250) The default value is reflected by performing 08-9951 when the EFI Printer Board is connected. Setting System Network 9411 Enable/disable setting NIC 1: Enabled Mode of IPX/SPX 2: Disabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 694 NIC 1: Available 2: Not available Mode client Setting System Network 9440 Availability of SMTP UTY 1: Available 2: Not available Mode server Setting System Network 9446 Availability of POP3 NIC 1: Available 2: Not available Mode clients e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 695 NIC 1: Available 2: Not available Mode print Setting System Network 9489 Availability of FTP NIC 1: Available 2: Not available Mode print The default value is reflected by performing 08-9951 when the EFI Printer Board is connected. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 696 1: Valid (Accepts all the certification of the server) 2: Invalid 3: Use the imported certification. Setting System Network 9563 IP Conflict Detect OFF/ON Mode 1: Valid 2: Invalid Setting System Network 9564 SNTP Enable OFF/ON1: Valid2: Invalid Mode e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 697 System Maintenan General 9601 Equipment number SYS Fist digit: Production country (fixed) Mode (serial number) Second digit: Model (fixed) display Third digit: Month (variable) Fourth to ninth digit: serial number (variable) This can be also entered with 05-9043. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 698 Setting System Maintenan Remote-controlled Remote-controlled 9615 Monday SYS 0: Invalid 1: Valid Mode service service polling day Setting System Maintenan Remote-controlled Remote-controlled 9616 Tuesday SYS 0: Invalid 1: Valid Mode service service polling day e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 699 SMTP 1: Account name of From Address +Device name authentication 2: LDAP searching Setting System Wireless 9649 Wireless LAN setting NIC This setting is whether the wireless LAN connection is Mode enabled or disabled. 1: Enabled 2: Disabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 700 SYS 0: Local directory 1: REMOTE 1 2: REMOTE 2 Mode directory of "Scan to File" Setting System Network 9709 Default data saving SYS 0: Local directory 1: REMOTE 1 2: REMOTE 2 Mode directory of "Scan to File" (EFI) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 701 Service center call SYS 0: OFF Mode service function 1: Notifies all service calls 2: Notifies all but paper jams Setting System Maintenan Remote-controlled HTTP 9732 Service center call SYS Maximum 256 letters Mode service HTTP server URL setting e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 702 Mode function of supplies 1: Ordered by E-mail (Remote) 2: Ordered by HTTP 3: OFF Setting System Maintenan 9751 Automatic ordering SYS Maximum 32 digits Enter hyphen with the Mode function of supplies [Monitor/Pause] button (Remote) FAX number e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 703 System Maintenan 9763 Automatic ordering SYS Maximum 192 letters List: 256 digits Mode function of supplies (Remote) Service technician's E-mail address Setting System Maintenan 9764 Automatic ordering SYS Maximum 50 letters Mode function of supplies (Remote) Supplier's name e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 704 M Setting System Maintenan 9773 Information about SYS Maximum 20 digits Mode supplies Part number (Remote) of toner cartridge Y Setting System Maintenan 9774 Information about 1-99 Mode supplies Order (Remote) quantity of toner cartridge Y e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 705 Result table (Remote) printout Setting System Maintenan Remote-controlled Call /Display function 9783 Automatic supply Refer to <0-2> SYS 0: Valid (FAX/Internet FAX) Mode service ordering display contents 1: Valid (FAX/Internet FAX/HTTP) 2: Invalid <Default value> NAD/NAC: 0 Others: 2 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 706 (A password setting to Z, a to z, 0 to 9) up to 10 digits. The entered password is displayed with "*" on the touch panel and the self-diagnostic lists. (Maximum 10 digits, minimum 5 digits) e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 707 SYS -50 to 50 Mode Maximum number of sheets acceptable exceeding upper limit / Long size Setting System Finisher Stapling setting 9811 Thick1 -50-50 SYS -50 to 50 Mode Maximum number of sheets acceptable exceeding upper limit / Long size e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 708 General 9817 Maximum number of SYS 0 to 6 digits Mode decimals in the extension fields Setting System General 9818 The default value of SYS 0: DOCYYMMDD Mode the stored/attached 1: NetBios name file name of a File/Email e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 709 2: Limited in the color mode 3: Limited in the black/color mode Setting System Bluetooth Bluetooth BIP Print 9841 Bluetooth BIP Print SYS 0: Fit page 1: 1/2 size 2: 1/4 size 3: 1/8 size Mode type type e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 710 General Data cloning 9889 Status display for SYS 0: Accepted Mode USB cloning 1: Prohibited Setting System User Screen setting 9891 Warning message SYS 0: No warning notification Mode interface when PM time has 1: Warning notification come e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 711 9903 RADF ROM version DF-XXXX Mode Setting System Version Finisher 9904 Finisher ROM version SDL-XXX FIN-XXX Mode Setting System Version 9905 FAX board ROM F670-XXX Mode version Setting System Version System 9930 System software OS T130SF0WXXXX Mode version e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 712 Continuous color control: 6 sheets 7: The number of contact control: 7 Continuous color control: 7 sheets 8: The number of contact control: 8 Continuous color control: 8 sheets 9: The number of contact control: 9 Continuous color control: 9 sheets e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 713 Continuous color control: 6 sheets 7: The number of contact control: 7 Continuous color control: 7 sheets 8: The number of contact control: 8 Continuous color control: 8 sheets 9: The number of contact control: 9 Continuous color control: 9 sheets e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 714 SYS -100 to 100 Mode Acceptable number of sheets exceeding upper limit / Short size Setting System Finisher Stapling setting 9937 Thick2 -100-100 SYS -100 to 100 Mode Acceptable number of sheets exceeding upper limit / Short size e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 715 Finisher Converter CNV-XXX Mode ROM version Setting System Network E-mail 9946 Number of Email <0-14> SYS 0 to 14 times Mode transmission retries Setting System Network E-mail 9947 E-mail transmission <0-15> SYS 0 to 15 min. Mode retry interval e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 716 1: ON (Bcc address displayed) Setting System Maintenan 9960 Display of equipment Refer to SYS Displays the equipment information in SRAM. Mode information (SRAM) contents 0: Not set 1: Destinations other than NAD/NAC 2: NAD/NAC <Default value> NAD/NAC: 2 Others: 1 e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 717 ACS judgment -3-3 SYS The larger the value, the more the original is judged as Mode interface adjustment Default adjustment Default color data. The smaller the value, the less the original is setting setting judged as black data. e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 718 3: Added to CC field. 4: Added to BCC field. Setting System Network 9981 Sending body text of SYS Sets whether the job information is output in the body of Mode email e-mail when executing e-mail send job. 0: Disabled 1: Enabled e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 719 1: Clears all 2: Clears only addresses 3: Retains all settings * When the value of this code is set to "3", the value of 08-3847 (FAX mistransmission prevention) is automatically set to "1" (Enabled). e-STUDIO5540C/6540C/6550C (Ver08)
  • Page 720 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Developm Auto adj. for dev. 2400 Adjustment for All 0-255 Sets the auto-toner sensor output and supply of t mode material supply and (Y,M,C,K)
  • Page 721 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Developm Auto adj. for dev. 2406 Adjustment for 3 0-255 Sets the auto-toner sensor output and supply of t mode material supply and colors(Y,M,C)
  • Page 722 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Developm Developer bias DC(-) 2628 Upper limit 0-1000 (Unit: V) t mode calibration voltage Adjustmen Process Developm Developer bias DC(-) 2629 Lower limit 0-1000...
  • Page 723 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Image Image quality closed- 2670 0-16 Sets the maximum correction number of time of the t mode control loop control contrast contrast voltage in the closed-loop control.
  • Page 724 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 2762 Temperature/humidity 0-100 Displays the preset humidity at the beginning of t mode sensor humidity warming-up. display Adjustmen Process Charger...
  • Page 725 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Image Drum surface 2782 M (high bias) 0-999 Outputs the detection value of the drum surface t mode control potential sensor potential sensor when the drum surface potential sensor...
  • Page 726 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Image Drum surface 2787 Y (medium bias) 0-999 Outputs the detection value of the drum surface t mode control potential sensor potential sensor when the drum surface potential sensor...
  • Page 727 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Image Drum surface 2789 Sensor shutter-K Displays the controlling status of the drum surface t mode control potential sensor potential sensor shutter closing with a digit as follows: shutter closing 0: Normally finished1: Control paused2: Sensor...
  • Page 728 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Image TRC control pattern 2800 K color (low gradation 0-1023 TRC control pattern t mode control detection value Detection values for low gradation 1, low gradation 2, low gradation 3 of each color Adjustmen...
  • Page 729 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Image TRC control pattern 2801 K color (middle low 0-1023 TRC control pattern t mode control detection value gradation 1) Detection values for middle low gradation 1, middle low gradation 2, and middle low gradation 3 of each color...
  • Page 730 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Image TRC control pattern 2802 C color (middle high 0-1023 TRC control pattern t mode control detection value gradation 3) Detection values for middle high gradation 1, middle high gradation 2, and middle high gradation 3 of each...
  • Page 731 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Image TRC control pattern 2803 C color (high 0-1023 TRC control pattern t mode control detection value gradation 2) Detection values for high gradation 1, high gradation 2, and high gradation 3 of each color Adjustmen...
  • Page 732 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 1st transfer bias 2905 K normal speed 0-10 Sets the offset amount of the 1st transfer bias. t mode resistance detection Offsetting level...
  • Page 733 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 1st transfer bias 2905 K decelerating 1 0-10 Sets the offset amount of the 1st transfer bias. t mode resistance detection Offsetting level...
  • Page 734 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 1st transfer bias 2905 C decelerating 2 0-10 Sets the offset amount of the 1st transfer bias. t mode resistance detection Offsetting level...
  • Page 735 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer Bias offset in the color 2934 Thick paper 2 0-10 Sets the bias offset amount of the 2nd transfer bias in t mode mode (Top side) the color mode (Top side).
  • Page 736 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer Bias offset in the color 2934 Thick paper 4 0-10 Sets the bias offset amount of the 2nd transfer bias in t mode mode (Top side) the color mode (Top side).
  • Page 737 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer Bias offset in the color 2935 Special paper 1 0-10 Sets the bias offset amount of the 2nd transfer bias in t mode mode (Back side) the color mode (Back side).
  • Page 738 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer Bias offset in the 2936 Thick paper 1 0-10 Sets the bias offset amount of the 2nd transfer bias in t mode black mode (Top side) the black mode (Top side).
  • Page 739 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer Bias offset in the 2936 Recycled paper 0-10 Sets the bias offset amount of the 2nd transfer bias in t mode black mode (Top side) the black mode (Top side).
  • Page 740 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer Bias offset in the 2937 Thick paper 3 0-10 Sets the bias offset amount of the 2nd transfer bias in t mode black mode (Back the black mode (Back side).
  • Page 741 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 2nd transfer 2938 Plain paper 0-10 Corrects the 2nd transfer leading/trailing edge bias (Top t mode leading/trailing edge side in the color mode).
  • Page 742 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 2nd transfer 2938 Special paper 2 0-10 Corrects the 2nd transfer leading/trailing edge bias (Top t mode leading/trailing edge side in the color mode).
  • Page 743 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 2nd transfer 2939 Thick paper 2 0-10 Corrects the 2nd transfer leading/trailing edge bias t mode leading/trailing edge (Back side in the color mode).
  • Page 744 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 2nd transfer 2939 Special mode for 0-10 Corrects the 2nd transfer leading/trailing edge bias t mode leading/trailing edge waterproof paper (Back side in the color mode).
  • Page 745 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 2nd transfer 2940 Special paper 1 0-10 Corrects the 2nd transfer leading/trailing edge bias (Top t mode leading/trailing edge side in the black mode).
  • Page 746 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 2nd transfer 2941 Thick paper 1 0-10 Corrects the 2nd transfer leading/trailing edge bias t mode leading/trailing edge (Back side in the black mode).
  • Page 747 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 2nd transfer 2941 Thick paper 4 0-10 Corrects the 2nd transfer leading/trailing edge bias t mode leading/trailing edge (Back side in the black mode).
  • Page 748 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Cleaning Setting value of 2966 Normal speed/High 0: None 1: Once 2: Twice 3: 3 times 4: 5 times 5: 7 t mode number of times speed...
  • Page 749 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Process Transfer 1st transfer bias 2993 High 0-99 (Unit: μA) t mode constant-current transformer calibration value (C only) Adjustmen Scanner Scanner 3009...
  • Page 750 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Scanner RADF Leading edge position 3044 Front side 0-100 SYS When the value increases by "1", the copied image of t mode adjustment original fed from the RADF shifts toward the trailing...
  • Page 751 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Scanner RADF 3221 Original reading start Adjusts the RADF original reading start sensor of the t mode sensor Manual adj. RADF manually.
  • Page 752 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Image Adj. of drawer 4018 1st drawer 0-255 When the value increases by "1", the image shifts t mode sideways deviation toward the front side by 0.0423 mm.
  • Page 753 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Image 4054 Top margin 0-255 When the value increases by "1", the blank area t mode adjustment (blank becomes wider by approx.
  • Page 754 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Image 4064 Bottom margin 0-255 When the value increases, the blank area becomes t mode adjustment (blank wider. area at the trailing edge of the paper)/Reverse side...
  • Page 755 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Image 4064 Right margin 0-255 When the value increases, the blank area becomes t mode adjustment (blank wider. area at the right of the paper along the paper feeding...
  • Page 756 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Image Leading edge position 4071 Common items 0-200 When the value increases by "1", the image shifts t mode adjustment (Black) toward the trailing edge of the paper by approx.
  • Page 757 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 1st drawer 4100 Plain paper; :Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 758 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 2nd drawer 4101 Plain paper; Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 759 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4103 Plain paper; Middle 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 760 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4104 Thick paper1 ;Long 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 761 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4104 Thick paper1 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 762 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4105 Thick paper2 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 763 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4106 Thick paper3 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 764 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4107 OHP film ;Middle size 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 765 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 3rd drawer 4108 Plain paper; Long size 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 766 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 3rd drawer 4108 Plain paper; Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 767 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4th drawer 4109 Plain paper; :Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 768 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4110 Plain paper; Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment size1...
  • Page 769 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Adjustment of paper 4112 Thick paper 1 0-63 t mode system / pushing amount / Paper Bypass feeding transport Adjustmen Printer...
  • Page 770 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Adjustment of paper 4112 Special paper 2 0-63 t mode system / pushing amount / Paper Bypass feeding transport Adjustmen Printer...
  • Page 771 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 1st drawer 4115 Thick paper1 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 772 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 2nd drawer 4116 Thick paper1 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 773 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 3rd drawer 4117 Thick paper1 ;Middle 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 774 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4th drawer 4118 Thick paper1 ;Long 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 775 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4th drawer 4118 Thick paper1 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 776 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4120 Thick paper1 ;Middle 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment size...
  • Page 777 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 1st drawer 4122 Plain paper; Long 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 778 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 1st drawer 4122 Plain paper; Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 779 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 2nd drawer 4123 Plain paper; Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 780 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 3rd drawer 4124 Plain paper; Middle 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 781 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4th drawer 4125 Plain paper; Long 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 782 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4th drawer 4125 Plain paper; Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 783 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4127 Plain paper; Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 784 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4128 Special paper1 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 785 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4129 Special paper2 ;Long 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 786 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4129 Special paper2 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 787 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Adjustment of 4490 Refer to 0-63 <Default value> t mode system / remaining amount of drawer contents JPC: 15 Paper paper / Paper present...
  • Page 788 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Adjustment of 4491 O-LCF 0-63 t mode system / remaining amount of Paper paper / No paper transport Adjustmen Printer...
  • Page 789 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 4523 Transport speed: 0-255 When the value increases, the motor speed becomes t mode registration motor Decelerated by 1/3 faster.
  • Page 790 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 4529 Transport speed: 0-255 When the value increases, the motor speed becomes t mode fuser roller rotational Decelerated by 1/3 faster.
  • Page 791 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 4532 Transport speed: 4 0-255 t mode feed/transport motor rotational speed Adjustmen Printer Drive Fine adjustment of 4532 Transport speed: 5...
  • Page 792 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 4535 Transport speed: 6 0-255 0.05%/step t mode exit motor rotational speed Adjustmen Printer Image Leading edge position Normal speed...
  • Page 793 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Image Leading edge position 4564 Thick paper 2 0-100 When the value increases by "1", the image shifts t mode adjustment / 3rd toward the trailing edge of the paper by approx.
  • Page 794 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Image Leading edge position 4567 Thick paper 1 0-100 When the value increases by "1", the image shifts t mode adjustment toward the trailing edge of the paper by approx.
  • Page 795 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Image Leading edge position 4567 Thick paper 4 0-100 When the value increases by "1", the image shifts t mode adjustment toward the trailing edge of the paper by approx.
  • Page 796 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Image Leading edge position 4569 Thick paper 3 0-100 When the value increases by "1", the image shifts t mode adjustment / O-LCF toward the trailing edge of the paper by approx.
  • Page 797 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning O-LCF 4580 Plain paper; :Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 798 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning O-LCF 4581 Thick paper1 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 799 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 1st drawer 4582 Thick paper2 ;Middle 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 800 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 2nd drawer 4583 Thick paper2 ;Long 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 801 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 2nd drawer 4583 Thick paper2 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 802 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 3rd drawer 4584 Thick paper2 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 803 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4th drawer 4585 Thick paper2 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 804 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning O-LCF 4586 Thick paper2 ;Middle 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 805 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4587 Long size(High 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment speed)
  • Page 806 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4587 Short size3(High 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment speed)
  • Page 807 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 1st drawer 4588 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(black)Short...
  • Page 808 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 2nd drawer 4589 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(black)Short...
  • Page 809 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 3rd drawer 4590 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(black)Middle...
  • Page 810 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4th drawer 4591 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(black)Long...
  • Page 811 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4th drawer 4591 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(black)Short...
  • Page 812 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning O-LCF 4592 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(black)Short...
  • Page 813 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4593 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(black)Short increases by approx.
  • Page 814 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning O-LCF 4600 Plain paper; Middle 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment...
  • Page 815 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4601 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper4(black)Long...
  • Page 816 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4601 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper4(black)Short...
  • Page 817 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4602 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper4(black)Short increases by approx.
  • Page 818 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4603 Special paper1 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment size1...
  • Page 819 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4604 Special paper2 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment ;Middle size...
  • Page 820 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 1st drawer 4605 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(color)Long...
  • Page 821 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 1st drawer 4605 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(color)Short...
  • Page 822 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 2nd drawer 4606 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(color)Short...
  • Page 823 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 3rd drawer 4607 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(color)Short...
  • Page 824 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4th drawer 4608 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(color)Middle...
  • Page 825 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning O-LCF 4609 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(color)Long...
  • Page 826 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning O-LCF 4609 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(color)Short...
  • Page 827 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4610 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(color)Short increases by approx.
  • Page 828 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4611 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper4(color)Short increases by approx.
  • Page 829 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4612 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper3(color)Middle...
  • Page 830 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4613 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper4(color)Long...
  • Page 831 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning Bypass feeding 4613 Thick 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment paper4(color)Short...
  • Page 832 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding Paper aligning 4615 Thick paper2 ;Short 0-63 When the value increases by "1", the aligning amount t mode system/Pa amount adjustment size2...
  • Page 833 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Image Displaying parameters 4720 Center 0-255 Checks the cause of a "CA00" error when it occurs. t mode control for color regist.
  • Page 834 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 4740 Transport speed: 0-255 t mode 2nd drawer feed Decelerated by 1/2 motor rotational speed Adjustmen Printer...
  • Page 835 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 1st 4741 Transport speed: 0-255 t mode drawer transport Decelerated by 1/3 motor rotational speed Adjustmen Printer...
  • Page 836 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 4742 Transport speed: High 0-255 t mode 2nd drawer transport speed motor rotational speed Adjustmen Printer Drive...
  • Page 837 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 4743 Transport speed: 0-255 0.09%/step t mode Bypass feeding feed Decelerated by 1/2 motor rotational (Long size paper) speed Adjustmen...
  • Page 838 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 4744 Transport speed: High 0-255 t mode Reverse motor speed rotational speed Adjustmen Printer Drive Fine adjustment of 4744...
  • Page 839 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 4745 Transport speed: 0-255 t mode Bridge unit transport Decelerated by 1/3 motor-1 rotational speed Adjustmen Printer...
  • Page 840 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 4746 Transport speed: 0-255 t mode Bridge unit transport Decelerated by 1/2 motor-2 rotational speed Adjustmen Printer...
  • Page 841 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of 4747 Transport speed: 0-255 t mode ADU motor-1 Normal speed rotational speed Adjustmen Printer Drive Fine adjustment of 4747...
  • Page 842 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Drive Fine adjustment of O- 4762 Transport speed: 1 0-255 t mode LCF motor rotational speed Adjustmen Printer Drive Fine adjustment of O- 4762...
  • Page 843 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Feeding 4784 Media sensor / Border Refer to 0-255 3.22 mV/step t mode system / value for plain paper 1 contents <Default value>...
  • Page 844 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Aligning Batch 4808 Drawer -20-20 0.54 mm/step t mode adjustment conversion/Plain paper Adjustmen Printer Aligning Batch 4808 Bypass feeding -20-20 0.54 mm/step t mode...
  • Page 845 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Printer Pressure adjustment 4813 Leading edge of the 86-170 For black: Thick paper 1, 2, 3 and 4 t mode transfer paper: 90 mm/s For color: Thick paper 1 and 2...
  • Page 846 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Backgroun PPC(black) Black/Manual density 7041 Text/Photo 0-255 SYS The smaller the value, the darker the background t mode Processing adjustment becomes.
  • Page 847 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Density PPC(black) Manual 7114 Text/Photo 0-255 SYS The larger the value, the darker the image at the center t mode Processing adjustment...
  • Page 848 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Gamma PPC(black) Text/Photo 7190 Low density 0-255 SYS The larger the value, the darker the image of the area t mode Processing balance...
  • Page 849 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Setting PPC(black) 7212 Beam level 2/4 0-255 SYS The smaller the value, the narrower the beam width t mode Processing beam level becomes and the smaller the dots are reproduced.
  • Page 850 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Gamma PPC(black) User custom 7276 Medium density 0-255 SYS The larger the value, the darker the image of the area t mode Processing balance...
  • Page 851 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Image Setting beam level 7300 Black, Beamlevel 1/4 0-255 SYS The smaller the value, the narrower the beam width t mode Processing conversion for...
  • Page 852 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Upper limit PRT(black/600dpi) 7307 0-255 SYS The smaller the value, the lighter the printed image t mode Processing value in becomes.
  • Page 853 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Gamma PRT(black) PS/Detail/600dpi 7316 Low density 0-255 SYS When the value increases, the density in the target area t mode Processing balance...
  • Page 854 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Gamma PRT(black) XPS/Smooth/600dpi 7319 High density 0-255 SYS When the value increases, the density in the target area t mode Processing balance...
  • Page 855 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Smudged/f PRT(black) 7340 SYS The larger the value, the darker the small text and fine t mode Processing aint text lines become and the more faint text is suppressed.
  • Page 856 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Gamma Monochrome/600dpi/ PS/image 7362 High density 0-255 SYS Larger the value, the density for the target area t mode Processing balance Auto...
  • Page 857 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Gamma Monochrome/600dpi/ XPS/text 7366 Medium density 0-255 SYS Larger the value, the density for the target area t mode Processing balance Auto...
  • Page 858 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image ADF noise SCN(black) 7401 Text/Photo 0-200 SYS When the value decreases, the effect of reducing t mode Processing reduction streaks (set with 08-8300) becomes larger.
  • Page 859 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Range Range correction Black/Manual density 7421 Text/Photo SYS 0: Background peak - Fixed t mode Processing correction adjustment(Black/Man adjustment 1: Background peak - Varied adjustment...
  • Page 860 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Density SCN(black) Manual 7445 Text 0-255 SYS The larger the value, the darker the image at the center t mode Processing adjustment...
  • Page 861 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Gamma SCN(black) Text/Photo 7485 Medium density 0-255 SYS The larger the value, the darker the image of the area t mode Processing balance...
  • Page 862 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Density FAX(black) Manual 7535 Photo 0-255 SYS The larger the value, the darker the image at the center t mode Processing adjustment...
  • Page 863 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Printer PPC(color) 7640 User custom Refer to SYS Sets the color conversion table which focuses on the t mode Processing LUT color contents...
  • Page 864 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Black area PPC(color) Black and red 7642 Low density 0-255 SYS The larger the value, the larger the area recognized as t mode Processing adj.
  • Page 865 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Copy color Mono color / twin Yellow 7645 0-255 SYS Performs the density adjustment for the specified color t mode Processing adjustment...
  • Page 866 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Copy color Mono color Pink 7648 0-255 SYS Performs the density adjustment for the specified color t mode Processing adjustment during mono color copying.
  • Page 867 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Copy color Mono color Orange 7650 0-255 SYS Performs the density adjustment for the specified color t mode Processing adjustment during mono color copying.
  • Page 868 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Copy color Mono color / twin Blue 7652 0-255 SYS Performs the density adjustment for the specified color t mode Processing adjustment...
  • Page 869 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Backgroun Full color / auto color 7658 Photo 0-255 SYS The smaller the value, the lighter the background t mode Processing d color...
  • Page 870 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Backgroun PPC(black) Auto color & 7676 Text/Photo 0-255 SYS The larger the value, the lighter the background t mode Processing black/Auto density becomes.
  • Page 871 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Backgroun PPC(color) Full color/Automatic 7748 0-255 SYS The larger the value, the lighter the background t mode Processing density adjustment becomes.
  • Page 872 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Backgroun PPC(color) Full color 7764 0-255 SYS The larger the value, the lighter the background t mode Processing d offset becomes.
  • Page 873 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Range PPC(color) Full color/Manual 7775 Photo SYS 0: Background peak - Fixed t mode Processing correction density adjustment 1: Background peak - Varied adjustment Adjustmen...
  • Page 874 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Sharpness PPC(color) Auto color 7807 Text 0-255 SYS The larger the value, the sharper the image becomes. t mode Processing adjustment The smaller the value, the softer the image becomes...
  • Page 875 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Text/Photo PPC(color) 7841 User custom SYS 0: Default t mode Processing reproducti 1: Photo-oriented 2 (The reproduction level of printed on level image is higher than that of the Photo-oriented 1) adjustment...
  • Page 876 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Marker 7850 PPC(color) "B" SYS The color of the one-touch adjustment “Marker” can be t mode Processing color adjusted.
  • Page 877 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Automatic PPC(color) Color/Black 7871 Thick paper2 SYS When color deviation is found in gradation reproduction, t mode Processing gamma the gradation reproduction of 4 colors can be corrected adjustment...
  • Page 878 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Maximum PPC(color) 7891 0-10 SYS The larger the value, the darker the text becomes. t mode Processing text density adjustment Adjustmen...
  • Page 879 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Maximum PPC(color) 7908 Thick paper4 0-255 SYS The smaller the value, the less toner is adhered to the t mode Processing toner...
  • Page 880 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Maximum PPC(color) 7913 Thick paper 1 0-255 SYS The larger the value, the larger the maximum amount of t mode Processing toner...
  • Page 881 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Maximum PPC(color) 7913 OHP film 0-255 SYS The larger the value, the larger the maximum amount of t mode Processing toner toner to be adhered becomes.
  • Page 882 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Gamma PPC(auto color & Photo 7959 Low density 0-255 SYS The larger the value, the darker the image of the area t mode Processing balance...
  • Page 883 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PPC(color) "Y" Printed image 7962 High density 0-255 SYS The target color, mode and density area become darker t mode Processing balance...
  • Page 884 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PPC(color) "M" Text 7966 Medium density 0-255 SYS The target color, mode and density area become darker t mode Processing balance...
  • Page 885 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PPC(color) "C" Text/Photo 7970 Low density 0-255 SYS The target color, mode and density area become darker t mode Processing balance...
  • Page 886 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PPC(color) "C" Photo (developing 7973 High density 0-255 SYS The target color, mode and density area become darker t mode Processing balance...
  • Page 887 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PPC(color) "K" Printed image 7977 Medium density 0-255 SYS The target color, mode and density area become darker t mode Processing balance...
  • Page 888 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PPC(color) "M" User custom 7981 Low density 0-255 SYS The target color, mode and density area become darker t mode Processing balance...
  • Page 889 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Automatic PRT(color) 600dpi 8004 Plain paper2 SYS When color deviation is found in gradation reproduction, t mode Processing gamma the gradation reproduction of 4 colors can be corrected adjustment...
  • Page 890 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Automatic PRT(color) 600dpi 8004 Special paper1 SYS When color deviation is found in gradation reproduction, t mode Processing gamma the gradation reproduction of 4 colors can be corrected adjustment...
  • Page 891 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Automatic PRT(color) 1200dpi 8005 Thick paper2 SYS When color deviation is found in gradation reproduction, t mode Processing gamma the gradation reproduction of 4 colors can be corrected adjustment...
  • Page 892 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Automatic PRT(color/1200dpi) 8009 All media types SYS When color deviation is found in gradation reproduction, t mode Processing gamma the gradation reproduction of 4 colors can be corrected adjustment...
  • Page 893 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Backgroun PRT(color) Detail/Twin 8014 0-255 SYS The larger the value, the darker the background t mode Processing color/600dpi becomes.
  • Page 894 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "M" for two PS/Smooth/600dpi 8027 High density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 895 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "M" for two PS/Detail/600dpi 8031 Medium density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 896 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "M" for two PCL/Smooth/600dpi 8035 Low density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 897 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "Y" for two PCL/Detail/600dpi 8038 High density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 898 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "Y" XPS/Smooth/600dpi 8042 Medium density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 899 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "Y" XPS/Detail/600dpi 8046 Low density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 900 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "K" XPS/Detail/600dpi 8049 High density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 901 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "K" PS/Smooth/600dpi 8053 Medium density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 902 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "K" PS/Detail/600dpi 8057 Low density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 903 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "C" PCL/Smooth/600dpi 8060 High density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 904 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "C" PCL/Detail/600dpi 8064 Medium density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 905 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Maximum PRT(color/600 dpi) Detail 8070 Recycled paper 0-255 SYS The larger the value, the larger the maximum amount of t mode Processing toner...
  • Page 906 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Maximum PRT(color/600 dpi) Detail 8070 Special paper2 0-255 SYS The larger the value, the larger the maximum amount of t mode Processing toner...
  • Page 907 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Maximum PRT(color/600 dpi) Smooth 8071 Thick paper2 0-255 SYS The larger the value, the larger the maximum amount of t mode Processing toner...
  • Page 908 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Maximum PRT(color/1200dpi) Detail 8089 Plain paper1 0-255 SYS The larger the value, the larger the maximum amount of t mode Processing toner...
  • Page 909 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Maximum PRT(color/1200dpi) Detail 8089 Thick paper4 0-255 SYS The larger the value, the larger the maximum amount of t mode Processing toner...
  • Page 910 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Maximum PRT(color/1200dpi) Smooth 8090 Recycled paper 0-255 SYS The larger the value, the larger the maximum amount of t mode Processing toner...
  • Page 911 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Maximum PRT(color/1200dpi) Smooth 8090 Special paper2 0-255 SYS The larger the value, the larger the maximum amount of t mode Processing toner...
  • Page 912 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Sharpness PRT(color) e-BRIDGE/Red seal 8109 Graphics 0-255 SYS The larger the value, the sharper the image becomes. t mode Processing adjustment color...
  • Page 913 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Sharpness PRT(color) e-BRIDGE/PS/Line art 8113 Text 0-255 SYS The larger the value, the sharper the image becomes. t mode Processing adjustment The smaller the value, the softer the image becomes.
  • Page 914 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Smudged/f PRT(color) 8130 SYS The larger the value, the darker the small text and fine t mode Processing aint text lines become and the more faint text is suppressed.
  • Page 915 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "M" for two XPS/Smooth/600dpi 8151 Medium density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 916 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "M" for two XPS/Detail/600dpi 8155 Low density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 917 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Upper limit PRT color/two-color 8160 0-255 SYS The smaller the value, the lighter the printed image t mode Processing value in (600 dpi)
  • Page 918 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Pure PRT(color) PCL/Text 8210 Photo 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray...
  • Page 919 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Pure PRT(color) PCL/Image 8212 Photo 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray...
  • Page 920 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Stroke PS/PDF automatic 600dpi 8239 Default setting SYS This code is used to change the width of fine lines in PS t mode Processing adjustment...
  • Page 921 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Stroke PS/PDF automatic 1200dpi 8239 Default setting SYS This code is used to change the width of fine lines in PS t mode Processing adjustment...
  • Page 922 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Image Graphic line density 8242 Color (CMYK) SYS The larger the value, the darker the fine lines become. t mode Processing adjustment(1200dpi)
  • Page 923 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Pure PRT(color) XPS/Text 8249 Photo 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray...
  • Page 924 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Pure PRT(color) XPS/Graphic 8250 Advanced 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray...
  • Page 925 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Pure PRT(color) PS/Text 8252 Presentation 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray...
  • Page 926 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Pure PRT(color) PS/Image 8254 General 1-255 SYS The larger the value, the wider the range of colors to be t mode Processing Black/Gray...
  • Page 927 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "M" PS/Smooth/1200dpi 8269 Medium density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 928 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Color PRT(color) "M" PS/Detail/1200dpi 8273 Low density 0-255 SYS The larger the value, the darker only the target color t mode Processing balance...
  • Page 929 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Fine SCN(color) 8315 Text SYS The larger the value, the darker the black side of the t mode Processing adjustment image becomes.
  • Page 930 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Range SCN(color) Full color/Automatic 8330 Text SYS 0: Background peak - Fixed t mode Processing correction density adjustment 1: Background peak - Varied adjustment Adjustmen...
  • Page 931 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Density SCN(color) Manual 8345 Printed image 0-255 SYS Sets the changing amount per step of the density t mode Processing adjustment adjustment/Light step...
  • Page 932 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Backgroun SCN(color) 8370 User custom 0-50 SYS The smaller the value, the lighter the background t mode Processing becomes.
  • Page 933 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Backgroun SCN(color) Automatic density 8386 Printed image 0-255 SYS The larger the value, the less easily the background t mode Processing d offset...
  • Page 934 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image Backgroun SCN(black) Automatic density 8402 Photo 0-255 SYS The larger the value, the less easily the background t mode Processing d offset adjustment...
  • Page 935 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen Image ADF noise SCN(color) 8414 Text 0-200 SYS When the value decreases, the effect of reducing t mode Processing reduction streaks (set with 08-8300) becomes larger.
  • Page 936 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Adjustmen System Maintenan 9960 Display of equipment Refer to SYS Displays the equipment information in SRAM. t mode information (SRAM) contents 0: Not set 1: Destinations other than NAD/NAC...
  • Page 937 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser 2002 Fuser unit error status 0-71 0: No error, 1: C411, 2: C412, 3: C443, 4: Not used, 5: Mode counter C445, 6: C446, 7: C447, 8: C468, 9: C449, 10: Not...
  • Page 938 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Plain paper: Heater 2012 Heat roller: C or CK 0-10 0: Invalid Mode forced On time mode 1 to 10: Setting value * 1 (sec.) Setting Process...
  • Page 939 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Special paper: Heater 2016 Press roller: special 0-10 0: Invalid Mode forced On time paper 2, normal paper 1 to 10: Setting value * 1 (sec.) Setting Process...
  • Page 940 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Fusing temperature 2019 Special paper 2 / 0-16 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode (Center / Pressure Extra long size paper...
  • Page 941 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Thick paper 3: Heater 2029 Press roller: Long size 0-10 0: Invalid Mode forced On time paper 1 to 10: Setting value * 1 (sec.) Setting Process...
  • Page 942 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Threshold of number 2033 Press roller 0-10 0: None Mode of sheets when heater 1: 5 sheets is forced to turned on 2: 10 sheets 3: 15 sheets...
  • Page 943 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Fusing temperature 2050 Extra long size paper 0-16 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode during printing (Center 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º...
  • Page 944 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Pre-running time for 2055 Extra long size paper 0-16 0: Invalid 1: 0 sec. 2: 2 sec. 3: 3 sec. 4: 4 sec. 5: 5 Mode first printing (Thick sec.
  • Page 945 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Plain paper: Center and side 2080 Auto mode: Plain 0-12 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode Temperature setting thermistor...
  • Page 946 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Plain paper: Center and side 2080 Auto mode: Plain 0-12 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode Temperature setting thermistor...
  • Page 947 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Pre-running time for 2085 OHP film 0-11 0: Disabled (always ON) 1: 0 min. 2: 0.5 min. 3: 1 min. Mode first printing (Plain 4: 2 min.
  • Page 948 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Plain paper: 2087 Bypass feed (one-side 0-12 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode Temperature setting printing)
  • Page 949 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Fusing temperature at 2124 Normal temperature 0-16 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode ready status (Center / 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º...
  • Page 950 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Fusing temperature 2155 Normal length paper 0-16 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode during printing (Center 145ºC 6: 150ºC 7: 155ºC 8: 160ºC 9: 165ºC 10: 170º...
  • Page 951 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Lower limit of control 2205 Heat roller center/BK 0-18 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature (Plain mode/one-side...
  • Page 952 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Lower limit of control 2205 Heat roller center/BK 0-18 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature (Plain mode/duplex printing...
  • Page 953 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Lower limit of control 2206 Heat roller center/BK 0-18 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature (Plain mode/one-side...
  • Page 954 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Lower limit of control 2206 Press roller side/BK 0-18 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature (Plain mode/duplex printing...
  • Page 955 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Lower limit of control 2208 Press roller 0-18 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature (Thick center/duplex printing...
  • Page 956 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Lower limit of control 2210 Heat roller center/one- 0-18 0: 80ºC 1: 85ºC 2: 90ºC 3: 95ºC 4: 100ºC 5: 105ºC Mode temperature (Thick side printing...
  • Page 957 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Fuser Special paper: Center and side 2246 Special paper 2 0-12 0: 120ºC 1: 125ºC 2: 130ºC 3: 135ºC 4: 140ºC 5: Mode Temperature setting thermistor...
  • Page 958 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Main 2365 Main charger wire <0-9> 0: Invalid Mode charger cleaning - cycle 1: 500 pages setting 2: 1000 pages 3: 2000 pages 4: 3000 pages 5: 5000 pages...
  • Page 959 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Image Image quality 2486 Contrast voltage Sets whether or not correcting the contrast voltage in Mode control image quality control. 0: Invalid 1: Valid Setting...
  • Page 960 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Image Start-up of image 2501 Start-up before SYS 0: Disabled Mode control quality control calibration execution 1: Enabled Setting Process Image...
  • Page 961 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Image Contrast voltage 2513 0-10 0: -80 1: -60 2: -40 3: -20 4: -10 5: 0 6: +10 7: +20 Mode control offset correction...
  • Page 962 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Image Laser power offset 2526 0-10 0: -25 1: -20 2: -15 3: -10 4: -5 5: ±0 6: +5 7: +10 Mode control correction setting...
  • Page 963 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Image Laser power offset 2547 0-10 0: -25 1: -20 2: -15 3: -10 4: -5 5: ±0 6: +5 7: +10 Mode control correction setting...
  • Page 964 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Image Number of drum 2560 Displays the number of drum surface potential sensor Mode control surface potential control abnormalities. sensor control abnormalities Counter setting...
  • Page 965 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Image Number of drum 2577 Displays the number of drum surface potential sensor Mode control surface potential shutter closing control abnormalities. sensor control abnormalities Counter setting...
  • Page 966 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Process Developm Display of number of 2678 Display of number of 0-9999 Displays the number of level 2 executions of toner Mode executions for toner level 2 executions...
  • Page 967 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting Scanner RADF 3021 Set for switchback- <0-1> SYS This setting is whether the original length is detected or Mode mixed size copy not by transporting without scanning in reverse when A4-R/FOLIO paper or LT-R/LG paper is detected in a...
  • Page 968 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System User Card reader 3500 Device setting SYS To enable the e-Bridge ID Gate, a card reading device Mode interface 429496729 should be set in the order of "ABYYZZZZ".
  • Page 969 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System User Card reader 3502 Format information 2 SYS The data of the block number in the noncontact IC is Mode interface 429496729...
  • Page 970 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Available profile 3600 BP_IS34_06.icc SYS Displays PG DevicePureGrayTRC attribute for the Mode display current RGBInkSim profile and the same sub-code. Setting System General...
  • Page 971 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Available profile 3600 BP_IS34_22.icc SYS Displays PG DevicePureGrayTRC attribute for the Mode display current RGBInkSim profile and the same sub-code. Setting System General...
  • Page 972 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Available profile 3600 BP_IS34_38.icc SYS Displays PG DevicePureGrayTRC attribute for the Mode display current RGBInkSim profile and the same sub-code. Setting System General...
  • Page 973 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General 3601 Recovery of the 0-53 SYS Recovers the default RGBInkSim profile and PG Mode profile at the shipment DevicePureGrayTRC in the same sub-code.
  • Page 974 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General 3602 Copying the profile at 0-53 SYS Copies the default RGBInkSim profile and PG Mode the shipment to USB DevicePureGrayTRC in the same sub-code to the USB memory memory.
  • Page 975 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General 3603 Updating the profile at 0-53 SYS Uploads the default RGBInkSim profile and PG Mode the shipment from DevicePureGrayTRC in the same sub-code from the UBS memory USB memory.
  • Page 976 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Displaying the 3604 BP_IS34_04.000 SYS Displays the default RGBInkSim profile and PG Mode attribute of the profile DevicePureGrayTRC attribute in the same sub-code.
  • Page 977 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Displaying the 3604 BP_IS34_15.000 SYS Displays the default RGBInkSim profile and PG Mode attribute of the profile DevicePureGrayTRC attribute in the same sub-code.
  • Page 978 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Displaying the 3604 BP_IS34_26.000 SYS Displays the default RGBInkSim profile and PG Mode attribute of the profile DevicePureGrayTRC attribute in the same sub-code.
  • Page 979 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Displaying the 3604 BP_IS34_37.000 SYS Displays the default RGBInkSim profile and PG Mode attribute of the profile DevicePureGrayTRC attribute in the same sub-code.
  • Page 980 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Displaying the 3604 BP_IS34_48.000 SYS Displays the default RGBInkSim profile and PG Mode attribute of the profile DevicePureGrayTRC attribute in the same sub-code.
  • Page 981 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General 3605 Making the profile 0-53 SYS Selecting a profileOverwrites the adjusted RGBInkSym Mode available profile on the current area (PG CIEBasedPureGrayTRC in the same sub-code is overwritten to the current area.) 0: BP_IS34_00 1: BP_IS34_01 2: BP_IS34_02 3: BP_IS34_03 4: BP_IS34_04 5: BP_IS34_05...
  • Page 982 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General 3606 Copying the adjusted 0-53 SYS Copies the adjusted RGBInkSim profile and PG Mode profile to USB CIEBasedPureGrayTRC in the same sub-code to USB memory memory.
  • Page 983 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General 3607 Uploading the 0-53 SYS Uploads the adjusted RGBInkSim profile and PG Mode adjusted profile from CIEBasedPureGrayTRC in the same sub-code from the USB memory USB memory.
  • Page 984 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Displaying the 3608 BP_IS34_04.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code.
  • Page 985 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Displaying the 3608 BP_IS34_15.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code.
  • Page 986 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Displaying the 3608 BP_IS34_26.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code.
  • Page 987 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Displaying the 3608 BP_IS34_37.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code.
  • Page 988 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Displaying the 3608 BP_IS34_48.001 SYS Displays the adjusted Output Profile and PG Mode attribute of the profile CIEBasedPureGrayTRC attribute in the same sub-code.
  • Page 989 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General Real time log 3626 Department SYS Sets whether the department information (number, Mode notification function information name, code) is transmitted or not in the real time log transmission setting notification function.
  • Page 990 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System Network 3642 User authentication SYS 0: Authentication with user name and domain name mode setting for NW 1: No authentication control in the equipment print/NW fax/Internet 2: Authentication with user name fax function...
  • Page 991 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General 3653 Judgment timing for SYS Sets the timing for judging whether following job is mode continuous printing printed continuously or not.
  • Page 992 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System Scanning 3662 Waiting period for SYS 0: Disabled 1: Enabled mode continue after the * When "Enabled" is set, the screen to notify continuity RADF scanning appears for 1 second after RADF scanning has been completed.
  • Page 993 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System Network 3724 Windows Domain NIC Sets the Windows domain authentication method for Mode Authentication device authentication, Scan to SMB, and user method of Windows authentication.
  • Page 994 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System Network 3736 DNS client TimeOut 1-180 NIC Use when a timeout occurred at DNS client connection Mode Setting System Network 3739...
  • Page 995 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System Network IPv6 3767 Switching IPv6 setting NIC IPv6 function is switched. Mode (EFI) 1: Enabled 2: Disabled Setting System Network IPv6...
  • Page 996 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System Network IPv6 3782 Secondary DNS Registration of Secondary DNS Server Address. Mode Server Address Maximum 40 characters (byte). Registration(IPv6) Setting System...
  • Page 997 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System Scanner 3805 Department SYS Sets the department management with remote scanning Mode Management setting as follows: by Remote Scan 0: w/o GUI OFF,w/ GUI OFF 1: w/o GUI ON, w/ GUI OFF 2: w/o GUI OFF, w/ GUI ON...
  • Page 998 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System Network Internet Fax 3812 Dummy full mode at I- <0-1> SYS When an Internet Fax is sent, the resolution ratio and Mode Fax transmission the paper size of an attached image are set to the full...
  • Page 999 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System Option 3849 Restriction on <0-1> SYS Sets whether the direct entry of the FAX number is Mode destination direct available or not for the FAX mis-transmission entry prevention function.
  • Page 1000 Sub- Default Acceptable Proce Servic 05/08 Mode Element Item Subitem Code Details Contents element code value value dure e UI Setting System General 3857 Summer time Setting Refer to 0-23 SYS 0 to 23 Mode value (Starting hour) contents <Default value> MJC/MJD, NAC/NAD: 2 Other: 0 Setting...

This manual is also suitable for:

E-studio6540cE-studio6550cE-studio5560cE-studio6560cE-studio6570c
