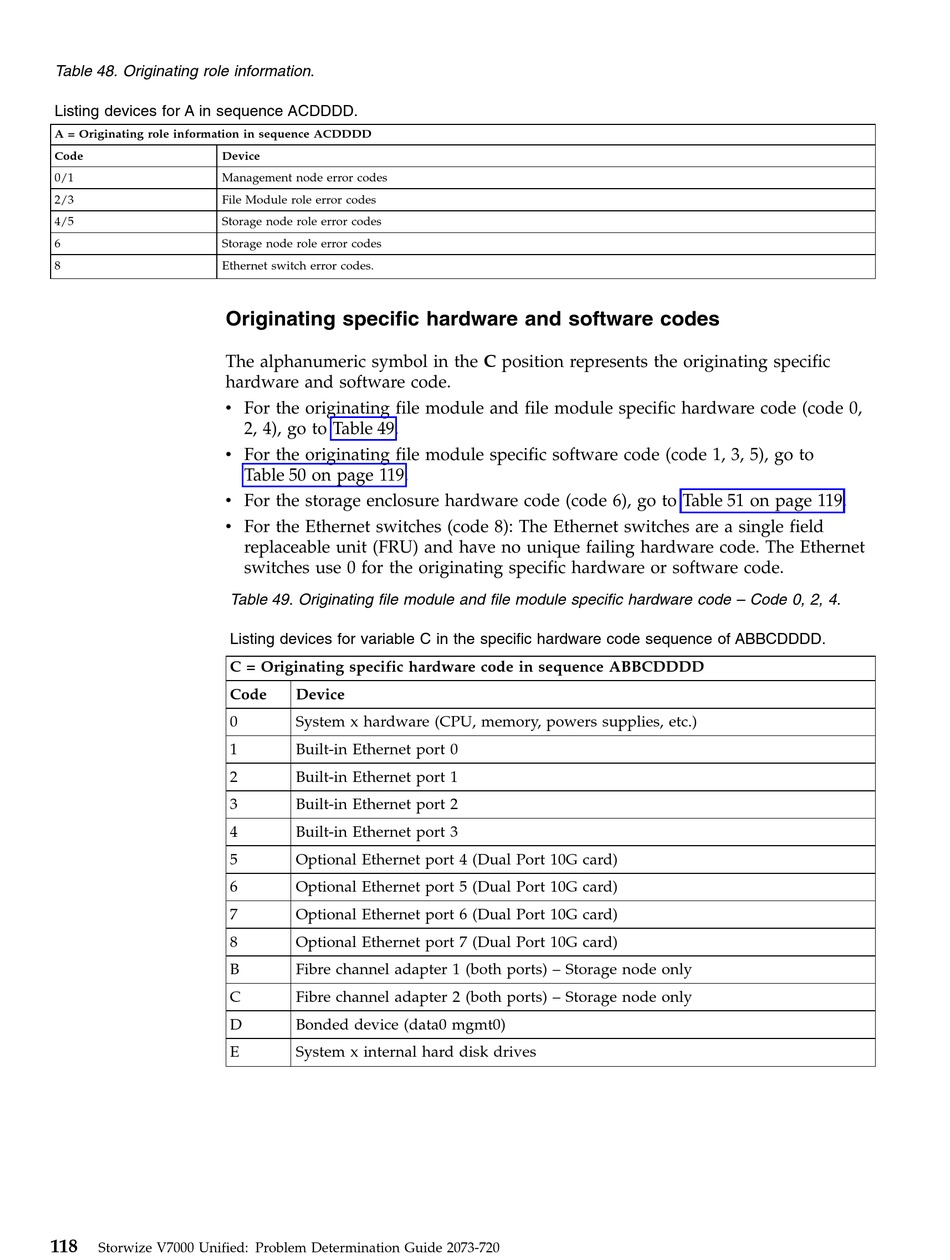

Table 48. Originating role information.
Listing devices for A in sequence ACDDDD.
A = Originating role information in sequence ACDDDD
Code Device
0/1 Management node error codes
2/3 File Module role error codes
4/5 Storage node role error codes
6 Storage node role error codes
8 Ethernet switch error codes.
Originating specific hardware and software codes
The alphanumeric symbol in the C position represents the originating specific
hardware and software code.
v For the originating file module and file module specific hardware code (code 0,
v For the originating file module specific software code (code 1, 3, 5), go to
v For the storage enclosure hardware code (code 6), go to Table 51 on page 119.
v For the Ethernet switches (code 8): The Ethernet switches are a single field
118
Storwize V7000 Unified: Problem Determination Guide 2073-720
2, 4), go to Table 49.
Table 50 on page 119.
replaceable unit (FRU) and have no unique failing hardware code. The Ethernet
switches use 0 for the originating specific hardware or software code.
Table 49. Originating file module and file module specific hardware code – Code 0, 2, 4.
Listing devices for variable C in the specific hardware code sequence of ABBCDDDD.
C = Originating specific hardware code in sequence ABBCDDDD
Code Device
0 System x hardware (CPU, memory, powers supplies, etc.)
1 Built-in Ethernet port 0
2 Built-in Ethernet port 1
3 Built-in Ethernet port 2
4 Built-in Ethernet port 3
5 Optional Ethernet port 4 (Dual Port 10G card)
6 Optional Ethernet port 5 (Dual Port 10G card)
7 Optional Ethernet port 6 (Dual Port 10G card)
8 Optional Ethernet port 7 (Dual Port 10G card)
B Fibre channel adapter 1 (both ports) – Storage node only
C Fibre channel adapter 2 (both ports) – Storage node only
D Bonded device (data0 mgmt0)
E System x internal hard disk drives
