Customizing SoundStructure Designs

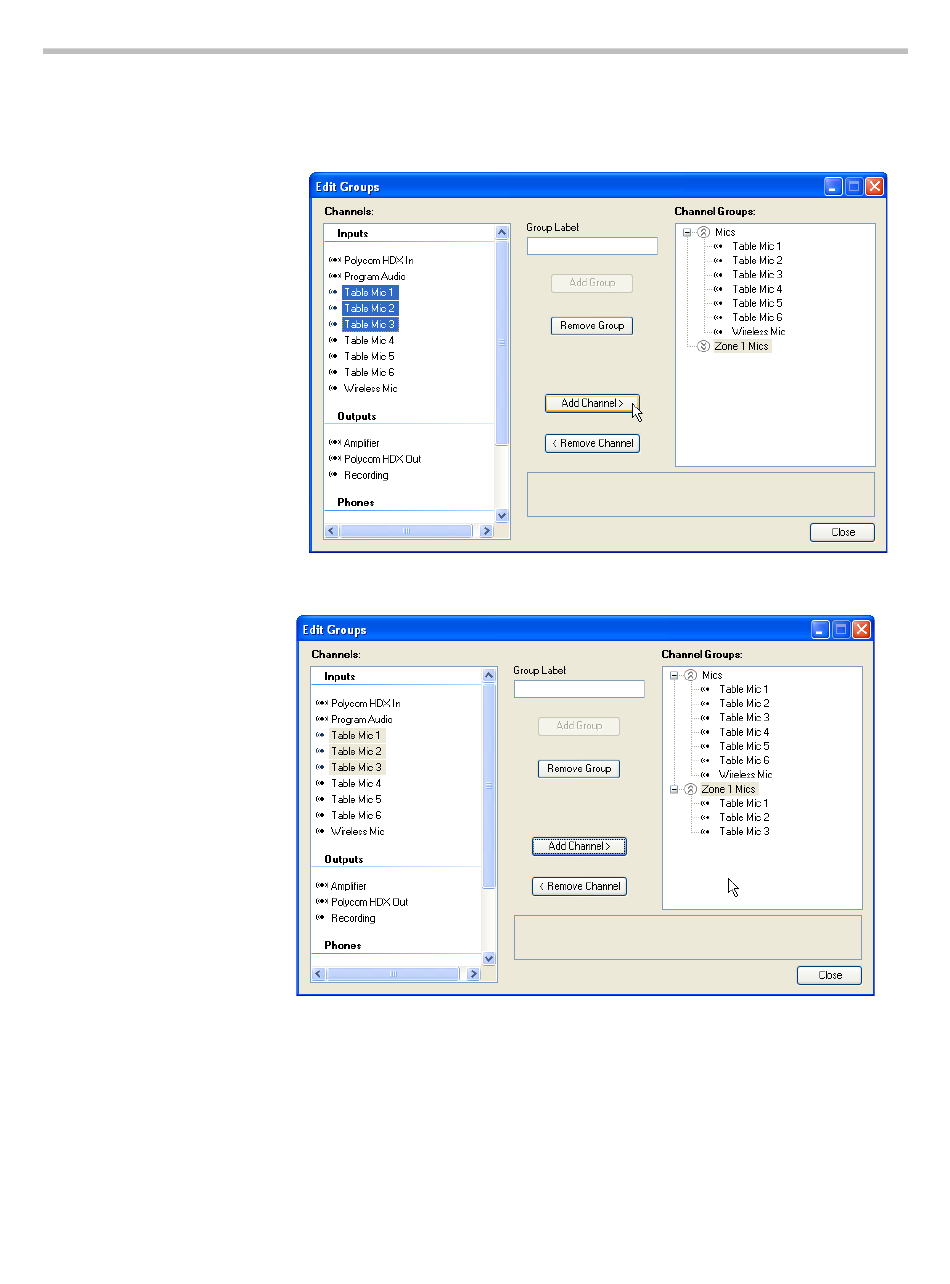

and then shift-clicking on subsequent virtual channels. Once the virtual chan-
nels have been selected, click the Add Channel button as shown in the
following figure.
Any commands that are sent to configure the virtual channel group "Zone 1
Mics" will in turn be sent to the members of the virtual channel group. For
example if a mute command is sent to "Zone 1 Mics" then "Table Mic 1",
"Table Mic 2", and "Table Mic 3" will be muted and the "Zone 1 Mics" logical
group will be shown as muted.
5 - 11
