Polycom SoundStructure C16 Design Manual page 280

Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
11 - 4

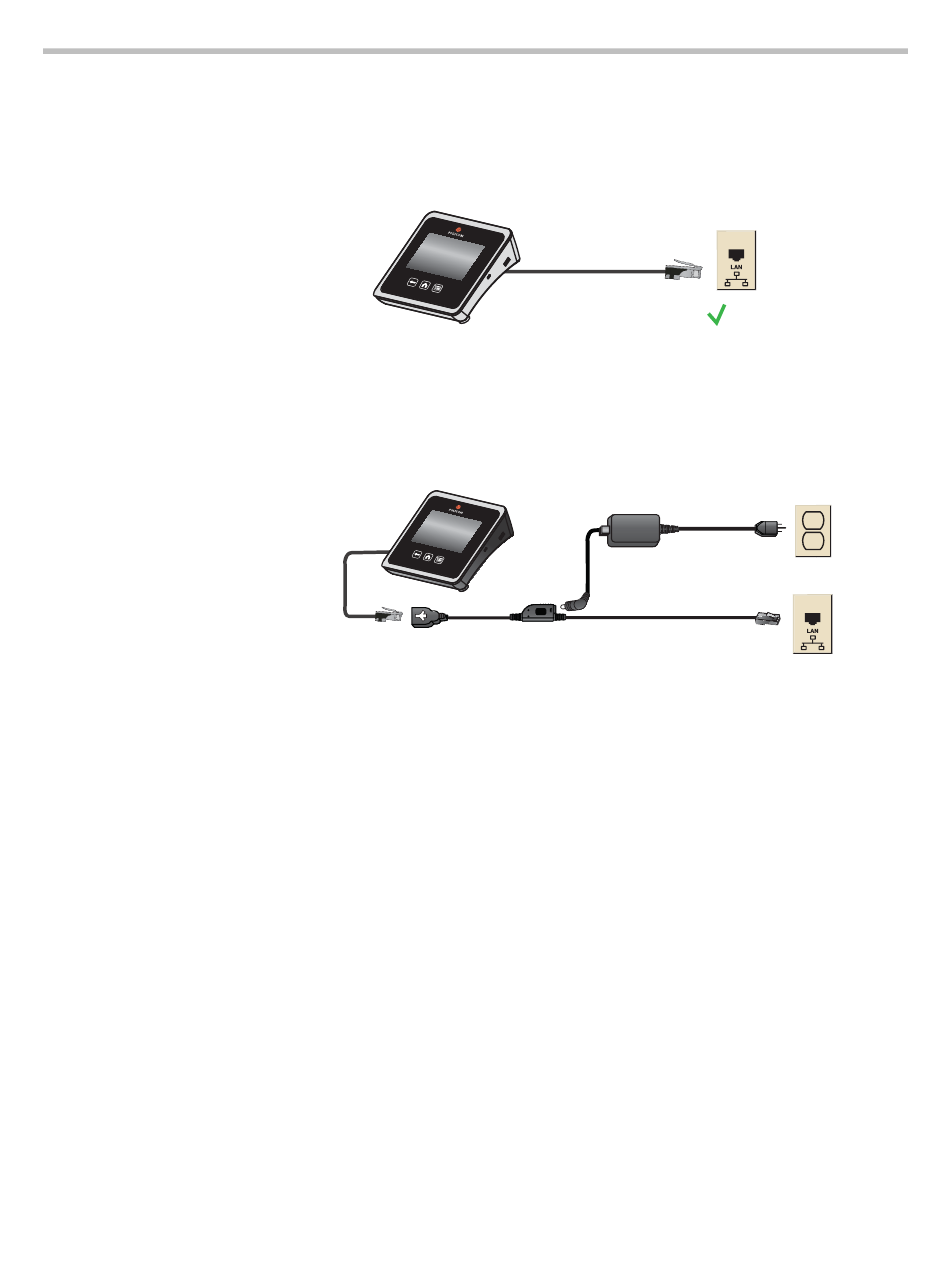

3. Plug the Ethernet cable into the wall Ethernet outlet.
— If the room provides Power Over Ethernet, connect the Ethernet cable
directly to a LAN outlet as shown in the following figure.
— If the room does not provide Power Over Ethernet, connect the
Ethernet cable to the power supply adapter. Then connect the power
supply adapter to a LAN outlet and power outlet as shown in the
following figure.
The Polycom Touch Control device powers on and displays the language
selection screen.
4. Choose the desired language and follow the on-screen instructions to pair
the Polycom Touch Control device with the SoundStructure system.
PoE
