Automixer Controls

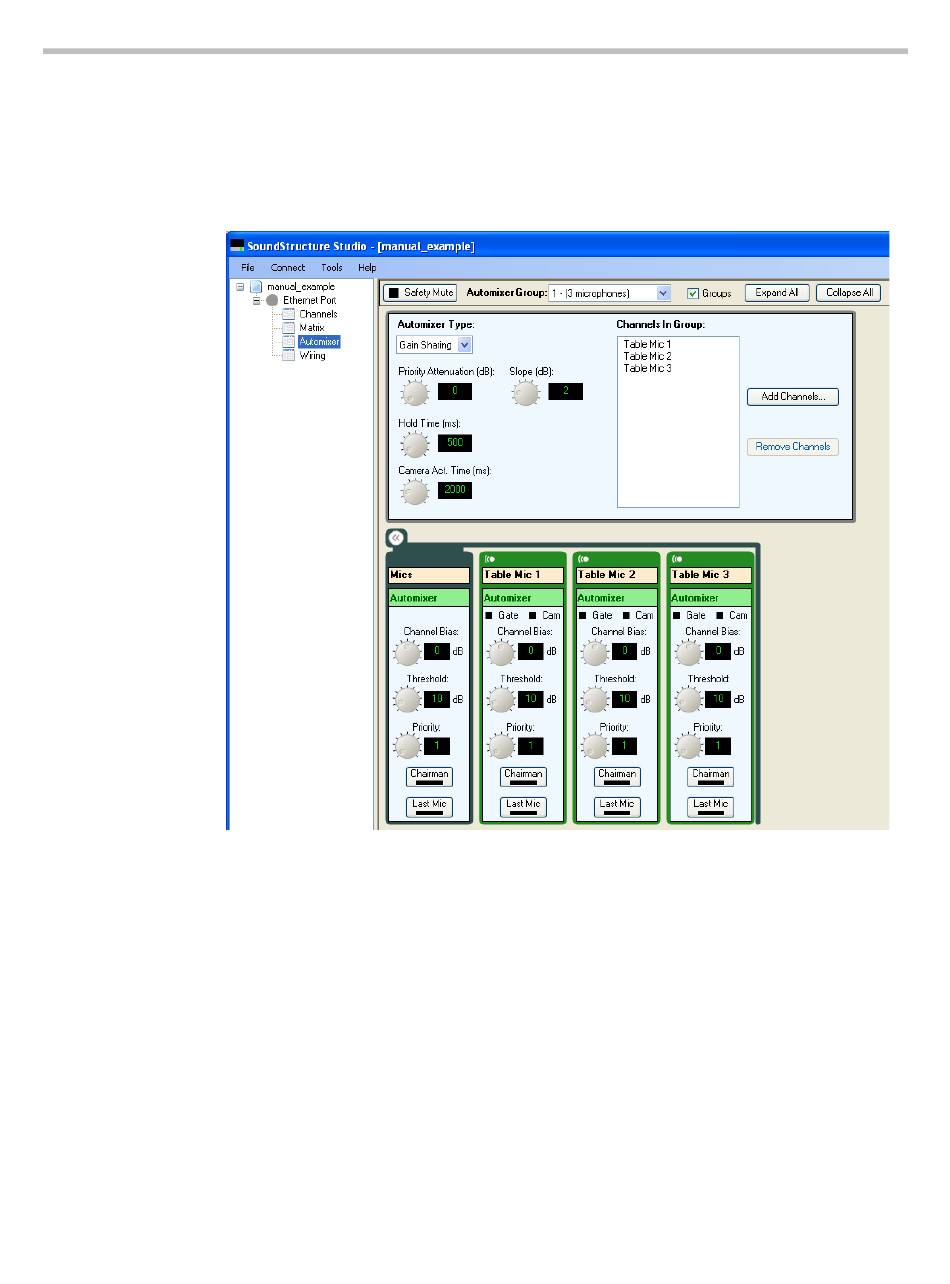

The SoundStructure Studio user controls for configuring the automixers are
shown in the following figure. Channels can be added to the automixer group
by selecting the Add Channels button and channels can be removed by select-
ing the Remove Channels button.
There are two styles of automixer groups – gating and gain-sharing. The con-
trols for these two styles of groups will be described next.
Gating Automixer Parameters
NOM Limit
NOM Limit specifies the maximum number of microphones that can be gated
on for a particular gated automixer group. This does not affect a gain sharing
mixer.
