Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
13 - 70

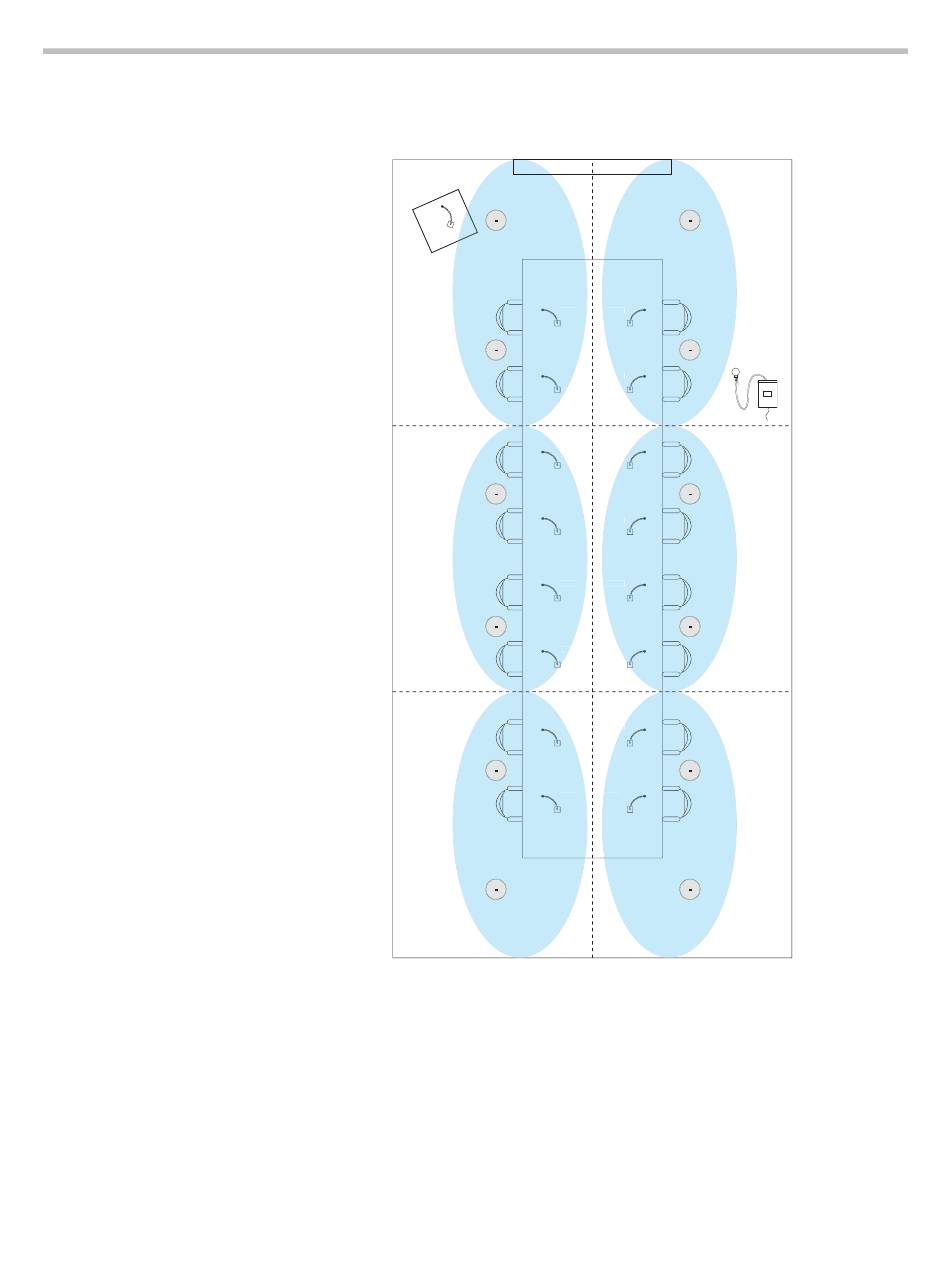

The next step is to create the microphone zone groups that will simplify setting
up the reinforcement levels. The designed zones are shown in the following
figure.
Lectern t tern
Zone 1
Zone 2
Zone 3
As part of the design process, the appropriate reinforcement levels would be
determined and a mapping similar to the one shown in the following figure
would be created as the baseline reinforcement in the room. This mapping
shows how the different input zones will be mapped to the different amplifier
Disp Disp Display
ABC
Mic 1 Mic 1 Mic 16 Mic 16 M
ABC
Mic Mic 2 c Mic 15 15 1
Mic 3 M M Mic 14
ABC
Mic 4 Mic 4 M Mic 13 Mic 13
Mic 5 Mic 5 M Mic 12 Mic 12
ABC
Mic 6 Mic c Mic 11 11 1
Mic 7 Mi Mi Mic 10 0 0
ABC
Mic 8 Mic 8 Mic 9 M Mic 9
ABC
ABC
Zone 6
ABC
A
ABC
Zone 5
ABC
ABC
Zone 4
ABC
