Mazda RX-8 Manual page 1863

FRONT DOOR TRIM

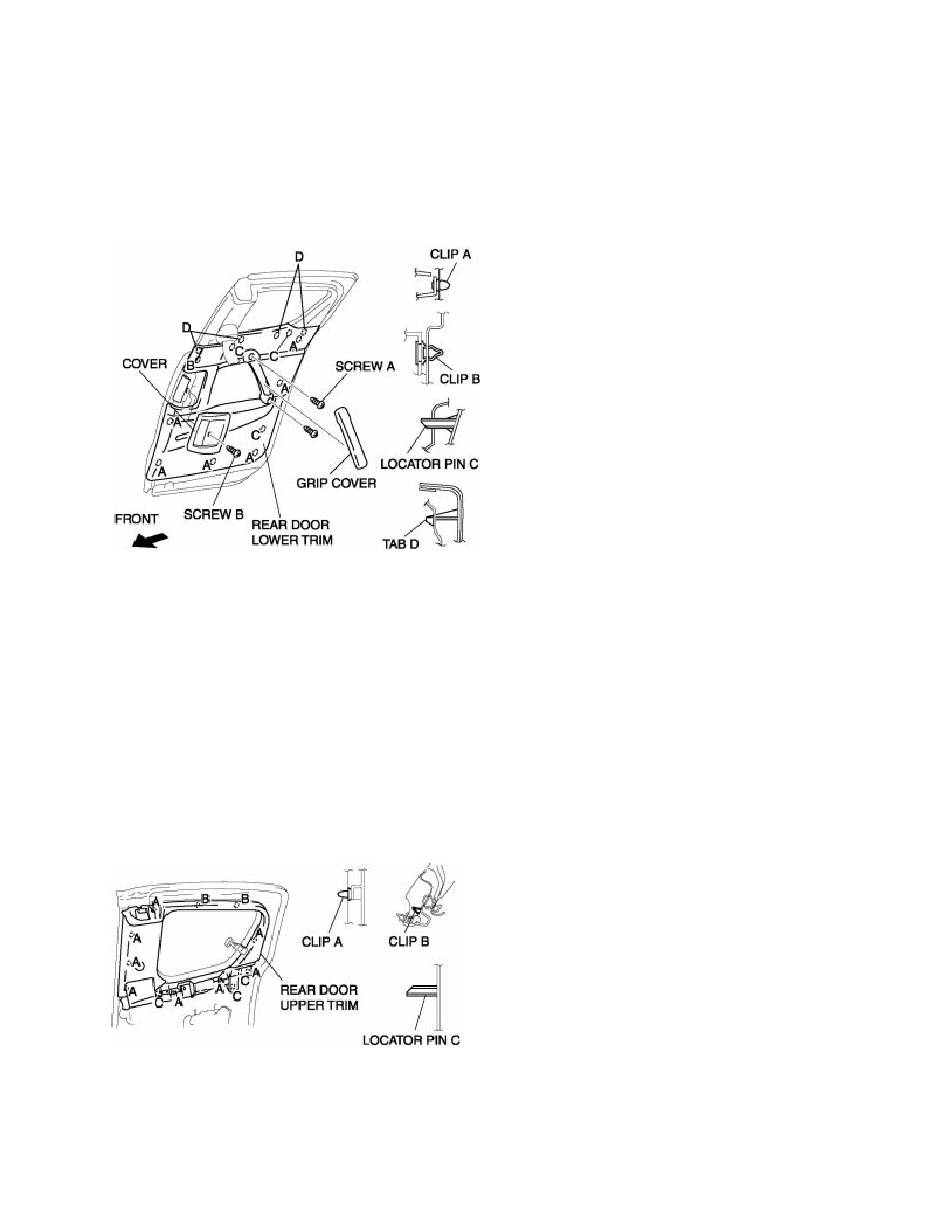

REAR DOOR LOWER TRIM REMOVAL/INSTALLATION
1. Remove the grip cover, then remove screws A.
2. Using a small flathead screwdriver, open the cap and remove screw B.
3. Remove the cover while rotating it to the front.
4. Detach clips A, B, locator pins C, and tabs D from the rear door using a fastener remover.
5. Remove the rear door lower trim.
6. Install in the reverse order of removal.
REAR DOOR UPPER TRIM REMOVAL/INSTALLATION
1. Remove the upper anchor of the front seat belt.(See FRONT SEAT BELT
REMOVAL/INSTALLATION .)
2. Remove the rear door lower trim.(See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION .)
3. Pull the rear door upper trim outward and detach clips A, B and locator pins C from the body.
4. Remove the rear door upper trim.
5. Install in the reverse order of removal.
(w) RX-8 Body
Page 145
