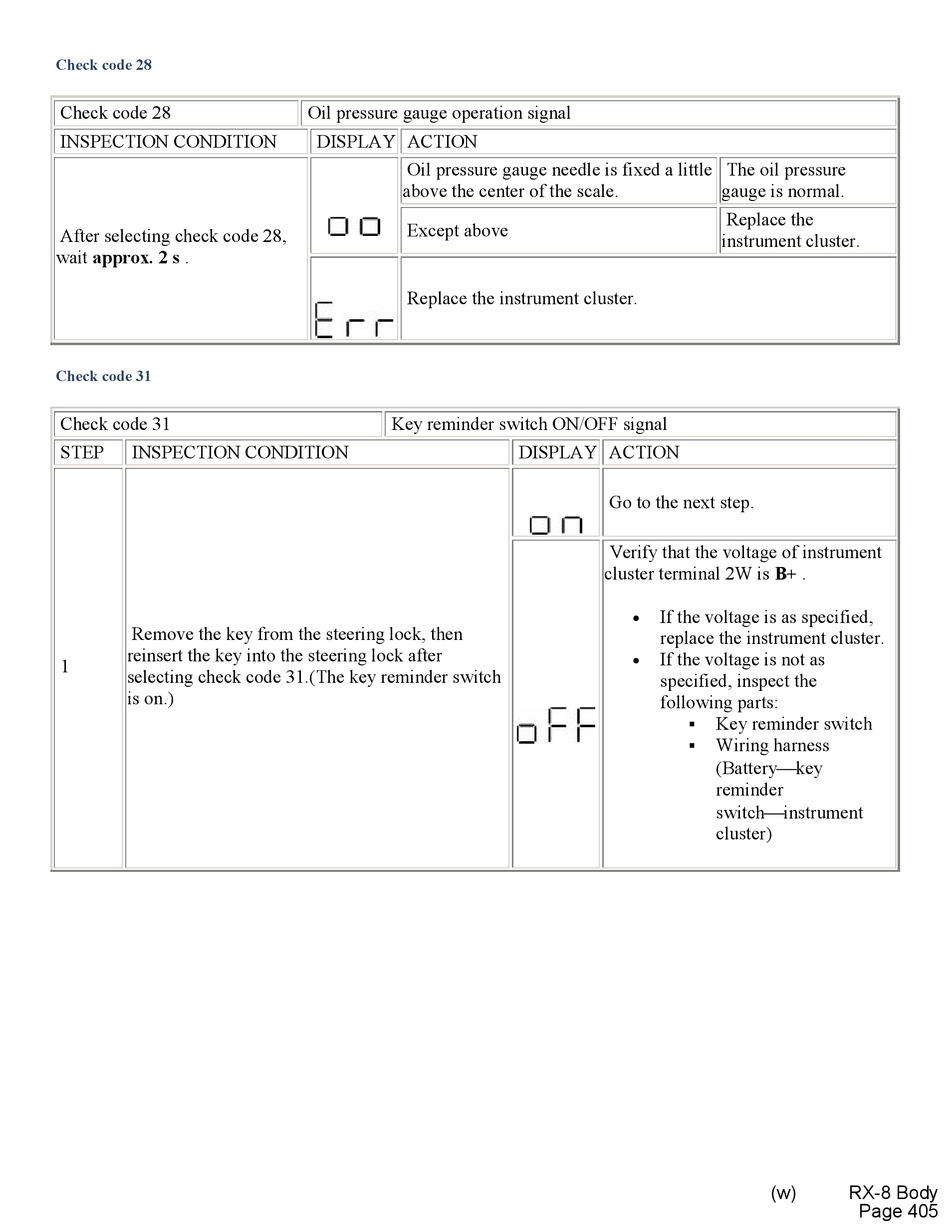

Check code 28
Check code 28
INSPECTION CONDITION
After selecting check code 28,
wait approx. 2 s .
Check code 31
Check code 31
STEP INSPECTION CONDITION
Remove the key from the steering lock, then
reinsert the key into the steering lock after
1
selecting check code 31.(The key reminder switch
is on.)
Oil pressure gauge operation signal
DISPLAY ACTION
Oil pressure gauge needle is fixed a little
above the center of the scale.
Except above
Replace the instrument cluster.
Key reminder switch ON/OFF signal
DISPLAY ACTION
Go to the next step.
Verify that the voltage of instrument
cluster terminal 2W is B+ .
If the voltage is as specified,
•
replace the instrument cluster.
If the voltage is not as
•
specified, inspect the
following parts:
The oil pressure
gauge is normal.
Replace the
instrument cluster.
Key reminder switch
Wiring harness
(Batterykey
reminder
switchinstrument
cluster)
(w) RX-8 Body
Page 405
