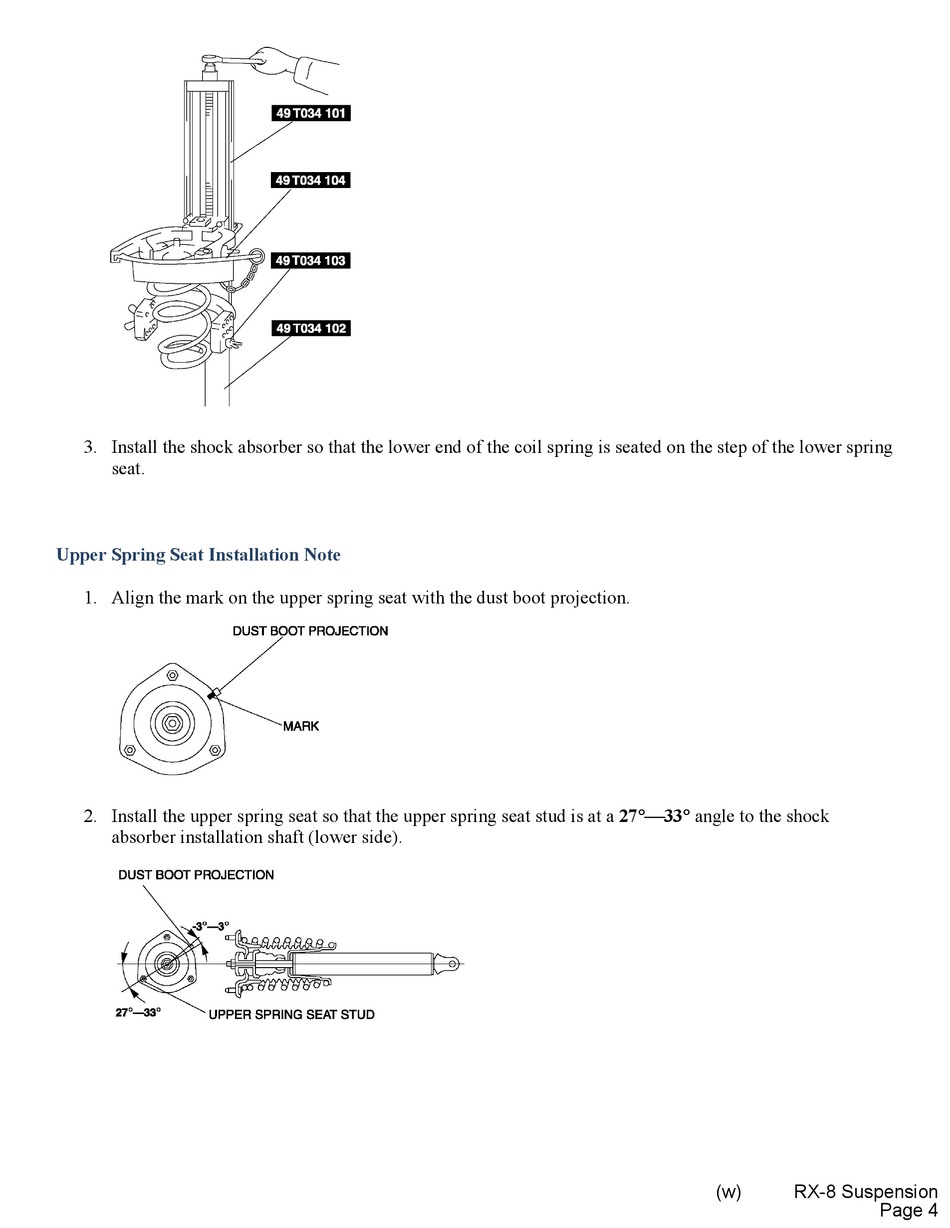

3. Install the shock absorber so that the lower end of the coil spring is seated on the step of the lower spring

Upper Spring Seat Installation Note

1. Align the mark on the upper spring seat with the dust boot projection.

2. Install the upper spring seat so that the upper spring seat stud is at a 27°

absorber installation shaft (lower side).

°33° ° ° ° angle to the shock
