Parameters for
• 2AI U High Speed analog electronic module
• 2AI I 2WIRE High Speed electronic module
• 2AI I 4WIRE High Speed electronic module

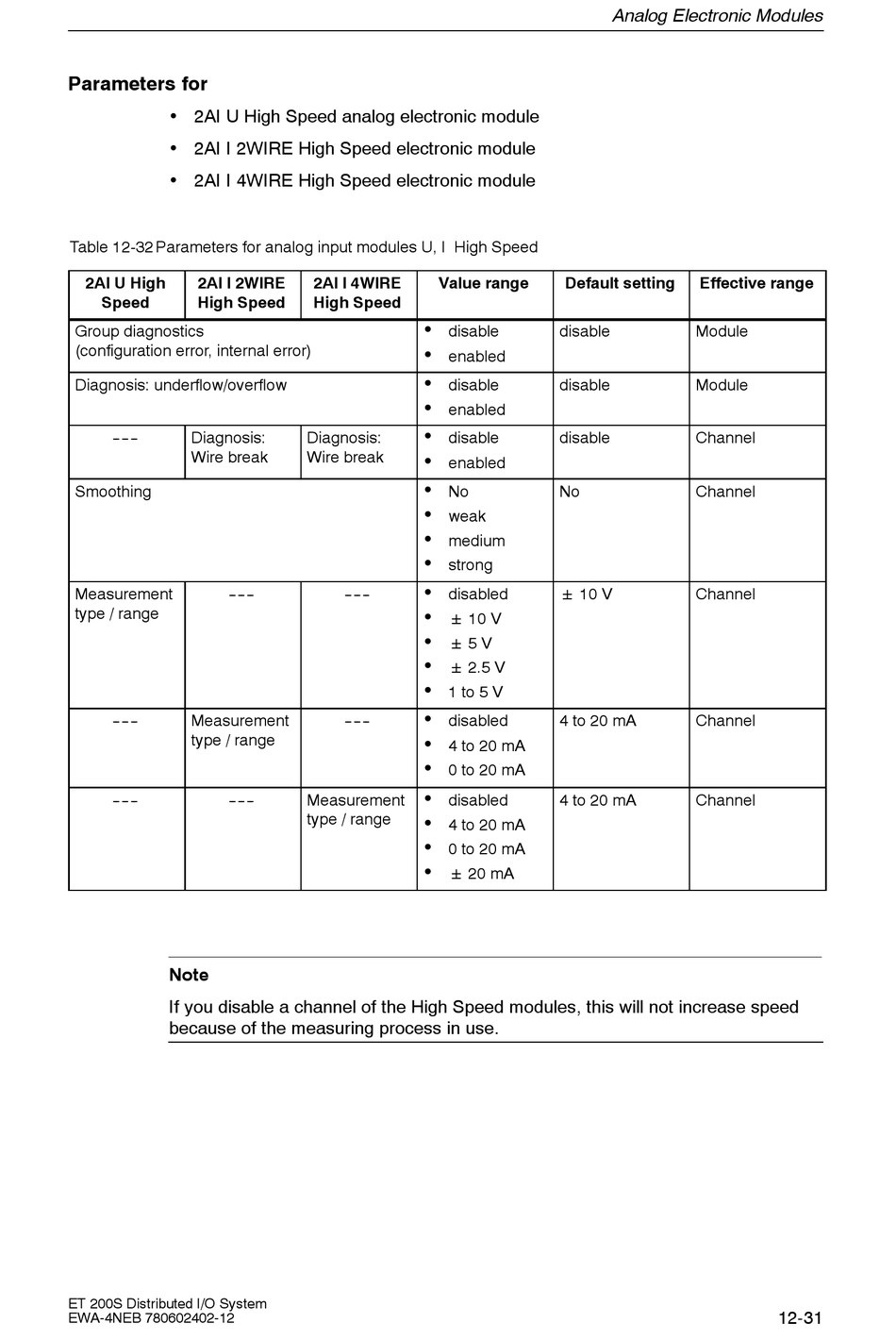

Table 12-32 Parameters for analog input modules U, I High Speed
2AI U High 2AI I 2WIRE
Speed High Speed
Group diagnostics
(configuration error, internal error)
Diagnosis: underflow/overflow
------ Diagnosis:
Wire break
Smoothing
Measurement ------
type / range
------ Measurement
type / range
------ ------
Note
If you disable a channel of the High Speed modules, this will not increase speed
because of the measuring process in use.
ET 200S Distributed I/O System
EWA-4NEB 780602402-12
2AI I 4WIRE Value range
High Speed
•
disable
•
enabled
•
disable
•
enabled
•
Diagnosis: disable
Wire break
•
enabled
•
No
•
weak
•
medium
•
strong
•
------ disabled
•
 10 V
•
 5 V
•
 2.5 V
•
1 to 5 V
•
------ disabled
•
4 to 20 mA
•
0 to 20 mA
•
Measurement disabled
type / range
•
4 to 20 mA
•
0 to 20 mA
•
 20 mA
Analog Electronic Modules
Default setting Effective range
disable Module
disable Module
disable Channel
No Channel
 10 V Channel
4 to 20 mA Channel
4 to 20 mA Channel
12-31
