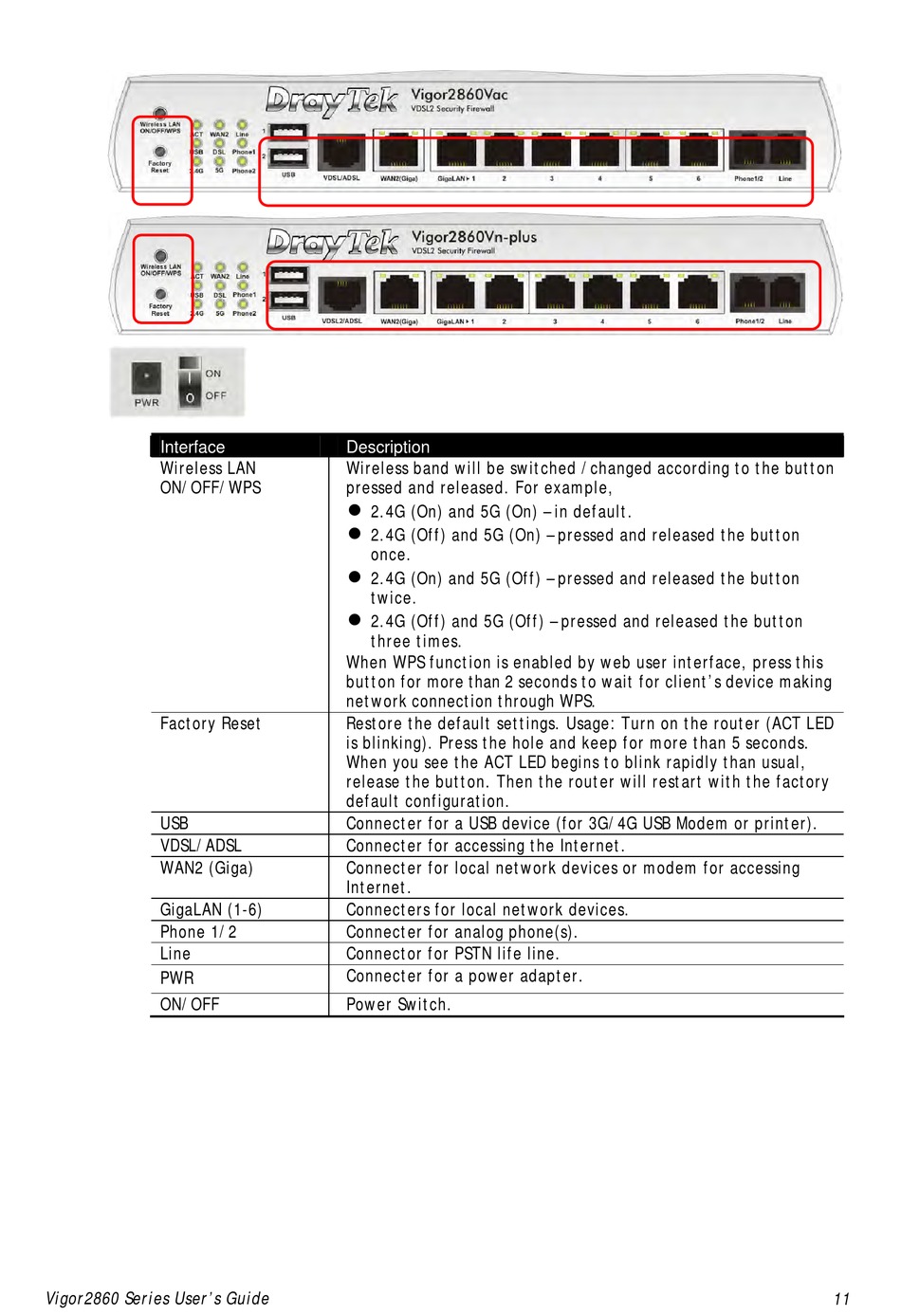

Interface
Wireless LAN
ON/OFF/WPS
Factory Reset
USB
VDSL/ADSL
WAN2 (Giga)
GigaLAN (1-6)
Phone 1/2
Line
PWR
ON/OFF
Vigor2860 Series User's Guide
Description
Wireless band will be switched /changed according to the button
pressed and released. For example,

2.4G (On) and 5G (On) – in default.

2.4G (Off) and 5G (On) – pressed and released the button
once.

2.4G (On) and 5G (Off) – pressed and released the button
twice.

2.4G (Off) and 5G (Off) – pressed and released the button
three times.
When WPS function is enabled by web user interface, press this
button for more than 2 seconds to wait for client's device making
network connection through WPS.
Restore the default settings. Usage: Turn on the router (ACT LED
is blinking). Press the hole and keep for more than 5 seconds.
When you see the ACT LED begins to blink rapidly than usual,
release the button. Then the router will restart with the factory
default configuration.
Connecter for a USB device (for 3G/4G USB Modem or printer).
Connecter for accessing the Internet.
Connecter for local network devices or modem for accessing
Internet.
Connecters for local network devices.
Connecter for analog phone(s).
Connector for PSTN life line.
Connecter for a power adapter.
Power Switch.
