Vigor2860 Series Quick Start Guide
i

Advertisement

Table of Contents
loading

Related Manuals for Draytek Vigor2860 Series

Summary of Contents for Draytek Vigor2860 Series

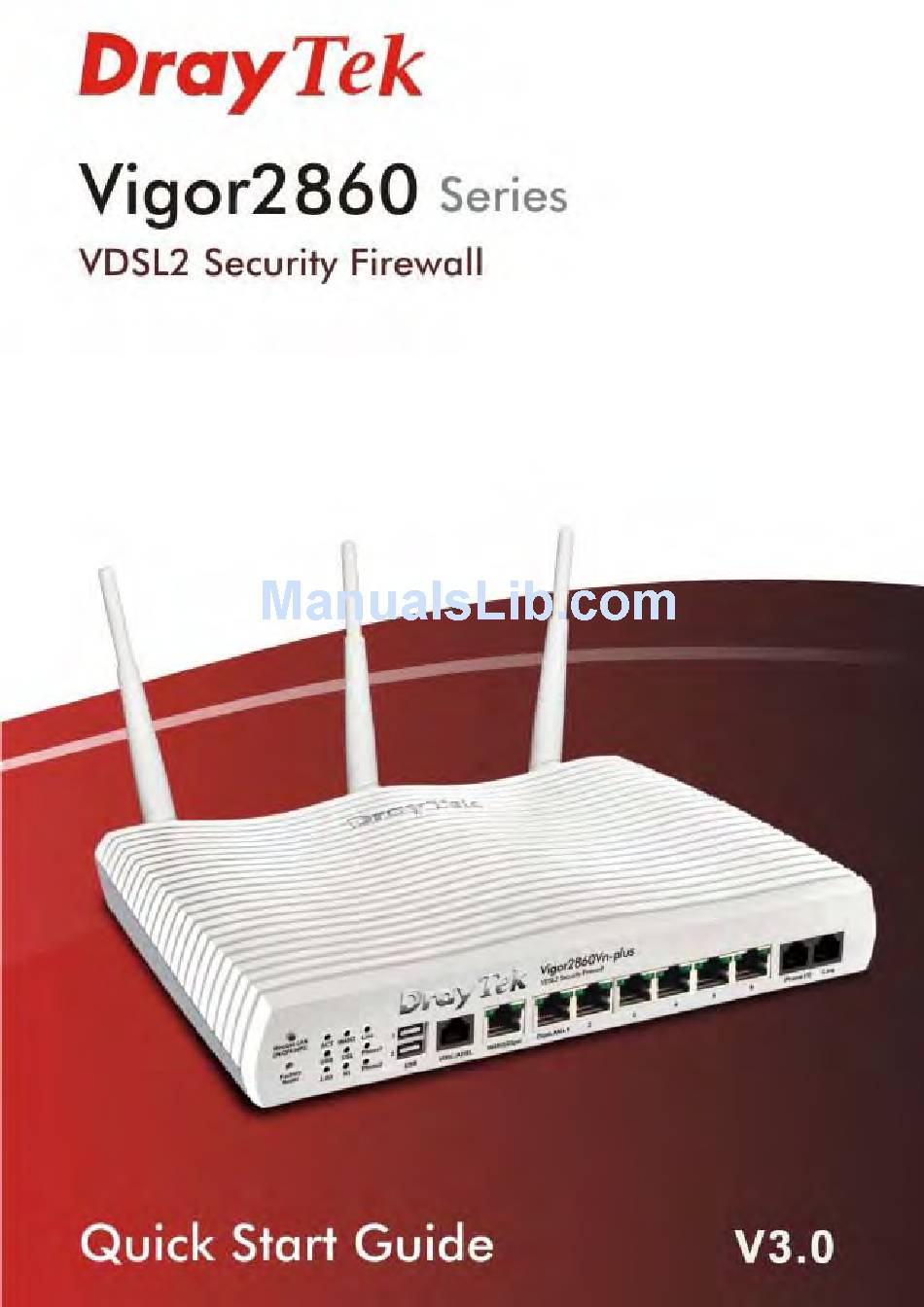

  • Page 1 Vigor2860 Series Quick Start Guide...
  • Page 2 Vigor2860 Series Quick Start Guide...
  • Page 3 Vigor2860 Series VDSL2 Security Firewall Quick Start Guide Version: 3.0 Firmware Version: V3.7.8 (For future update, please visit DrayTek web site) Date: January 07, 2015 Vigor2860 Series Quick Start Guide...
  • Page 4 Web registration is preferred. You can register your Vigor router via Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be Updates regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
  • Page 5 Taiwan 303 Product: Vigor2860 Series Router DrayTek Corp. declares that Vigor2860 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS 2011/65/EU The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
  • Page 6 Vigor2860 Series Quick Start Guide...

  • Page 7: Table Of Contents

    4.2 Checking If the Network Connection Settings on Your Computer Is OK or Not....................... 52 4.3 Pinging the Router from Your Computer ..........55 4.4 Checking If the ISP Settings are OK or Not ........... 56 4.5 Backing to Factory Default Setting If Necessary........57 Vigor2860 Series Quick Start Guide...
  • Page 8 4.6 Contacting DrayTek ................. 59 Vigor2860 Series Quick Start Guide...

  • Page 9: Introduction

    Vigor2860 series is a VDSL2 router with multi-subnet for secure and efficient workgroup management. It integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth. By adopting hardware-based VPN platform and hardware encryption of...

  • Page 10: Panel Explanation

    The port is connected with 1000Mbps. The port is connected with 10/100Mbps Left The port is connected. GigaLAN The port is disconnected. Blinking The data is transmitting. Right The port is connected with 1000Mbps. The port is connected with 10/100Mbps Vigor2860 Series Quick Start Guide...
  • Page 11 Modem or printer). VDSL/ADSL Connecter for accessing the Internet. WAN2 Connecter for local network devices or modem for accessing Internet. GigaLAN 1-6 Connecters for local network devices. Connecter for a power adapter. ON/OFF Power Switch. Vigor2860 Series Quick Start Guide...

  • Page 12: For Vigor2860N

    The DoS/DDoS function is active. Blinking It will blink while detecting an attack. LED on Connector Left The port is connected. WAN2 The port is disconnected. (Giga) Blinking The data is transmitting. Right The port is connected with 1000Mbps. Vigor2860 Series Quick Start Guide...
  • Page 13 Modem or printer). VDSL/ADSL Connecter for accessing the Internet. WAN2 (Giga) Connecter for local network devices or modem for accessing Internet. GigaLAN 1-6 Connecters for local network devices. Connecter for a power adapter. Power Switch. ON/OFF Vigor2860 Series Quick Start Guide...

  • Page 14: For Vigor2860N-Plus

    It will blink while detecting an attack. LED on Connector Left The port is connected. WAN2 The port is disconnected. (Giga) Blinking The data is transmitting. Right The port is connected with 1000Mbps. The port is connected with 10/100Mbps Vigor2860 Series Quick Start Guide...
  • Page 15 Modem or printer). VDSL2/ADSL Connecter for accessing the Internet. WAN2 (Giga) Connecter for local network devices or modem for accessing Internet. GigaLAN 1-6 Connecters for local network devices. Connecter for a power adapter. Power Switch. ON/OFF Vigor2860 Series Quick Start Guide...

  • Page 16: For Vigor2860Vn-Plus

    Phone (1-2) The phone connected to this port is off-hook. The phone connected to this port is on-hook. Blinking A phone call comes. LED on Connector Left The port is connected. WAN2 The port is disconnected. Vigor2860 Series Quick Start Guide...
  • Page 17 The port is connected with 1000Mbps. The port is connected with 10/100Mbps Left The port is connected. GigaLAN The port is disconnected. Blinking The data is transmitting. Right The port is connected with 1000Mbps. The port is connected with 10/100Mbps Vigor2860 Series Quick Start Guide...
  • Page 18 WAN2 (Giga) Connecter for local network devices or modem for accessing Internet. GigaLAN 1-6 Connecters for local network devices. Phone 1/2 Connecter for analog phone(s). Line Connector for PSTN life line. Connecter for a power adapter. Vigor2860 Series Quick Start Guide...

  • Page 19: For Vigor2860Ac

    It will blink while detecting an attack. LED on Connector Left The port is connected. WAN2 The port is disconnected. (Giga) Blinking The data is transmitting. Right The port is connected with 1000Mbps. The port is connected with 10/100Mbps Vigor2860 Series Quick Start Guide...
  • Page 20 Modem or printer). VDSL/ADSL Connecter for accessing the Internet. WAN2 (Giga) Connecter for local network devices or modem for accessing Internet. GigaLAN 1-6 Connecters for local network devices. Connecter for a power adapter. ON/OFF Power Switch. Vigor2860 Series Quick Start Guide...

  • Page 21: For Vigor2860Vac

    Phone (1-2) The phone connected to this port is off-hook. The phone connected to this port is on-hook. Blinking A phone call comes. LED on Connector Left The port is connected. WAN2 The port is disconnected. Vigor2860 Series Quick Start Guide...
  • Page 22 The port is connected with 1000Mbps. The port is connected with 10/100Mbps Left The port is connected. GigaLAN The port is disconnected. Blinking The data is transmitting. Right The port is connected with 1000Mbps. The port is connected with 10/100Mbps Vigor2860 Series Quick Start Guide...
  • Page 23 Connecter for local network devices or modem for accessing Internet. GigaLAN 1-6 Connecters for local network devices. Phone 1/2 Connecter for analog phone(s). Line Connector for PSTN life line. Connecter for a power adapter. ON/OFF Power Switch. Vigor2860 Series Quick Start Guide...

  • Page 24: Package Content

    The type of the power adapter depends on the country that the router will be installed: UK-type Power Adapter EU-type Power Adapter USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter * The maximum power consumption is 24 Watt. Vigor2860 Series Quick Start Guide...

  • Page 25: Installing Your Router

    5. Power on the device by pressing down the power switch on the rear panel. 6. The system starts to initiate. After completing the system test, the ACT LED will light up and start blinking. (For the hardware connection, we take “n” model as an example.) Vigor2860 Series Quick Start Guide...

  • Page 26: Printer Installation

    Before using it, please follow the steps below to configure settings for connected computers (or wireless clients). 1. Connect the printer with the router through USB port. 2. Open All Programs>>Getting Started>>Devices and Printers. Vigor2860 Series Quick Start Guide...
  • Page 27 4. A dialog will appear. Click Add a local printer and click Next. 5. In this dialog, choose Create a new port. In the field of Type of port, use the drop down list to select Standard TCP/IP Port. Then, click Next. Vigor2860 Series Quick Start Guide...
  • Page 28 6. In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Hostname or IP Address and type 192.168.1.1 as the Port name. Then, click Next. 7. Click Standard and choose Generic Network Card. Vigor2860 Series Quick Start Guide...
  • Page 29 8. Now, your system will ask you to choose right name of the printer that you installed onto the router. Such step can make correct driver loaded onto your PC. When you finish the selection, click Next. 9. Type a name for the chosen printer. Click Next. Vigor2860 Series Quick Start Guide...
  • Page 30 10. Choose Do not share this printer and click Next. 11. Then, in the following dialog, click Finish. Vigor2860 Series Quick Start Guide...
  • Page 31 12. The new printer has been added and displayed under Printers and Faxes. Click the new printer icon and click Printer server properties. 13. Edit the property of the new printer you have added by clicking Configure Port. Vigor2860 Series Quick Start Guide...
  • Page 32 Note 1: Some printers with the fax/scanning or other additional functions are not supported. If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ/Application Notes; find out the link of USB>>Printer Server and click it.
  • Page 33 Then, click the What types of printers are compatible with Vigor router? link. Note 2: Vigor router supports printing request from computers via LAN ports but not WAN port. Vigor2860 Series Quick Start Guide...
  • Page 34 This page is left blank. Vigor2860 Series Quick Start Guide...

  • Page 35: Quick Setup

    Please type “admin/admin” on Username/Password and click Login. Notice: If you fail to access to the web configuration, please go to “Trouble Shooting” for detecting and solving your problem. 3. Now, the Main Screen will pop up. Vigor2860 Series Quick Start Guide...

  • Page 36: Basic Configuration - Quick Start Wizard

    The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access Wizards>>Quick Start Wizard via Web User Interface. The home page will change slightly in accordance with the router model you have. Vigor2860 Series Quick Start Guide...
  • Page 37 WAN2; if 3G USB modem is used, please choose WAN3 or WAN4. Then click Next for next step. WAN1, WAN2, WAN3 and WAN4 will bring up different configuration page. Refer to the following for detailed information. Vigor2860 Series Quick Start Guide...

  • Page 38: For Wan1 (Adsl/Vdsl2)

    PPPoE mode if the ISP provides you PPPoE interface. In addition, the field of For ADSL Only will be available only when ADSL is detected. Then click Next for next step. Vigor2860 Series Quick Start Guide...
  • Page 39 1. Choose WAN1 as WAN Interface and click the Next button; you will get the following page. 2. After finished the above settings, simply click Next. Vigor2860 Series Quick Start Guide...
  • Page 40 Then, the system status of this protocol will be shown. 5. Now, you can enjoy surfing on the Internet. 1. Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Vigor2860 Series Quick Start Guide...
  • Page 41 ISP. Then click Next for viewing summary of such connection. 3. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. 4. Now, you can enjoy surfing on the Internet. Vigor2860 Series Quick Start Guide...

  • Page 42: For Wan2 (Ethernet)

    PPPoE mode if the ISP provides you PPPoE interface. Then click Next for next step. 1. Choose WAN2 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Vigor2860 Series Quick Start Guide...
  • Page 43 Click Next for viewing summary of such connection. 4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. 5. Now, you can enjoy surfing on the Internet. Vigor2860 Series Quick Start Guide...
  • Page 44 1. Choose WAN2 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. 2. Click PPTP/L2TP as the Internet Access Type. Then click Next to continue. Vigor2860 Series Quick Start Guide...
  • Page 45 ISP. Then click Next for viewing summary of such connection. 4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. 5. Now, you can enjoy surfing on the Internet. Vigor2860 Series Quick Start Guide...
  • Page 46 1. Choose WAN2 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. 2. Click Static IP as the Internet Access type. Simply click Next to continue. Vigor2860 Series Quick Start Guide...
  • Page 47 ISP. Then click Next for next step. 4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. 5. Now, you can enjoy surfing on the Internet. Vigor2860 Series Quick Start Guide...
  • Page 48 1. Choose WAN2 as WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. 2. Click DHCP as the Internet Access type. Simply click Next to continue. Vigor2860 Series Quick Start Guide...
  • Page 49 3. After finished the settings above, click Next for viewing summary of such connection. 4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. 5. Now, you can enjoy surfing on the Internet. Vigor2860 Series Quick Start Guide...

  • Page 50: For Wan3/Wan4 (Usb)

    1. Choose WAN3/WAN4 as WAN Interface. 2. Then, click Next for getting the following page. Vigor2860 Series Quick Start Guide...
  • Page 51 3. After finished the settings above, click Next for viewing summary of such connection. 4. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. 5. Now, you can enjoy surfing on the Internet. Vigor2860 Series Quick Start Guide...

  • Page 52: Wireless Configuration

    In an Infrastructure Mode of wireless network, Vigor wireless router plays a role as an Access Point (AP) connecting to lots of wireless clients or Stations (STA). All the STAs (clients) will share the same Internet connection with other wired hosts via Vigor wireless router. Vigor2860 Series Quick Start Guide...

  • Page 53: General Setup

    5G band, 802.11n operates on either 2.4G or 5G band, and 802.11ac operates on 5G band only. 4. Type in the name of the SSID. The default name for SSID is DrayTek. We suggest you to change it with a particular name.

  • Page 54: Security Settings

    Note that for the communication, all wireless devices must support the same encryption bit length and share the same key. If WEP mode is selected, only one of four preset keys can be selected at one time. Vigor2860 Series Quick Start Guide...

  • Page 55: Registering Vigor Router

    “admin/admin” as User Name / Password. 2. Click Support Area>>Production Registration from the home page. 3. A Login page will be shown on the screen. Please type the account and password that you created previously. And click Login. Vigor2860 Series Quick Start Guide...
  • Page 56 5. When the following page appears, please type in Nickname (for the router) and choose the right registration date from the popup calendar (it appears when you click on the box of Registration Date). After adding the basic information for the router, please click Submit. Vigor2860 Series Quick Start Guide...
  • Page 57 6. When the following page appears, your router information has been added to the database. 7. After clicking OK, you will see the following page. Your router has been registered to myvigor website successfully Vigor2860 Series Quick Start Guide...
  • Page 58 This page is left blank. Vigor2860 Series Quick Start Guide...

  • Page 59: Trouble Shooting

    LAN LED is bright. 3. If not, it means that there is something wrong with the hardware status. Simply back to “2.1 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor2860 Series Quick Start Guide...
  • Page 60 1. Open All Programs>>Getting Started>>Control Panel. Click Network and Sharing Center. 2. In the following window, click Change adapter settings. 3. Icons of network connection will be shown on the window. Right-click on Local Area Connection and click on Properties. Vigor2860 Series Quick Start Guide...
  • Page 61 4. Select Internet Protocol Version 4 (TCP/IP) and then click Properties. 5. Select Obtain an IP address automatically and Obtain DNS server address automatically. Finally, click OK. Vigor2860 Series Quick Start Guide...
  • Page 62 1. Double click on the current used Mac OS on the desktop. 2. Open the Application folder and get into Network. 3. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor2860 Series Quick Start Guide...

  • Page 63: Pinging The Router From Your Computer

    3. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “Reply from 192.168.1.1:bytes=32 time<1ms TTL=255” will appear. 4. If the line does not appear, please check the IP address setting of your computer. Vigor2860 Series Quick Start Guide...

  • Page 64: Checking If The Isp Settings Are Ok Or Not

     If the problem of LEDs cannot be solved by the above measures, please contact with the nearest reseller, or send an e-mail to DrayTek FAE for technical support.  Check if the settings offered by ISP are configured well or not.

  • Page 65: Backing To Factory Default Setting If Necessary

    Try to reset the router by software or hardware.. Warning: After pressing factory default setting, you will loose all settings you did before. Make sure you have recorded all useful settings before you pressing. The password of factory default is null. Vigor2860 Series Quick Start Guide...
  • Page 66 While the router is running (ACT LED blinking), press the RST button and hold for more than 5 seconds. When you see the ACT LED blinks rapidly, please release the button. Then, the router will restart with the default configuration. Vigor2860 Series Quick Start Guide...
  • Page 67 If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Vigor2860 Series Quick Start Guide...
