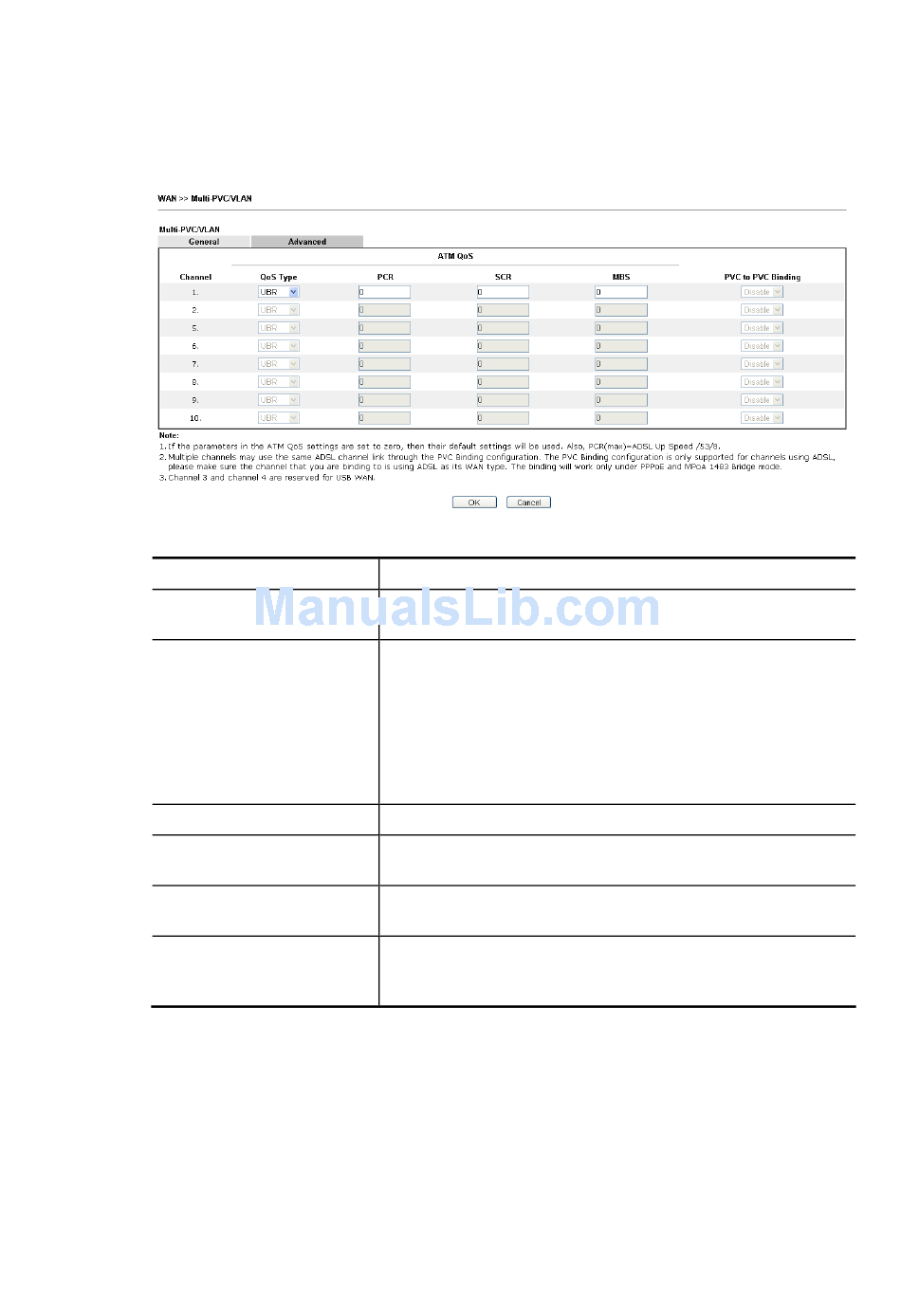

The ATM QoS parameters and PVC (Private Virtual Circuit) binding can be configured here.
Such configuration is applied to upstream packets. Such information will be provided by ISP.
Please contact with your ISP for detailed information.
Available settings are explained as follows:
Item
Channel
QoS Type
PCR
SCR
MBS
PVC to PVC Binding
After finished the above settings, click OK to save the settings.
130
d
d
Description
The channel number. Channels 3 and 4 are reserved for the
WANs 3 and 4 (USB), and are not configurable.
Select a proper QoS type for the channel according to the
information that your ISP provides.
UBR- Unspecified Bit Rate.
CBR- Constant Bit Rate.
ABR- Available Bit Rate.
nrtVBR-Non-real-time Variable Bit Rate.
rtVBR- Real-time Variable Bit Rate.
It represents Peak Cell Rate. The default setting is "0".
It represents Sustainable Cell Rate. The value of SCR must be
smaller than PCR.
It represents Maximum Burst Size. The range of the value is
10 to 50.
If you wish to have this PVC channel use the same ADSL
connection settings of another PVC channel, select that
channel from the dropdown box.
