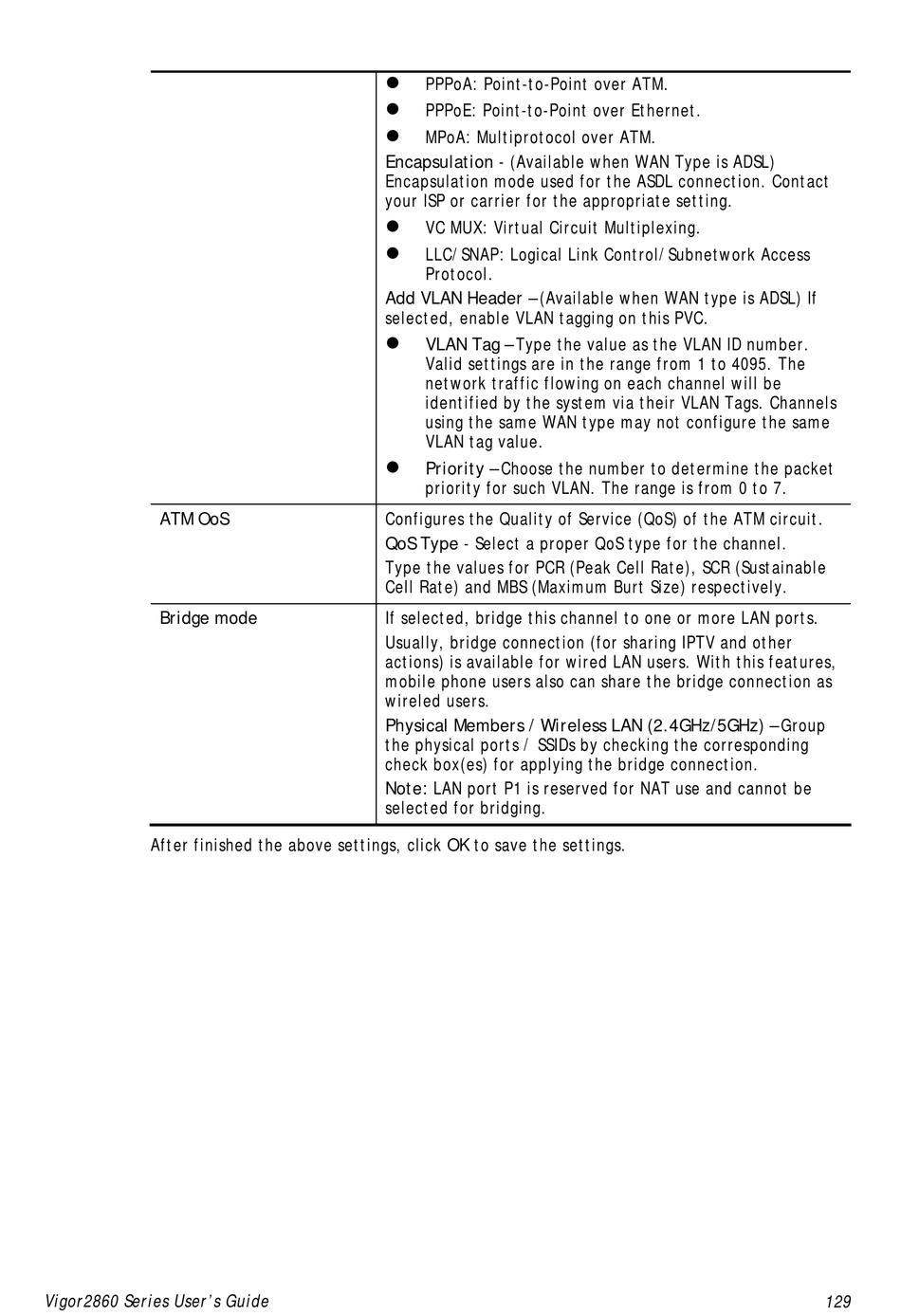

ATM OoS
Bridge mode
After finished the above settings, click OK to save the settings.
Vigor2860 Series User's Guide

PPPoA: Point-to-Point over ATM.

PPPoE: Point-to-Point over Ethernet.

MPoA: Multiprotocol over ATM.
Encapsulation - (Available when WAN Type is ADSL)
Encapsulation mode used for the ASDL connection. Contact
your ISP or carrier for the appropriate setting.

VC MUX: Virtual Circuit Multiplexing.

LLC/SNAP: Logical Link Control/Subnetwork Access
Protocol.
Add VLAN Header – (Available when WAN type is ADSL) If
selected, enable VLAN tagging on this PVC.

VLAN Tag – Type the value as the VLAN ID number.
Valid settings are in the range from 1 to 4095. The
network traffic flowing on each channel will be
identified by the system via their VLAN Tags. Channels
using the same WAN type may not configure the same
VLAN tag value.

Priority – Choose the number to determine the packet
priority for such VLAN. The range is from 0 to 7.
Configures the Quality of Service (QoS) of the ATM circuit.
QoS Type - Select a proper QoS type for the channel.
Type the values for PCR (Peak Cell Rate), SCR (Sustainable
Cell Rate) and MBS (Maximum Burt Size) respectively.
If selected, bridge this channel to one or more LAN ports.
Usually, bridge connection (for sharing IPTV and other
actions) is available for wired LAN users. With this features,
mobile phone users also can share the bridge connection as
wireled users.
Physical Members / Wireless LAN (2.4GHz/5GHz) – Group
the physical ports / SSIDs by checking the corresponding
check box(es) for applying the bridge connection.
Note: LAN port P1 is reserved for NAT use and cannot be
selected for bridging.
129
