Chapter - Cisco ASR 5000 Installation Manual

Removing and Installing SMC PC Cards
The ASR 5000 supports the use of PC Cards, also known as PCMCIA cards. These cards store software
images, configuration files, and other data. Each SMC incorporates a single PCMCIA slot on its front panel.
PC Cards are optional components. If your deployment requires the use of PC Cards, follow these instructions
to safely install and remove the cards. The card slot accepts one ATA Type I or Type II PCMCIA card.
Location of PCMCIA Slot

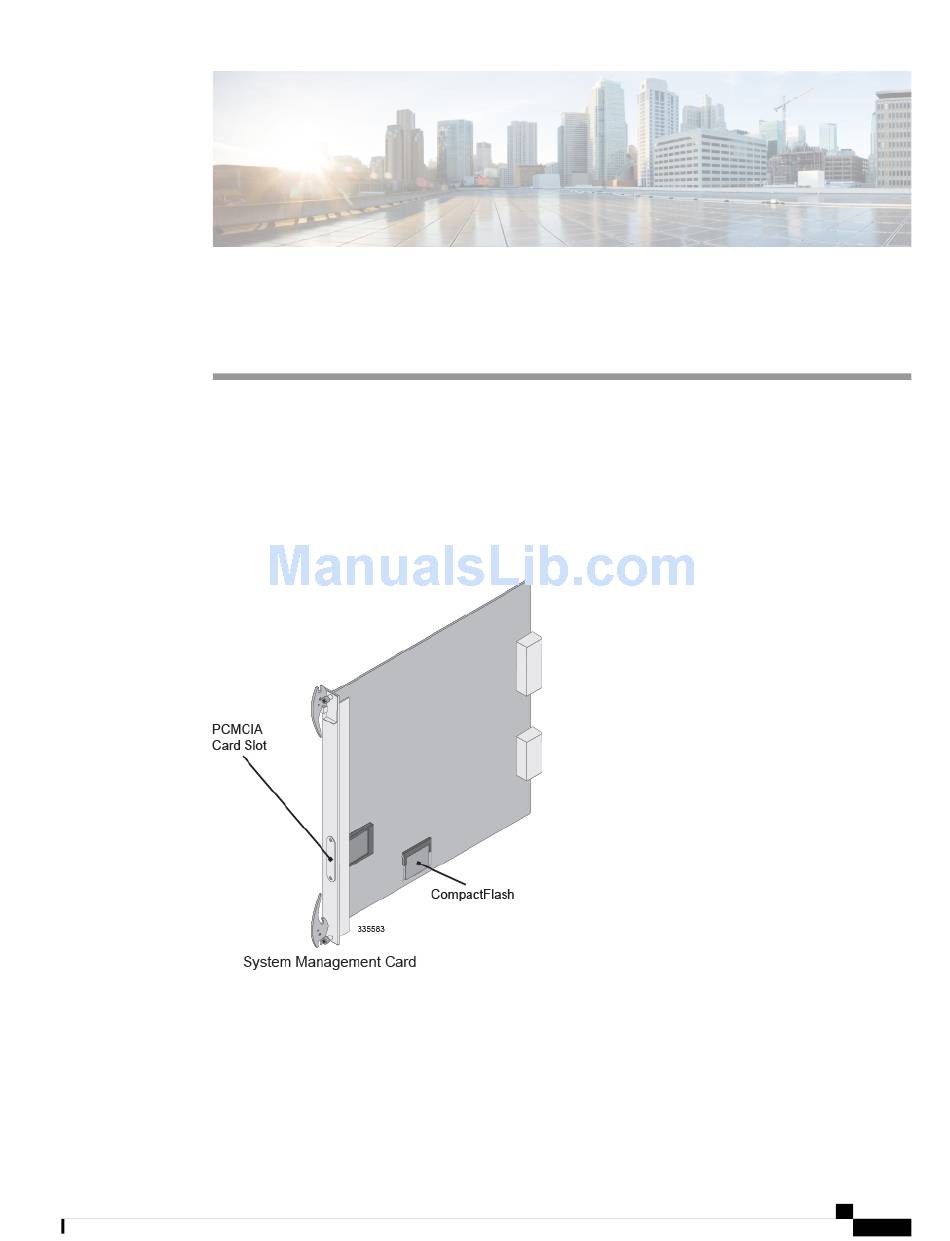

Figure 61: Location of PCMCIA Card on SMC
This chapter provides information and instructions for removing and installing the SMC's PCMCIA memory
cards. It includes the following sections:
• Installing PC Cards, page 186
• Removing PC Cards, page 187
