Cabling the Power Filter Units

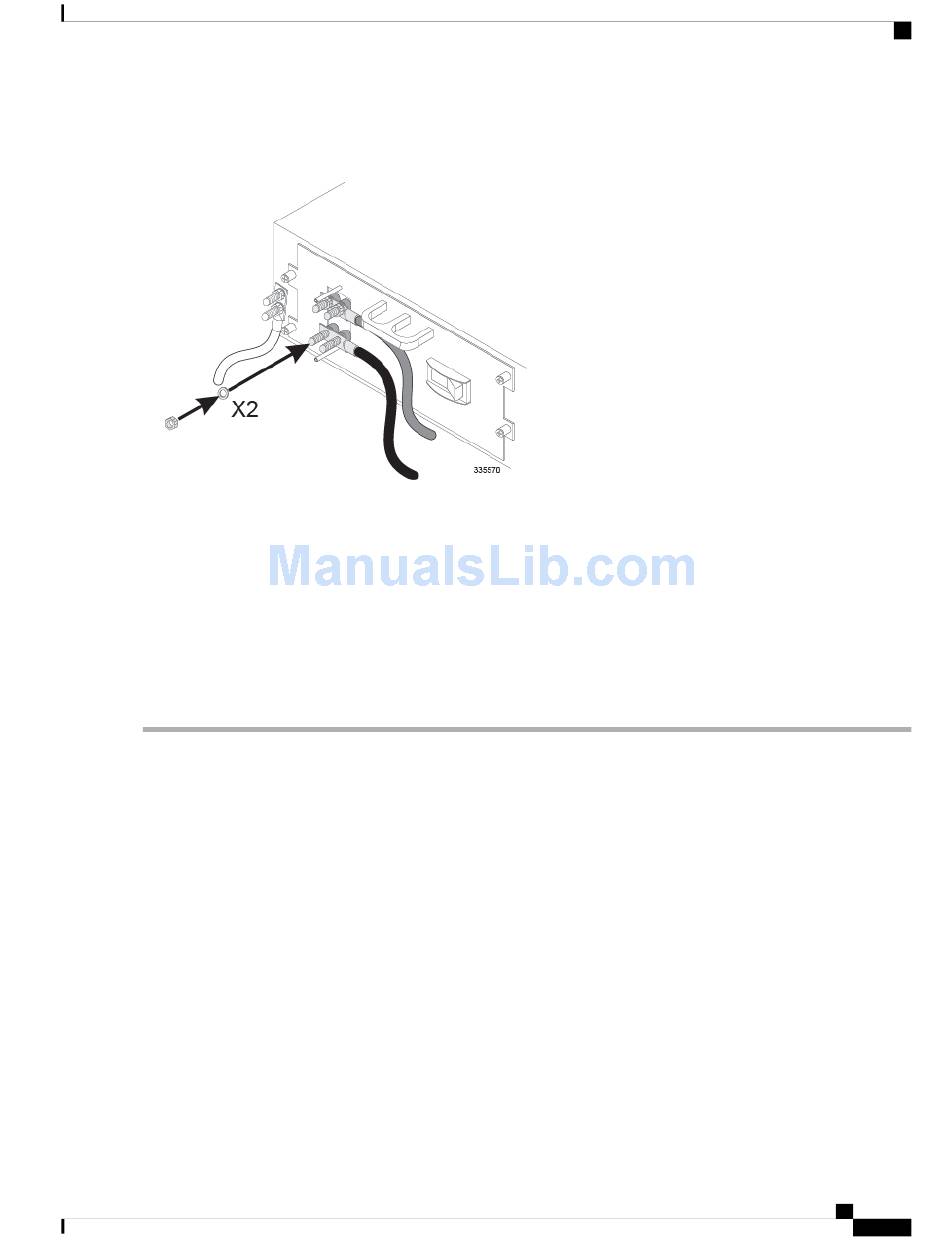

b) Secure the lug to the -VDC terminals with the remaining two washers and nuts that you removed in step 3. The nuts
should be torqued to 50 in-lb. (5.65 N-m).
To avoid the risk of fire, take proper precautions to ensure that the power feed and return lugs are not touching. Um
einen Kurzschluss zu vermeiden, duerfen sich die beiden Stromkabel nicht beruehren. Kabelschuhe duerfen sich
nicht beruehren und muessen unbedingt auseinander gehalten werden.
Step 6 Reinstall the plastic terminal cover.
Caution To avoid the risk of potential damage to the system, never operate the chassis without the plastic terminal
cover installed. Make sure that the power and return lugs do not protrude past the edge of the plastic terminal
covers. Any portion of the lug that is exposed must be covered with heat shrink tubing.
Step 7
Repeat step 1 through step 6 for the PFU installed in the bay labeled Power Filter Unit 2.
Step 8 Proceed to the next chapter for information and instructions on applying power to the chassis and verifying that the
installation was successful.
