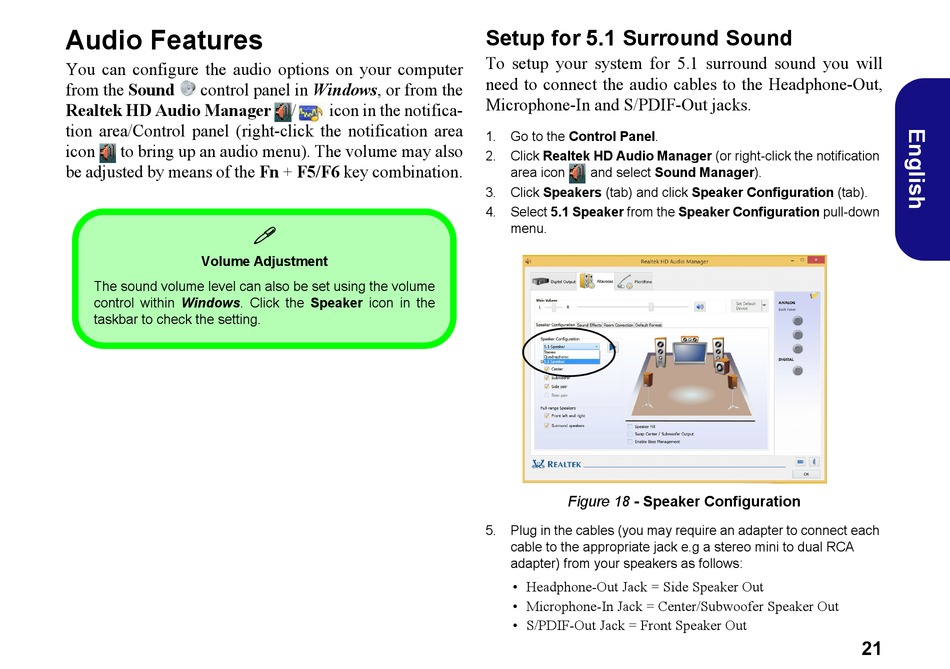

Audio Features

You can configure the audio options on your computer
from the Sound control panel in Windows, or from the
Realtek HD Audio Manager
tion area/Control panel (right-click the notification area
icon to bring up an audio menu). The volume may also
be adjusted by means of the Fn + F5/F6 key combination.
Volume Adjustment
The sound volume level can also be set using the volume
control within Windows. Click the Speaker icon in the
taskbar to check the setting .
/ icon in the notifica-


Setup for 5.1 Surround Sound

To setup your system for 5.1 surround sound you will
need to connect the audio cables to the Headphone-Out,
Microphone-In and S/PDIF-Out jacks.
1. Go to the Control Panel.
2. Click Realtek HD Audio Manager (or right-click the notification
area icon and select Sound Manager).
3. Click Speakers (tab) and click Speaker Configuration (tab).
4. Select 5.1 Speaker from the Speaker Configuration pull-down
menu.
Figure 18 - Speaker Configuration
5. Plug in the cables (you may require an adapter to connect each
cable to the appropriate jack e.g a stereo mini to dual RCA
adapter) from your speakers as follows:
• Headphone-Out Jack = Side Speaker Out
• Microphone-In Jack = Center/Subwoofer Speaker Out
• S/PDIF-Out Jack = Front Speaker Out
