2.2 Intercom Setup

2.2.1 VoIP Intercom Connections

Figure 2-4
wire range from 16 AWG to 26 AWG.
Note
Operations Guide
shows the pin connections on the J7 (terminal block). This terminal block can accept a
As an alternative to using PoE power, you can supply 5 VDC at 1000 mA into the terminal
block.

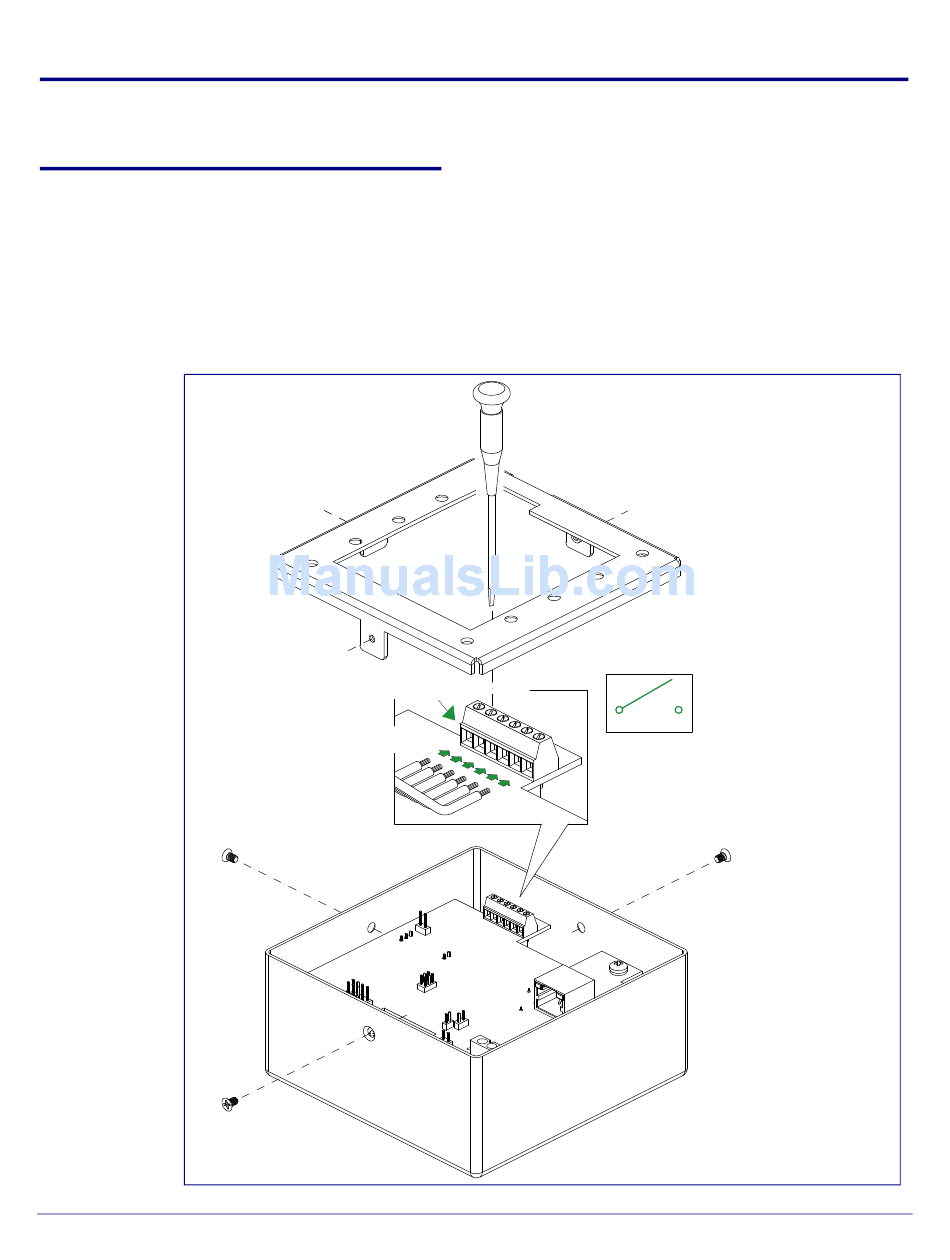

Figure 2-4. Terminal Block Connections
J3 - Terminal Block
Accept Wire Range
up to 16 Gauge
930260D
Alternate Power Input:
1 = +5V at 1000 mA
2 = Power Ground
1 2
3 4
5 6
3 4
Relay Contact:
(2A at 30 VDC for Continuous Loads)
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference
Installing the VoIP Indoor Intercom
Parts List
