2.2 VoIP Indoor Intercom with Keypad Setup

Figure 2-4

wire range from 16 AWG to 26 AWG.

Note

Operations Guide

shows the pin connections on the J7 (terminal block). This terminal block can accept a

As an alternative to using PoE power, you can supply 5 VDC at 1000 mA into the terminal

block.

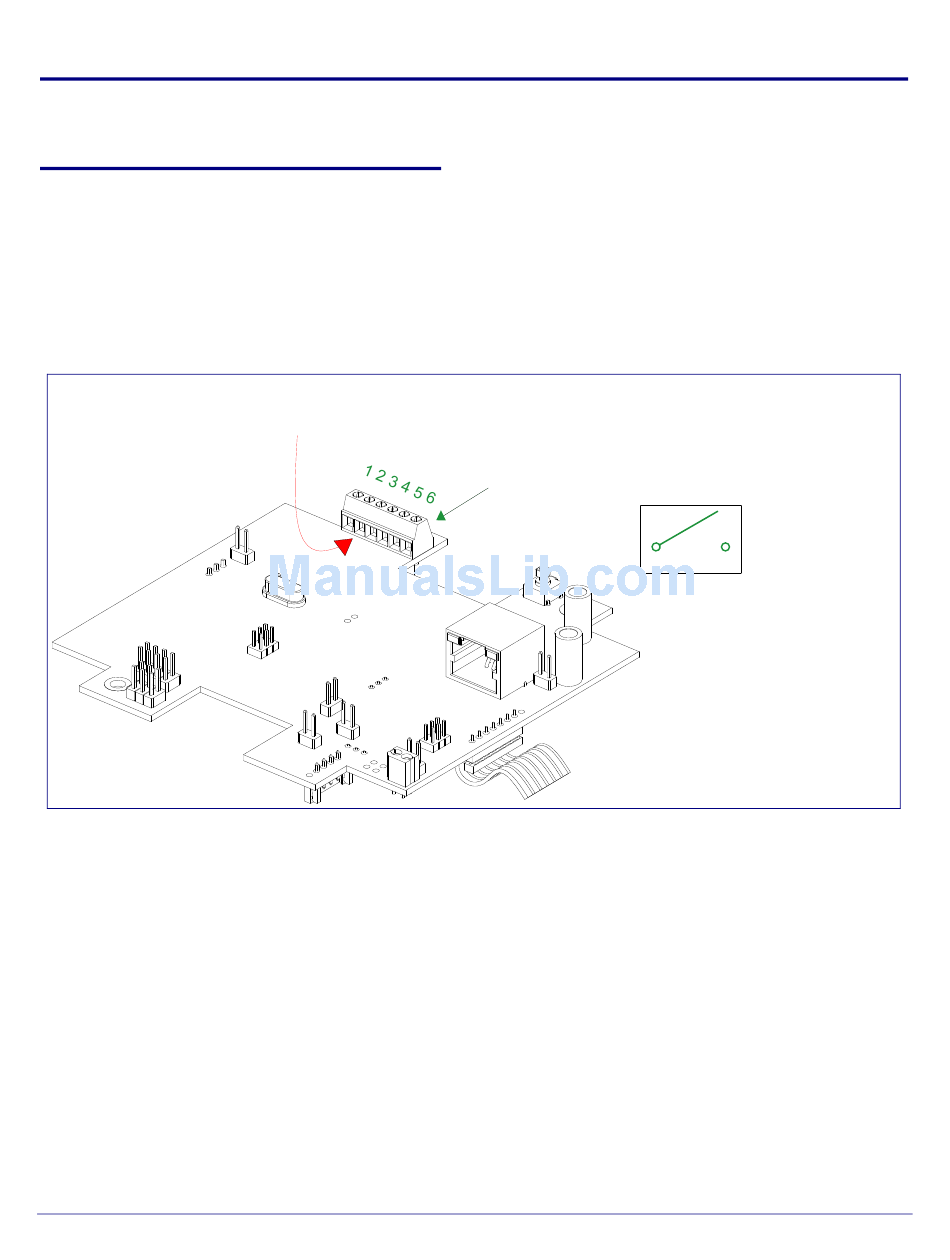

Figure 2-4. Terminal Block Connections

Wire in,

accept wire range

up to 16 AWG

930323A

Installing the VoIP Indoor Intercom with Keypad

Alternate Power Input:

Terminal Block

1 = +5V at 1000 mA

2 = Power Ground

Relay Contact:

(2A at 30 VDC or 0.4A at 125 VAC

for continuous loads)

3 = Normally Open Common

4 = Normally Open Contact

5 = Door Sense Input

6 = Door Sense Ground Reference
