2.2.6 RTFM Switch Jumper

When the Intercom is operational and linked to the network, use the Reset Test Function
Management (RTFM) switch (see
Intercom's IP Address, test that the audio is working, and check the volume.
Note
2.2.6.1 Announcing the IP Address
To announce an Intercom's current IP address:
1. Unplug the Intercom.
2. Install the RTFM jumper on JP11.
3. Plug the network cable into the Intercom to supply power to the Intercom. The LED will
4. The Intercom will announce the IP address.
5. After the Intercom has rebooted, remove the jumper from JP11.
6. Cycle power by disconnecting the PoE cable from J1 and plugging the PoE cable back into J1.
Operations Guide
You must do this test prior to final assembly. Please remember to remove the RTFM switch
jumper prior to final assembly.
illuminate during initialization, blink once, and then turn off.
Figure 2-9) on the Intercom board to announce and confirm the

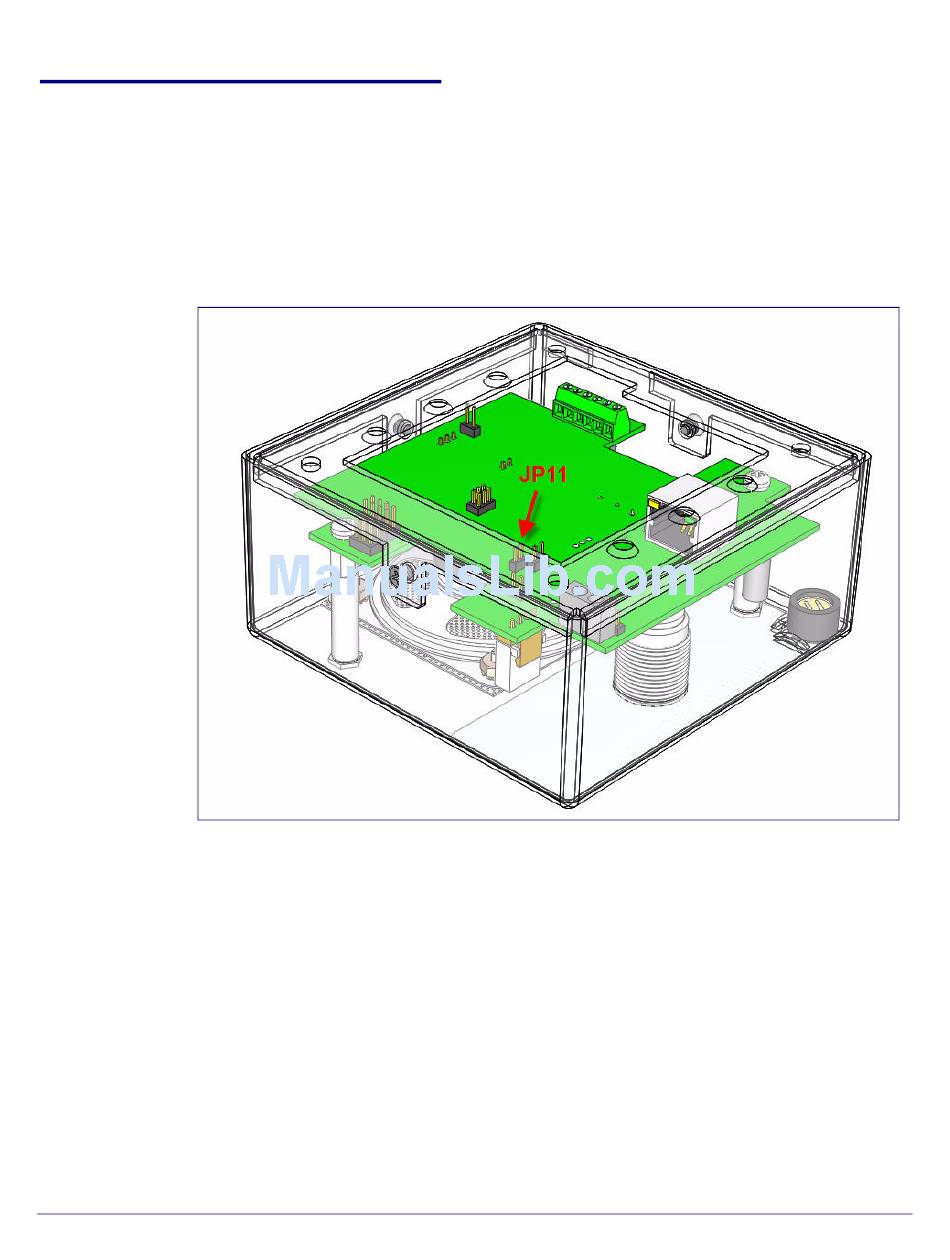

Figure 2-9. RTFM Switch Jumper
930260D
