2.3 Intercom Setup

2.3.1 Intercom Connections

Figure 2-3
16 AWG gauge wire.
Note
GENERAL ALERT
Alternate Power Input:
1 = 8 to 12 VDC at 1000 mA*
2 = Power Ground*
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Normally Open Common
4 = Normally Open Contact
3
4
5 = Door Sense Input
6 = Door Sense Ground Reference
*Contacts 1 and 2 on the J3 terminal block are only for
powering the Intercom from a non-PoE 12 VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
Intercom and void the product warranty.
Operations Guide
shows the pin connections on the J3 (terminal block). This terminal block can accept 
As an alternative to using PoE power, you can supply 8 to 12 VDC at 1000 mA into the
terminal block.
Caution
Equipment Hazard: Contacts 1 and 2 on the J3 terminal block are only for
powering the Intercom from a non-PoE 12 VDC power source as an alternative to
Network PoE power. Use of these contacts for any other purpose will damage the
Intercom and void the product warranty.

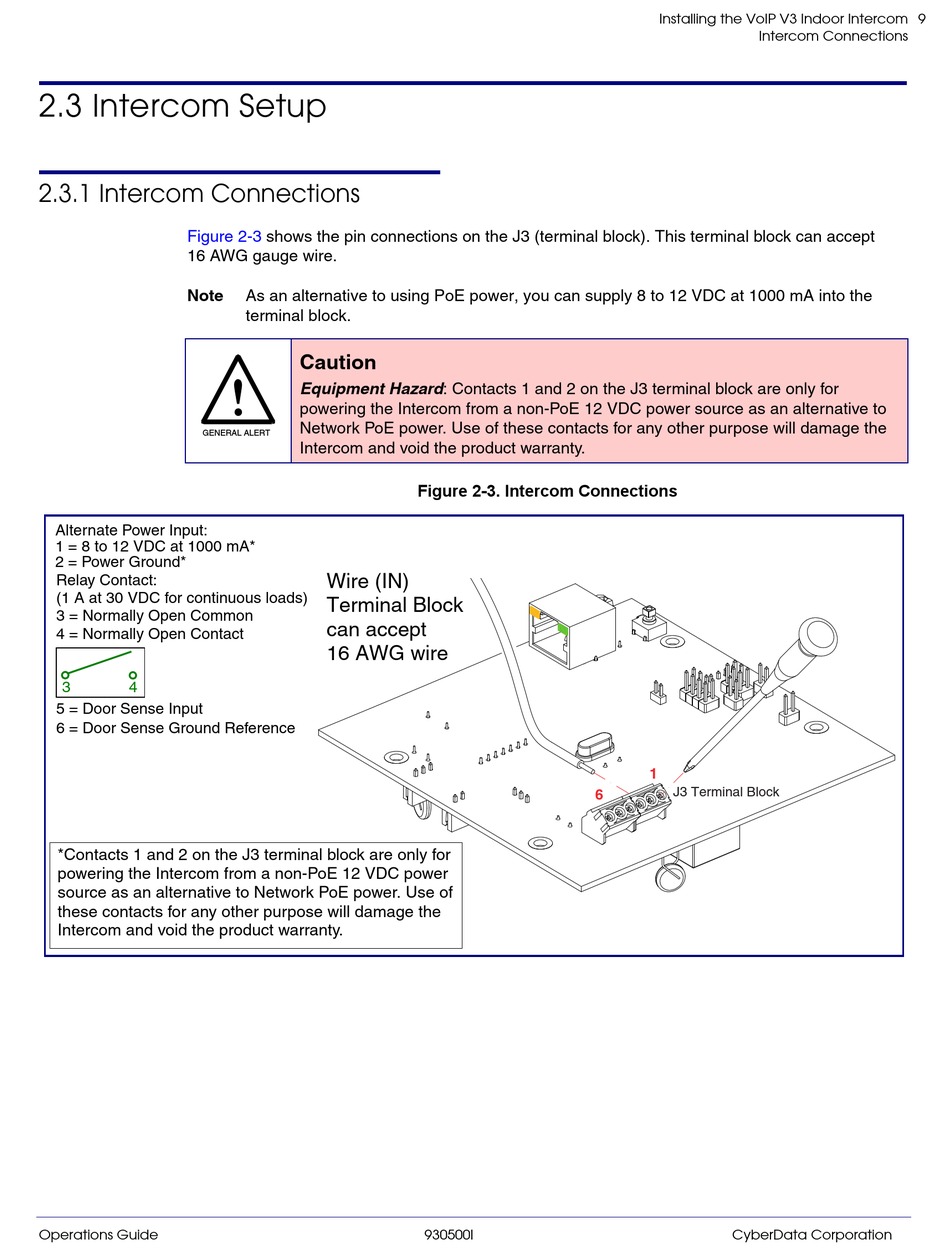

Figure 2-3. Intercom Connections
Wire (IN)
Terminal Block
can accept
16 AWG wire
930500I
Installing the VoIP V3 Indoor Intercom
Intercom Connections
1
J3 Terminal Block
6
CyberData Corporation
9
