6 Installing the VoIP Indoor Intercom

Intercom Setup

2.2 Intercom Setup

2.2.1 VoIP Intercom Connections

Figure 2-4
wire range from 16 AWG to 26 AWG.
Note
J3 - Terminal Block
CyberData Corporation
shows the pin connections on the J7 (terminal block). This terminal block can accept a
As an alternative to using PoE power, you can supply 5 VDC at 1000 mA into the terminal
block.

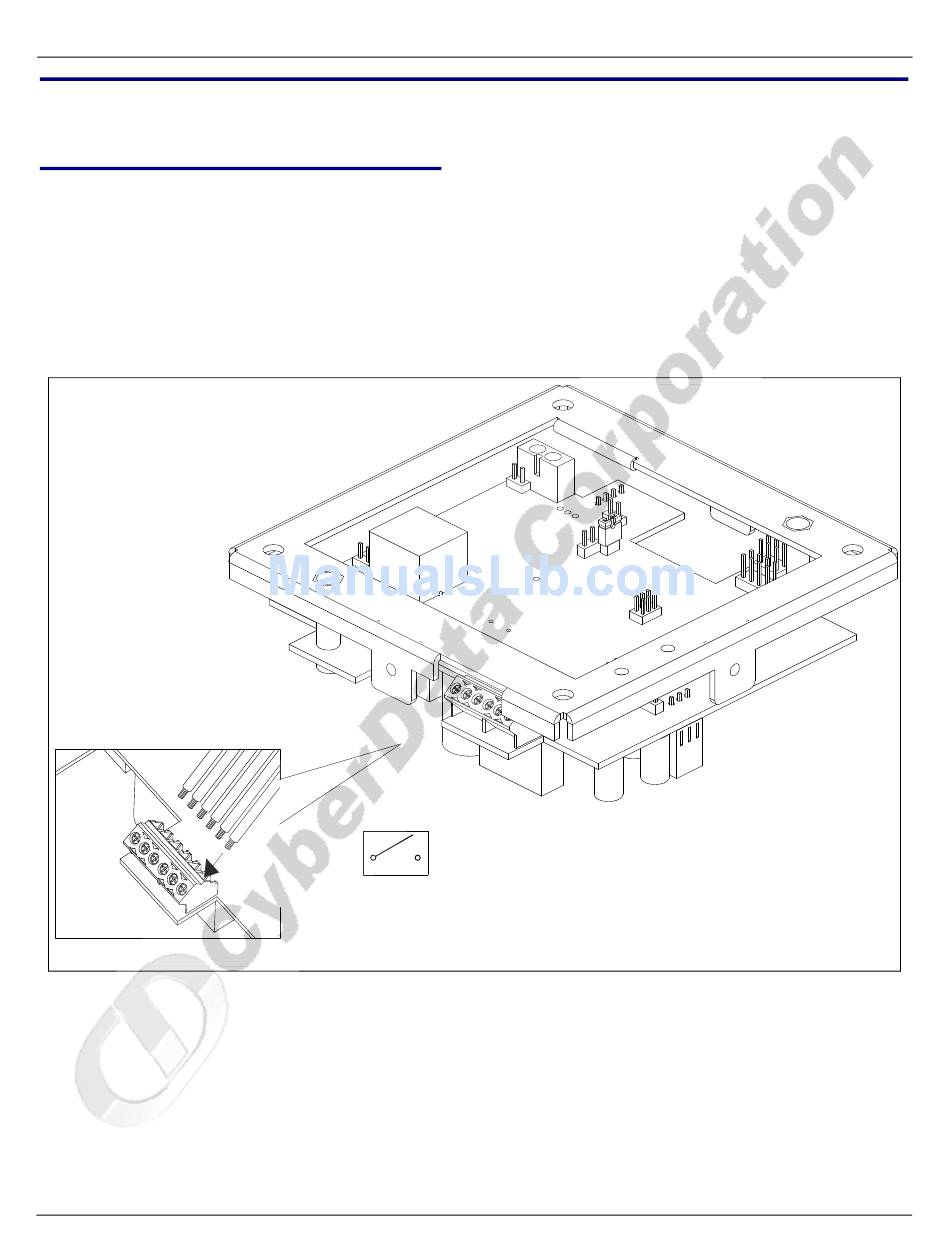

Figure 2-4. VoIP Intercom Connections
Alternate Power Input:
1 = +5V at 1000 mA
2 = Power Ground
Wire in,
3 4
accept wire range
from 16-26 AWG
Relay Contact:
(2A at 30 VDC or 0.4A at 125 VAC
for continuous loads)
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference
