2.3 Intercom Setup

2.3.1 Intercom Connections

Figure 2-5
16 AWG gauge wire.
Note
GENERAL ALERT
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
3 4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Remote Switch "A"
8 = Remote Switch "B"
*Contacts 1 and 2 on the terminal block are only for 
powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
Operations Guide
shows the pin connections on the terminal block. This terminal block can accept 
As an alternative to using PoE power, you can supply +8 to +12VDC @ 1000mA Regulated
Power Supply into the terminal block.
Caution
Equipment Hazard : Contacts 1 and 2 on the terminal block are only for powering
the device from a non-PoE 12 VDC power source as an alternative to Network PoE
power. Use of these contacts for any other purpose will damage the device and void
the product warranty.

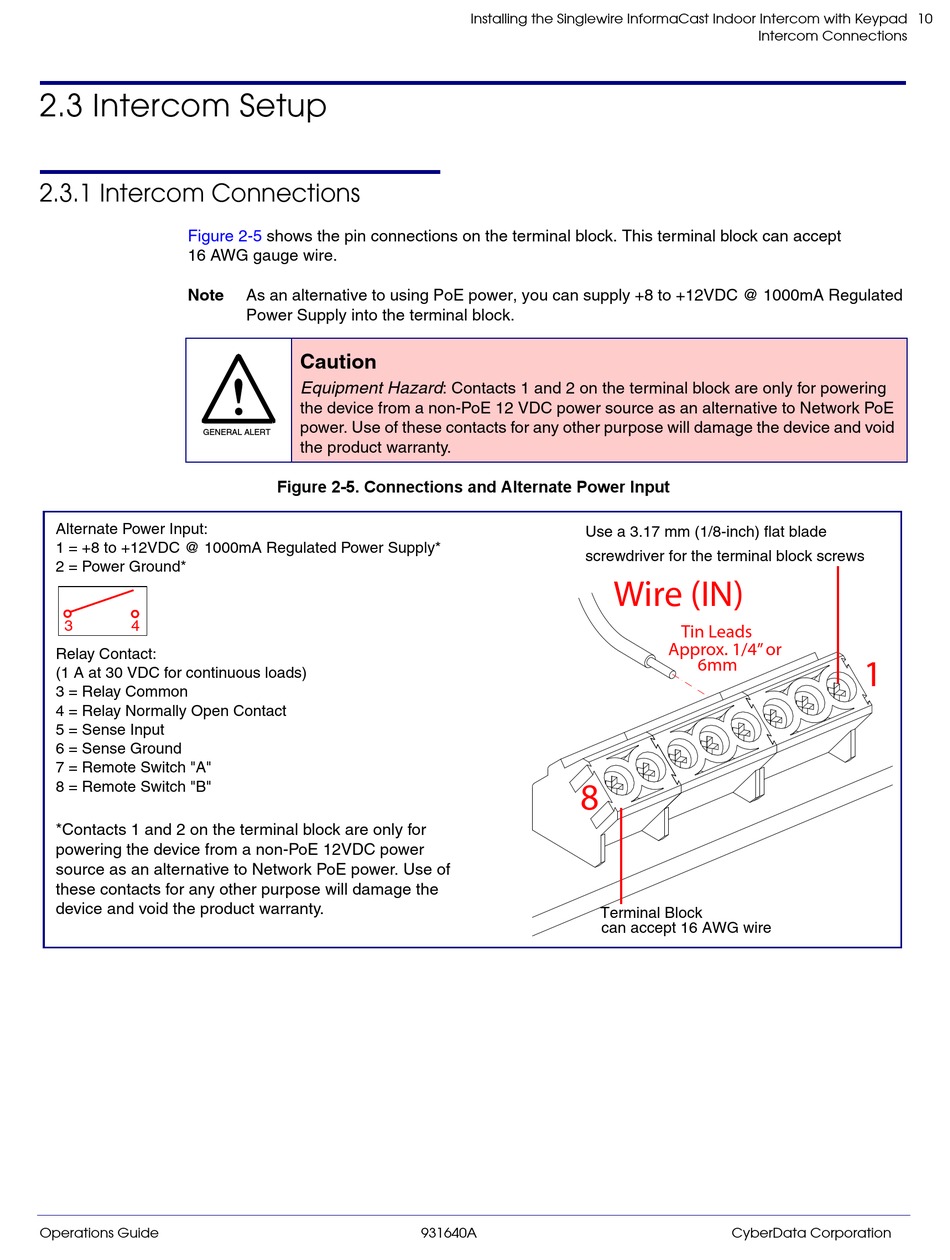

Figure 2-5. Connections and Alternate Power Input
931640A
Installing the Singlewire InformaCast Indoor Intercom with Keypad
Use a 3.17 mm (1/8-inch) flat blade
screwdriver for the terminal block screws
Wire (IN)
8
Terminal Block
can accept 16 AWG wire
Intercom Connections
Tin Leads
Approx. 1/4" or
6mm
