General; Front Panel Operation - Extra 200 Information Manual

Pilot´s Operating Handbook
EXTRA 200
913.1

GENERAL

The TRT 800 is Level 2es Class2 (SSR Mode S Elementary and Enhanced Surveillance)
Transponder. It has Mode A, Mode A/C and Mode S capability. In Mode S the transponder
provides acquisition and extended squitter capability. Furthermore, the TRT 800 has a built-in
barometric pressure altitude coder in 100 ft increments.
Refer to latest edition of Filser TRT 800 Pilot's Operation Manual (Doc. No. 03.210.010.11)
to get familiar with the TRT 800 Transponder.

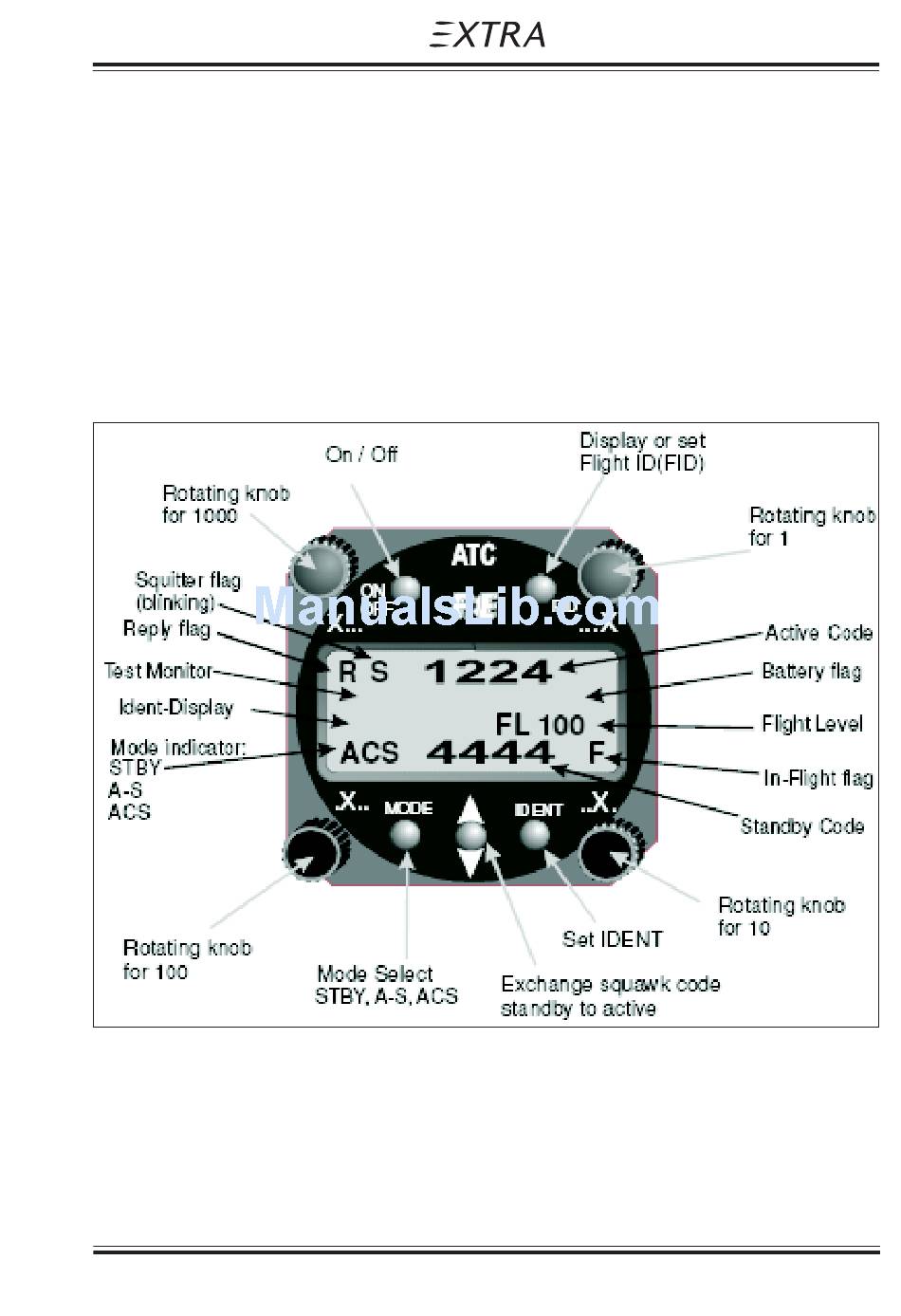

The following illustration of the front panel of the TRT 800 will assist the operator to understand
this Mode S Transponder.

913.1.1 FRONT PANEL OPERATION

The input elements consist of four rotating knobs and five push buttons.
Page Date: 28. February 2006
NOTE
Section 913
FILSER TRT 800 Transponder
913 - 3
