TITLE PAGE

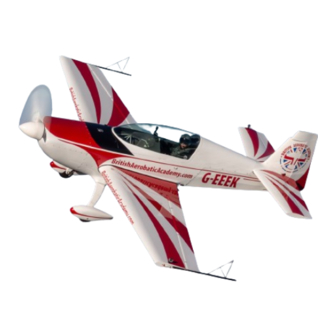

I N F O R M A T I O N M A N U A L
E X T R A 2 0 0
MANUFACTURER
EXTRA Flugzeugproduktions- und Vertriebs- GmbH
Flugplatz Dinslaken
46569 Hünxe, Federal Republic of Germany
W A R N I N G
This is an Information Manual and may be used for general purposes only.
This Information Manual is not kept current.
It must not be used as a substitute for the official FAA/EASA Approved Pilot's Operating
Handbook required for operation of the airplane.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Extra 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Extra Extra 200

Summary of Contents for Extra Extra 200

  • Page 1 I N F O R M A T I O N M A N U A L E X T R A 2 0 0 MANUFACTURER EXTRA Flugzeugproduktions- und Vertriebs- GmbH Flugplatz Dinslaken 46569 Hünxe, Federal Republic of Germany W A R N I N G This is an Information Manual and may be used for general purposes only.
  • Page 2 Left blank intentionally...

  • Page 3: Table Of Contents

    Pilot´s Operating Handbook EXTRA 200 MAIN TABLE OF CONTENTS Section Page PUBLICATION GUIDANCE ....................0-1 GENERAL ......................... 1-1 LIMITATIONS ........................2-1 EMERGENCY PROCEDURES ..................3-1 NORMAL PROCEDURES ....................4-1 PERFORMANCE ......................5-1 WEIGHT AND BALANCE AND EQUIPMENT LIST ............6-1 DESCRIPTION AND OPERATION OF AIRCRAFT AND SYSTEMS ........
  • Page 4 THIS HANDBOOK SHALL ALWAYS BE CARRIED ON BOARD DURING FLIGHT. THIS MANUAL IS FURNISHED TO PILOTS OPERATING HANDBOOK PREPARED THE CIVIL AVIATION AUTHORITIES AS A PART OF THE CERTIFICATION- MATERIAL FOR THIS MODEL. EXTRA Flugzeugproduktions- und Vertriebs- GmbH Page Date: 28. February 2006 Page Date: 20. April 2002...
  • Page 5 Pilot´s Operating Handbook Section 0 EXTRA 200 Publication Guidance SECTION 0 PUBLICATION GUIDANCE Table of Contents Paragraph Page SECTION 0 PUBLICATION GUIDANCE INTRODUCTION ......................... 0-3 NOTES ..........................0-3 WARNINGS, CAUTIONS AND NOTES ................0-4 LOG OF EFFECTIVE PAGES ..................... 0-5 Page Date: 20.

  • Page 6: Publication Guidance

    Section 0 Pilot´s Operating Handbook Publication Guidance EXTRA 200 Left blank intentionally 0 - 2 Page Date: 20. April 2002...

  • Page 7: Publication Guidance

    Publication Guidance INTRODUCTION This handbook contains 10 sections, and includes the material required to be furnished to the pilot by FAR Part 23 . It also contains supplementary data supplied by EXTRA Flugzeugproduktions- und Vertriebs- GmbH. NOTES This Flight Manual applies only to the aircraft whose nationality and registration marks are noted on the title page.

  • Page 8: Warnings, Cautions And Notes

    Section 0 Pilot´s Operating Handbook Publication Guidance EXTRA 200 WARNINGS, CAUTIONS AND NOTES The following definitions apply to Warnings, Cautions, and Notes: WARNING => Operating procedures, techniques, etc which could result in personal injury or loss of life if not carefully followed CAUTION =>...

  • Page 9: Log Of Effective

    Pilot´s Operating Handbook Section 0 EXTRA 200 Publication Guidance LOG OF EFFECTIVE PAGES Dates of issue for original and revised pages: Date and sign of LBA approval: Original ......... 29. May 1996 LBA approved ....12. August 1996 Revision No. 1 .... 29. November 1996 LBA approved .....
  • Page 10 Section 0 Pilot´s Operating Handbook Publication Guidance EXTRA 200 LOG OF EFFECTIVE PAGES (cont.) Page Date Page Date 6-1 thru 6-2 ......20. April 2002 Title ......... 28. February 2006 i ..........20. April 2002 6-3 ........28. February 2006 ii ........
  • Page 11 Pilot´s Operating Handbook Section 1 EXTRA 200 General SECTION 1 GENERAL Table of Contents Paragraph Page SECTION 1 GENERAL DESCRIPTION ........................1-3 SPECIFICATION OF CLASS ....................1-3 MANUFACTURER ......................1-3 TECHNICAL DATA ......................1-3 1.3.1 3-View Drawing ........................1-3 1.3.2 Main Data ..........................

  • Page 12: Extra

    Section 1 Pilot´s Operating Handbook General EXTRA 200 Left blank intentionally 1 - 2 Page Date: 20. April 2002...

  • Page 13: Description

    Section 1 EXTRA 200 General DESCRIPTION This description belongs to aircraft type EXTRA 200 with nationality and registration marks: D - E J X A Manufacturing The airframe is built of tig-welded steel-tube construction. Wings, rudder and landing gear are manufactured of composite material.

  • Page 14: Main Data

    Section 1 Pilot´s Operating Handbook General EXTRA 200 1.3.2 MAIN DATA - Length 6,51 m (22,25 ft) - Height 2,67m ( 8,76 ft) - Span 7.50 m (24.61 ft) - Wheelbase 1,80 m ( 5,91 ft) - Wheel-track 4.91 m (16.10 ft) 1.3.3...

  • Page 15: Engine

    Pilot´s Operating Handbook Section 1 EXTRA 200 General ENGINE Manufacturer: Textron-Lycoming Williamsport Plant PA 17701 USA. Type: Textron Lycoming AEIO-360-A1E Max. Takeoff Power: 200 HP @ 2700 RPM with full throttle in MSL Max. Continuous Power 185 HP @ 2500 RPM with full throttle in MSL PROPELLER Manufacturer: MT-Propeller Entwicklung GmbH, Federal Republic of Germany.

  • Page 16: Loading

    Section 1 Pilot´s Operating Handbook General EXTRA 200 OIL (Cont.) Average ambient air Mil-L6082 Mil-22851 temperature grades ashless dispersant grades - 18°C till 21°C SAE 30 SAE 30, 40 or 20W40 (0°F - 70°F) - 18°C till 32°C SAE 20W50 SAE 20W50 or 15W50 (0°F - 90°F)

  • Page 17: Secondary Terminology

    Pilot´s Operating Handbook Section 1 EXTRA 200 General Meteorological terminology International standard atmospheric condition Outside air temperature 1.10 SECONDARY TERMINOLOGY Feet/minute Feet = 0.3048 m inch inch = 2.54 cm Meter Liters US gallon = 3.79 liters US quart = 0.946 liters...

  • Page 18: Page Date: 20. April 2002 Page Date: 14. July

    Section 1 Pilot´s Operating Handbook General EXTRA 200 1.11 CONVERSION TABLE 1 - 8 Page Date: 20. April 2002 Page Date: 14. July 2008...
  • Page 19 Pilot´s Operating Handbook Section 2 EXTRA 200 Limitations SECTION 2 LIMITATIONS Table of Contents SECTION 2 LIMITATIONS Paragraph Page GENERAL ........................... 2-3 AIR SPEED (IAS) ........................ 2-3 CROSSWIND COMPONENT ....................2-3 ENGINE ..........................2-3 2.4.1 Fuel ............................. 2-4 2.4.2 Engine Limitations ....................... 2-4 PROPELLER ........................
  • Page 20 Section 2 Pilot´s Operating Handbook Limitations EXTRA 200 Left blank intentionally 2 - 2 Page Date: 20. April 2002...

  • Page 21: General

    Pilot´s Operating Handbook Section 2 EXTRA 200 Limitations SECTION 2 LIMITATIONS GENERAL This section includes operating limitations, instrument markings, and basic placards neces- sary for the safe operation of the aircraft, its engine, standard systems, and standard equip- ment. The limitations included in this section have been approved by the Luftfahrt- Bundesamt (LBA).

  • Page 22: Limitations

    Section 2 Pilot´s Operating Handbook Limitations EXTRA 200 2.4.1 FUEL Minimum grade aviation gasoline : 100/100LL; for alternate fuelgrades see latest revision of Lyc. S.I. No. 1070 Total fuel capacity: 122 litres (32.1 US Gallon) Usable fuel capacity: 117 litres (30.8 US Gallon) For acrobatic flight wing tanks must be empty.

  • Page 23: Propeller

    Pilot´s Operating Handbook Section 2 EXTRA 200 Limitations PROPELLER MT-Propeller Entwicklung GmbH, Federal Republic of Germany Type: MTV-12-B-C/C183-17e Max. Takeoff RPM: 2700 Max. Continuous RPM: 2500 WEIGHT LIMITS Max. allowed empty weight: -Normal category 646 kg (1424lbs) -Acrobatic category ( 1 seat)

  • Page 24: Acrobatic Maneuvers

    Section 2 Pilot´s Operating Handbook Limitations EXTRA 200 ACROBATIC MANEUVERS 2.8.1 NORMAL FLIGHT All acrobatic maneuvers are prohibited except stall, chandelle, lazy eight and turns up to 60 degrees bank angle. 2.8.2 ACROBATIC FLIGHT The plane is designed for unlimited acrobatics within the approved operating limitations.

  • Page 25: Load Factor

    Pilot´s Operating Handbook Section 2 EXTRA 200 Limitations Recommended entry speeds IAS Maneuvers Symbol Remarks min knots (km/h) max knots (km/h) Segment: horizontal Line 45°climbing 80 (148) 90° up 45° diving < V reduce throttle 90° diving < V reduce throttle 1/4 Loop climb.

  • Page 26: Acrobatic Flight

    Section 2 Pilot´s Operating Handbook Limitations EXTRA 200 2.9.2 ACROBATIC FLIGHT + 10 g / - 10 g for 1 seat occupied (MTOW 700 kg / 1543 lbs) + 8 g / - 8 g for 2 seat occupied (MTOW 800 kg / 1763 lbs) 2.10...

  • Page 27: Operating Placards

    Pilot´s Operating Handbook Section 2 EXTRA 200 Limitations 2.14.2 OPERATING PLACARDS = 154 KIAS (Acro) = 285 km/h (Acro) (near airspeed indicator) = 138 KIAS (Normal) = 256 km/h (Normal) THE MARKINGS AND PLACARDS INSTALLED IN (in the rear cockpit)
  • Page 28 Section 2 Pilot´s Operating Handbook Limitations EXTRA 200 ACROBATIC: ± 10 G, 1 PILOT ± 8 G, 2 PERSON ON BOARD MTOW: 700 KG (1543 LBS) MTOW: 800 KG (1763 LBS) NORMAL: + 6 G/ -3 G; MTOW: 840 KG (1852 LBS) (in both cockpits) ACROBATICS INCL.
  • Page 29 Pilot´s Operating Handbook Section 2 EXTRA 200 Limitations APPROVED ACROBATIC MANEUVERS AND RECOMMENDED ENTRY AIRSPEEDS MANEUVERS SPEEDS min KIAS max KIAS Segment: horizontal Line 45°climbing 90° up 45° diving <V 90° diving <V 1/4 Loop climb. Loop Stall turn Aileron roll Snap roll "Tail-slide"...
  • Page 30 Section 2 Pilot´s Operating Handbook Limitations EXTRA 200 APPROVED ACROBATIC MANEUVERS AND RECOMMENDED ENTRY AIRSPEEDS MANEUVERS AIRSPEEDS min km/h max km/h Segment: horizontal Line 45°climbing 90° up 45° diving <V 90° diving <V 1/4 Loop climb. Loop Stall turn Aileron roll Snap roll "Tail-slide"...
  • Page 31 Pilot´s Operating Handbook Section 2 EXTRA 200 Limitations Left blank intentionally Page Date: 14. July 2008 Page Date: 20. April 2002 2 - 13...

  • Page 32: Instrument Markings

    Section 2 Pilot´s Operating Handbook Limitations EXTRA 200 2.14.3 INSTRUMENT MARKINGS AIRSPEED INDICATOR green arc 60 KIAS (111 km/h) - 154 KIAS (285 km/h) yellow arc 154 KIAS (285 km/h) - 217 KIAS (402 km/h) red line 217 KIAS (402 km/h)

  • Page 33: Kinds Of Operation Equipment List

    Pilot´s Operating Handbook Section 2 EXTRA 200 Limitations 2.15 KINDS OF OPERATION EQUIPMENT LIST The aircraft may be operated in day VFR when the appropriate equipment is installed and operable. Flying under icing conditions is prohibited. The following equipment list identifies the systems and equipment upon which type certifica- tion for each kind of operation was predicated.

  • Page 34: Noise Level

    According FAR Part 91 „General Operating and Flight Rules" each occupant of an US registered airplane must wear an approved parachute when performing acrobatic maneuvers. Extra Flugzeugproduktions- und Vertriebs- GmbH considers acrobatics without wearing an approved parachute to be unsafe. 2.16...
  • Page 35 Pilot´s Operating Handbook Section 3 EXTRA 200 Emergency Procedures SECTION 3 EMERGENCY PROCEDURES Table of Contents Paragraph Page SECTION 3 EMERGENCY PROCEDURES INTRODUCTION ......................... 3-3 3.0.1 General ..........................3-3 3.0.2 General Behaviour in Emergency Situations ............... 3-3 AIRSPEEDS FOR EMERGENCY OPERATION ..............3-4 OPERATIONAL CHECKLIST .....................
  • Page 36 Section 3 Pilot´s Operating Handbook Emergency Procedures EXTRA 200 Left blank intentionally 3 - 2 Page Date: 20. April 2002...

  • Page 37: Introduction

    Pilot´s Operating Handbook Section 3 EXTRA 200 Emergency Procedures SECTION 3 EMERGENCY PROCEDURES INTRODUCTION 3.0.1 GENERAL This section contains the checklist and procedures coping with emergencies that may occur. This checklist must be followed in various emergencies to ensure maximum safety for the crew and/or aircraft.

  • Page 38: Emergency Procedures

    Section 3 Pilot´s Operating Handbook Emergency Procedures EXTRA 200 AIRSPEEDS FOR EMERGENCY OPERATION If nothing is mentioned a weigh of 840 kg (1852 lbs) is valid. Stall speed 59 KIAS (109 km/h) Engine failure after takeoff 80 KIAS (148 km/h)

  • Page 39: Oil System Malfunction

    Pilot´s Operating Handbook Section 3 EXTRA 200 Emergency Procedures 3.2.4 OIL SYSTEM MALFUNCTION If oil pressure indicates low: Apply positive "g" If oil pressure is not regained than: 1. Airspeed 80 KIAS (148 km/h) 2. Throttle REDUCE TO IDLE 3. Engine oil temperature OBSERVE INDICATION 4.

  • Page 40: Fires

    Section 3 Pilot´s Operating Handbook Emergency Procedures EXTRA 200 4. Master switch WARNING The stall warning is deactivated! 5. Touchdown 3-POINT LANDING 6. Ignition switch 7. Mixture IDLE CUT OFF 8. Fuel shutoff valve OFF (Pull & Turn) 9. Brakes...

  • Page 41: Engine Fire In Flight

    Pilot´s Operating Handbook Section 3 EXTRA 200 Emergency Procedures 3.4.3 ENGINE FIRE IN FLIGHT 1. Mixture IDLE CUT OFF 2. Fuel shutoff valve OFF (Pull & Turn) 3. Master switch WARNING The stall warning is deactivated! 4. Airspeed 100 KIAS (185 km/h), find your...

  • Page 42: Emergency Exit After Turn Over

    Section 3 Pilot´s Operating Handbook Emergency Procedures EXTRA 200 EMERGENCY EXIT AFTER TURN OVER 1. Master switch 2. Fuel shutoff valve OFF (Pull & Turn) 3. Seat belts OPEN 4. Parachute harnesses OPEN 5. Canopy handle PULL TO OPEN NOTE NOTE If canopy fails to open break the canopy.
  • Page 43 Pilot´s Operating Handbook Section 4 EXTRA 200 Normal Procedures SECTION 4 NORMAL PROCEDURES Table of Contents Paragraph Page SECTION 4 NORMAL PROCEDURES GENERAL ........................... 4-3 4.0.1 Airspeeds For Normal Operation ..................4-3 4.0.2 Checklist And Procedures ....................4-3 PREFLIGHT INSPECTION ....................4-4 4.1.1...
  • Page 44 Section 4 Pilot´s Operating Handbook Normal Procedures EXTRA 200 Left blank intentionally 4 - 2 Page Date: 20. April 2002...

  • Page 45: General

    Pilot´s Operating Handbook Section 4 EXTRA 200 Normal Procedures SECTION 4 NORMAL PROCEDURE GENERAL 4.0.1 AIRSPEEDS FOR NORMAL OPERATION CATEGORY ACRO NORMAL 1 seat 2 seats KIAS (km/h) KIAS (km/h) KIAS (km/h) Takeoff: -Rotating Speed 70 (130) 72 (133) 73 (135)

  • Page 46: Normal Procedures

    Section 4 Pilot´s Operating Handbook Normal Procedures EXTRA 200 PREFLIGHT INSPECTION 4.1.1 EXTERIOR INSPECTION ILLUSTRATION 4.1.2 GENERAL Visually check airplane for general condition during walk around inspection. Perform exterior check as outlined in the picture above in counterclockwise direction. CHECKLIST PROCEDURES 1) Cockpit 1.
  • Page 47 Pilot´s Operating Handbook Section 4 EXTRA 200 Normal Procedures 2) Empennage 1. All round inspection, canopy, surfaces, stabilizer, elevator, trim rudder and tailwheel CHECK 2. Horizontal stabilizer attachment bolts CHECK FOR FREEPLAY BY MOVING THE TIP OF THE HORIZ. STABILIZER UP- AND...

  • Page 48: Starting Procedures

    Section 4 Pilot´s Operating Handbook Normal Procedures EXTRA 200 6) Before starting engine 1. Preflight inspection COMPLETE 2. Passenger briefing COMPLETE 3. Parachute handling briefing COMPLETE 4. Seats, seatbelts, shoulder harnesses ADJUST AND LOCK 5. Canopy CLOSE AND LOCK 6. Brake CHECK 7.

  • Page 49: Hot Engines

    Pilot´s Operating Handbook Section 4 EXTRA 200 Normal Procedures 4.3.2 HOT ENGINES Because of the fact that the fuel percolates and the system must be cleared of vapour, it is recommended to use the same procedure as outlined for cold engine start.

  • Page 50: Climb

    Section 4 Pilot´s Operating Handbook Normal Procedures EXTRA 200 CLIMB The maximum continuous RPM is restricted to 2500. Turn boost pump "OFF". CRUISE 1. Altitude - As selected 2. Throttle / RPM - Adjust for cruising speed 3. Mixture - Adjust for cruising speed 4.

  • Page 51: Normal Landing

    Pilot´s Operating Handbook Section 4 EXTRA 200 Normal Procedures NOTE Stall speed will be MTOW = 700 kg : 53 KIAS (98 km/h) MTOW = 800 kg : 58 KIAS (107 km/h) MTOW = 840 kg : 59 KIAS (109 km/h) 4.8.4...

  • Page 52: Acrobatic Maneuvers

    Section 4 Pilot´s Operating Handbook Normal Procedures EXTRA 200 4.12 ACROBATIC MANEUVERS 4.12.1 GENERAL N O T E NOTE Prior to executing these maneuvers tighten harnesses and check all loose items are stowed. Start the maneuvers at safe altitude and max continuous power setting if not otherwise noted.
  • Page 53 Pilot´s Operating Handbook Section 4 EXTRA 200 Normal Procedures - Segment "line 45° climbing": The plane will follow the line at max. power. The speed will not decrease below 80 KIAS (148 km/h). - Segment "line 90° up": Any entry speed may be used. Out of a horizontal pull-up at 200 KIAS (370 km/h) the vertical penetration will be 2.500 ft.

  • Page 54: Spin

    Section 4 Pilot´s Operating Handbook Normal Procedures EXTRA 200 CAUTION If performing a gyroscopic maneuver such as flat spin, power on, or knife edge spin, reduce RPM to 2400 in order to minimize the gyroscopic forces. 4.12.3 SPIN To enter a spin proceed as follows:...
  • Page 55 Pilot´s Operating Handbook Section 5 EXTRA 200 Performance SECTION 5 PERFORMANCE Table Of Contents Paragraph Page SECTION 5 PERFORMANCE GENERAL ........................... 5-3 5.1.1 Performance Charts ......................5-3 5.1.2 Definitions Of Terms ......................5-3 5.1.3 Sample Problem ........................5-4 ISA CONVERSION ......................5-5 AIRSPEED CALIBRATION ....................
  • Page 56 Section 5 Pilot´s Operating Handbook Performance EXTRA 200 Left blank intentionally 5 - 2 Page Date: 20. April 2002...

  • Page 57: Performance

    Pilot´s Operating Handbook Section 5 EXTRA 200 Performance SECTION 5 PERFORMANCE GENERAL Performance data charts on the following pages are presented to facilitate the planning of flights in detail and with reasonable accuracy under various conditions. The data in the charts have been computed from actual flight tests with the aircraft and engine in good condition and using average piloting techniques.

  • Page 58: Sample Problem

    Section 5 Pilot´s Operating Handbook Performance EXTRA 200 5.1.3 SAMPLE PROBLEM CONDITIONS Airfield Pressure Altitude: 1500 ft (457 m), Outside air temperature on ground: 20°C Cruising flight in FL 80 [8000 ft (2438 m)], Outside air temperature in FL 80: 10°C TAKEOFF The takeoff distance with T/O weight of 840kg (1852 lbs) is shown by Fig.

  • Page 59: Isa Conversion

    Pilot´s Operating Handbook Section 5 EXTRA 200 Performance ISA CONVERSION ISA Conversion of pressure altitude and outside air temperature Outside air temperature "OAT" ( °F ) Outside air temperature "OAT" ( °C ) Page Date: 20. April 2002 5 - 5...

  • Page 60: Airspeed Calibration

    Section 5 Pilot´s Operating Handbook Performance EXTRA 200 AIRSPEED CALIBRATION CAS (km/h) 90 110 130 150 170 190 210 230 250 270 290 310 330 350 370 390 410 KCAS NOTE Indicated airspeed assumes zero instrument error 5 - 6 Page Date: 20.

  • Page 61: Stall Speed

    Pilot´s Operating Handbook Section 5 EXTRA 200 Performance STALL SPEED Condition: Power Idle Forward C.G. position ANGLE OF BANK 0° 30° 45° 60° WEIGHT CATEGORY KIAS KCAS KIAS KCAS KIAS KCAS KIAS KCAS (km/h) (km/h) (km/h) (km/h) (km/h) (km/h) (km/h)

  • Page 62: Takeoff Performance

    Section 5 Pilot´s Operating Handbook Performance EXTRA 200 TAKEOFF PERFORMANCE Power: 2700 RPM and full throttle before brake release Landing runway: paved level dry runway For every 5 kts (9 km/h) headwind, the takeoff (T/O) distance can be decreased by 5%. For every 2 kts (4 km/h) tailwind [up to 10 kts (19 km/h)], the (T/O) distance is increased by 10%.

  • Page 63: Rate Of Climb Performance

    Pilot´s Operating Handbook Section 5 EXTRA 200 Performance RATE OF CLIMB PERFORMANCE Weight Airspeed during climb KIAS (km/h) sea level 5000 ft 12000 ft 840 Kg (1852 lbs) 86 (159) 84 (156) 82 (152) 700 Kg (1543 lbs) 84 (156)

  • Page 64: Time, Fuel And Distance To Climb

    Section 5 Pilot´s Operating Handbook Performance EXTRA 200 TIME, FUEL AND DISTANCE TO CLIMB 5 - 10 Page Date: 20. April 2002...

  • Page 65: Time, Fuel And Distance To Descend

    Pilot´s Operating Handbook Section 5 EXTRA 200 Performance TIME, FUEL AND DISTANCE TO DESCEND During the descent adjust the engine power for V = 150 KIAS and a rate of descent of 1000ft/min. Furthermore the engine temperature has to be kept in the green range.

  • Page 66: Cruising Speed

    Section 5 Pilot´s Operating Handbook Performance EXTRA 200 CRUISING SPEED 5 - 12 Page Date: 20. April 2002 Page Date: 14. July 2008...

  • Page 67: Endurance

    Pilot´s Operating Handbook Section 5 EXTRA 200 Performance 5.10 ENDURANCE Page Date: 20. April 2002 5 - 13...

  • Page 68: Range

    Section 5 Pilot´s Operating Handbook Performance EXTRA 200 5.11 RANGE 5 - 14 Page Date: 20. April 2002...

  • Page 69: Cruise Performance

    Pilot´s Operating Handbook Section 5 EXTRA 200 Performance 5.12 CRUISE PERFORMANCE Range and Endurance values for a T/O weight of 840 kg (1852 lbs) including fuel for warm- up and takeoff from SL, max. cont. Power climb to cruising altitude, and a reserve of 19 liters (5 US Gal.) for 45 minutes with 45% power.

  • Page 70: Landing Distance

    Section 5 Pilot´s Operating Handbook Performance EXTRA 200 5.13 LANDING DISTANCE Power: Idle and propeller of full fine Landing runway: Paved level dry runway For every 5 kts (9 km/h) headwind, the landing distance (L/D) can be decreased by 10%.
  • Page 71 Pilot´s Operating Handbook Section 6 EXTRA 200 Weight and Balance and Equipment List SECTION 6 WEIGHT AND BALANCE AND EQUIPMENT LIST Table of Contents Paragraph Page SECTION 6 WEIGHT AND BALANCE AND EQUIPMENT LIST GENERAL ........................... 6-3 AIRCRAFT WEIGHING PROCEDURE ................6-3 6.2.1...
  • Page 72 Section 6 Pilot´s Operating Handbook Weight and Balance and Equipment List EXTRA 200 Left blank intentionally 6 - 2 Page Date: 20. April 2002...

  • Page 73: Weight And Balance And Equipment List

    Pilot´s Operating Handbook Section 6 EXTRA 200 Weight and Balance and Equipment List GENERAL This section describes the procedure for establishing the basic weight and moment of the aircraft. Sample forms are provided for reference. Procedures for calculating the weight and movement for various operations are also provided.

  • Page 74: Owners Weight And Balance Record

    Section 6 Pilot´s Operating Handbook Weight and Balance and Equipment List EXTRA 200 If a new weight is added to the known old weight and C.G. position the resulting new weight and C.G. can be obtained by a simple calculation: Situation before adding item: Wo, Xo = Airplane weight, C.G.

  • Page 75: Center Of Gravity Calculation (Sample Problem)

    Pilot´s Operating Handbook Section 6 EXTRA 200 Weight and Balance and Equipment List CENTER OF GRAVITY CALCULATION (SAMPLE PROBLEM) PILOT ACRO-TANK COPILOT WING-TANK Rear Seat Fuel Front Seat Fuel Position 36 Liter 86 Liter (9.5 US GAL) (22.6 US GAL)
  • Page 76 Section 6 Pilot´s Operating Handbook Weight and Balance and Equipment List EXTRA 200 6 - 6 Page Date: 20. April 2002...

  • Page 77: Sample

    Pilot´s Operating Handbook Section 6 EXTRA 200 Weight and Balance and Equipment List 6.3.1 SAMPLE Takeoff Condition: Pilot On Rear Seat 90.0 kg ( 198.5 lbs) Copilot On Front Seat 65.0 kg ( 143.3 lbs) "Acro & Center" Fuel 25.9 kg ( 57.1 lbs)

  • Page 78: Loading Weights And Moments

    Section 6 Pilot´s Operating Handbook Weight and Balance and Equipment List EXTRA 200 LOADING WEIGHTS AND MOMENTS OCCUPANTS : max. 2 PILOT COPILOT WEIGHT REAR SEAT FRONT SEAT Pilot + Parachute Arm = 185cm (73 inch) Arm = 93.7 cm (37 inch)

  • Page 79: Weights And Moments Limits

    Pilot´s Operating Handbook Section 6 EXTRA 200 Weight and Balance and Equipment List WEIGHTS AND MOMENTS LIMITS Example: At 655 kg and 58000 kgcm the C.G. location is 87.0 cm aft of ref. datum Page Date: 20. April 2002 6 - 9...

  • Page 80: Equipment List

    Section 6 Pilot´s Operating Handbook Weight and Balance and Equipment List EXTRA 200 EQUIPMENT LIST EXTRA-200 S/N: QTY ITEM MANUFACT PART NUMBER WEIGHT Mark Required (R) (KG) installed Optional (O) Alternate (A) Engine Lycoming AEIO-360-A1E 128.40 -0.51 Magneto, LH Slick 4372 2.30...
  • Page 81 Pilot´s Operating Handbook Section 6 EXTRA 200 Weight and Balance and Equipment List ITEM MANUFACT PART NUMBER WEIGHT Mark if Required (R) (KG) installed Optional (O) Alternate (A) RPM Indicator 333 230 115 002 0.31 1.49 or 333 035 001G...
  • Page 82 Section 6 Pilot´s Operating Handbook Weight and Balance and Equipment List EXTRA 200 QTY ITEM MANUFACT PART NUMBER WEIGHT Mark if Required (R) (KG) installed Optional (O) Alternate (A) EGT/CHT Indicator Westach 2 DA 1 0.07 1.52 EGT Probe Westach 712-2 DWK 0.06...
  • Page 83 83801.2-01 0.04 1.18 Rear Seat Pan Stand. EXTRA 77201.4 1.40 1.94 Rear Seat Pan Adjust. EXTRA 87403.1 1.40 1.94 Horizontal Tail Standard EXTRA 37201.1 20.00 4.24 Horizontal Tail (CRP) EXTRA 87932 19.00 4.25 Vertical Tail Standard EXTRA 37101.1 9.80 4.54...
  • Page 84 Section 6 Pilot´s Operating Handbook Weight and Balance and Equipment List EXTRA 200 Left blank intentionally 6 - 14 Page Date: 28. February 2006 Page Date: 20. April 2002...
  • Page 85 Pilot´s Operating Handbook Section 7 EXTRA 200 Description and Operation of Aircraft and Systems SECTION 7 DESCRIPTION AND OPERATION OF AIRCRAFT AND SYSTEMS Table of Contents Paragraph Page SECTION 7 DESCRIPTION AND OPERATION OF AIRCRAFT AND SYSTEMS THE AIRCRAFT ........................7-3 FUSELAGE .........................
  • Page 86 Section 7 Pilot´s Operating Handbook Description and Operation of Aircraft and Systems EXTRA 200 Left blank intentionally 7 - 2 Page Date: 20. April 2002...

  • Page 87: Description And Operation Of Aircraft And Systems

    EXTRA 200 is a light weight, robust, single piston-engined, two-seat aircraft with a fuselage structure in tig-welded steel-tube construction. The landing gear, wing, and tail are made of epoxy, reinforced with glass- and carbonfiber.

  • Page 88: Wings

    EMPENNAGE The EXTRA 200 possesses a cruziform empennage with stabilizers and moveable control surfaces. The rudder is balanced aerodynamically at the tip. Spars consist of PVC foam cores, CRP caps and GRP laminates. The shell is built by honeycomb sandwich with GRP laminates.

  • Page 89: Flight Control System

    FLIGHT CONTROL SYSTEM 7.5.1 PRIMARY CONTROL SYSTEM The EXTRA 200 is standard equipped with full dual primary flight controls including conven- tional stick-type control columns and adjustable rudder pedals. The primary control surfaces are operated through a direct mechanical linkage.

  • Page 90: Instrumentation

    EXTRA 200 INSTRUMENTATION The EXTRA 200 is equipped with flight instruments in both cockpits. Instruments and placards can be provided with markings in either metric or English units. The colour markings in instruments follow US-FAR, part 23 recommendation ( see section 2 ).
  • Page 91 Pilot´s Operating Handbook Section 7 EXTRA 200 Description and Operation of Aircraft and Systems Standard Optional Position Item Magneto Selector switch & starter Amperemeter Airspeed indicator Magn. Direction indicator g-meter EGT / CHT Oil temperature Oil pressure RPM indicator Manifold pressure...

  • Page 92: Instrument Panel (Front Cockpit)

    Section 7 Pilot´s Operating Handbook Description and Operation of Aircraft and Systems EXTRA 200 7.6.2 INSTRUMENT PANEL (FRONT COCKPIT) The front instrument panel respectively the front cockpit is equipped with the following positions. Throttle Stick Fuel shutoff valve The following equipment is optional: Airspeed indicator Magn.

  • Page 93: Seats, Seat Belts

    Pilot´s Operating Handbook Section 7 EXTRA 200 Description and Operation of Aircraft and Systems SEATS, SEAT BELTS The seats are ergonomically shaped composite designs. The back rest is adjustable on the ground with 2 quickpins in different positions and angle. The rear pedal-to-seat distance can be varied in different positions.

  • Page 94: Power Plant

    Section 7 Pilot´s Operating Handbook Description and Operation of Aircraft and Systems EXTRA 200 7.10 POWER PLANT 7.10.1 ENGINE The power plant consists of one Textron-Lycoming six-cylinder, horizontally opposed, air- cooled, direct drive, fuel injection engine type with inverted oil system.

  • Page 95: Oil System

    Pilot´s Operating Handbook Section 7 EXTRA 200 Description and Operation of Aircraft and Systems 7.10.2 OIL SYSTEM The oil is cooled by an oilcooler mounted on the left hand side in the engine compartment. The oil level is determined by a dip-stick.

  • Page 96: Fuel Selector Valve

    Position up: "WING TANK" 7.10.9 EXHAUST SYSTEM (OPTIONAL) The EXTRA 200 can be equipped with a complete 4 in 1 System including silencer. 7.11 FUEL SYSTEM The fuel system consists of two separate, independent tanks: - "Acro & Center tank" in the fuselage - "Wing tank"...

  • Page 97: Electrical System

    Pilot´s Operating Handbook Section 7 EXTRA 200 Description and Operation of Aircraft and Systems 7.12 ELECTRICAL SYSTEM The electrical system is supplied by a 12 V alternator with rectifier, transistor voltage regula- tor. The alternator is mounted on and driven by the engine.
  • Page 98 Section 7 Pilot´s Operating Handbook Description and Operation of Aircraft and Systems EXTRA 200 7 - 14 Page Date: 28. February 2006 Page Date: 20. April 2002...

  • Page 99: Cabin Environment Control

    Pilot´s Operating Handbook Section 7 EXTRA 200 Description and Operation of Aircraft and Systems 7.13 CABIN ENVIRONMENT CONTROL A ventilation system in the canopy on the left side is provided for the supply of fresh air to the cabin. Left and right at the rear seat are eyeball-type adjustable vents.
  • Page 100 Section 7 Pilot´s Operating Handbook Description and Operation of Aircraft and Systems EXTRA 200 Left blank intentionally 7 - 16 Page Date: 20. April 2002...
  • Page 101 Pilot´s Operating Handbook Section 8 EXTRA 200 Handling, Servicing and Maintenance SECTION 8 HANDLING, SERVICING AND MAINTENANCE Table of Contents Paragraph Page SECTION 8 HANDLING, SERVICING AND MAINTENANCE INTRODUCTION ......................... 8-3 AIRPLANE INSPECTION PERIODS ................... 8-3 PILOT CONDUCTED PREVENTIVE MAINTENANCE ............8-3 ALTERATIONS OR REPAIR ....................
  • Page 102 Section 8 Pilot´s Operating Handbook Handling, Servicing and Maintenance EXTRA 200 Left blank intentionally 8 - 2 Page Date: 20. April 2002...
  • Page 103 Pilot´s Operating Handbook Section 8 EXTRA 200 Handling, Servicing and Maintenance SECTION 8 HANDLING, SERVICING AND MAINTENANCE INTRODUCTION a) The airplane owner should establish contact with the dealer or certified service station for service and information. b) All correspondence regarding the airplane must include its serial number which is stamped on a plate on the L/H rear part of the fuselage.
  • Page 104 Section 8 Pilot´s Operating Handbook Handling, Servicing and Maintenance EXTRA 200 SERVICING In addition to the airplane inspection periods (8.2) information for servicing the aircraft with proper oil and fuel is covered in Section 2 (Limitations) and Section 7 (Descriptions and Operation).
  • Page 105 Pilot´s Operating Handbook Section 9 EXTRA 200 Supplements SECTION 9 SUPPLEMENTS Doc-No. EA-07701.1 Table of Contents Section Pages Supplements ......................... 4 p. (Valid for SN 01 - 02 only) .................... 10 p. Steerable Tail Wheel ....................4 p. Reserved ........................0 p.
  • Page 106 Section 9 Pilot´s Operating Handbook Supplements EXTRA 200 Left blank intentionally 9 - 2 Page Date: 20. April 2002...

  • Page 107: Log Of Effective Pages

    NOTES The described systems and equipment are certified by the LBA for the EXTRA 200. Pages and contents of this section may not be exchanged and alterations of or additions to the approved contents may be made without the EXTRA Flugzeugproduktions- und Vertriebs- GmbH/LBA approval.
  • Page 108 Section 9 Pilot´s Operating Handbook Supplements EXTRA 200 Left blank intentionally 9 - 4 Page Date: 20. April 2002...
  • Page 109 Pilot´s Operating Handbook Section 901 EXTRA 200 Steerable Tail Wheel SECTION 901 STEERABLE TAIL WHEEL Table of Contents Paragraph Page SECTION 901 STEERABLE TAIL WHEEL 901.1 GENERAL ........................901-3 901.2 LIMITATIONS ........................901-3 901.3 EMERGENCY PROCEDURES ..................901-3 901.4 NORMAL PROCEDURES ....................901-3 901.5...
  • Page 110 Section 901 Pilot´s Operating Handbook Steerable Tail Wheel EXTRA 200 Left blank intentionally 901 - 2 Page Date: 20. April 2002...
  • Page 111 901.1 GENERAL To improve taxi and handling quality, the EXTRA 200 can be equipped with an optional steerable tailwheel. The deflection angle of this tailwheel is arranged by the rudder control up to plus/minus 30°. Exceeding this deflection the tailwheel has a full-swivel capability by a release mechanism.

  • Page 112: Handling, Servicing And Maintenance

    Section 901 Pilot´s Operating Handbook Steerable Tail Wheel EXTRA 200 901.8 HANDLING, SERVICING AND MAINTENANCE During 50 hour inspection, the bearing steelsleeve has to be lubricated on the point of lubricating. Additionally all parts of the tailwheel have to be inspected visually for deforma- tions, cracks and corrosion.
  • Page 113 Pilot´s Operating Handbook Section 903 EXTRA 200 Electronic Accelerometer SECTION 903 ELECTRONIC ACCELEROMETER Table of Contents Paragraph Page SECTION 903 ELECTRONIC ACCELEROMETER 903.1 GENERAL ........................903-3 903.2 LIMITATIONS ........................903-3 903.3 EMERGENCY PROCEDURES ..................903-3 903.4 NORMAL PROCEDURES ....................903-3 903.5...
  • Page 114 Section 903 Pilot´s Operating Handbook Electronic Accelerometer EXTRA 200 Left blank intentionally 903 - 2 Page Date: 20. April 2002...
  • Page 115 Pilot´s Operating Handbook Section 903 EXTRA 200 Electronic Accelerometer ELECTRONIC ACELEROMETER 903.1 GENERAL The standard equipped accelerometer typ AN 5745 can be replaced by an optional "Digital Solid State Accelerometer DSA 12". 903.2 LIMITATIONS The instrument markings and placards are provided for the acrobatic category (1 seat) only;...
  • Page 116 Section 903 Pilot´s Operating Handbook Electronic Accelerometer EXTRA 200 The other outputdisplay are twentyfive LEDs which are arranged in a semicircle. The upper twelve LEDs show positive acceleration, the lower twelve LEDs show negative acceleration. The middle LED is on line all time long.
  • Page 117 Pilot´s Operating Handbook Section 903 EXTRA 200 Electronic Accelerometer After resetting the “Current Extreme Values”, the LC-Display shows + 3.0 g - 0.0 g and only the middle LED and three LEDs in the positive range of the LED-Display are shining.
  • Page 118 Section 903 Pilot´s Operating Handbook Electronic Accelerometer EXTRA 200 OPERATING INSTRUCTIONS The left button of the instrument will be called S1 and the right button will be called S2 during the following text. If the LC-Display shows acceleration values, then the upper line exhibits the positive acceleration, and the lower line shows the negative acceleration.
  • Page 119 Pilot´s Operating Handbook Section 903 EXTRA 200 Electronic Accelerometer 3) RESET OF THE “CURRENT EXTREME VALUES” Push button: once S1 If you want to reset the “Current Extreme Value” to 0g (for example you want to measure the extreme values of the next flight figure), you have to push S1 once. In this case, all LEDs are lighting up for two seconds, the LC-Display is showing: + 0.0 g...
  • Page 120 Section 903 Pilot´s Operating Handbook Electronic Accelerometer EXTRA 200 Additionally the long-term memory stores the times and dates when new “Absolute Extreme Values” occur. They are shown if you push S2 next. In this case during the next twelve seconds the LC-Display shows under the title “MAX-DATE” the time and date of the positve “Absolute Extreme Value”...
  • Page 121 Pilot´s Operating Handbook Section 903 EXTRA 200 Electronic Accelerometer back into the “Normal Operating Mode” and the clock will be programmed with the correct changed numbers. The wrongly changed number is exchanged by its old value. 903.8 HANDLING, SERVICING AND MAINTENANCE If the absolute extreme value "C"...
  • Page 122 Section 903 Pilot´s Operating Handbook Electronic Accelerometer EXTRA 200 Left blank intentionally 903 - 10 Page Date: 20. April 2002...
  • Page 123 Pilot´s Operating Handbook Section 904 EXTRA 200 Emergency Locator Transmitter SECTION 904 EMERGENCY LOCATOR TRANSMITTER Table of Contents Paragraph Page SECTION 904 EMERGENCY LOCATOR TRANSMITTER 904.1 GENERAL ........................904-3 904.2 LIMITATIONS ........................904-3 904.3 EMERGENCY PROCEDURES ..................904-4 904.4 NORMAL PROCEDURES ....................904-6 904.5...
  • Page 124 Section 904 Pilot´s Operating Handbook Emergency Locator Transmitter EXTRA 200 Left blank intentionally 904 - 2 Page Date: 20. April 2002...

  • Page 125: General

    904.1 GENERAL To improve the passive security, the EXTRA 200 can be equipped with an optional Emer- gency Locator Transmitter POINTER 3000 ELT. This POINTER 3000 ELT transmits auto- matically after a crash or manual activity on the emergency frequencies of 121.5 MHz (civilian) and 243.0 MHz (military).

  • Page 126: Emergency Procedures

    Section 904 Pilot´s Operating Handbook Emergency Locator Transmitter EXTRA 200 904.3 EMERGENCY PROCEDURES Aircraft accident or forced landing Manual activation Warbling tone on headset 121.5 MHz - Broken or disabled antenna? - Severed whip antenna cable? - Danger of fire in aircraft?
  • Page 127 Pilot´s Operating Handbook Section 904 EXTRA 200 Emergency Locator Transmitter C ) Operating of the ELT in the portable mode After forced landing or aircraft accident it may be desirable to use the transmitter in the portable mode. Various reasons may necessitate this, such as: ⇒...

  • Page 128: Normal Procedures

    Section 904 Pilot´s Operating Handbook Emergency Locator Transmitter EXTRA 200 904.4 NORMAL PROCEDURES There is no change of basic normal procedures with the installation of the POINTER 3000 ELT. In addition to the existing normal procedures the "AUTO" position of the unit master switch or the remote switch has to be checked during the preflight check.

  • Page 129: Handling, Servicing And Maintenance

    Pilot´s Operating Handbook Section 904 EXTRA 200 Emergency Locator Transmitter OPERATING INSTRUCTION OF THE TRANSMITTER The operation of the ELT is possible over the master unit switch or over the remote switch (optional) in the panel. UNIT MASTER SWITCH used to activate the transmitter for test or emergency situations...
  • Page 130 Section 904 Pilot´s Operating Handbook Emergency Locator Transmitter EXTRA 200 Left blank intentionally 904 - 8 Page Date: 20. April 2002...
  • Page 131 Pilot´s Operating Handbook Section 905 EXTRA 200 External Power SECTION 905 EXTERNAL POWER Table of Contents Paragraph Page SECTION 905 EXTERNAL POWER 905.1 GENERAL ........................905-3 905.2 LIMITATIONS ........................905-3 905.3 EMERGENCY PROCEDURES ..................905-3 905.4 NORMAL PROCEDURES ....................905-3 905.5...
  • Page 132 Section 905 Pilot´s Operating Handbook External Power EXTRA 200 Left blank intentionally 905 - 2 Page Date: 20. April 2002...

  • Page 133: General

    905.1 GENERAL The EXTRA 200 can be equipped with two versions of an optional external power recep- tacle system. The "normal" system (PN 93102.16-01) provides the capability to start the en- gine independent of the board battery and is limited to this use. The "continuous operation"...

  • Page 134: Performance

    Section 905 Pilot´s Operating Handbook External Power EXTRA 200 13.Check the oil pressure gauge. If minimum oil pressure is not indicated within 30 seconds, shut off the engine and determine trouble. 14.Master switch "ON". 905.5 PERFORMANCE Not affected. 905.6 WEIGHT AND BALANCE Not affected.

  • Page 135: Handling, Servicing And Maintenance

    Pilot´s Operating Handbook Section 905 EXTRA 200 External Power 905.8 HANDLING, SERVICING AND MAINTENANCE Not affected. Page Date: 20. April 2002 905 - 5...
  • Page 136 Section 905 Pilot´s Operating Handbook External Power EXTRA 200 Left blank intentionally 905 - 6 Page Date: 20. April 2002...
  • Page 137 Pilot´s Operating Handbook Section 907 EXTRA 200 Long Range Wing Tank Capacity SECTION 907 LONG RANGE WING TANK CAPACITY Table of Contents Paragraph Page SECTION 907 LONG RANGE WING TANK CAPACITY 907.1 GENERAL ........................907-3 907.2 LIMITATIONS ........................907-3 907.3 EMERGENCY PROCEDURES ..................
  • Page 138 Section 907 Pilot´s Operating Handbook Long Range Wing Tank Capacity EXTRA 200 Left blank intentionally 907 - 2 Page Date: 20. April 2002...

  • Page 139: General

    LONG RANGE WING TANK CAPACITY 907.1 GENERAL The leading edge wing tank on the EXTRA 200 equipped with the long range tank capacity features two tank compartments on either wing side. The compartments are separated by a slosh rib. 907.2...

  • Page 140: Performance

    Section 907 Pilot´s Operating Handbook Long Range Wing Tank Capacity EXTRA 200 907.5 PERFORMANCE RANGE AND ENDURACE Range and endurance values for a T/O Weight of 840 kg (1852 lbs) including fuel for warm up and take-off from sea level, max. continuous power climb to cruising altitude, and a reserve of 19 litre (5 US Gal.) for 45 minutes with 45% power.

  • Page 141: Weight And Balance

    Pilot´s Operating Handbook Section 907 EXTRA 200 Long Range Wing Tank Capacity 907.6 WEIGHT AND BALANCE LOADING WEIGHTS AND MOMENTS TOTAL FUEL CAPACITY: 190 LITER (52,2 US GAL.) FUEL ACRO & CENTER TANK WING TANK LITER KG x CM LITER...

  • Page 142: Handling, Servicing And Maintenance

    Section 907 Pilot´s Operating Handbook Long Range Wing Tank Capacity EXTRA 200 907.8 HANDLING, SERVICING AND MAINTENANCE Not affected. 907 - 6 Page Date: 20. April 2002...
  • Page 143 Pilot´s Operating Handbook Section 908 EXTRA 200 Airtow Hook SECTION 908 AIRTOW HOOK Table of Contents Paragraph Page SECTION 908 AIRTOW HOOK 908.1 GENERAL ........................908-3 908.2 LIMITATIONS ........................908-3 908.3 EMERGENCY PROCEDURES ..................908-4 908.4 NORMAL PROCEDURES ....................908-4 908.5...
  • Page 144 Section 908 Pilot´s Operating Handbook Airtow Hook EXTRA 200 Left blank intentionally 908 - 2 Page Date: 20. April 2002...

  • Page 145: General

    AIRTOW HOOK 908.1 GENERAL The EXTRA 200 can optionally be equipped with a "TOST" glider air-tow release Typ E 85. The release mechanism is mounted at the tail spring end and actuated from the cockpit by a yellow knob. The following combinations are certified:...

  • Page 146: Emergency Procedures

    Section 908 Pilot´s Operating Handbook Airtow Hook EXTRA 200 908.3 EMERGENCY PROCEDURES A) START STOP DURING TAKE-OFF 1. Pilot of the glider INFORM 2. Throttle IDLE 3. Mixture IDLE CUT OF 4. Aircraft ROLLOUT AND BREAKING B) ENGINE FAILURE IMMEDIATELY AFTER TAKE-OFF Stall speed: 59 KIAS 1.

  • Page 147: Performance

    Pilot´s Operating Handbook Section 908 EXTRA 200 Airtow Hook E) DESCENT AND LANDING While descending the engine temperatures shall be observed (Danger of overcooling). Final approach should account for the air-tow hanging below the aircraft flight path. 908.5 PERFORMANCE The existing POH-Data remain valid with the exception of:...
  • Page 148 Section 908 Pilot´s Operating Handbook Airtow Hook EXTRA 200 CLIMBRATE Conditions: Power: 2500 Rpm and full throttle, mixture rich, Speed of the aircraft tow: 76 KIAS = 140 Km/h, Weight of the towing aircraft: m = 700 Kg (1543lb), (1 Pilot = 86 Kg, Arco & Center Tank...

  • Page 149: Weight And Balance

    Pilot´s Operating Handbook Section 908 EXTRA 200 Airtow Hook 908.6 WEIGHT AND BALANCE Not affected. 908.7 DESCRIPTION OF THE SYSTEM The release mechanism is a typ "E 85" of the "TOST" company, Munich. It is mounted at the tail spring rear end aft the tail wheel and activated with a yellow handle located at the rear seat cockpit via a bowden cable.
  • Page 150 Section 908 Pilot´s Operating Handbook Airtow Hook EXTRA 200 Left blank intentionally 908 - 8 Page Date: 20. April 2002...
  • Page 151 Pilot´s Operating Handbook Section 911 EXTRA 200 Single Seat Canopy SECTION 911 SINGLE SEAT CANOPY Table of Contents Paragraph Page SECTION 911 SINGLE SEAT CANOPY 911.1 GENERAL ........................911-3 911.2 LIMITATIONS ........................911-3 911.3 EMERGENCY PROCEDURES ..................911-3 911.4 NORMAL PROCEDURES ....................911-3 911.5...
  • Page 152 Section 911 Pilot´s Operating Handbook Single Seat Canopy EXTRA 200 Left blank intentionally 911 - 2 Page Date: 20. April 2002...
  • Page 153 Pilot´s Operating Handbook Section 911 EXTRA 200 Single Seat Canopy SINGLE SEAT CANOPY 911.1 GENERAL To change the appearance of the EA-200 the standard canopy can be replaced by a single seat canopy. 911.2 LIMITATIONS With the single seat canopy installed the aircraft is limited to the categories NORMAL and ACRO I.
  • Page 154 Section 911 Pilot´s Operating Handbook Single Seat Canopy EXTRA 200 Left blank intentionally 911 - 4 Page Date: 20. April 2002...
  • Page 155 Pilot´s Operating Handbook Section 912 EXTRA 200 FILSER TRT 600 Transponder SECTION 912 FILSER TRT 600 TRANSPONDER Table of Contents Paragraph Page SECTION 912 FILSER TRT 600 TRANSPONDER 912.1 GENERAL ........................912-3 912.1.1 Front Panel Operation ..................... 912-3 912.1.2 System Operation ......................912-5 912.1.3...
  • Page 156 Section 912 Pilot´s Operating Handbook FILSER TRT 600 Transponder EXTRA 200 Left blank intentionally 912 - 2 Page Date: 28. February 2006...

  • Page 157: General

    Pilot´s Operating Handbook Section 912 EXTRA 200 FILSER TRT 600 Transponder 912.1 GENERAL The TRT 600 is Level 2es Class2 (SSR Mode S Elementary Surveillance) Transponder. It has Mode A, Mode A/C and Mode S capability. In Mode S the transponder provides acquisition capability.
  • Page 158 Section 912 Pilot´s Operating Handbook FILSER TRT 600 Transponder EXTRA 200 ROTATING KNOBS Four rotating knobs are used to select the IDENT CODE. The assignments X… , .X.. , ..X. , …X indicate the position of the code number set by each knob.

  • Page 159: System Operation

    Pilot´s Operating Handbook Section 912 EXTRA 200 FILSER TRT 600 Transponder In-Flight Flag When there is an undercarriage switch installed, the display can toggle between the letters 'F' whether the aircraft is in flight condition or the letter 'G' whether the aircraft is in „on-ground“...
  • Page 160 Section 912 Pilot´s Operating Handbook FILSER TRT 600 Transponder EXTRA 200 7777 Military interceptor operations (Never squawk this code) 0000 Military use (Not enterable) Care should be taken not to select the code 7500 and all codes in the 7600-7777 range, which trigger special indicators in automated facilities.

  • Page 161: Error Reporting / Fault Codes

    Pilot´s Operating Handbook Section 912 EXTRA 200 FILSER TRT 600 Transponder The Aircraft Identification (FID) code is displayed on the right bottom line and consists of seven alphanumerical characters. CAUTION The ICAO Flight Plan specifies only 7 characters as Flight Identification. Filser reserves 8 characters as stated in ED- 73B for further expansion of the flight plan.

  • Page 162: Limitations

    Pilot´s Operating Handbook FILSER TRT 600 Transponder EXTRA 200 To meet ICAO specifications the TRT 600 uses an external memory inside the aircraft connector housing of the cable set, which is a part of the aircraft. Because this cable is installed permanent into the aircraft, a change of the transponder will not affect the aircraft address and the Flight ID.
  • Page 163 Pilot´s Operating Handbook Section 913 EXTRA 200 FILSER TRT 800 Transponder SECTION 913 FILSER TRT 800 TRANSPONDER Table of Contents Paragraph Page SECTION 913 FILSER TRT 800 TRANSPONDER 913.1 GENERAL ........................913-3 913.1.1 Front Panel Operation ..................... 913-3 913.1.2 System Operation ......................913-5 913.1.3...
  • Page 164 Section 913 Pilot´s Operating Handbook FILSER TRT 800 Transponder EXTRA 200 Left blank intentionally 913 - 2 Page Date: 28. February 2006...

  • Page 165: General

    Pilot´s Operating Handbook Section 913 EXTRA 200 FILSER TRT 800 Transponder 913.1 GENERAL The TRT 800 is Level 2es Class2 (SSR Mode S Elementary and Enhanced Surveillance) Transponder. It has Mode A, Mode A/C and Mode S capability. In Mode S the transponder provides acquisition and extended squitter capability.
  • Page 166 Section 913 Pilot´s Operating Handbook FILSER TRT 800 Transponder EXTRA 200 ROTATING KNOBS Four rotating knobs are used to select the IDENT CODE. The assignments X… , .X.. , ..X. , …X indicate the position of the code number set by each knob.

  • Page 167: System Operation

    Pilot´s Operating Handbook Section 913 EXTRA 200 FILSER TRT 800 Transponder IN-FLIGHT FLAG When there is an undercarriage switch installed, the display can toggle between the letters 'F' whether the aircraft is in flight condition or the letter 'G' whether the aircraft is in „on-ground“...
  • Page 168 Section 913 Pilot´s Operating Handbook FILSER TRT 800 Transponder EXTRA 200 7700 Emergency 7777 Military interceptor operations (Never squawk this code) 0000 Military use (Not enterable) Care should be taken not to select the code 7500 and all codes in the 7600-7777 range, which trigger special indicators in automated facilities.

  • Page 169: Error Reporting / Fault Codes

    Pilot´s Operating Handbook Section 913 EXTRA 200 FILSER TRT 800 Transponder The Aircraft Identification (FID) code is displayed on the right bottom line and consists of seven alphanumerical characters. CAUTION The ICAO Flight Plan specifies only 7 characters as Flight Identification. Filser reserves 8 characters as stated in ED- 73B for further expansion of the flight plan.

  • Page 170: Limitations

    Pilot´s Operating Handbook FILSER TRT 800 Transponder EXTRA 200 To meet ICAO specifications the TRT 800 uses an external memory inside the aircraft connector housing of the cable set, which is a part of the aircraft. Because this cable is installed permanent into the aircraft, a change of the transponder will not affect the aircraft address and the Flight ID.
  • Page 171 Pilot´s Operating Handbook Section 914 EXTRA 200 GARMIN GTX 327 Transponder SECTION 914 GARMIN GTX 327 TRANSPONDER Table of Contents Paragraph Page SECTION 914 GARMIN GTX 327 TRANSPONDER 914.1 GENERAL ........................914-3 914.1.1 Mode Selection Keys ....................... 914-3 914.1.2 Code Selection ........................ 914-4 914.1.3...
  • Page 172 Section 914 Pilot´s Operating Handbook GARMIN GTX 327Transponder EXTRA 200 Left blank intentionally 914 - 2 Page Date: 28. February 2006...

  • Page 173: General

    Pilot´s Operating Handbook Section 914 EXTRA 200 GARMIN GTX 327 Transponder 914.1 GENERAL The GARMIN GTX 327 is a panel-mounted TSO.d transponder with the addition of timing functions. The transponder is a radio transmitter and receiver that operates on radar frequencies, receiving ground radar interrogations at 1030 MHz and transmitting a coded response of pulses to ground-based radar on a frequency of 1090 MHz.

  • Page 174: Code Selection

    Section 914 Pilot´s Operating Handbook GARMIN GTX 327Transponder EXTRA 200 914.1.2 CODE SELECTION Code selection is done with eight keys (0 - 7) that provide 4,096 active identification codes. Pushing one of these keys begins the code selection sequence. The new code will not be activated until the fourth digit is entered.

  • Page 175: Limitations

    Pilot´s Operating Handbook Section 914 EXTRA 200 GARMIN GTX 327 Transponder Resets the Count Up and Count Down timers and cancels the previous keypress during code selection. Reduces Contrast and Display Brightness when the respective pages are displayed. Also enters the number eight into the Count Down timer.

  • Page 176: Emergency Procedures

    Section 914 Pilot´s Operating Handbook GARMIN GTX 327Transponder EXTRA 200 914.3 EMERGENCY PROCEDURES 914.3.1 IMPORTANT CODES 7600 Loss of communications. 7500 Hijacking. 7700 Emergency (All secondary surveillance radar sites are ready to receive this code at all times). See the Airman’s Information Manual (AIM) for a detailed explanation of identification codes.
  • Page 177 Pilot´s Operating Handbook Section 915 EXTRA 200 GARMIN GTX 330 Transponder SECTION 915 GARMIN GTX 330 TRANSPONDER Table of Contents Paragraph Page SECTION 915 GARMIN GTX 330 TRANSPONDER 915.1 GENERAL ........................915-3 915.1.1 Mode Selection Keys ....................... 915-4 915.1.2 Code Selection ........................ 915-4 915.1.3...
  • Page 178 Section 915 Pilot´s Operating Handbook GARMIN GTX 330 Transponder EXTRA 200 Left blank intentionally 915 - 2 Page Date: 28. February 2006...

  • Page 179: General

    Pilot´s Operating Handbook Section 915 EXTRA 200 GARMIN GTX 330 Transponder 915.1 GENERAL The Garmin GTX 330 panel mounted Mode S Transponder is a radio transmitter and receiver that fulfills the role of the airborne beacon equipment according to the requirements of the Air Traffic Radar Beacon System (ATCRBS).

  • Page 180: Mode Selection Keys

    Section 915 Pilot´s Operating Handbook GARMIN GTX 330 Transponder EXTRA 200 915.1.1 MODE SELECTION KEYS Powers off the GTX 330. STBY Selects the standby mode displaying the last active identification code. When in standby mode, the transponder will not reply to any interrogations.

  • Page 181: Keys For Other Gtx 330 Functions

    Pilot´s Operating Handbook Section 915 EXTRA 200 GARMIN GTX 330 Transponder Avoid selecting code 7500 and all codes in the 7600-7777 range. These trigger special indicators in automated facilities. Only the code 7500 will be decoded as the hijack code. An aircraft’s transponder code (if available) is utilized to enhance the tracking capabilities of the ATC facility, therefore care should be taken when making routine code changes.

  • Page 182: Configuration Mode

    Section 915 Pilot´s Operating Handbook GARMIN GTX 330 Transponder EXTRA 200 'FLIGHT TIME' Displays the Flight Time controlled by the START/STOP and CLR keys when Automated Airborne Determination is configured as normal. 'ALTITUDE MONITOR' The ALTITUDE MONITOR function is not available in this installation.

  • Page 183: Limitations

    Pilot´s Operating Handbook Section 915 EXTRA 200 GARMIN GTX 330 Transponder 915.2 LIMITATIONS Not applicable. 915.3 EMERGENCY PROCEDURES 915.3.1 IMPORTANT CODES 7600 Loss of communications. 7500 Hijacking. 7700 Emergency (All secondary surveillance radar sites are ready to receive this code at all times).
  • Page 184 Section 915 Pilot´s Operating Handbook GARMIN GTX 330 Transponder EXTRA 200 Left blank intentionally 915 - 8 Page Date: 28. February 2006...
  • Page 185 Pilot´s Operating Handbook Section 916 EXTRA 200 BENDIX/KING KT 76A Transponder SECTION 916 BENDIX/KING KT 76A TRANSPONDER Table of Contents Paragraph Page SECTION 916 BENDIX/KING KT 76A TRANSPONDER 916.1 GENERAL ........................916-3 916.1.1 Code Selection ........................ 916-3 916.1.2 Reply Light ........................916-4 916.1.3...
  • Page 186 Section 916 Pilot´s Operating Handbook BENDIX/KING KT 76A Transponder EXTRA 200 Left blank intentionally 916 - 2 Page Date: 28. February 2006...

  • Page 187: General

    Pilot´s Operating Handbook Section 916 EXTRA 200 BENDIX/KING KT 76A Transponder 916.1 GENERAL The BENDIX/KING KT 76A panel mounted transponder receives interrogations at 1030 MHz, and these trigger a coded response of radar pulses, which are transmitted back to ATC at 1090 MHz.

  • Page 188: Reply Light

    Section 916 Pilot´s Operating Handbook BENDIX/KING KT 76A Transponder EXTRA 200 7600 Loss of communications 7700 Emergency 7777 Military interceptor operations (Never squawk this code) 0000 Military use (Not enterable) Avoid selecting code 7500 and all codes in the 7600-7777 range. These trigger special indicators in automated facilities.

  • Page 189: Normal Procedure

    Pilot´s Operating Handbook Section 916 EXTRA 200 BENDIX/KING KT 76A Transponder 916.4 NORMAL PROCEDURE After engine start-up, turn the function selector to the Standby (SBY) position. Then select the proper reply code by rotating the code select knobs. As soon as aircraft is airborne, switch the function selector to ON. Your KT 76A is now operating in „Mode A“, or normal mode.
  • Page 190 Section 916 Pilot´s Operating Handbook BENDIX/KING KT 76A Transponder EXTRA 200 Left blank intentionally 916 - 6 Page Date: 28. February 2006...
  • Page 191 Pilot´s Operating Handbook Section 917 EXTRA 200 BENDIX/KING KT 76A Transponder SECTION 917 BENDIX/KING KT 73 TRANSPONDER Table of Contents Paragraph Page SECTION 917 BENDIX/KING KT 73 TRANSPONDER 917.1 GENERAL ........................917-3 917.1a Function Selector Knob ....................917-4 917.1b Code Selection ........................ 917-4 917.1c...
  • Page 192 Section 917 Pilot´s Operating Handbook BENDIX/KING KT 76A Transponder EXTRA 200 Left blank intentionally 917 - 2 Page Date: 28. February 2006...

  • Page 193: General

    Pilot´s Operating Handbook Section 917 EXTRA 200 BENDIX/KING KT 76A Transponder 917.1 GENERAL The BENDIX/KING KT 73 panel mounted Mode S Transponder is a radio transmitter and receiver that fulfills the role of the airborne beacon equipment according to the requirements of the Air Traffic Radar Beacon System (ATCRBS).

  • Page 194: Function Selector Knob

    Section 917 Pilot´s Operating Handbook BENDIX/KING KT 76A Transponder EXTRA 200 917.1A FUNCTION SELECTOR KNOB The following operating modes can be chosen by the Function Selector Knob: Powers off the KT 73. When the unit is turned to another mode, it will reply or squitter within two seconds, according to the selected mode.

  • Page 195: Buttons/Selectors For Other Kt 73 Functions

    Pilot´s Operating Handbook Section 917 EXTRA 200 BENDIX/KING KT 76A Transponder 0021 The VFR code commonly used in Germany (default is set to 0021 at time of installation) 7500 Hijack code (Aircraft is subject to unlawful interference) 7600 Loss of communications...

  • Page 196: Function Display

    Section 917 Pilot´s Operating Handbook BENDIX/KING KT 76A Transponder EXTRA 200 When in TST mode, rotating the BRT knob (= 4th ATCRBS Code Selector Knob) will manually adjust the display brightness. Clockwise rotating will increase display brightness and counterclockwise will decrease display brightness. The brightness of the display is determined by a photocell relative to the programmed or manual adjusted brightness level.

  • Page 197: Failure Annunciation

    Pilot´s Operating Handbook Section 917 EXTRA 200 BENDIX/KING KT 76A Transponder 917.1G FAILURE ANNUNCIATION If the unit detects an internal failure, FAIL annunciation light on the left side of the displays will illuminate. 917.2 LIMITATIONS Not applicable. 917.3 EMERGENCY PROCEDURES IMPORTANT CODES 7600 Loss of communications.
  • Page 198 Section 917 Pilot´s Operating Handbook BENDIX/KING KT 76A Transponder EXTRA 200 Left blank intentionally 917 - 8 Page Date: 28. February 2006...
  • Page 199 Pilot´s Operating Handbook Section 918 EXTRA 200 BECKER ATC 2000 Transponder SECTION 918 BECKER ATC 2000 TRANSPONDER Table of Contents Paragraph Page SECTION 918 BECKER ATC 2000 TRANSPONDER 918.1 GENERAL ........................918-3 918.1.1 Built-in Test ........................918-4 918.1.2 Squawk selection ......................918-4 918.1.3...
  • Page 200 Section 918 Pilot´s Operating Handbook BECKER ATC 2000 Transponder EXTRA 200 Left blank intentionally 918 - 2 Page Date: 28. February 2006...
  • Page 201 Pilot´s Operating Handbook Section 918 EXTRA 200 BECKER ATC 2000 Transponder 918.1 GENERAL The Becker panel mounted ATC 2000 Transponder is a radio transmitter and receiver that fulfills the role of the airborne beacon equipment according to the requirements of the Air Traffic Radar Beacon System (ATCRBS).
  • Page 202 Section 918 Pilot´s Operating Handbook BECKER ATC 2000 Transponder EXTRA 200 NOTE The ATC 2000 owner accepts all responsibility for obtaining the proper license before using the transponder. Caution Do not switch on or off the transponder until the engines have been startet or stopped respectively to avoid damage to the transponder due to current surges.
  • Page 203 Pilot´s Operating Handbook Section 918 EXTRA 200 BECKER ATC 2000 Transponder 918.1.3 MODE A OPERATION Activate the transponder on ATC request only. To enshure instant readiness, position the mode switch to SBY (standby) during the flight. Set the code requested by ATC using the four coding switches. Set two-digit code numbers in the first two windows of the readout.
  • Page 204 Section 918 Pilot´s Operating Handbook BECKER ATC 2000 Transponder EXTRA 200 918.4 NORMAL PROCEDURES Not applicable 918.5 PERFORMANCE Not applicable 918 - 6 Page Date: 28. February 2006...
  • Page 205 Section 919 Pilot´s Operating Handbook BECKER ATC 4401 Transponder EXTRA 200 SECTION 919 BECKER ATC 4401 TRANSPONDER Table of Contents Paragraph Page SECTION 919 BECKER ATC 4401 TRANSPONDER 919.1 GENERAL ........................919-3 919.1.1 Controls and indicators ....................919-4 919.1.2 Switching on the unit (pre-flight check) ................919-4 919.1.3...
  • Page 206 Section 919 Pilot´s Operating Handbook BECKER ATC 4401 Transponder EXTRA 200 Left blank intentionally 919 - 2 Page Date: 28. February 2006...

  • Page 207: General

    Section 919 Pilot´s Operating Handbook BECKER ATC 4401 Transponder EXTRA 200 919.1 GENERAL The Becker panel mounted ATC 4401 Transponder is a radio transmitter and receiver that fulfills the role of the airborne beacon equipment according to the requirements of the Air Traffic Radar Beacon System (ATCRBS).

  • Page 208: Controls And Indicators

    Section 919 Pilot´s Operating Handbook BECKER ATC 4401 Transponder EXTRA 200 919.1.1 CONTROLS AND INDICATORS o i t c t i f f o g i l i t h h t i o i t o i t c t i...

  • Page 209: Squawk Selection

    Section 919 Pilot´s Operating Handbook BECKER ATC 4401 Transponder EXTRA 200 3 After the switch-on test has elapsed and no error-message is written in the display, the transponder switches to the mode set on the mode switch (A). Note The blind encoder is only powered if the transponder is not switched OFF (at least SBY).
  • Page 210 Section 919 Pilot´s Operating Handbook BECKER ATC 4401 Transponder EXTRA 200 b Press store push-button STO (J), the set code then flashes. c Press the VFR1 push-button (F) or the VFR2 push-button (G) wit-hin 3 seconds to store the code under the corresponding button.

  • Page 211: Flight Operation In Mode A (Transponder Reply Code Only)

    Section 919 Pilot´s Operating Handbook BECKER ATC 4401 Transponder EXTRA 200 Note Unintentional transmission of an emergency code is prevented in that the transponder replies are inhibited whilst the code is being set. This applies particularly where the new code is being set in the ON or ALT modes. Also if a special code is called up, no transponder reply takes place during the period in which the previous code can be reactivated (approximately 3 seconds).

  • Page 212: Configuration Mode

    Pilot´s Operating Handbook BECKER ATC 4401 Transponder EXTRA 200 3 A further test of the unit is triggered, if the VFR1 button (F) and VFR2 button (G) are pressed simultaneously. At this test all segments must flash into display (E) as long as the buttons are pushed.
  • Page 213 Pilot´s Operating Handbook Section 920 EXTRA 200 BECKER ATC 6401 Transponder SECTION 920 BECKER ATC 6401 TRANSPONDER Table of Contents Paragraph Page SECTION 920 BECKER ATC 6401 TRANSPONDER 920.1 GENERAL ........................920-3 920.1.1 Controls and Indicators ....................920-4 920.1.2 Switching on the Unit (pre-flight check) ................920-4 920.1.3...
  • Page 214 Section 920 Pilot´s Operating Handbook BECKER ATC 6401 Transponder EXTRA 200 Left blank intentionally 920 - 2 Page Date: 28. February 2006...

  • Page 215: General

    Pilot´s Operating Handbook Section 920 EXTRA 200 BECKER ATC 6401 Transponder 920.1 GENERAL The Becker panel mounted ATC 6401 Transponder is a radio transmitter and receiver that fulfills the role of the airborne beacon equipment according to the requirements of the Air Traffic Radar Beacon System (ATCRBS).

  • Page 216: Controls And Indicators

    Section 920 Pilot´s Operating Handbook BECKER ATC 6401 Transponder EXTRA 200 920.1.1 CONTROLS AND INDICATORS h t i o i t c t i o i t o i t c t i o i t c t i t i t l...

  • Page 217: Display

    Pilot´s Operating Handbook Section 920 EXTRA 200 BECKER ATC 6401 Transponder Note The blind encoder is only powered if the transponder is not switched OFF (at least SBY). A blind encoder needs a warm-up time (sometimes a several minutes). Therefore although the solid state transponder needs no warm-up time, turn the transponder to SBY immediately after starting the engine.

  • Page 218: Squawk Ident

    Section 920 Pilot´s Operating Handbook BECKER ATC 6401 Transponder EXTRA 200 7777 Military interceptor operations (Never squawk this code) 0000 Military use (Not enterable) Avoid selecting code 7500 and all codes in the 7600-7777 range. These trigger special indicators in automated facilities. Only the code 7500 will be decoded as the hijack code. An aircraft’s transponder code (if available) is utilized to enhance the tracking capabilities of the ATC facility, therefore care should be taken when making routine code changes.

  • Page 219: Selection Mode

    Pilot´s Operating Handbook Section 920 EXTRA 200 BECKER ATC 6401 Transponder During the PBIT the XPDR is in the SBY mode but this is not indicated on the display. The operating mode indication on the display starts immediately after finalisation of the PBIT.
  • Page 220 Section 920 Pilot´s Operating Handbook BECKER ATC 6401 Transponder EXTRA 200 SETTING THE FLIGHT NUMBER: 1 Press SEL button (G) to enter the select mode. 2 Rotate (B) until 'AI' is displayed. 3 Push (C) to switch to 'FN'. The cursor is set on the first character.

  • Page 221: Flight Operation In Mode A/C/S (Reply Code And Altitude Code)

    Pilot´s Operating Handbook Section 920 EXTRA 200 BECKER ATC 6401 Transponder VFR CODE PRESETTING Press the SEL button (G) to get into configuration mode (selection is indicated in the left bottom corner of the display under the operating mode indication).

  • Page 222: Vfr Code Activation

    Section 920 Pilot´s Operating Handbook BECKER ATC 6401 Transponder EXTRA 200 920.1.9 VFR CODE ACTIVATION 1 Press the VFR push-button (J). The preselected code is then displayed. After 3 seconds, the displayed code gets active and overwrites the previously-set reply code.
