Pilot´s Operating Handbook
EXTRA 200
912.1

GENERAL

The TRT 600 is Level 2es Class2 (SSR Mode S Elementary Surveillance) Transponder. It has
Mode A, Mode A/C and Mode S capability. In Mode S the transponder provides acquisition
capability. Furthermore, the TRT 600 has a built-in barometric pressure altitude coder in 100 ft
increments.
Refer to latest edition of Filser TRT 600 Pilot's Operation Manual (Doc. No. 03.200.010.11)
to get familiar with the TRT 600 Transponder.

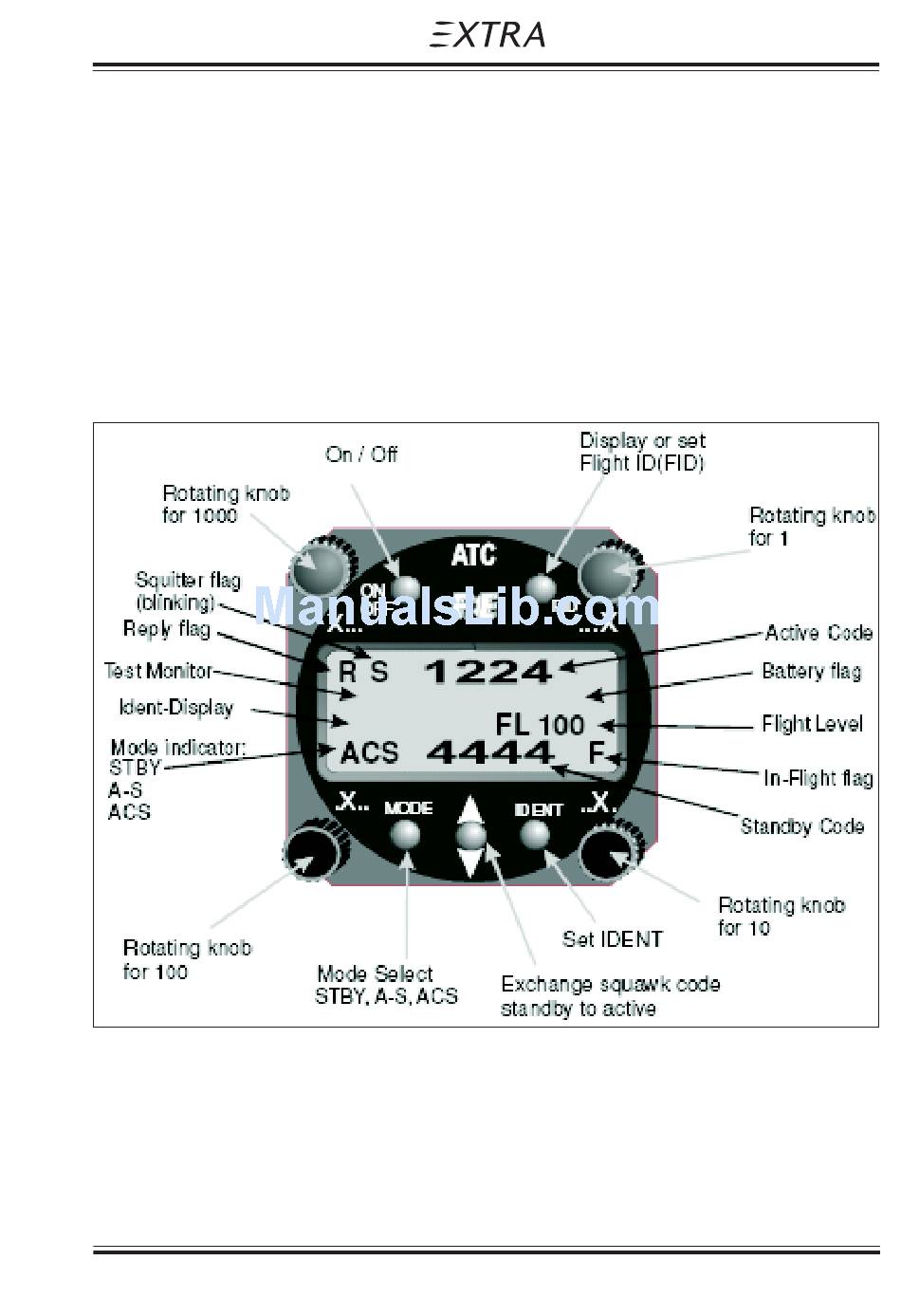

The following illustration of the front panel of the TRT 600 will assist the operator to understand
this Mode S Transponder.

912.1.1 FRONT PANEL OPERATION

The input elements consist of four rotating knobs and five push buttons.
Page Date: 28. February 2006
NOTE
Section 912
FILSER TRT 600 Transponder
912 - 3
