1 Assembly and Configuration

For hardware installation, software configuration and compass calibration please adhere to the following
sections.

1.1 Hardware Installation and Connection

(1) Please adhere to "1.1.1 Mixer Type Supported" to choose a mixer type and assemble your aircraft.
(2) Please adhere to both "1.1.2 Hardware Connection Diagram" and "1.1.3 Important for Assembly and
Connection" to install and connect all units on your aircraft.

1.1.1 Mixer Type Supported

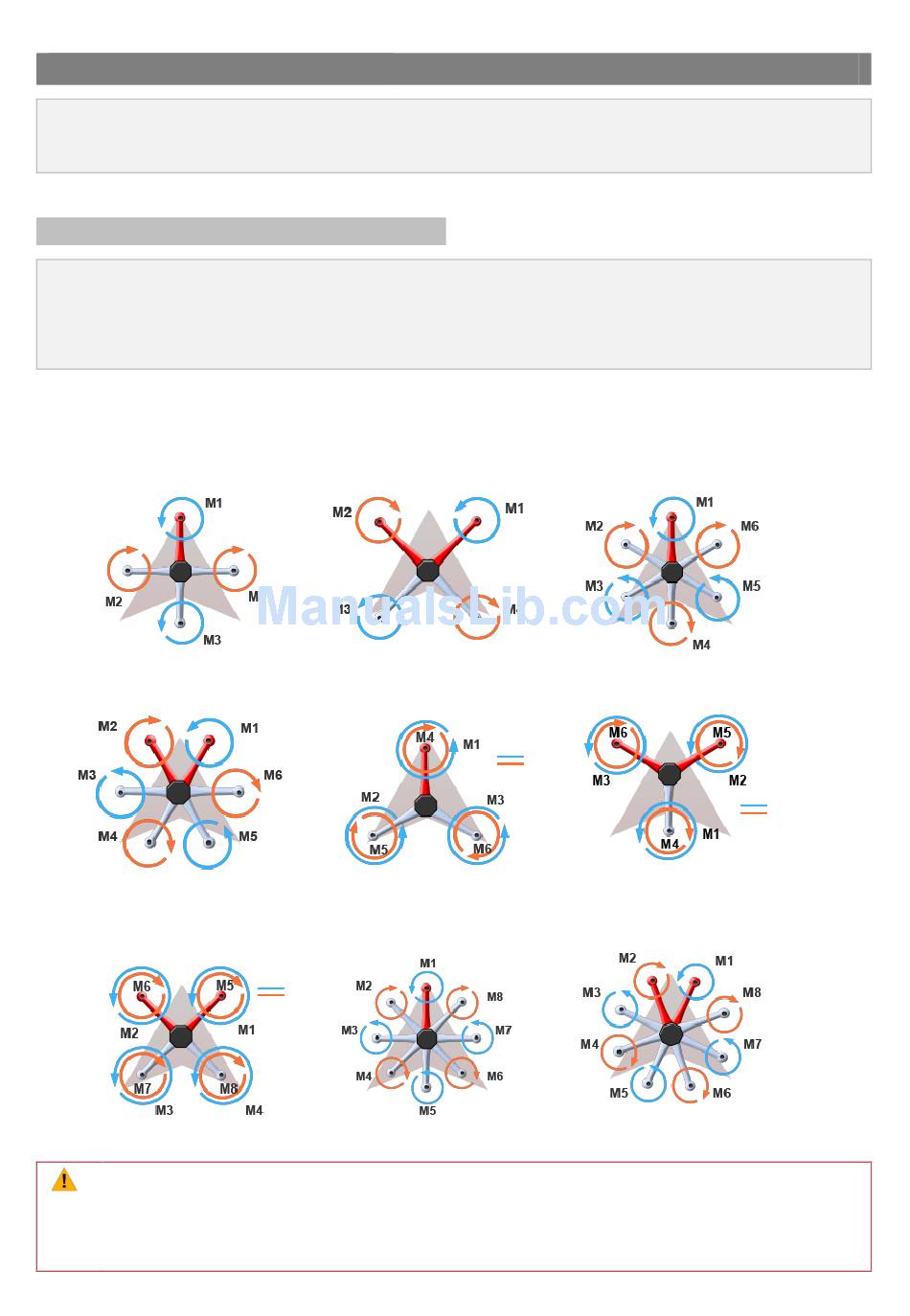

Following Mixer Types are supported.
Quad-rotor I
Hexa-rotor V
Octo-rotor X
The direction of the arrow in diagram indicates the rotation direction of the motor/propeller.
For coaxial propellers:
are at top.
©2013 DJI Innovations. All Rights Reserved.
Quad-rotor X
Hexa-rotor IY
Octo-rotor I
Blue propeller is at TOP;
Hexa-rotor I
Hexa-rotor Y
Octo-rotor V
Red propeller is at Bottom. Otherwise all propellers
