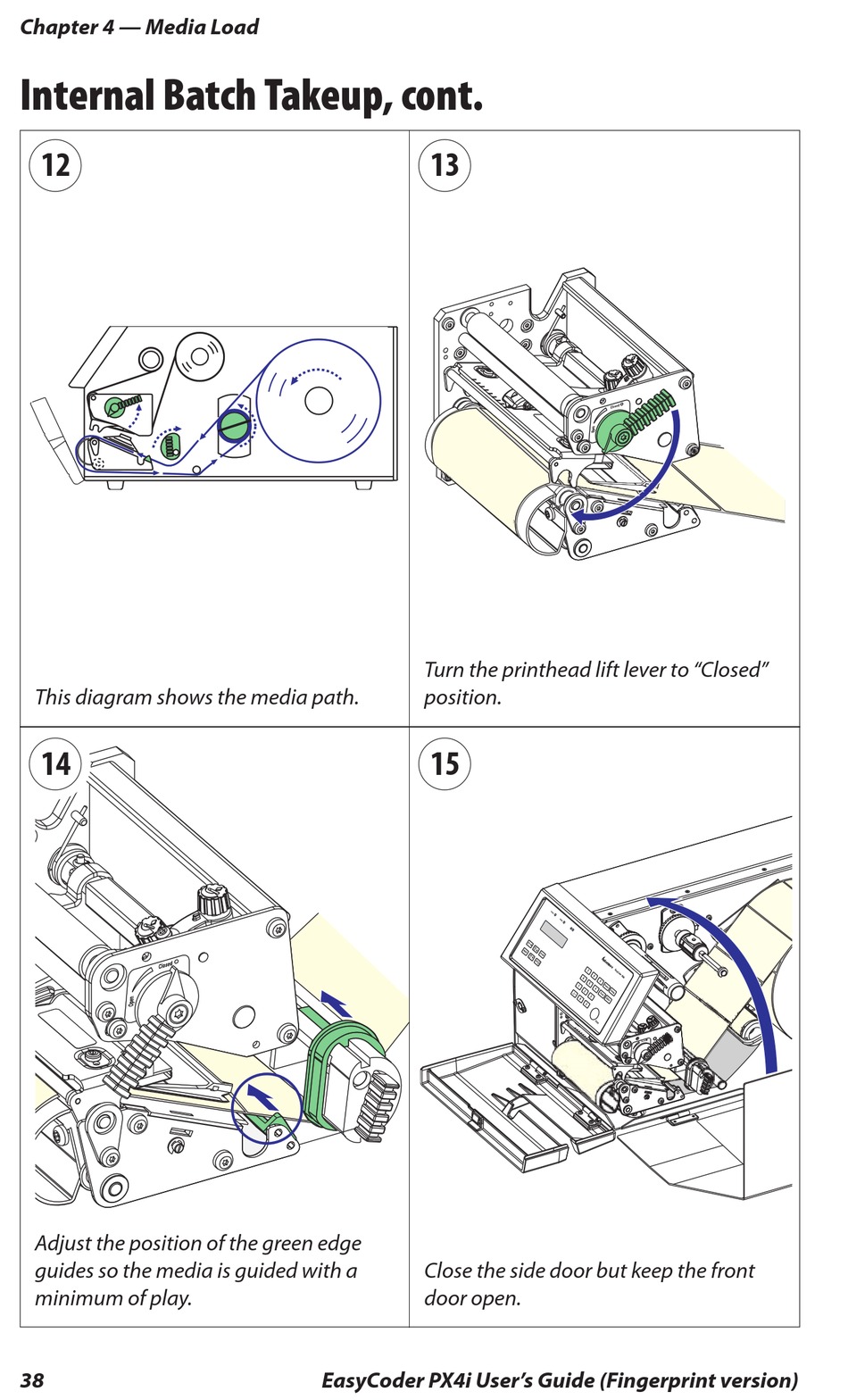

Chapter 4 — Media Load
Internal Batch Takeup, cont.
12
This diagram shows the media path.
14
Adjust the position of the green edge
guides so the media is guided with a
minimum of play.
38
13
Turn the printhead lift lever to "Closed"
position.
15
Close the side door but keep the front
door open.
EasyCoder PX4i User's Guide (Fingerprint version)
