Chapter 11 — Maintenance

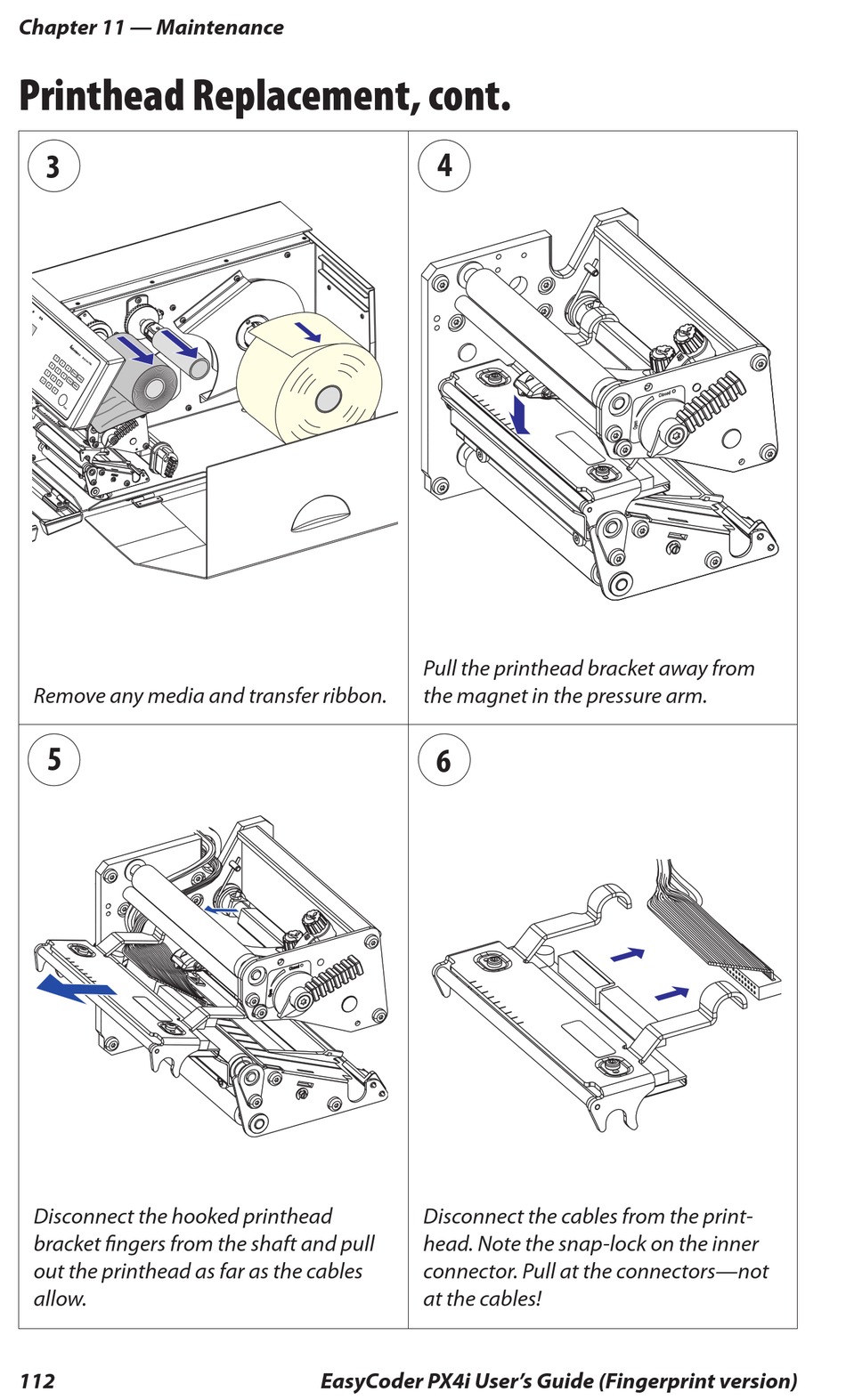

Printhead Replacement, cont.
3
Remove any media and transfer ribbon.
5
Disconnect the hooked printhead
bracket fi ngers from the shaft and pull
out the printhead as far as the cables
allow.
112
4
Pull the printhead bracket away from
the magnet in the pressure arm.
6
Disconnect the cables from the print-
head. Note the snap-lock on the inner
connector. Pull at the connectors—not
at the cables!
