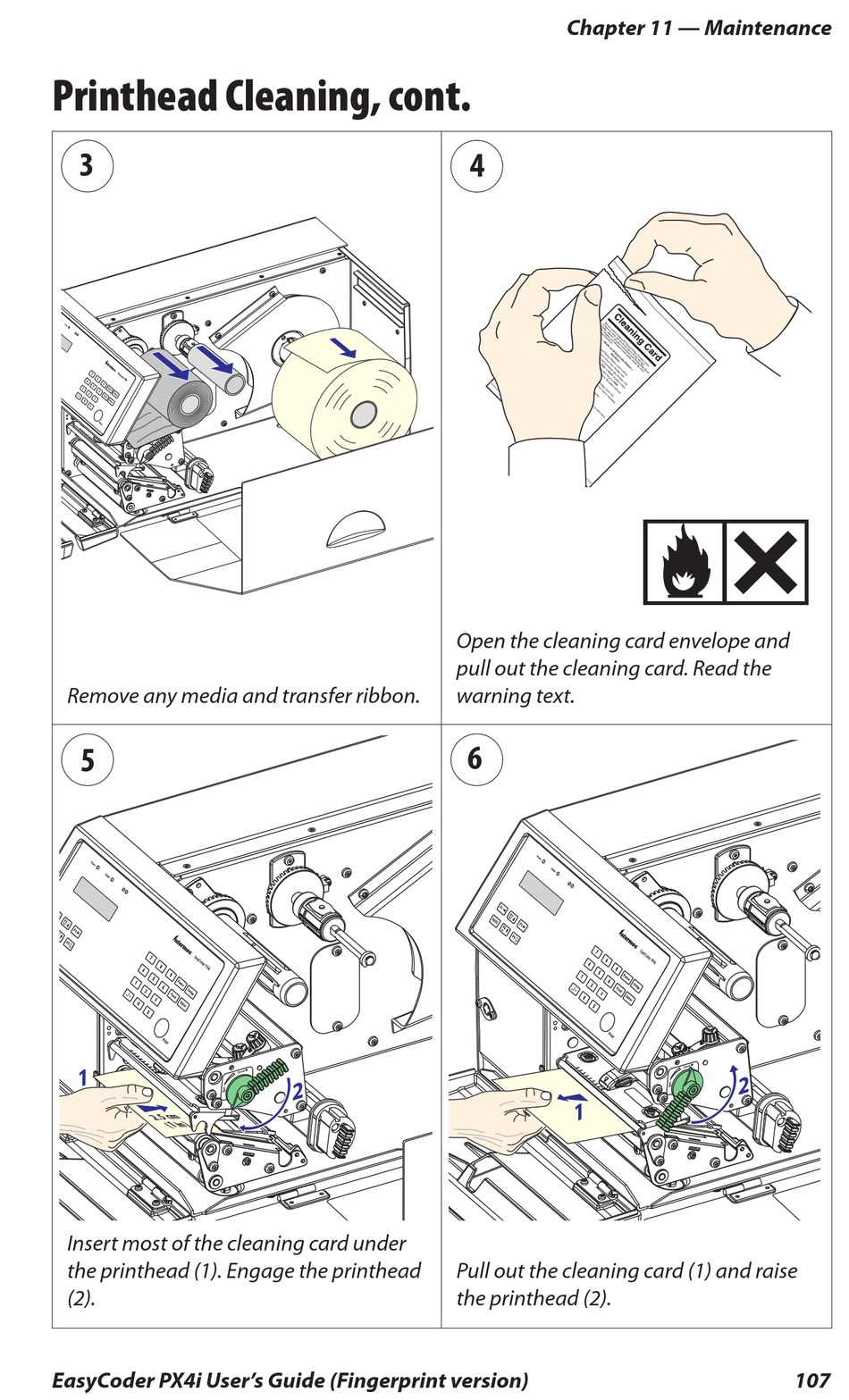

Printhead Cleaning, cont.
3
Remove any media and transfer ribbon.
5
Insert most of the cleaning card under
the printhead (1). Engage the printhead
(2).
EasyCoder PX4i User's Guide (Fingerprint version)
Chapter 11 — Maintenance
4
Open the cleaning card envelope and
pull out the cleaning card. Read the
warning text.
6
Pull out the cleaning card (1) and raise
the printhead (2).
107
