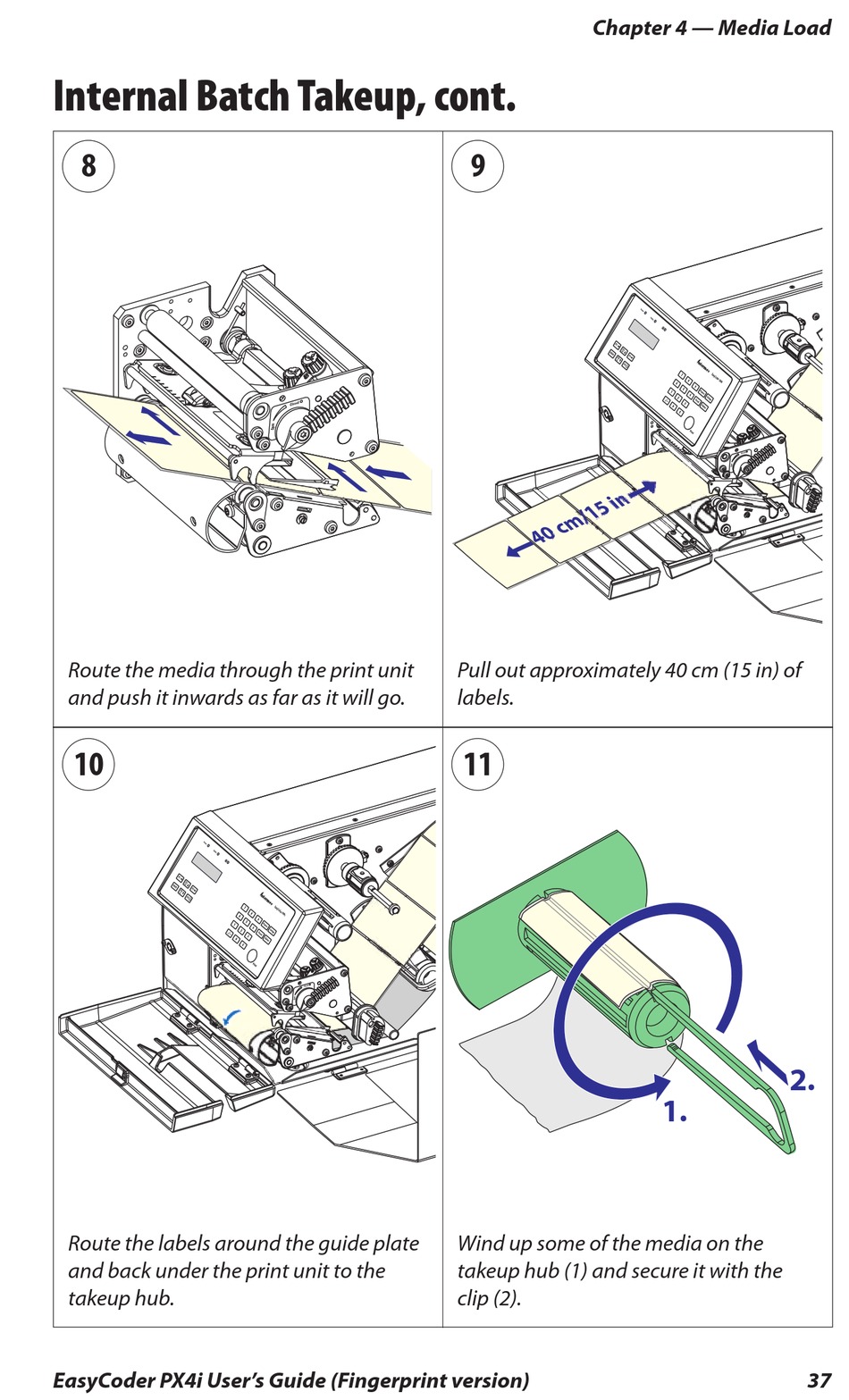

Internal Batch Takeup, cont.
8
Route the media through the print unit
and push it inwards as far as it will go.
10
Route the labels around the guide plate
and back under the print unit to the
takeup hub.
EasyCoder PX4i User's Guide (Fingerprint version)
Chapter 4 — Media Load
9
Pull out approximately 40 cm (15 in) of
labels.
11
Wind up some of the media on the
takeup hub (1) and secure it with the
clip (2).
