Chapter 4 — Media Load
Cut-Off , cont.

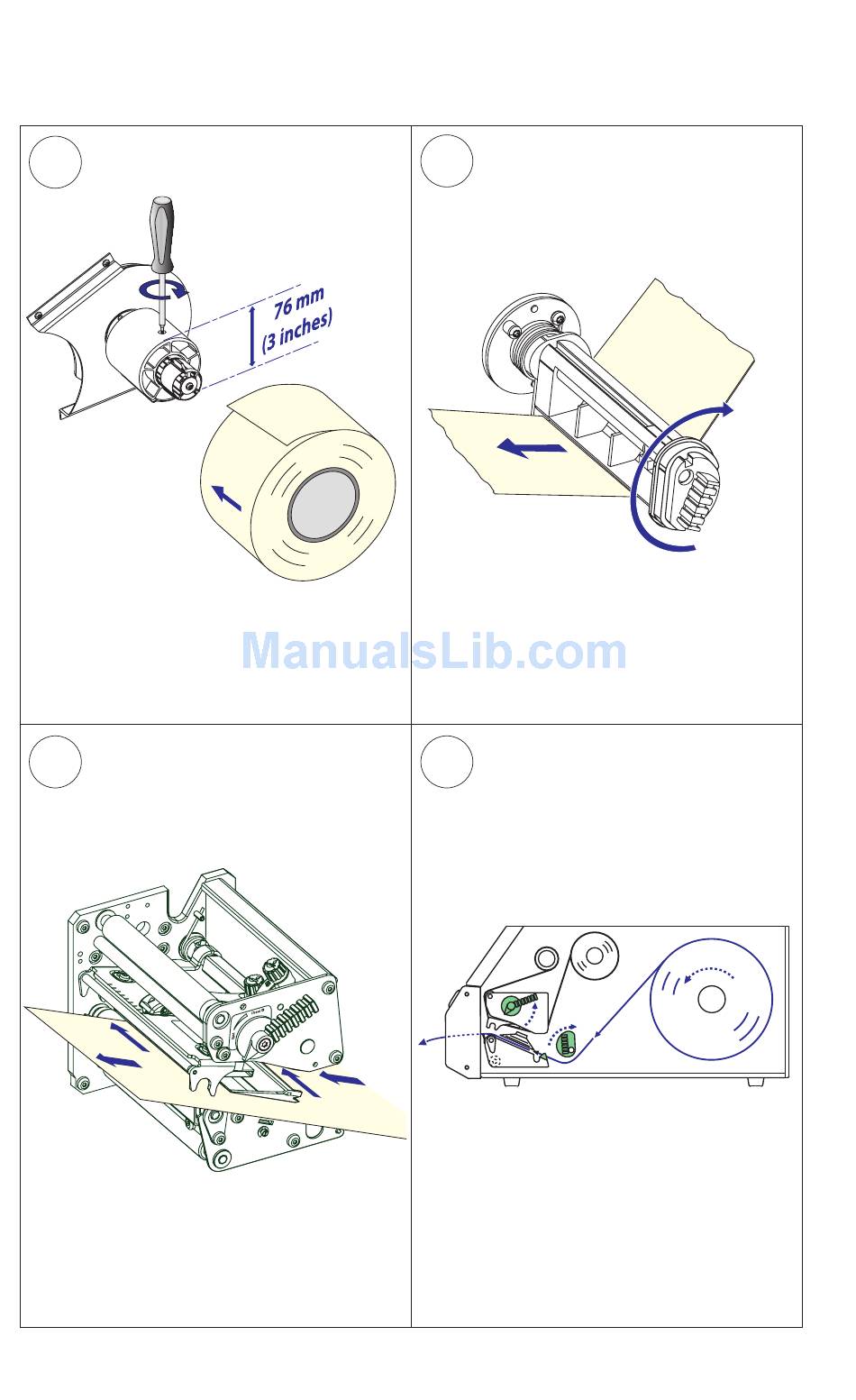

4b
In case of a media roll with a 76 mm
(3-inch) core, fi rst fi t an adapter on the
media supply hub.
6
Route the media through the print unit
and push it inwards as far as it will go.
26
5
Route the media underneath the slack
absorber and forward towards the print
mechanism. The slack absorber can be
rotated for better access and snap-
locked in open positon.
7
This diagram shows the media path.
