Disassembly

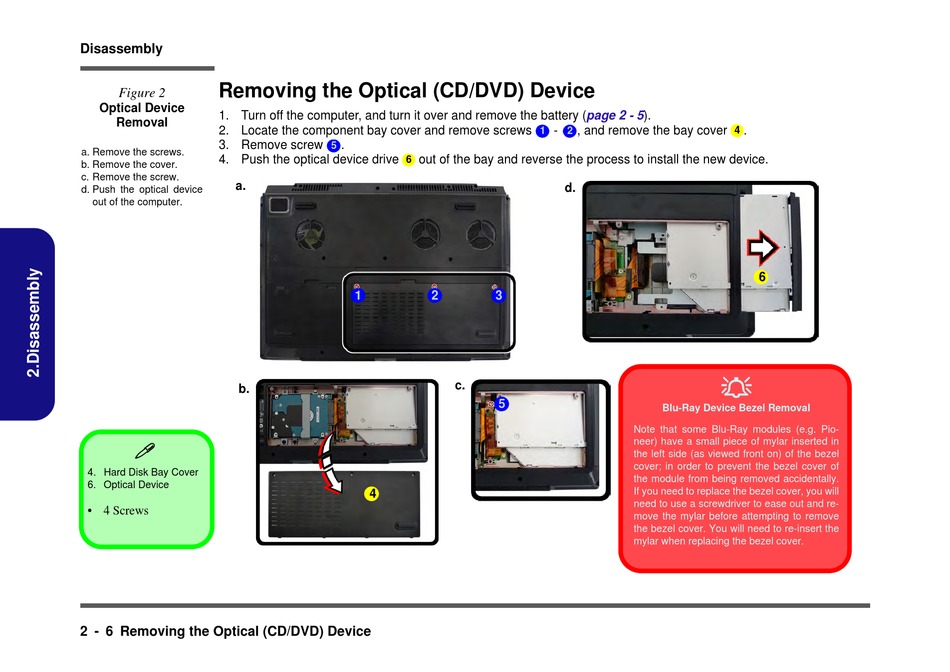

Removing the Optical (CD/DVD) Device

Figure 2
Optical Device
1. Turn off the computer, and turn it over and remove the battery
Removal
2. Locate the component bay cover and remove screws
3. Remove screw
a. Remove the screws.
4. Push the optical device drive
b. Remove the cover.
c. Remove the screw.
a.
d. Push the optical device
out of the computer.
b.

4. Hard Disk Bay Cover
6. Optical Device
• 4 Screws
2 - 6 Removing the Optical (CD/DVD) Device
.
5
out of the bay and reverse the process to install the new device.
6
1 2 3
c.
5
4
(page 2 - 5).
- , and remove the bay cover
1 2
d.
Blu-Ray Device Bezel Removal
Note that some Blu-Ray modules (e.g. Pio-
neer) have a small piece of mylar inserted in
the left side (as viewed front on) of the bezel
cover; in order to prevent the bezel cover of
the module from being removed accidentally.
If you need to replace the bezel cover, you will
need to use a screwdriver to ease out and re-
move the mylar before attempting to remove
the bezel cover. You will need to re-insert the
mylar when replacing the bezel cover.
.
4
6

