Removing The Optical (Cd/Dvd) Device - EUROCOM X8100 Service Manual

Disassembly

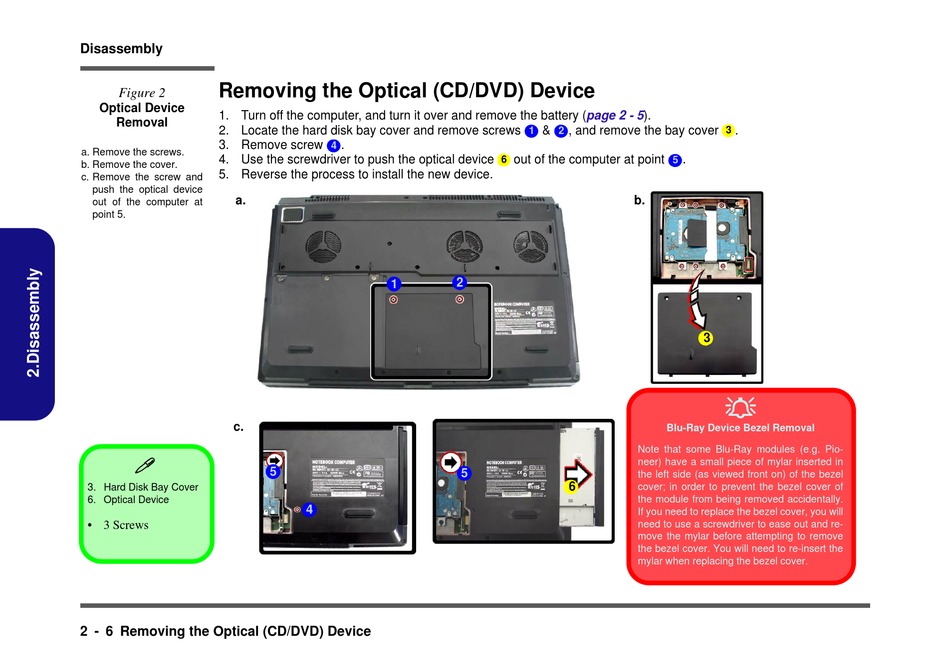

Removing the Optical (CD/DVD) Device

Figure 2
Optical Device
1. Turn off the computer, and turn it over and remove the battery
Removal
2. Locate the hard disk bay cover and remove screws
3. Remove screw
a. Remove the screws.
4. Use the screwdriver to push the optical device
b. Remove the cover.
5. Reverse the process to install the new device.
c. Remove the screw and
push the optical device
a.
out of the computer at
point 5.
c.

3. Hard Disk Bay Cover
6. Optical Device
• 3 Screws
2 - 6 Removing the Optical (CD/DVD) Device
.
4
1
5
4
(page 2 -
& , and remove the bay cover
1 2
out of the computer at point
6
b.
2
5
6
5).
.
3
.
5
3

Blu-Ray Device Bezel Removal
Note that some Blu-Ray modules (e.g. Pio-
neer) have a small piece of mylar inserted in
the left side (as viewed front on) of the bezel
cover; in order to prevent the bezel cover of
the module from being removed accidentally.
If you need to replace the bezel cover, you will
need to use a screwdriver to ease out and re-
move the mylar before attempting to remove
the bezel cover. You will need to re-insert the
mylar when replacing the bezel cover.
