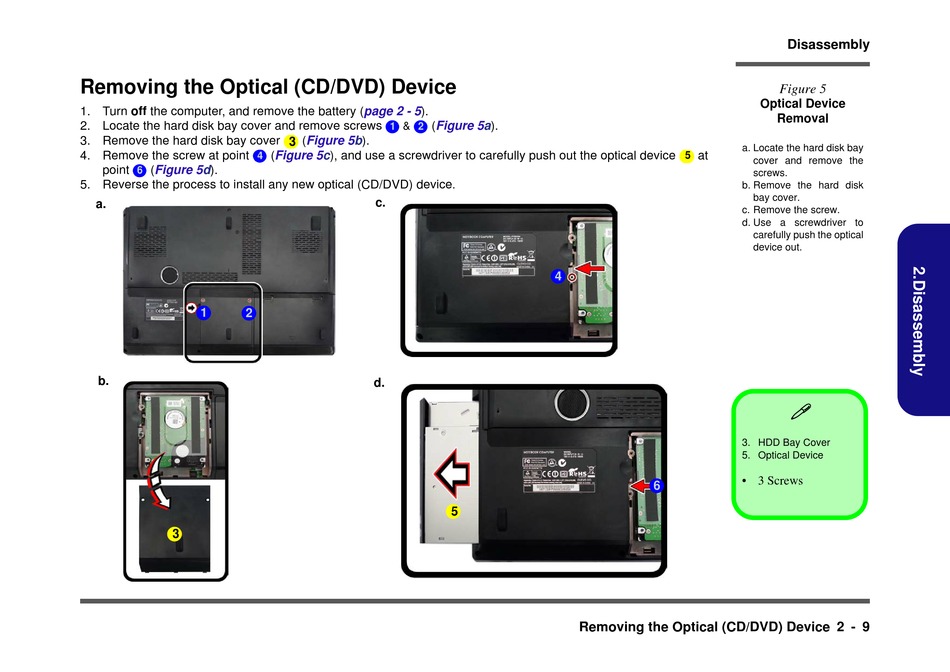

Removing the Optical (CD/DVD) Device

1. Turn off the computer, and remove the battery
2. Locate the hard disk bay cover and remove screws
3. Remove the hard disk bay cover
4. Remove the screw at point
4
point (Figure 5d).
6
5. Reverse the process to install any new optical (CD/DVD) device
a.
1 2
b.
3
(page 2 - 5).
(Figure
1 & 2
(Figure 5b).
6 3
(Figure 5c), and use a screwdriver to carefully push out the optical device
c.
d.
5a).
.
4
5
Removing the Optical (CD/DVD) Device 2 - 9
Disassembly
Figure 5
Optical Device
Removal
a. Locate the hard disk bay
at
5
6
cover and remove the
screws.
b. Remove the hard disk
bay cover.
c. Remove the screw.
d. Use a screwdriver to
carefully push the optical
device out.

3. HDD Bay Cover
5. Optical Device
• 3 Screws
6
