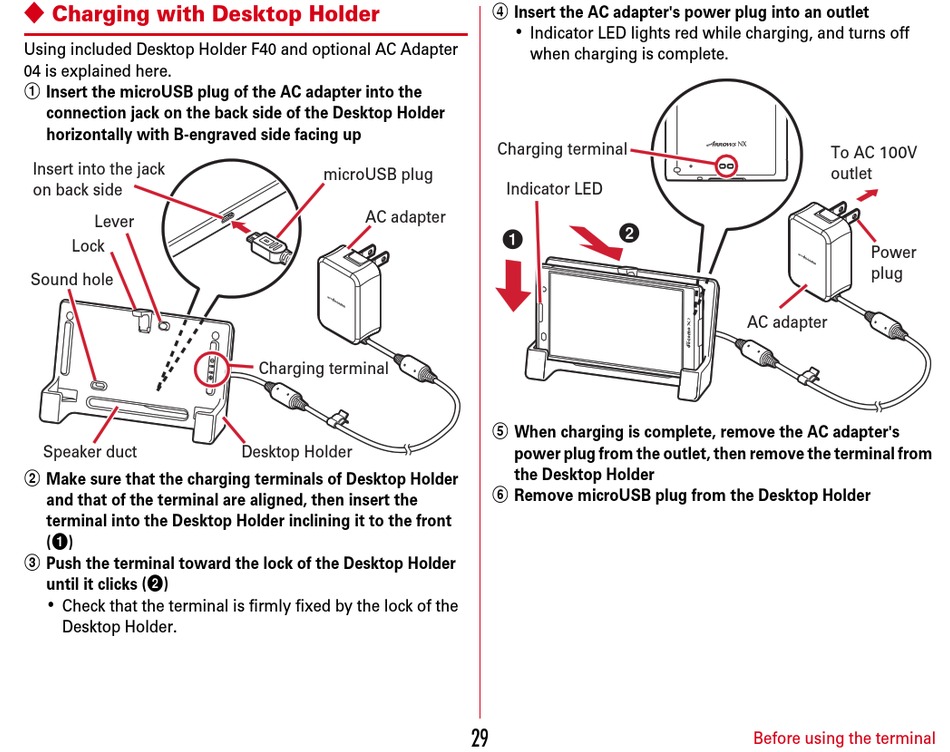

Charging with Desktop Holder
Using included Desktop Holder F40 and optional AC Adapter
04 is explained here.
a Insert the microUSB plug of the AC adapter into the
connection jack on the back side of the Desktop Holder
horizontally with B-engraved side facing up
Insert into the jack
on back side
Lever
Lock
Sound hole
Speaker duct
b Make sure that the charging terminals of Desktop Holder
and that of the terminal are aligned, then insert the
terminal into the Desktop Holder inclining it to the front
(a)
c Push the terminal toward the lock of the Desktop Holder
until it clicks (b)
Check that the terminal is firmly fixed by the lock of the
Desktop Holder.
microUSB plug
AC adapter
Charging terminal
Desktop Holder
d Insert the AC adapter's power plug into an outlet
Indicator LED lights red while charging, and turns off
when charging is complete.
Charging terminal
Indicator LED
b
a
e When charging is complete, remove the AC adapter's
power plug from the outlet, then remove the terminal from
the Desktop Holder
f Remove microUSB plug from the Desktop Holder
29
To AC 100V
outlet
Power
plug
AC adapter
Before using the terminal
