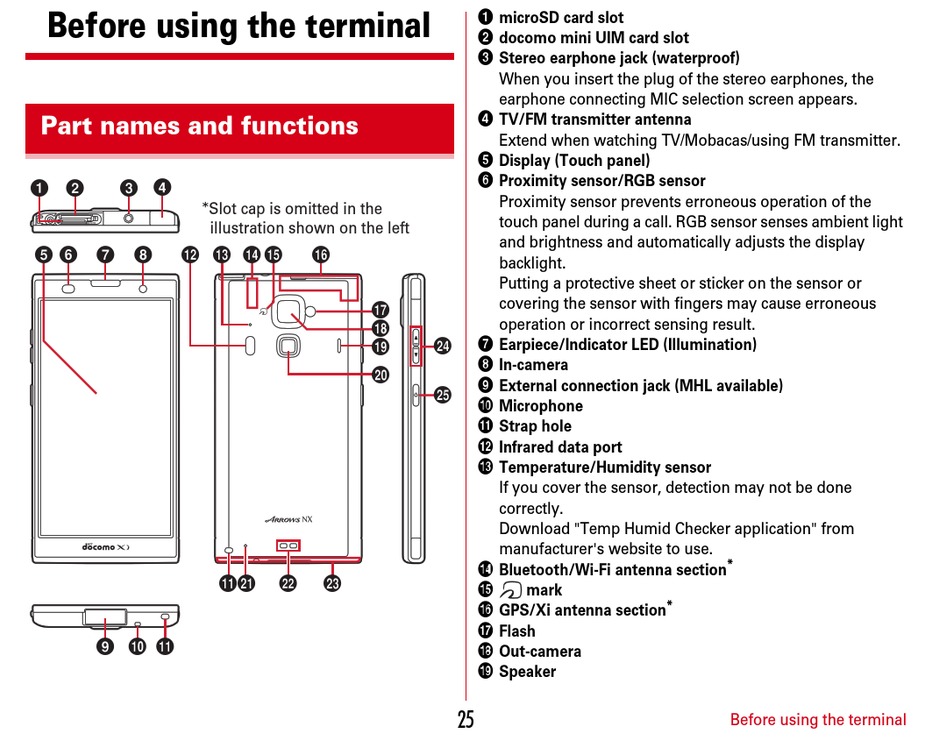

Before using the terminal

Part names and functions
c d
a b
e f g h l
i j k
Slot cap is omitted in the
illustration shown on the left
m n o p
q
r
s
t
ku v w
a microSD card slot
b docomo mini UIM card slot
c Stereo earphone jack (waterproof)
When you insert the plug of the stereo earphones, the
earphone connecting MIC selection screen appears.
d TV/FM transmitter antenna
Extend when watching TV/Mobacas/using FM transmitter.
e Display (Touch panel)
f Proximity sensor/RGB sensor
Proximity sensor prevents erroneous operation of the
touch panel during a call. RGB sensor senses ambient light
and brightness and automatically adjusts the display
backlight.
Putting a protective sheet or sticker on the sensor or
covering the sensor with fingers may cause erroneous
operation or incorrect sensing result.
g Earpiece/Indicator LED (Illumination)
x
h In-camera
i External connection jack (MHL available)
y
j Microphone
k Strap hole
l Infrared data port
m Temperature/Humidity sensor
If you cover the sensor, detection may not be done
correctly.
Download "Temp Humid Checker application" from
manufacturer's website to use.
n Bluetooth/Wi-Fi antenna section
o
mark
p GPS/Xi antenna section
q Flash
r Out-camera
s Speaker
