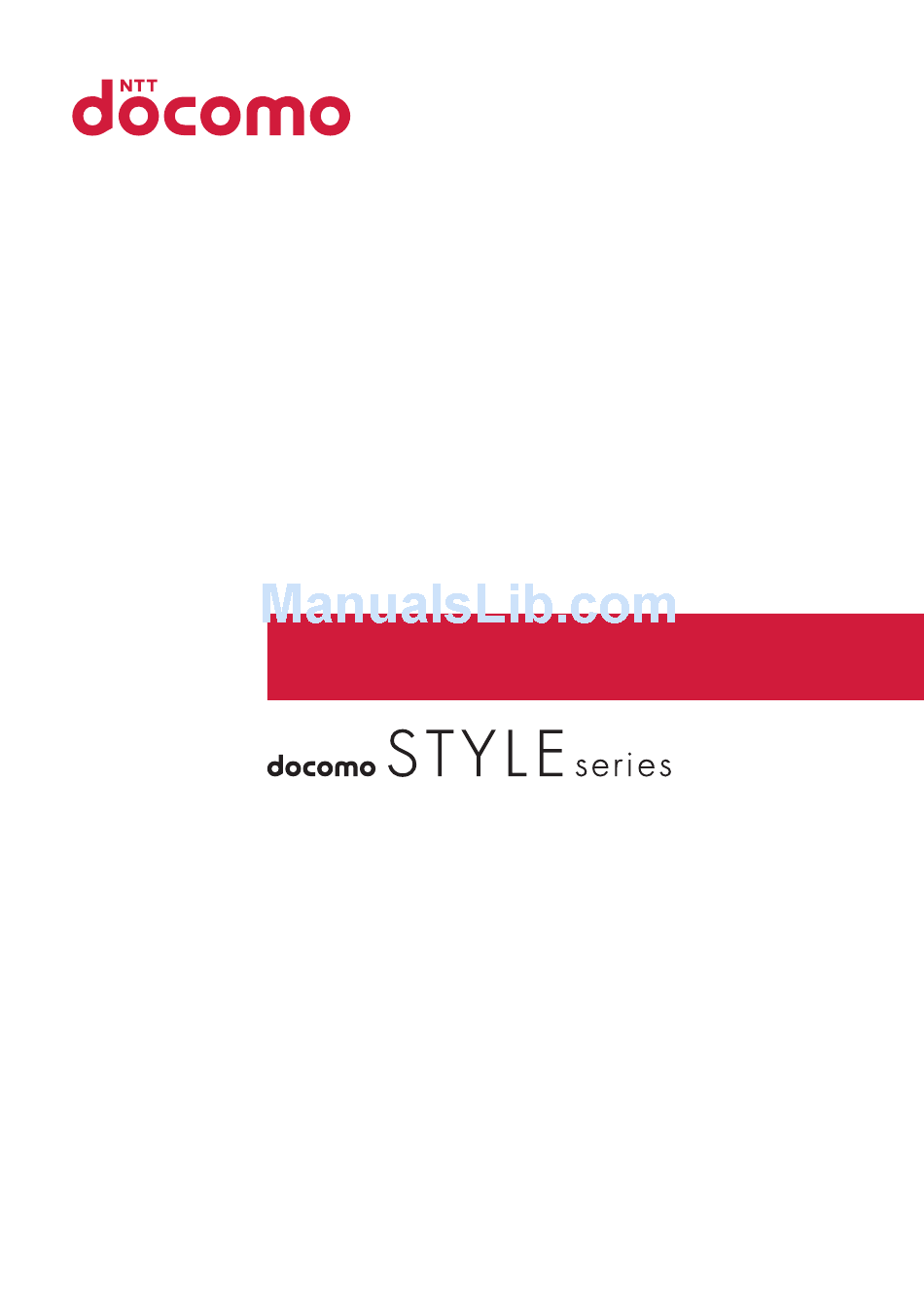

Page 1 N-06B ’10.5 INSTRUCTION MANUAL...
Page 2: Basic Package
DOCOMO W-CDMA and GSM/GPRS Systems Thank you for choosing "docomo STYLE series N-06B". Before use, be sure to thoroughly read this manual to ensure that you use N-06B correctly. How to use N-06B The operations of N-06B are also described in "...
Page 3: Table Of Contents
Contents FOMA terminal ..............2 Introduction What you can do with N-06B ...........3 Part names and functions ..........4 Precautions (Always follow these directions) ....6 Before Using ..............17 Basic Screen Explanation ............22 Operation Character Entry ............... 28 Sound/Screen Setting ........... 31 P.17...
Page 4: Foma Terminal
The user hereby agrees that the user shall be solely responsible for the ・ result of the use of SSL/TLS. Neither DOCOMO nor the certifier as listed herein makes any representation or warranty as for security in the use of SSL/TLS.
Page 5: What You Can Do With N-06B
What you can do with N-06B (Guide) 使いかたガイド P.21 " " (Guide) is useful for checking the operation procedure of 使いかたガイド the function you want to use on the FOMA terminal. Without Instruction Manual at hand, you can find out the operation quickly (in Japanese only).
Page 6: Part Names And Functions
Part names and functions Multi-function keys Earpiece : Up/Down key Hear other party's voice Move the cursor or contents from here. ・ etc. upward or downward Display Display the Choku-Den/ ・ Search phonebook menu screen Illuminance sensor : Left/Right key Detect brightness.
Page 7 Infrared data port Illumination/ Indicator display Charge lamp Display the clock or FOMA terminal status. FOMA antenna The FOMA antenna is built-in. Do not cover the antenna part with your hands. Camera Speaker (monaural) microSD card slot Back cover * The 1Seg antenna is built in, and the FOMA terminal itself works as an antenna.
Page 8: Precautions (Always Follow These Directions)
Precautions (Always follow these directions) ■ To ensure that you use your Indicates that it is an FOMA terminal correctly, read instruction-based "Precautions" carefully before compulsory conduct (must be acted). use. Keep this manual after reading for future reference. Indicates that you must ■...
Page 9 Do not leave the devices in Use the battery pack and adapter humid, dusty or hot places. specified by NTT DOCOMO for Doing so may cause fire, burns or the FOMA terminal. electric shock. Failure to observe this precaution...
Page 10 If you have a weak heart, take 2. Precautions for the precautions when setting the FOMA terminal Vibrator or Ring volume. Failure to observe this precaution WARNING may affect your heart. Do not direct the infrared data If you are wearing electronic port towards your or another medical devices, ask the person's eyes.
Page 11 When using motion tracking, 3. Precautions for the make sure you are in a safe Battery Pack place, hold the FOMA terminal securely, and do not shake it ■ Refer to the information shown more than necessary. on the battery pack label to Failure to observe this precaution check the type of battery pack.
Page 12 Do not short-circuit the tape on the terminals of used battery charging terminals when the pack and return it to a docomo Shop adapter is plugged into a power or Service Counter, or dispose of the outlet or cigarette lighter battery pack in accordance with your socket.
Page 13 Unplug the adapter from the Do not touch the power cords of the adapter or the power power outlet or cigarette outlet with wet hands. lighter socket when the adapter will be left unused for a long Doing so may cause fire, burns or period.
Page 14 Electronic medical devices 6. Precautions for Use Near other than implanted Electronic Medical Devices pacemakers and ICDs may also be used outside hospitals. ■ According to the Guidelines on Users of electronic medical the Use of Radio communication devices are advised to ask the Equipment such as Cellular manufacturer whether these Telephones - Safeguards for...
Page 15 Material list ■ Parts Material/Coating Display External chassis Indicator display Polycarbonate resin, ABS resin/UV coating Battery pack storage Back cover Display panel Acrylic resin/Hard coating Polycarbonate resin/Aluminum deposition, Ornament ring Indicator display UV coating panel Display panel Acrylic resin/Hard coating Hinge cover Polycarbonate resin, ABS resin/UV coating UV cured resin...
Page 16: Handling Precautions
FOMA terminal. These cases are not covered by the warranty, Please be aware that DOCOMO bears no and any repairs that may be possible will be obligation or responsibility in the event carried out at the subscriber's expense.
Page 17 The available operating time of the UIM (FOMA card). battery pack depends on the conditions Please be aware that DOCOMO bears no of usage and battery pack. obligation or responsibility in the event Depending on the usage condition, the that data is altered or lost.
Page 18 Cautions Do not use the altered FOMA terminal. Using an altered device is a violation of the Radio Law. A "Technical Conformity Mark " affixed on the manufacturer's specification sticker certifies that the FOMA terminal meets technical regulations for specified radio equipment that based on the Radio Law.
Page 19: Before Using
Before Using Attaching UIM (FOMA card)/battery pack Make sure to turn the power off before attaching/removing the UIM (FOMA card) or the battery pack. Also, keep the FOMA terminal folded and held in your hand. The UIM (FOMA card) is an IC card that contains private information such as ・...
Page 20 Charging For the charging time and continuous talk time, refer to "Main specifications" (P.91). Charging with the desktop holder When charge with the desktop holder, take care not to have strap caught by ・ the terminal. ❶ Plug the connector of ❸...
Page 21 Charging with the AC adapter ❶ Open the external connector terminal cap of the FOMA terminal, then plug the AC adapter ❷ connector horizontally into the FOMA terminal's external connector terminal ❶ ❷ Plug the AC adapter into the outlet The charge lamp lights up ・...
Page 22: Turning Power On
Turning power ON ❶ (1 second or longer) Standby screen If Initial setting screen appears ■ When you turn the power on for the first time after purchase, Initial setting screen appears. To turn the power off ■ Press for 2 seconds or longer. Configuring default setting After turning the power on for the first time after purchase, screens for configuring settings such as "Set main time", "Change security...
Page 23: Checking Your Own Phone Number
Checking your own phone number In My Profile screen, check your phone number (own number) stored in your UIM (FOMA card). ❶ To check your mail address ■ is0sj For details of changing your mail address, refer to "Mobile Phone User's Guide ・...
Page 24: Screen Explanation
Screen Explanation Viewing display/ icon Marks ( , , , etc.) displayed on the screen and the Indicator display are referred to as icons. Icons indicate the status of such as the FOMA terminal and signal reception. Icons indicating the status of the FOMA terminal ■...
Page 25 Reminders and Desktop Icons ■ In the middle of the screen, icons indicate the status of new arrivals, etc. You can paste desktop icons, with which you can launch functions. Reminders (examples) Missed call ： Record message ： Record VP message ：...
Page 26 Viewing Indicator display ( Rear panel display) On the indicator display, incoming call, mail or alarm notifications appear with various messages, images or animations. Display example Clock (Digital 2) Alarm Receiving call Missed call/ On hold notification New mail Checking missed calls/new mail Checking missed calls ■...
Page 27 Viewing main menu You can select various functions of the FOMA terminal from the main menu. The main menu here is in "Standard". ・ Mail : Display the mail functions. i-mode : Display the i-mode menu.   ppli : Display the i- ppli menu.
Page 28: Key Operation
Key operation The soft keys (Function display) corresponding to are displayed on the screen. These icons appear only when the corresponding keys can be used. Performing the functions assigned to the function key Display samples and functions assignments ■ shows (Settings), (Edit), (Finish), (Send), etc. ❶...
Page 29 If no key is pressed for 15 seconds while the main menu is displayed, the ・ main menu ends and the previous screen reappears. When is displayed Pressing displays functions, which can be performed on the screen, such as saving, editing or deleting.
Page 30: Character Entry
Character Entry Entering characters When entering information to save to the phonebook, or creating mails or schedules, enter text. Switching Entering characters Converting ① ② ③ character modes entered text Press a dial key several Convert entered text In the character entry times to enter your to Kanji or Kana.
Page 31 Other key operations ■ : Delete character. : Insert a line feed, switch upper case/lower case, or enter dakuten/ handakuten. : Return to the previous character assigned to that key. (1 second or longer) : Undo the operation such as converting, pasting or cutting.
Page 32 Entering Deco-mail pictogram Deco-mail pictograms are images that meet certain conditions, including moving pictogram. Press SB) and then (Pict D) on the Message screen to display the ･ categorized Deco-mail pictogram entry screen. Use to move the frame and press (Select) to enter a Deco-mail pictogram.
Page 33: Sound/Screen Setting
Sound/Screen Setting Changing ring tone Changing the ring tone for calls ❶ "Settings" "Incoming call" "Select ring tone" "Phone" "Select ring tone" ❷ "Melody" Select ring tone Other options such as a melody, i-motion, Chaku-Uta® or Chaku- Uta-Full® can be set to ring tones.
Page 34 Using manner mode Set the FOMA terminal not to play ring tones or keypad sound through the speaker with a single key operation. ❶ On the standby screen, " " appears on the standby screen. (1 second or longer) Even when set to ・...
Page 35 Making it difficult for others to see the display Privacy angle makes it difficult for others to see the display. When Privacy angle is set, is displayed on the standby screen. ❶ On the standby screen, (1 second or longer) To deactivate ■...
Page 36 Changing illumination when receiving Set the illumination flashing color or mode (pattern) used when you receive voice/videophone calls, mail, etc. Changing the Illumination for calls ❶ "Settings" "Incoming call" "Illumination" "Set color" "Phone " Select a color ❷ "Set pattern" Select a pattern You can set different flashing colors for calls or mail from specific phone ・...
Page 37 Setting Illumination for FOMA terminal folding Set whether the illumination flashes when you fold the FOMA terminal. ❶ "Settings" "Other settings" "Closed illumination" "ON" or "OFF" Reducing battery consumption When set to eco mode, setting the backlight to "OFF" reduces battery consumption.
Page 38: Lock/Security
Any code is set at time of subscription ■ A 4-digit number is required to verify your identity when you subscribe to some services at a docomo Shop, docomo Information Center and " " お客様サポート (Customer support) (in Japanese only), or when you use network services.
Page 39 Unlock code (PUK code) cannot be changed. If the wrong PIN Unlock code (PUK code) is entered ten times in a row, the ・ UIM (FOMA card) is then completely locked. In this case, contact a docomo Shop Service Counter.
Page 40 ・ terminal, UIM (FOMA card) and official documents that verifies your identity, such as a driver's license, to a docomo Shop Service Counter. For details, please contact General Inquiries on the last page of this manual. Your PIN Unlock code (PUK code) is written on application form (copy for ・...
Page 41 Omakase can lock the personal data of phonebook Lock etc. only by contacting For details on Omakase Lock, refer to "Mobile ・ DOCOMO. Phone User's Guide [i-mode] FOMA version". To activate Lock functions that use "Settings" "Lock/Security" "Lock" private information such...
Page 42: Restricting Incoming Calls
Restricting incoming calls Rejecting a call without caller ID Accept/Reject voice or videophone calls from unidentified numbers by configuring the setting for each reason. ❶ "Settings" "Lock/Security" "Call setting w/o ID" ❷ Enter your security code Select an item to set "Accept"...
Page 43 Reset to default Resetting various functions Reset the function settings to default. For the function that can be reset, see "Menu list" (P.86). ・ "Initialize" and "Reset settings" are different. Do not mix them up. If you perform "Initialize", you will lose all data you have stored. ❶...
Page 44: Call Telephone
Call Telephone As N-06B is not equipped with a front camera, during a videophone call, you can send only the substitute image (Chara-den) or image from the rear camera to the other party. Making a call/ videophone call Making a call/videophone call by entering the phone number ❶...
Page 45 Notifying the other party of your phone number Show your phone number (caller ID) on the other party's phone (Display) when making a call. ❶ "Service" "Caller ID Notification" "Activate/Deactivate" ❷ "ON" or "OFF" If you hear a message requesting your caller ID, make a call again with ・...
Page 46: Adjusting Earpiece Volume
Receiving a call/ videophone call ❶ When you receive an incoming call, ❷ After the call ends, Ringing Videophone screen ringing screen When you receive an incoming call, the ring tone sounds and the illumination flashes. Adjusting earpiece volume ❶ On the standby screen, (1 second or longer) Adjust with...
Page 47 When you cannot answer a call Setting to record a voice and videophone message When you cannot answer a voice or videophone call, the FOMA terminal can record a voice or videophone message. ❶ "Settings" "Incoming call" "Record message" "ON" Select a message ❷...
Page 48 Using various network services Available network services ■ Your FOMA terminal provides you with access to a range of useful DOCOMO network services. The network services are not available when you are outside the service ・ area or in a place where the signal is weak.
Page 49: Services Available For The Foma Terminal
Services available for the FOMA terminal Available services Phone number Directory assistance (pay : service charge + call charge) (No area code) 104 * Unlisted phone numbers cannot be given. Telegram (pay : telegram charge) (No area code) 115 Time (pay) (No area code) 117 Weather (pay) Area code for weather...
Page 50: Using Overseas
For a country code, international call access code and international prefix ・ number for the universal number, refer to "Mobile Phone User's Guide [International Services]" or DOCOMO "International Services website". Overseas usage fees (call charge, packet communications charge) differ ・...
Page 51 Some services are not available depending on the operator or network ・ overseas. For countries and overseas operators, refer to "Mobile Phone User's Guide [International Services]" or visit the DOCOMO "International Services website". Making a call to outside your destination country ❶...
Page 52: Mail
Mail Only by subscribing to i-mode, Mail can be exchanged between i-mode users or anyone who has an Internet e-mail address. You can send up to 10 attachments (images, moving picture files, etc.) of up to 2 MB besides mail text. Also, the FOMA terminal is Deco-mail- compatible.
Page 53 Sending Deco-mail Deco-mail is a service that allows you to decorate i-mode mail by changing the character color/size and background color, waving characters, etc. Sending Deco-mail ❶ On Message screen, : Change the font color : Change the font size : Select an image to insert ❷...
Page 54 Checking new i-mode mail i-mode mail or messages that the FOMA terminal could not receive because the FOMA terminal was not turned on, etc. are stored at the i-mode center. You can receive the mail stored at the center using Check new messages. ❶...
Page 55: Using Sms
Using SMS This service allows you to exchange text messages between DOCOMO terminals, or with subscribers to overseas operators other than DOCOMO. For countries and operators, refer to "Mobile Phone User's Guide ・ [International Services]" or the DOCOMO "International Services website".
Page 56: Phonebook
Phonebook Adding phonebook entries FOMA terminal has two types of phonebooks: FOMA terminal phonebook that various functions can be set to and UIM (FOMA card) phonebook whose entries are available even in another terminal. Adding a new phone number, mail address, etc. ❶...
Page 57: Editing Phonebook Entries
Editing phonebook entries You can add or edit information in the phonebook, such as phone numbers or mail addresses. Editing FOMA terminal phonebook entries ❶ On Phonebook detail screen, (FUNC) "Edit phonebook" ❷ Add or edit entries (Finish) "YES" Phonebook detail screen Deleting phonebook entries ❶...
Page 58: I-Mode/Full Browser
i-mode/Full Browser i-mode ■ You can use online services such as site connection, accessing to Internet, i-mode mail, with i-mode by using display of i-mode support FOMA terminal (i-mode terminal). i-mode requires a subscription and is a fee based service. ・...
Page 59: Displaying Web Pages Designed For Pc
Connecting to i-mode site ❶ " Menu" " " flashes while communicating, and " " flashes while receiving i-mode services (during ❷ Scroll down to i-mode). the bottom of the iMenu screen to select "English" Communicating screen Connected screen Displaying web pages designed for PC ❶...
Page 60 Viewing and operating websites Guide to the screen ■ ① ① • Title of the displayed website (if there is no title, ② the URL appears) • As many tabs as websites displayed simultaneously Scroll bar (only while using Full Browser) ②...
Page 61: Saving Site Contents
Saving frequently-visited sites Up to 100 bookmarks* can be stored for each of i-mode and Full Browser ・ (i-mode bookmarks include pre-installed " " (Get 季節のデコメをプレゼント seasonal Deco-mail)). * : Up to 10 data can be additionally stored in the Secret folder. ❶...
Page 62: I-Channel
The ticker on the standby screen shows latest information that is automatically delivered to your terminal. "Basic Channel" : This channel is distributed by DOCOMO. Packet communications charges do not apply to automatically update basic channels.
Page 63: Camera
Camera Viewing and operating shooting screen Focus frame ① Guide to the AF operation ② Remaining storage count/ ③ Memory info ① ② Digital Anti-Shake ④ ③ Shooting menu ⑤ ④ ⑥ Auto timer ⑥ ⑤ ⑦ Zoom ⑦ Photo mode (still image) shooting screen Quality setting ⑧...
Page 64 Shooting still images/ moving pictures Shooting still images ❶ Frame the shot (Record) ❷ (Save) Shooting moving pictures ❶ On Photo mode shooting screen, press " " Frame the shot (Record) ❷ To stop shooting, press (Stop) (Save) Do not leave the camera under the direct sunlight for a long period of ・...
Page 65: 1Seg
1Seg Using 1seg 1Seg service is provided by broadcasting companies (broadcasters). Packet communications charges do not apply. For details on NHK receiving fees, contact NHK. * Packet communications charges apply to view data broadcast site and i-mode site. Information charges may apply for some sites (i-mode pay sites). * For 1Seg service details, visit the following website: The Association for Promotion of Digital Broadcasting (Dpa) From PC : http://www.dpa.or.jp/english/...
Page 66: Setting Channels
Setting channels When you use 1Seg for the first time or move to another area, set the channels. ❶ "1Seg" "Channel setting" "Select area" ❷ Select an area of prefectures "YES" To automatically search for and set broadcasters ■ "1Seg" "Channel setting"...
Page 67 Setting timer for watching 1Seg or recording video ❶ "1Seg" " Booking program list" or "Timer recording list" (FUNC) "New" ❷ Enter each item (Finish) Playing the recorded video ❶ "Data box" "1Seg" "Video" Select a microSD folder Select a video file...
Page 68: Music
Music Music&Video Channel Music&Video Channel is a service that automatically performs overnight downloads of programs of up to approximately one hour in length. Also, up to approximately 30 minutes of high quality video programs can also be delivered. After just configuring it once, Music&Video Channel automatically updates content, so you can always carry the latest videos and audio programs with you.
Page 69 Setting programs Choose a program you want to enjoy, and the program data will be automatically downloaded overnight. You can set 2 programs at a time. ❶ "MUSIC" "Music&Video Channel" ❷ "Set program" Follow the on-screen instructions to set a program Music&Video Channel screen Playing a program...
Page 70 Downloading Chaku-Uta-Full® from sites ❶ Select Chaku-Uta-Full® from a Chaku-Uta-Full® downloadable site "Save" "YES" ❷ Select a destination folder You cannot download Chaku-Uta-Full® whose size exceeds 5 MB or Chaku-Uta-Full® whose size is unknown.
Page 71: Playing Music Data
Playing music data You can play i-motion or Chaku-Uta-Full® downloaded from i-mode sites, Music&Video Channel programs, or WMA files. ❶ "Data box" ❷ Select the folder of content that you want to play Select a folder Select a program or track Some programs or tracks have playback restrictions.
Page 72 Viewing and operating Music Player screen Music Player screen ■ Portrait Artist name ① ① Title ② ② Image/Moving picture ③ Track ④ Playback status ⑤ ③ Elapsed time (minutes : seconds)/Total ⑥ playback time (minutes : seconds) ⑥ ⑤ Sound quality (Equalizer)/Sound effect ⑦...
Page 73: I-  Ppli
 ppli  ppli are software applications that run on i-mode compatible terminals. You can automatically receive updated stock prices, weather information, etc., and play games without being connected to the network, by  ppli from i-mode sites. downloading* i- * : Packet communications charges will apply.
Page 74: I-Motion
i-motion i-motion is sounds, moving pictures, etc. Download i-motion from i-motion sites to the FOMA terminal. For details on packet communications charges, refer to "Mobile Phone ・ User's Guide [i-mode] FOMA version". Downloading i-motion ❶ Select i-motion from an i-motion-downloadable site ❷...
Page 75: Convenient Tools
When you scan the JAN code shown to the right with the FOMA terminal, "4942857113068" is displayed. QR code ・ When you scan the QR code shown to the right with the FOMA terminal, " " (NTT DOCOMO, INC.) is displayed. 株式会社ドコモ...
Page 76: Data Management
This FOMA terminal supports commercially available microSD cards of up to 2 GB (as of April, 2010). Make sure to format microSD card on N-06B. You may not be able to use ・ microSD card formatted on another terminal or PC.
Page 77 To remove the microSD card, push it in and release. The card pops up ・ slightly. Note that the card may fly out of the slot. Grip the groove of the microSD card and slowly pull the card out. Formatting microSD card Note that all data in the microSD card will be deleted when you format it.
Page 78 Sending/receiving data by Infrared communication Exchange data such as phonebook entries and received mail with other devices equipped with the infrared data exchange. Set the other party's device ・ to receiving status. You may not be able to ・ transfer data depending on the other party's device.
Page 79: Connecting To Pc
You can transfer WMA files, images, etc. to/from a microSD card by connecting the FOMA terminal to a PC. Also, you can perform data communication by accessing to Internet. N-06B FOMA USB Cable with Charge Function 02 The FOMA USB Cable with Charge Function 02 (Optional) or FOMA USB ・...
Page 80: Support
If you are still unable to identify the problem after checking the points, please ・ contact Repairs on the last page of this manual (in Japanese only) or a repair counter designated by DOCOMO. The power does not turn on Is the battery pack properly attached? P.17...
Page 81 The power loss or reboot occurs Soiled connectors of the battery pack may result in poor connections and ● loss of power. When soiled, wipe with dry cloth or cotton swab. Key operations are not available If you bring the FOMA terminal near magnetic products, you may not be ●...
Page 82 Repairs on the last page of this manual (in Japanese only). If, after contacting DOCOMO, you are informed that your FOMA terminal needs repairs ● Bring it to a repair counter designated by DOCOMO. The repair counter is only open during business hours.
Page 83 - Put stickers, etc. on the LCD or keys - Decorate the FOMA terminal using adhesives, etc. - Replace the external parts, etc. with non-DOCOMO components If malfunction or damage occurs as a result of modification, charges will ・...
Page 84: Software Update
・ etc.) of your FOMA terminal is automatically transmitted to the server at DOCOMO. We do not use the transmitted information for any purposes other than software update. If the update fails, the message "Rewrite failed" will appear and all ・...
Page 85 Running software update by selecting the Icon Select the icon " " (Update icon) on the standby screen to update software. ❶ Select the Update icon "Yes" ❷ Enter your security code Checks whether a software update is required. ・ ❸...
Page 86 The pattern data is specific to a certain model of FOMA terminal. ・ Therefore, DOCOMO may stop distributing pattern data for a model 3 years after the model is first released. Updating pattern data First, update the pattern data.
Page 87: Introduction Of Options And Related Devices
→ *5 : To charge N-06B, the FOMA In-Car Hands-Free Cable 01 is required. *6 : Use in Japan only. *7 : To attach N-06B to the In-Car Holder, attach to the 5th position shown in listed ② in "In-Car Holder 01 Manual".
Page 88: Appendix
Appendix Menu list settings are reset to default by "Reset settings". Some functions that cannot be reset to default settings (or default states) ・ may be included in settings. Main item Sub item Branch item Mail Inbox Outbox Draft Compose message WEB Mail Chat Mail Compose SMS...
Page 89 Main item Sub item Branch item i-mode MessageR/F MessageR MessageF Check new messages Client certificate i-mode settings Scroll Font size Set image disp. motion auto-replay Auto-display setting Start attachment(auto) Use phone information Message list display Home URL Sound effect Open tab setting Mlt win.
Page 90 Main item Sub item Branch item Settings Videophone Ntfy switch-mode Hands-free switch V-phone while packet Display Display setting Backlight Display design Indicator display Font Desktop icon 3D display setting Select language Original menu Menu display set Viewer settings Icons Icons setting Privacy angle Quick Info setting Call time/Charge...
Page 91 Main item Sub item Branch item Settings Int'l roaming set NW search mode 3G/GSM setting Display operator name Other settings Keypad sound Charge sound Battery level Side key guard Character input set Cam-button setting Closed illumination Reset settings Initialize Software Update Data box My picture Music...
Page 92 2in1 setting Nuisance Call Blk Caller ID Request Incoming Call Mng Set in-call arrival Remote Control Dual Network English Guidance Additional service Contact DOCOMO Multi Number Roam. Guidance Bar incoming when roam Service (Int.) Phonebook Own data Received calls Dialed calls...
Page 93: Main Specifications
Main specifications Phone Product name N-06B Size (When folded) Height approx. 107 mm x Width approx. 50 mm x Thickness approx. 14.9 mm (Thickest : Approx. 17.0 mm) Weight Approx. 104 g (Battery attached) Continuous standby time [FOMA/3G] Stationary ("Auto"...
Page 94: Battery Pack
*3 : Up to 20 more received or sent SMS can be additionally stored in a UIM (FOMA card). *4 : Up to 100 data can be additionally stored in the Secret folder. *5 : Includes "Welcome " (Welcome docomo web mail) (Japanese) and ドコモメール...
Page 95 All phone models should be confirmed to comply with the regulation, before they are available for sale to the public. The highest SAR value for this model phone N-06B is 0.688 W/kg. It was taken by the Telecom Engineering Center (TELEC), a Registered Certification Agency on the Radio Law.
Page 96 operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network.
Page 97: Export Administration Regulations
Declaration of Conformity The product "N-06B" is declared to conform with the essential requirements of European Union Directive 1999/5/EC Radio and Telecommunications Terminal Equipment Directive 3.1 (a), 3.1 (b) and 3.2.
Page 98: Intellectual Property Right
"WORLD CALL", "WORLD WING", "OFFICEED", "2in1", "docomo web mail", Powered By Mascot ・ "docomo STYLE series" and "FOMA" logo Capsule®/Micro3D Edition ™ are trademarks or registered trademarks MASCOT CAPSULE® is a registered of NTT DOCOMO. trademark of HI Corporation.
Page 99: Others
This product contains NetFront Browser, ・ Others NetFront Document Viewer and NetFront Sync Client of ACCESS CO., LTD. This product is licensed complying ・ ACCESS, the ACCESS logo, and NetFront with the MPEG-4 Visual Patent Portfolio are registered trademarks or trademarks of License, and you are permitted to use ACCESS CO., LTD.
Page 100 Copyright© Ericsson, IBM, Lotus, Matsushita Copyright© 1996-2010 ACCESS CO., LTD. ・ Communication Industrial Co., Ltd., ACCESS, NetFront and Media:/Media colon Motorola, Nokia, Openwave Systems, Inc., are trademarks or registered trademarks Palm Inc., Psion, Starfish Software, Symbian, of ACCESS CO., LTD in Japan and other Ltd.
Page 101: Index
Index Full Browser ..........57 Function key .......... 26 AC adapter..........19 Function menu ........27 Acquire mail address automatically ... 21 After-Sales Service ........ 80 Alarm ............73 Guide ............21 Area Mail ..........52 Auto-sort (mail) ........52 Auto receive mail ........
Page 102 Software Update ........82 Specific Absorption Rate (SAR) ... 93 Omakase Lock ........39 Specifications ........91 Options ........... 85 Still image ..........62 Original lock ........... 39 Theme (Menu)........33 Part names ..........4 Trademark ..........96 Phonebook Troubleshooting ........78 Add ...............54 Turning power on ........
Page 103 To protect environment and recycle the precious resources, mobile phone and PHS carriers collect mobile phones, batteries and battery charger to recycle regardless of brands and manufacturers at shops with the sign shown to the left. Bring the unnecessary such devices to your nearest docomo Shop.
Page 104 NTT DOCOMO website http://www.nttdocomo.co.jp/english/  i-mode site iMenu ⇒ お客様サポート (user support) ⇒ ドコモショップ (docomo Shop) * In Japanese only Loss or theft of FOMA terminal or payment of cumulative cost overseas Failures encountered overseas <docomo Information Center>...
Page 105 Setting up Dial-up ................ 26 AT Command List................ 35 About Manual for PC Connection This manual describes necessary information for data communication using the N-06B and how to install "FOMA communication setting file" and "DOCOMO Connection Manager" provided in the provided CD- ROM.
Page 106: Data Communication
This is suitable for exchanging small amount of data at high speed. a When you use packet communication with DOCOMO PDA "sigmarionⅢ" , the communication speed may be lower. It is not compatible with FOMA HIGH-SPEED Area communication.
Page 107 64K data communication is charged according to the length of time the line is connected, regardless of the amount of data. Use an access point that supports FOMA 64K data communication, such as DOCOMO Internet connection service “mopera U”, or ISDN synchronized 64K access point.
Page 108 Internet. These fees must be paid directly to the Internet service provider in addition to service fees of FOMA service. Contact your Internet service provider for details. DOCOMO Internet connection service "mopera U" is available. "mopera U" is a pay service for which you need to apply.
Page 109: Before Using
*2： The required memory and necessary hard disk space may differ depending on the PC's system configuration. d Operational environment for using DOCOMO Connection Manager requires Internet Explorer 6.0 or later and "Windows Mail" or "Outlook Express 6.0" e-mail software.
Page 110: Checking The Procedure
Installing the FOMA communication setting file embeds each driver into Windows. Using DOCOMO Connection Manager, you can easily set up packet communication and 64K data communication and create a dial-up connection. Flow chart for completing the data communication setup ■...
Page 111 (drivers) /Connect to PC a Install the FOMA communication setting file from the "CD-ROM for N-06B" or by downloading from the DOCOMO website.→p.9 a Connect the FOMA terminal to the PC with the FOMA USB Cable with Charge Function 02 (optional).→p.7 Check the setting after installation（p.11）...
Page 112 Setting the USB mode setting to "Communication mode" d Set the mode before connecting to PC. i "Settings" "External connection" "USB mode setting" "Communication mode" Connecting the devices The following procedure explains how to connect the FOMA USB Cable with Charge Function 02 (optional).
Page 113 Disconnecting the devices The following procedure explains how to disconnect the FOMA USB Cable with Charge Function 02 (optional). Remove the FOMA USB Cable with Charge Function 02 from the USB terminal of the PC Pull the FOMA USB Cable with Charge Function 02 out horizontally while pressing the release buttons of the external connector of FOMA USB Cable Close the external connector cap of the FOMA terminal NOTE...
Page 114: Installing The Foma Communication Setting File (Drivers)
Contact your PC's manufacturer or Microsoft for information on how to set Administrator privileges on your PC. d You can download the FOMA communication setting file from the DOCOMO website. *：Quit any Windows software, including anti-virus, that resides on the task bar.
Page 115 Click “ドライバインストール” (Install driver) Installation starts. When this screen appears, click “OK” Turn on the FOMA terminal, then connect the FOMA USB Cable with Charge Function 02 (optional) to your FOMA terminal Connect the FOMA USB Cable with Charge Function 02 to the USB terminal of the PC A message appears on the task bar indicator, and then installation starts.
Page 116: Control Panel
Checking the installed driver Check that the FOMA communication setting file (drivers) has been correctly installed. This section describes an example using Windows 7. " → "コントロールパネル" (Control Panel) Select " For Windows XP Select " スタート " (Start) → "コントロールパネル " (Control Panel) Open "システムとセキュリティ...
Page 117 When "FOMA N06B USB" is not displayed in the "プログラムと機能" (Applications and functions) on the Windows, perform the following procedure: ① Insert the "CD-ROM for N-06B" in the CD-ROM drive of your PC ② For Windows 7, open "...
Page 118: Docomo Connection Manager
Fare counter Connection/ disconnection button *：Will not be displayed by default. For details, refer to " ドコモコネクションマネージャのヘルプ " (DOCOMO Connection Manager help). This document describes procedures to install DOCOMO Connection Manager. NOTE d To connect the FOMA terminal to the Internet, signing in to the Internet service provider including mopera U is required, which provides the available service and supports data communication.
Page 119: Before Installing Docomo Connection Manager
DOCOMO public wireless LAN utility program NOTE d If no MSXML6・Wireless LAN APIs are available in your Windows XP environment, install them before DOCOMO Connection Manager. When the confirmation screen appears on MSXML6・Wireless LAN APIs installation, click "Install" to proceed it. Restart Windows after completion of installing MSXML6・Wireless LAN APIs, and DOCOMO...
Page 120: Installing Docomo Connection Manager
Installing DOCOMO Connection Manager d When installing "DOCOMO Connection Manager", be sure to log on as Administrator. If you attempt to install the software with another account, an error may occur. Contact your PC's manufacturer or Microsoft for information on how to set Administrator privileges on your PC.
Page 121 Click "次へ" (Next) Confirm the precautions and click "次へ" (Next) Upon confirming the user agreement, click "使用許諾契約の条項に同意します" (Agree) to agree to it, and click "次へ" (Next) Select the installation location and click "次へ" (Next) If you want to change the location, click "変更" (Change), specify the location and click "...
Page 122: Starting Docomo Connection Manager
Starting DOCOMO Connection Manager Start DOCOMO Connection Manager Open " " or " スタート " (Start) → "すべてのプログラム " (All programs) → "NTT DOCOMO" → " ドコモコネクションマネージャ " (DOCOMO Connection Manager) → " ドコモコネクションマネージャ " (DOCOMO Connection Manager)
Page 123: Executing Set Data Communication
"Starting DOCOMO Connection Manager" →p.17 Click the tab of the desired connection method, and click "接続する" (Connect) For details, refer to "ドコモコネクションマネージャ操作マニュアル" (DOCOMO Connection Manager operating manual). When connection is not available, check “Setting up Dial-up Network” (p.19) and “Setting up Dial-up”...
Page 124: Setting Up Dial-Up Network
Setting up Dial-up Network This section describes how to set up a dial-up connection for packet communication / 64K data communication without using DOCOMO Connection Manager. The flow of operation is described below. d It is unnecessary to set up the dial-up network for 64K data communication. Go on to "Setting up Dial- up"...
Page 125 Click the "モデム" (Modem) tab to confirm the COM port of the "接続先" (Access point) column of "FOMA N06B" and click "OK" The COM port confirmed here will be used in the access point (APN) set up (p.22). The contents displayed on the screen and the COM port number differ depending on the PC.
Page 126 d To check the COM port on Windows XP Open "スタート" (Start)→"コントロールパネル" (Control Panel) Open "電話とモデムのオプション" (Telephone and modem options) from "プリンタとその他のハードウェア" (Printers and other hardware) in Control Panel If the "所在地情報" (Address information) screen is displayed, enter "市外局番／エリアコード"...
Page 127 Data to be registered Phone number Memory number of Phonebook Other party's name ─ How to register Register using PC ○ (DOCOMO Connection Manager, ○ (Dedicated software required) etc.) Register using Mobile phone × (Cannot even confirm) ○ How to use...
Page 128 Click "スタート" (Start) → "すべてのプログラム" (All programs) → "アクセサリ" (Accessories) → "通信" (Communication) → "ハイパーターミナル" (Hyper terminal) to start Hyper terminal Select the "今後、このメッセージを表示しない" (Do not display this message again) checkbox and then click "はい" (Yes) Enter any name in the "名前" (Name) column and click "OK"...
Page 129 Enter the access point (APN) and press Enter in the format of AT+CGDCONT=<cid>, "PDP_type", "APN" <cid>： Enter any number between 5 and 10. Please be cautious because if cid has been already set, the setting will be overwritten. "PDP_type"： Enter "PPP" or "IP". "APN"：...
Page 130 イル" (File) menu NOTE d The Caller ID needs to be set to "Notify" to use DOCOMO's internet connection service mopera U or mopera. About 186 (Notify)/184 (Not notify) in Dial-up Network You can attach 186/184 to the access point number in the Dial-up network settings as well.
Page 131: Setting Up Dial-Up
Setting up Dial-up d This section takes accessing mopera U by packet communication for example. d To connect using packet communication, enter "＊99 ＊＊＊3#" as the number of access point for mopera U or "＊99＊＊＊ 1#" for mopera. To connect using 64K data communication, enter "＊ 8701"...
Page 132 Click “ネットワークとインターネット” (Network and Internet) → “ネットワークの状態とタスクの表示” (Show network status and task) → “ネットワークに接続” (Connect to network) on Control Panel Right-click the icon created for the dial-up and click "プロパティ " (Properties) Confirm the settings on the "全般" (General) tab If two or more modems are connected to the When connecting using the FOMA USB Cable...
Page 133 Click the "オプション" (Options) tab and click "PPP設定" (PPP settings) Clear all the boxes and click "OK" Click "OK" Setting up dial-up on Windows Vista " → "接続先" (Access point) Open " Click "接続またはネットワークをセットアップします" (Set up the connection or network) Select "ダイヤルアップ接続をセットアップします"...
Page 134: Access Point
Click "接続をセットアップします" (Set up the connection) and then "閉じる" (Close) " → "接続先" (Access point) Open " Right-click the icon created for the dial-up and click "プロパティ " (Properties) Confirm the settings on the "全般" (General) tab If two or more modems are connected to the When connecting using the FOMA USB Cable with Charge Function 02, confirm that only "モ...
Page 135 Click the "オプション" (Options) tab and click "PPP設定" (PPP settings) Clear all the boxes and click "OK" Click "OK" Setting up dial-up on Windows XP Open "スタート" (Start) → "すべてのプログラム" (All programs) → "アクセサリ" (Accessories) → "通信" (Communication) → "新しい接続ウィザード" (New connection wizard) When the "新しい接続ウィザード"...
Page 136 Enter any name you want in the "ISP 名" (ISP Name) and click "次へ" (Next) Enter the number of the access point in the "電話番号" (Telephone Number) column and click "次へ" (Next) This screen is an example of accessing mopera U by packet communication. Click "次へ"...
Page 137 Select the icon created for the dial- up and open "プロパティ " (Properties) in the "ファイル" (File) menu Confirm the settings on the "全般" (General) tab If two or more modems are connected to the When connecting using the FOMA USB Cable with Charge Function 02, confirm that only "モ...
Page 138: Connect To Internet
Running dial-up connection This section describes how to make a dial-up connection for packet communication by using the dial- up setting. <Example: Using the FOMA USB Cable with Charge Function 02 on Windows 7> Connect the FOMA terminal to the PC with the FOMA USB Cable with Charge Function 02 (optional) "Connecting the devices"...
Page 139 Problem Points to check ・ Check if your PC satisfies the required operational environment (p.4). "N-06B" is not recognized by the PC. ・ Check if the FOMA terminal is connected to the PC and the power is turned on. ・ Check if the FOMA communication setting file (drivers) is installed.
Page 140: At Command List
AT Command List AT commands available on FOMA terminal d The following abbreviations are used in the AT command list; [&F] : Command of which setting is initialized by AT&F command. [&W] : Command of which setting is saved by AT&W command. The setting can be retrieved by ATZ command.
Page 141 AT command Outline Parameter/description Command execution example AT&W Stores the current settings. Only = 0 can be specified (can be omitted). AT&W0 AT&W AT&W? ERROR AT&W＝? ERROR AT ＊DANTE Displays the FOMA terminal AT＊DANTE 0： FOMA terminal signal reception level is displayed as signal reception level.
Page 142 AT command Outline Parameter/description Command execution example AT+CBC Displays the battery status Result: +CBC:<bcs>,<bcl> AT+CBC of the FOMA terminal. bcs: +CBC:0,70 0 : FOMA terminal is powered by the battery. 1 : FOMA terminal is not powered by the battery. AT+CBC? 2 : FOMA terminal is not connected to the battery.
Page 143 AT command Outline Parameter/description Command execution example AT+CLIP= Displays the other party's = 0 : Not display the result (initial value) AT+CLIP=0 Caller ID on a PC when a = 1 : Display the result 64K data communication call is received. AT+CLIP? AT+CLIP? +CLIP:0,1...
Page 144 AT command Outline Parameter/description Command execution example AT+COPS Selects the network Format : AT+COPS=<mode>,2,<oper> AT+COPS=0 operator to connect. mode=0 : automatic (searches the network AT+COPS? and switches the network operator +COPS:0 automatically) mode=1 : manual (connects to the network AT+COPS=? operator specified in <oper>) +COPS:(2,,,"44F001"), mode=2 : Disconnects the connection to the...
Page 145 AT command Outline Parameter/description Command execution example AT+CPIN Enters the PIN code in the Format: AT+CPIN="<pin>","<newpin>" (The status in which FOMA terminal. +CPIN: READY is This command is to enter the PIN1, answered when PIN2, or PUK code - depending on +CPIN? is entered) the state of the result code returned AT+CPIN="1234"...
Page 146 AT command Outline Parameter/description Command execution example AT+CREG= Specifies whether the result = 0 : Not informed (initial value). AT+CREG=1 screen is present regarding = 1 : Informed. the inside/outside the (Set to informed) Informed when switching between service area information "Inside the service area"...
Page 147 = 0 : Disconnect the line (can be omitted). (During packet for the FOMA terminal. communication) NO CARRIER Displays the ID code. = 0 : Displays "NTT DoCoMo". ATI0 NTT DoCoMo = 1 : Displays the product name (same with +GMM). ATI1...
Page 148 AT command Outline Parameter/description Command execution example ATS0= Specifies how many times = 0 : No automatic answer (initial value). ATS0=0 the FOMA terminal rings = 1- 255: A call is automatically answered before it automatically ATS0? after the specified number of receives a call.
Page 149 AT command Outline Parameter/description Command execution example ATS104= Sets the calling sub address = 0 : # ATS104=0 character. = 1 : % (initial value) = 2 : & ATS104? ATS104=? [&F] ERROR Specifies whether the result = 0 : Returns the result code in numeral ATV1 code is returned in numerals value.
Page 150 d Supplementary explanation of AT command ■ Commands which do not function The following commands do not generate errors but will not function as a command: ・ ATT (Tone setting) ・ ATP (Pulse setting) ■ Command name: +CGDCONT=[parameter] ・Outline Sets the access point name (APN) for packet origination. Though this command is a setting command, it will not be recorded in non-volatile memory written by [&W], nor reset by [&F] or [Z].
Page 151 ・Command execution example Only the following 4 patterns can be set. (1) is set as an initial value to each cid. Command for permitting all speeds of both uplink and downlink (when cid is 5) AT+CGEQMIN=5 Command for permitting only the speed of uplink 384kbps and downlink 3,648kbps (when cid is 6) AT+CGEQMIN=6,,384,3648 Command for permitting uplink 384kbps and all speeds of downlink (when cid is 7) AT+CGEQMIN=7,,384...
Page 152: Result Codes
Result codes ■ Result codes related with data communication Number Character indication Description indication Successfully executed. CONNECT Connected. RING Incoming call. NO CARRIER Line disconnected. ERROR Command not acceptable. NO DIALTONE Unable to detect dialing tone. BUSY Busy tone detected. NO ANSWER Time out in connection completing.
Page 153 Result code display example ■ When ATX0 is set Regardless of the AT¥V n command (p.42) setting, only CONNECT appears when the connection is completed. Character indication example: ATD ＊ 99 ＊＊＊ 1# CONNECT ATD ＊ 99 ＊＊＊ 1# Number indication example: ■...
Page 154 Kuten Code List...
Page 155: Kuten Code List
Kuten Code List <Guide to the kuten code table> First enter “digits 1-3 of the kuten code” then “digit 4”. d Some kuten codes in the table here may look different from what actually appear on screens. First to third First to third First to third Fourth digit of Kuten codes...
Page 156 First to third First to third First to third Fourth digit of Kuten codes Fourth digit of Kuten codes Fourth digit of Kuten codes digits of digits of digits of Kuten codes Kuten codes Kuten codes 糊袴股胡菰虎誇跨鈷雇宕...
Page 157 First to third First to third First to third Fourth digit of Kuten codes Fourth digit of Kuten codes Fourth digit of Kuten codes digits of digits of digits of Kuten codes Kuten codes Kuten codes 偃假會偕偐偈做偖偬偸愴...
Page 158 First to third First to third First to third Fourth digit of Kuten codes Fourth digit of Kuten codes Fourth digit of Kuten codes digits of digits of digits of Kuten codes Kuten codes Kuten codes 燹燿爍爐爛爨爭爬爰艝...

Docomo N-06B Instruction Manual

Table of Contents

Manual for PC Connection

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Docomo N-06B

Summary of Contents for Docomo N-06B

Table of Contents
