2. Hardware Orientation
VSP 198CVSFront Panel

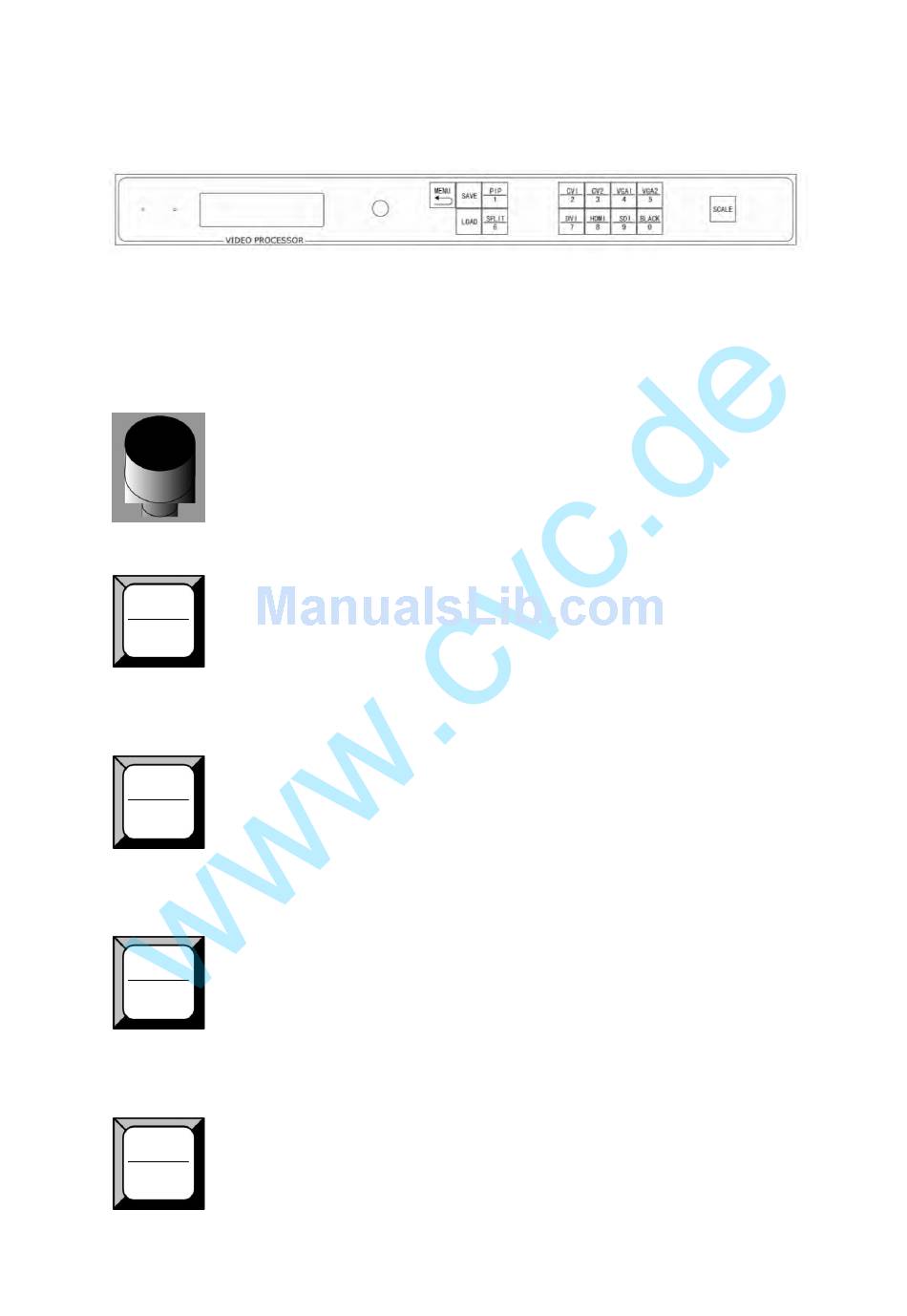

VSP 198CVS front panel as following:

OLED Panel

Used to show button menu and menus for interactive communication;

Menu Buttons

Used to adjust menu on OLED and for information interaction, push the
rotary button to confirm current options.

Signal keys

CV1
2
CV1 input selection Button, its LED light turns on, output will be switched to
this channel;
CV2
3
CV2 input selection Button, its LED light turns on, output will be switched to
this channel;
VGA1
4
VGA1 input selection Button, its LED light turns on, output will be switched to
this channel (compatible with YPbPr);
VGA2
5
VGA2 input selection Button, its LED light turns on, output will be switched to
VSP 198CVS User Manual 30
