RGBlink M3 Quick Start Manual

Video processing for any scale
Hide thumbs Also See for M3:
Table of Contents

Advertisement

Quick Links

Download this manual

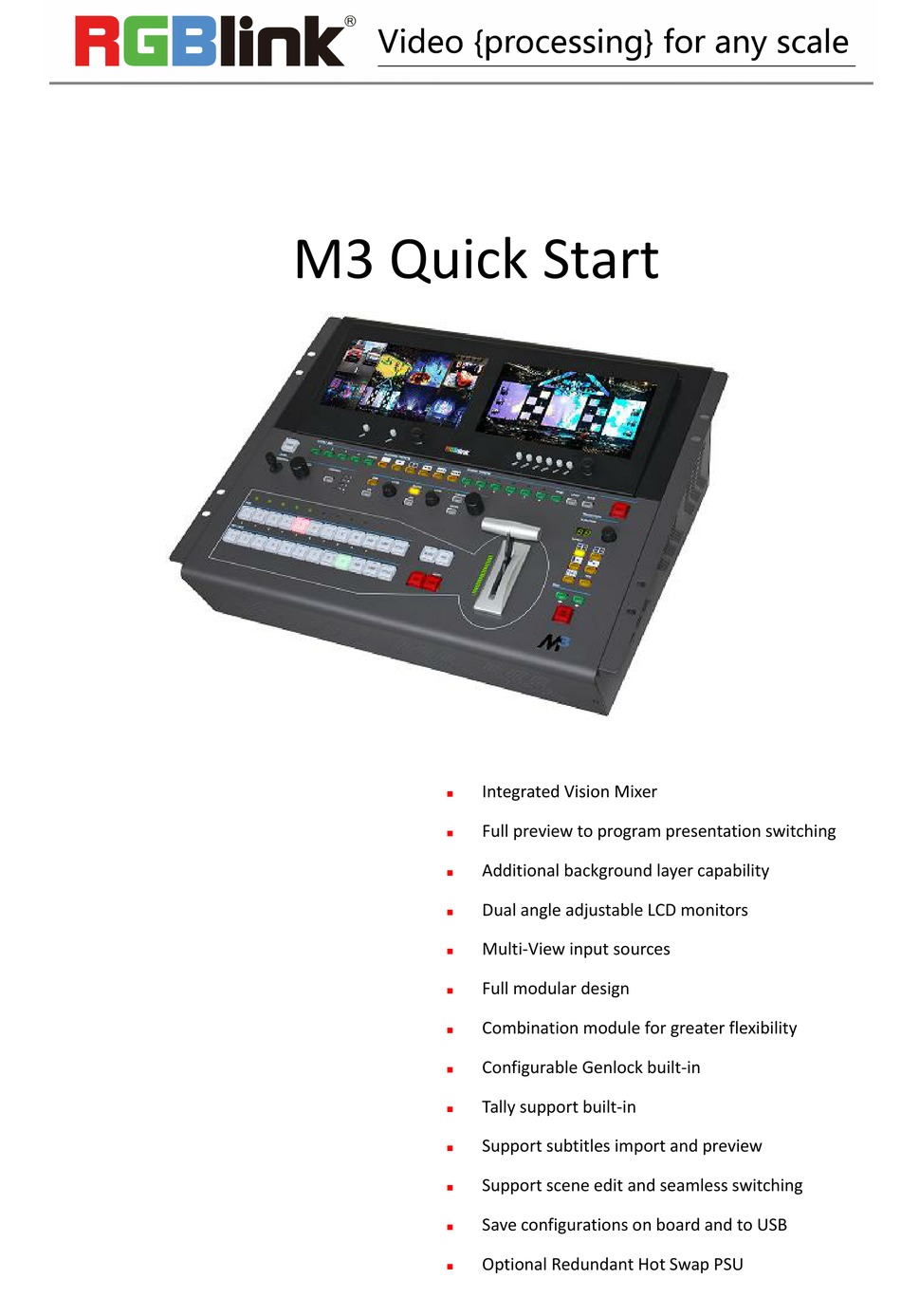

M3 Quick Start
Integrated Vision Mixer
Full preview to program presentation switching
Additional background layer capability
Dual angle adjustable LCD monitors
Multi-View input sources
Full modular design
Combination module for greater flexibility
Configurable Genlock built-in
Tally support built-in
Support subtitles import and preview
Support scene edit and seamless switching
Save configurations on board and to USB
Optional Redundant Hot Swap PSU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RGBlink M3

Summary of Contents for RGBlink M3

  • Page 1 M3 Quick Start Integrated Vision Mixer  Full preview to program presentation switching  Additional background layer capability  Dual angle adjustable LCD monitors  Multi-View input sources  Full modular design  Combination module for greater flexibility  Configurable Genlock built-in ...

  • Page 2: Table Of Contents

    AUX Mode............................... 22 4K1K Mode..............................31 Switching Mode............................33 Set the Output Resolution........................34 Using Black Out............................37 Saving Views..............................38 Recall Saved Settings..........................39 Contact Information..............................40 © Xiamen RGBlink Science & Technology Co., Ltd. 1 / 41 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 3: Product Introduction

    LCD displays to monitor video sources, full preview, as well as live/program display monitoring. At the rear of the M3, the familiar VENUS X3 modular routing platform become apparent, with a host of new options and features tailored to presentation applications.

  • Page 4: Packing Configuration

    Antistatic Bag Note: SDI cable supplied only when SDI Output module is factory fitted AC Power Cable supplied as standard according to destination market. © Xiamen RGBlink Science & Technology Co., Ltd. 3 / 41 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 5: Hardware Orientation

    Transition time control area DSK edit area WIPE operation area BLEND edit area OSD edit area Input sources area Switch Modes area Black button © Xiamen RGBlink Science & Technology Co., Ltd. 4 / 41 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 6 FREEZE: Freeze the image or video. Multiview Presets Area Multiview Presets : 1P : PIP CENT : SIDE BY SIDE : 3P : 4P © Xiamen RGBlink Science & Technology Co., Ltd. 5 / 41 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 7 LOGO: Editing function, the button is lit when enable LOGO function. STILL: Editing function, the button is lit when enable STILL function. BLACK Button © Xiamen RGBlink Science & Technology Co., Ltd. 6 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 8 Time Rotary Knob: Adjust transition time. WIPE Operation Area : ←□→, →□←, ←＋→, →＋←, L←M→R, T←M→B : ←O→ : R→L, L→R : T→B, B→T, LT→RB © Xiamen RGBlink Science & Technology Co., Ltd. 7 / 41 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 9 : Subtitle rows forward button. OSD TAKE: Subtitles switch button. Switch Mode Area CUT: Seamless switching. TAKE: Seamless switching with effect. T-BAR: WIPE and fade switching. © Xiamen RGBlink Science & Technology Co., Ltd. 8 / 41 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 10: Back Panel

    VGA output DB15 port Control Interface LAN port RJ-45 USB interface USB-A port 11. 12 RS-232 Interface 5. 6 5: Genlock input BNC port © Xiamen RGBlink Science & Technology Co., Ltd. 9 / 41 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 11 6: Genlock loop out 15. 16. 17 TALLY light Power Module AC 100-240V, 50/60Hz, IEC-3 © Xiamen RGBlink Science & Technology Co., Ltd. 10 / 41 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 12: Using Your Product

    4K1K Mode  Switching Mode  Set the Output Resolution  Using Black Out  Saving Views  Recall Saved Settings  © Xiamen RGBlink Science & Technology Co., Ltd. 11 / 41 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 13: Menu Structure

    Menu Structure The menu structure is shown in the figure below: © Xiamen RGBlink Science & Technology Co., Ltd. 12 / 41 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...

  • Page 14: Pvw Mode

    PVW Mode M3 use the 8 inch HD monitor, and HDMI preview or VGA preview, it supports the functions as below: 1. Select any 8 channels from the 12 channels. 2. Quickly switch between single image preview and eight images preview by pushing [PVW] button.

  • Page 15: Pst Mode

    PST Mode M3 use the 8 inch HD preview edit display, and with one HDMI preview output, it supports the functions as below: Signal Selection Push any button in Input Sources Area, for example, push the button [5], the border of signal 5 will change to yellow, and the signal in PGM monitor will be changed to signal 5.
  • Page 16 2. Push [SYSTEM] button, and enter to the menu items. Turn the rotary knob, and select <DSK>, push the knob to confirm. (Or push the [DSK] button to enter to the DSK menu items) © Xiamen RGBlink Science & Technology Co., Ltd. 15 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 17 2. Push the [SYSTEM] button, and enter to the menu items. Turn the rotary knob, and select <Blending>, push the knob to confirm. (Or push the [BLEND] button to enter to the blend menu items) © Xiamen RGBlink Science & Technology Co., Ltd. 16 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 18 2. Turn the rotary knob, and select <Mask>, push the knob to confirm: Enable the mask function: Turn the rotary knob, select <ON/OFF>, and set ”ON” to enable the mask function. © Xiamen RGBlink Science & Technology Co., Ltd. 17 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 19 4 point star, 6 point star, lighting, crescent left and crescent right. Mask setting: M3 support load file from UDisk, and set the selected layer, including effect & PIC Pos X, Y, effect X, Y, PIC Pos X, Y. WIPE Setting 1.
  • Page 20 2. Turn the rotary knob, and select the LOGO that to custom, push the knob to confirm. 3. Turn the rotary knob, select <X> or <Y>, and set the position of LOGO. Additionally, M3 supports load file from UDisk. Custom OSD...
  • Page 21 2. Turn the rotary knob, and select the STILL that to custom, push the knob to confirm. 3. Turn the rotary knob, select <X> or <Y>, and set the position of STILL. Additionally, M3 supports load file from UDisk. © Xiamen RGBlink Science & Technology Co., Ltd.

  • Page 22: Pgm Mode

    2. There are 2 HDMI outputs for program, and realize 4Kx1K output. 3. The PGM image can output to SPGM output card by internal loop out or external loop out. © Xiamen RGBlink Science & Technology Co., Ltd. 21 / 41 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 23: Aux Mode

    Push the [SPGM] button in PST/PGM Monitor Area, and enter to the SPGM menu items: M3 supports 3 kinds of splicing modes, PGM Splicing, SPGM Splicing and PGM&SPGM Splicing, PGM Splicing is mainly for loop PGM to SPGM for splicing. The following is the operations for SPGM Splicing and PGM&SPGM Splicing.
  • Page 24 User can also custom the size and position of each SPGM. (3) Push the [SIZE] button, and enter to the menu items as follows: © Xiamen RGBlink Science & Technology Co., Ltd. 23 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 25 SPGM 3: SPGM 3 Pos X is 3840, SPGM 3 Pos Y is 0, SPGM 3 H Size is 1920, SPGM 3 V Size is 1080. SPGM 4: SPGM 4 Pos X is 5760, SPGM 4 Pos Y is 0, SPGM 4 H Size is 1920, SPGM 4 V Size is 1080. © Xiamen RGBlink Science & Technology Co., Ltd. 24 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 26 PGM&SPGM Splicing 1. Turn the rotary knob, and select <PGM&SPGM Splicing>, push the knob to confirm, and enter to the menu items. © Xiamen RGBlink Science & Technology Co., Ltd. 25 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 27 SPGM 3: SPGM 3 Pos X is 1920, SPGM 3 Pos Y is 1080, SPGM 3 H Size is 1920, SPGM 3 V Size is 1080. SPGM 4: SPGM 4 Pos X is 3840, SPGM 4 Pos Y is 1080, SPGM 4 H Size is 1920, SPGM 4 V Size is 1080. © Xiamen RGBlink Science & Technology Co., Ltd. 26 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 28 (SPGM2/4)=3840], and set Scale V Size as 2160 [1080 (SPGM1/3)+1080 (SPGM2/4)=2160]. The image or video will output to the 4 split screens, as shown in the figure below: © Xiamen RGBlink Science & Technology Co., Ltd. 27 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 29 User can also custom the size and position of each SPGM. (3) Push the [SIZE] button, and enter to the menu items as follows: © Xiamen RGBlink Science & Technology Co., Ltd. 28 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 30 SPGM 1: SPGM 1 Pos X is 3840, SPGM 1 Pos Y is 0, SPGM 1 H Size is 1920, SPGM 1 V Size is 1080. SPGM 2: SPGM 2 Pos X is 5760, SPGM 2 Pos Y is 0, SPGM 2 H Size is 1920, SPGM 2 V Size is 1080. © Xiamen RGBlink Science & Technology Co., Ltd. 29 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 31 According to the parameters from Step 4, set Scale H Pos as 0 and Scale H Size as 11520, [1920 (PGM1)+1920 (PGM2)+1920 (SPGM1)+1920 (SPGM2)+1920 (SPGM3)+1920 (SPGM4)=11520], as shown in the figure below: © Xiamen RGBlink Science & Technology Co., Ltd. 30 / 41 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 32: 4K1K Mode

    5. Push the [SIZE] button, and set Scale H Size as 3840, then it realizes the 4K1K mode. If output the dual graphics to the background input, the operation is as follows: © Xiamen RGBlink Science & Technology Co., Ltd. 31 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 33 4. Push the [BK] button in the PST area, and select the background signal, then it realizes the 4K1K mode. Note The background input resolution much be greater than output resolution. © Xiamen RGBlink Science & Technology Co., Ltd. 32 / 41 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 34: Switching Mode

    3. TAKE switch: Switch the PST image to program with wipe and fade by pushing [TAKE] button. 4. TRANSITION DURATION: Transition duration setting, the adjustment range is between 0.1~5S. © Xiamen RGBlink Science & Technology Co., Ltd. 33 / 41 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 35: Set The Output Resolution

    Custom the Output Resolution 1. Push the [SYSTEM] button, and enter to the menu items, turn the rotary knob and select <Output>: © Xiamen RGBlink Science & Technology Co., Ltd. 34 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 36 2. Push the rotary knob to confirm, and enter to the menus as below: 3. Turn the rotary knob, and select <Custom Format>, push the rotary knob to confirm. © Xiamen RGBlink Science & Technology Co., Ltd. 35 / 41 Ph: +86 592 5771197 | support@rgblink.com...
  • Page 37 4. Set H Active, V Active and Fred according to actual need, then select <Set> and set “Yes”, push the rotary knob to confirm. © Xiamen RGBlink Science & Technology Co., Ltd. 36 / 41 Ph: +86 592 5771197 | support@rgblink.com...

  • Page 38: Using Black Out

    Black out description: Black signal realizes one-key-touch to a black screen. M3 provides black effect processing for program output and preview output, with cut black effect. Operation is as below: Push the [BLACK] button, the button light is lit, then the program output is cut to black.

  • Page 39: Saving Views

    Saving Views M3 provides 36 positions for saving or recording parameters. To save current parameters and settings: 1. Push the [SAVE] button in Stored Presets Area, the button [SAVE] and [PAGE] lights are lit, and some of buttons 1~6 are lit and some are flashing. The button lit can be saved and flash will be overwrite, push the button lit to save.

  • Page 40: Recall Saved Settings

    Recall Saved Settings M3 provides 36 positions for saving or recording parameters. To recall saved settings: 1. Push the [LOAD] button in Stored Presets Area, the button [LOAD] and [PAGE] lights are lit, and some of buttons 1~6 are lit and some are flashing. The button lit is ready for recall and flash means just recall, push the button lit to recall.

  • Page 41: Contact Information

    Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse(drop/crush), and/or other unusual damages.
