VSP 198CVS –
For full installation, configuration, and operation details, please refer to
NOTE
the VSP 198CVS user manual.
This guide provides quick start instructions for an experienced installer
to set up and operate the VSP 198CVS.

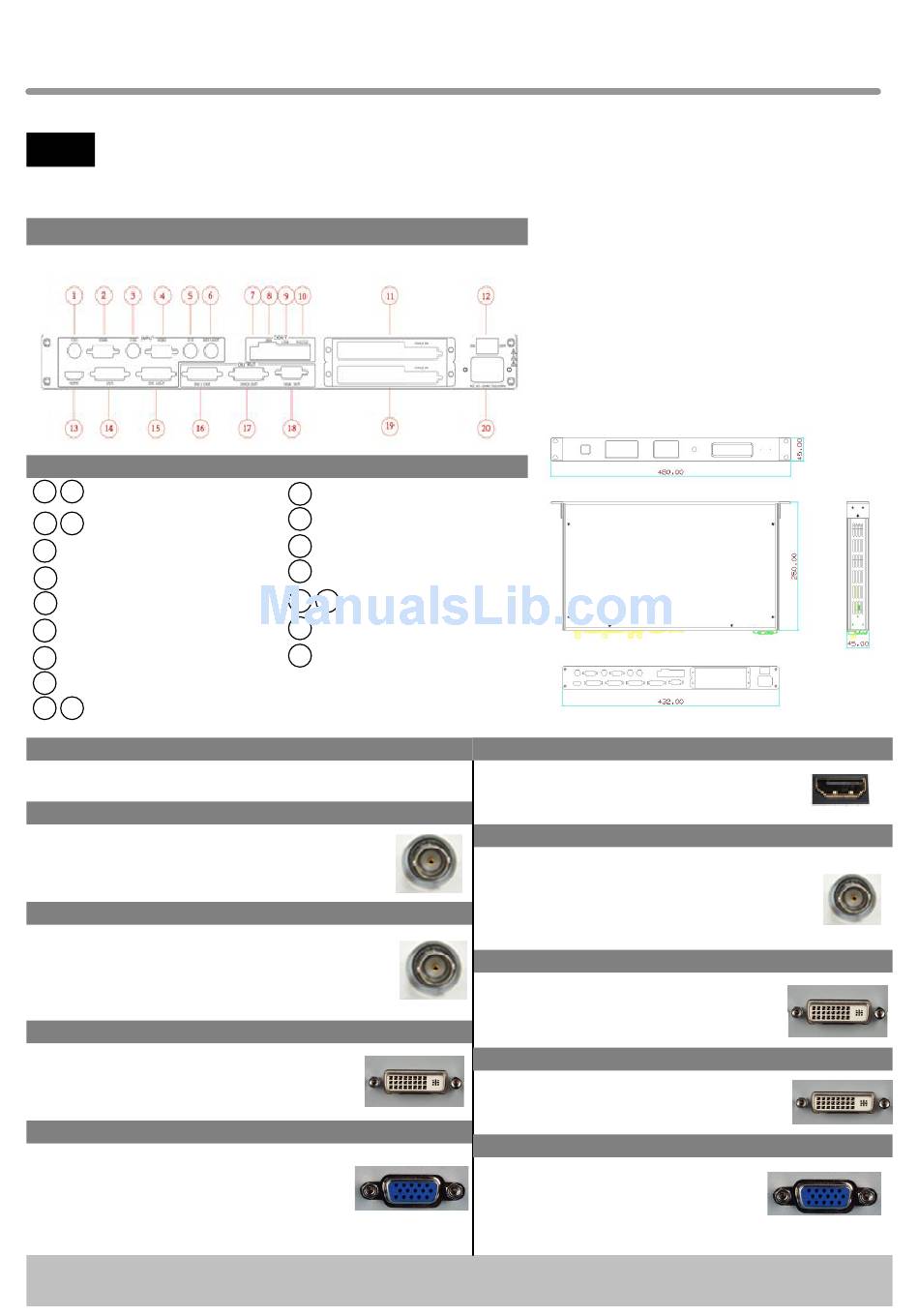

Installation and cabling features

Rear Panel
Connections
CVBS Input
1
3
VGA Input
2
4
SDI Input
5
SDI Loop Out
6
Push button switch
7
10/100M Interface
8
USB Interface
9
10
RJ11(RS232) Interface
11
19
Sending card interface

Step 1-Mounting

Turn off or disconnect all equipment power sources.

Step 2-SDI Input

Standard BNC connector, support
3D/HD/SD-SDI.

Step 3-CVBS Input

Composite video input (BNC connector).
Support composite signal include: PAL,
NTSC,SECAM.

Step 4-DVI Input

Used to input DVI signal from DVI
player or computer with DVI connector.

Step 5-VGA Input

Used to input VGA signal from VGA
player or computer with VGA connector.
Quick Start
Power Switch
12
13
HDMI Input
DVI Input
14
DVI Loop Out
15
DVI Output
16 17
18
VGA Ouput
Power interface
20

Step 6-HDMI Input

HDMI-A interface, can be compatible
with HDMI inputs.

Step 7-SDI Loop Through Output

Standard BNC connector, can connect
t he dev ice wit h SDI in put or S DI
monitor.

Step 8-DVI Loop Through Output

Can connect the device with DVI
input or DVI monitor.

Step 9-DVI Output

Connect to the monitor or LED screen
which has DVI interface.

Step 10-VGA Output

Can connect the device with VGA
input or VGA monitor.
VSP 198CVS Quick Start
Rev 1.0
Page 1 of 3
