RGBlink VSP 198CVS User Manual

Hide thumbs Also See for VSP 198CVS:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

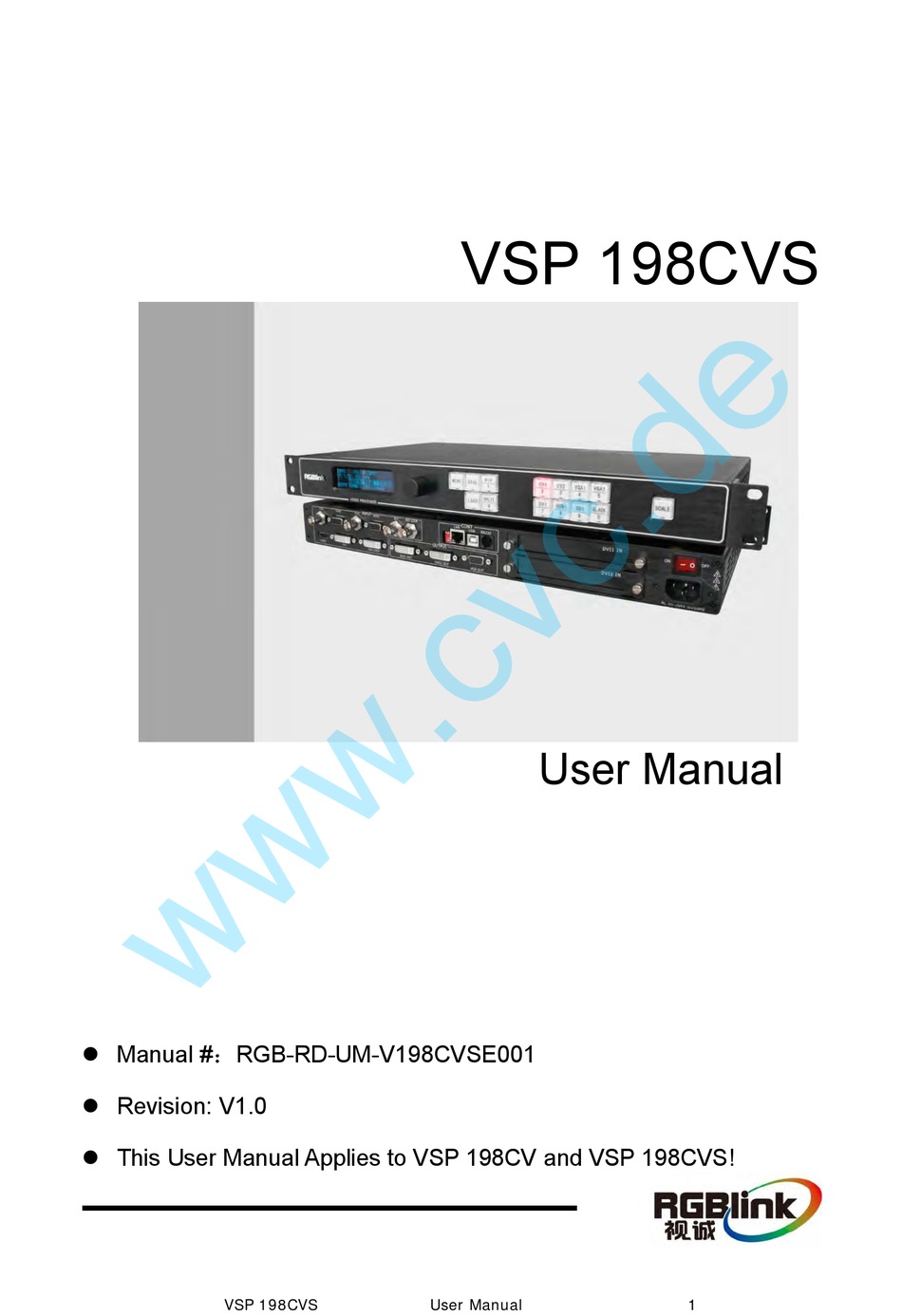

VSP 198CVS

User Manual

 Manual #：RGB-RD-UM-V198CVSE001
 Revision: V1.0
 This User Manual Applies to VSP 198CV and VSP 198CVS!
VSP 198CVS
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSP 198CVS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RGBlink VSP 198CVS

Summary of Contents for RGBlink VSP 198CVS

  • Page 1: User Manual

    VSP 198CVS User Manual  Manual #：RGB-RD-UM-V198CVSE001  Revision: V1.0  This User Manual Applies to VSP 198CV and VSP 198CVS! VSP 198CVS User Manual...
  • Page 2 No part may be copied, reproduced or translated without permission. Notice RGBlink provides this manual ― as is‖ without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. RGBlink may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
  • Page 3 30 days after the transfer of risks. In the event of justified notice of compliant, RGBlink can repair the fault or provide a replacement at its own discretion within an appropriate period.
  • Page 4 Company address Xiamen RGBlink Science & Technology Co., Ltd. S603~604 Weiye Building Torch Hi-Tech Industrial Headquarter: Development Zone Xiamen, Fujian Province, P.R.C Building 3, A Baiwang Plaza, Xili Nanshan District, Shenzhen office: Shenzhen, Guangdong Province, P.R.C Room 602, Building 7, CaiManJie, No.67 Chaoyang Road, Beijing office: Chaoyang District, Beijing, P.R.C...
  • Page 5 To avoid fire hazard, use only the fuse having identical type, voltage rating, and current rating characteristics. Refer fuse replacement to qualified service personnel. Do Not Operate in Explosive Atmospheres To avoid explosion, do not operate this product in an explosive atmosphere. VSP 198CVS User Manual...
  • Page 6 Highlights an essential operating procedure, condition or statement. CAUTION The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. VSP 198CVS User Manual...

  • Page 7: Change History

    Change History The table below lists the changes to the Video Processor User Manual. Format Time ECO# Description Principal V1.0 2013-09-22 0000# Release Peter VSP 198CVS User Manual...

  • Page 8: Table Of Contents

    System Overview ..................23 Application Questions .................. 24 2. Hardware Orientation ..............25 In This Chapter .................... 25 VSP 198CVS Back Panel ................26 CONT Interface ...................... 26 7. Dial Switch......................26 8. 10/100M UDP Interface ..................26 9. USB Interface ....................26 10.
  • Page 9 18：VGA Output ....................28 11.19：Sending Card interface ................28 Switch and Power ....................28 12.20：Power Interface and Switch ..............28 VSP 198CVS Front Panel ................29 OLED Panel ......................30 Menu Buttons ....................... 30 Signal keys ......................30 Function ........................ 31 3.
  • Page 10 QUICK MENU—SPLIT FUNCTION ..............53 QUICK MENU --SCALE FUNCTION ..............54 5. Communication Software Guideline ..........55 In This Chapter .................... 55 Software Installation ..................56 Software Operation ..................60 Connection ......................60 Use ........................63 File Toolbar ......................63 VSP 198CVS User Manual...
  • Page 11 How to Connect Upper Monitor by RS232 Interface? ........76 How to Connect Upper Monitor by USB Interface? ........79 How to Connect PC through LAN Interface? ..........82 6. System Setup and Operations ............85 VSP 198CVS User Manual...
  • Page 12 How to Set up the LOAD ................111 7. Common Questions and Solution ..........112 In This Chapter ..................112 No Output in Large Screen ................. 113 Confirm if there are any input singles ..............113 Confirm if signal output ..................113 VSP 198CVS User Manual...
  • Page 13 Adjust DE deviation ..................... 115 All Key Lights Light Simultaneously ............115 Check if dial switches are normal ............... 115 A. Specification ................. 116 B. Contact Information ..............119 C. Upgrading Software ..............120 Download the IP software ................. 120 VSP 198CVS User Manual...

  • Page 14: Introduction

    Introduction This chapter is designed to introduce you to the VSP 198CVS User Manual. Areas to be covered are: Chapter Structure  How to Use This Manual  Terms and Definitions  System Overview  Application Questions  VSP 198CVS...

  • Page 15: Chapter Structure

    1. Introduction Chapter Structure Chapter Structure The following chapters provide instructions for all aspects of VSP 198CVS operations. Chapter 1 Introduction Chapter 2 Hardware Orientation Chapter 3 Hardware Installation Chapter 4 Menu Orientation Chapter 5 Communication Software Guideline Chapter 6...

  • Page 16: How To Use This Manual

     For system setup and operations, refer to Chapter 6, ― System Setup and Operations‖ on page 73. Should you have any questions regarding the installation or operation of VSP 198CVS, please consult with the factory. Refer to Appendix B, ― Contact information‖ on page 114. VSP 198CVS...

  • Page 17: Terms And Definitions

    Telecommunications Wiring Standard.  ―C olor bars‖: A standard test pattern of several basic colors (white, yellow, cyan, green, magenta, red, blue, and black) as a reference for system alignment and testing. In NTSC video, the most commonly VSP 198CVS User Manual...
  • Page 18  ―Fram e‖: In interlaced video, a frame is one complete image. A video frame is made up of two fields, or two sets of interlaced lines. In a film, a frame is one still image of a series that makes up a motion image. VSP 198CVS User Manual...
  • Page 19 For this reason, the hue control is not needed on a PAL TV set. PAL, in many transmission forms, is widely used in Western Europe, Australia, Africa, the Middle East, and Micronesia. PAL uses 625-line, 50-filed VSP 198CVS User Manual...
  • Page 20 This is a 10-bit, scrambled, polarity independent interface with common scrambling for both component ITU-R 601 and composite digital video and four channels of (embedded) digital audio.  ―S eamless Switching‖: A feature found on many Extron video VSP 198CVS User Manual...
  • Page 21 31.5 kHz and vertical frequency of 70 Hz (Mode 1, 2) and 60 Hz (Mode 3). The signal is non-interlaced in modes 1, 2, and 3 and interlaced when using the 8514/A card (35.5 kHz, 86 Hz) in mode 4. It VSP 198CVS User Manual...
  • Page 22 640×480 with a color palette of 16 bits and 256,000 colors.  ―Y CrCb‖: Used to describe the color space for interlaced component video.  ―Y PbPr‖: Used to describe the color space for progressive-scan (non-interlaced) component video. VSP 198CVS User Manual...

  • Page 23: System Overview

    1. Introduction System Overview System Overview The VSP 198CVS is a multiple outputs video processor that accepts a wide variety of video signals, including RGB computer graphic by DVI, VGA, Standard and HDTV video by HDMI, Composite, SDI (SD/HD/3G Compatible) .DVI and SDI supports loop through output for cascade or preview.

  • Page 24: Application Questions

    1. Introduction Application Question Application Questions RGBlink offers solutions to demanding technical problems. Any application questions, or required further information, please contact with our Customer Support Engineers. Refer to Appendix B for contact details. VSP 198CVS User Manual...

  • Page 25: Hardware Orientation

    Hardware Orientation In This Chapter This chapter provides detailed information about the VSP 198CVS hardware. The following topics are discussed: VSP 198CVS Back Panel  VSP 198CVS Front Panel  VSP 198CVS User Manual...

  • Page 26: Vsp 198Cvs Back Panel

    2. Hardware Orientation VSP 198CVSBack Panel VSP 198CVS Back Panel The figure below illustrates the professional interface and control signals of VSP 198CVS back panel. INTERFACE INTERFACE CVBS Input 11.19 Sending card interface VGA Input Power Switch SDI Input HDMI Input...

  • Page 27: Input Interface

    Note 3 and 4 input interface is option CV module . 5：SDI Loop Out SDI loop output: can connect the next level VSP 198CVS for cascade or the device with SDI input. 6：SDI Input Can receive video signal from HD player, and HD camera, connect interface 16 via 75 ohm impedance BNC.

  • Page 28: 14：Dvi Input

    DVI input interface: Input the video signal from Computer, DVI signal generator. Can be compatible with HDMI 1.3; （This Connection does not support hot-plugging）. 15：DVI Loop Out DVI loop out, can connect to the next level VSP 198CVS or the device with DVI loop out. OUTPUT Interface 16.17：DVI Output Connect to the monitor or LED screen which has DVI interface（This DVI...

  • Page 29: Vsp 198Cvs Front Panel

    Insert power cord and push power to ON position. OLED module on the front panel will show RGBLINK and go into its self verification before it load last setting config and send processed image to the target monitor. For the first setup, CV1 input is the default source.

  • Page 30: Oled Panel

    2. Hardware Orientation VSP 198CVSFront Panel VSP 198CVS front panel as following: OLED Panel Used to show button menu and menus for interactive communication; Menu Buttons Used to adjust menu on OLED and for information interaction, push the rotary button to confirm current options.

  • Page 31: Function

    PIP function button :Single image or dual image selection button: press the button ,Its LED light turns on, PIP function is open;It is LED light turns off ,PIP function is close ,change to single image. OLED as follows: VSP 198CVS User Manual...
  • Page 32 SPLIT. Note Support seamless split with any input sources, the best seamless split effect is by DVI or SDI loop through output,When other input signals to be used for seamless split, need signal distributor support. Note VSP 198CVS User Manual...
  • Page 33 For details please refer to MENU menu orientation. ESC reuse function button: Push the MENU to exit the menu Effect switch function: Push the MENU button two times to enter the effect switch function menu. VSP 198CVS User Manual...
  • Page 34 Scale function button :image size adjustment, push the button to enter the scale menu. Turn the knob to select the relevant submenu. For details please refer to MENU in menu orientation.and How to Set up the Size and Position of the Single Image VSP 198CVS User Manual...

  • Page 35: Hardware Installation

    3. Hardware Installation VSP 198CVS Hardware Installation Hardware Installation In This Chapter This chapter provides comprehensive installation instruction for VSP 198CVS hardware: Following is the mechanic info of VSP 198CVS for your reference. VSP 198CVS User Manual...

  • Page 36: Safety Precautions

    If there is damage, notify the shipping carrier immediately for all claims adjustments. Site Preparation The environment in which you install your VSP 198CVS should be clean, properly lit, free from static, and have adequate power, ventilation, and space for all components.

  • Page 37: Menu Orientation

    Menu Orientation Menu Orientation In This Chapter This chapter describes all VSP 198CVS processor menus, including how they are accessed, the functions that are available, and descriptions of each menu tree (in block diagram format). The following topics are discussed: •...

  • Page 38: Menu

    Push the MENU to main menu, main menu as shown: Turn knob buttons to select menu items. > before the menu means it’s in selected state. Press the knob to enter corresponding setting or view the menu. VSP 198CVS User Manual...

  • Page 39: Menu

    STANDARD：push knob button to select left or right menu item, turn the knob to enter corresponding setting or view the menu.Users can choose different output formats by turning the knob, this option includes 20 common standard output resolutions, shown as follows: VSP 198CVS User Manual...

  • Page 40: Menu

    Details please refer to the instructions in the manual：How to Scale the Screen Size and Full Size Switching MENU---PICTURE Push the [MENU] button to go into the main menu, turn the knob button to select <PICTURE>,show menus as follows: VSP 198CVS User Manual...
  • Page 41 RESET: If image quality distorts as improper operation, it can be initialized to recover by factory reset. NOTE The SCALE button can also fulfill this setting. Details please refer to the instructions in the manual：How to set up the Size VSP 198CVS User Manual...

  • Page 42: Menu

    MENU---ADJUST Adjust menu including: Input signal sources adjust, Image quality settings ,Output signal adjust.Menu as follows: Input signal sources adjust : VGA1 SIGNAL TYPE: Program VGA1 button is VGA signal or YPbPr signal; VSP 198CVS User Manual...
  • Page 43 H POS: image horizontal position; V POS: image vertical position; RESET:Restore the factory Settings Image quality settings ADC ADJUST: Mainly aim at the BRIGHTNESS to auto adjusting. GAMMA: Gamma setting, press it to adjust the image VSP 198CVS User Manual...
  • Page 44 When the signal source of the screen appear black side, can use this function to shift the black out of the screen. RESET: If image distorts as improper operation, it can be initialized to recover by factory reset. DVI2: Including DVI MODE, DATA RANGE, DE ADJUST, VSP 198CVS User Manual...

  • Page 45: Menu

    Mode 1: Graphic content locate at the top and is non-transparent, background transparency is controlled by double-image transparency; Mode 2: Graphic content is controlled by double-image transparency, the background is completely transparent; BLEND LEVEL: Can set the image display transparency, regulating range between 0 - 16; VSP 198CVS User Manual...

  • Page 46: Menu

    It can adjust the System function settings including as follows: ETHERNET: Network setting, including: NETWORK ON/OFF: Can choose ― ON‖ or ― OFF‖. IP ADDRESS: 192.168.000.100. SUBNET MASK: 255.255.255.000. GATEWAY: 192.168.000.001. DISPLAY MODE: MODE: Image mode selection, user can choose different output modes VSP 198CVS User Manual...
  • Page 47 SYSTEM INFO: System information. MCU VER: Information of MCU version. VIDEO VER: Information of VIDEO version. SN: It is the Factory serial number of VSP 198CVS which is used to search the information of VSP 198CVS. IP: IP address. DATE&TIME: Display date or time.

  • Page 48: Menu

    MENU --- FACTORY RESET Enter FACTORY RESET to reset; choose YES and push the knob to confirm; then VSP 198CVS is reset to its factory settings. After 5 seconds, it completes factory settings and is ready for more operations. VSP 198CVS...
  • Page 49 4. Hardware Installation Menu Orientation VSP 198CVS User Manual...

  • Page 50: Quick Menu

    DISSOLVE：fide in and fide out Special effects switching CUT：fast switching WIPE SOUARE IN： WIPE SOUARE OUT： WIPE TOP LIEFT IN： WIPE TOP LIEFT： WIPE TOP RIGHT IN： WIPE TOP RIGHT ： WIPE BOTTOM LEFT IN： WIPE BOTTOM LEFT ： VSP 198CVS User Manual...
  • Page 51 FADE TIME: Switch time setting. Rotate the knob to choose the time and press the knob to confirm. The switching time ranges from 0 to1.0. ALPHA: It can set the image transparency, regulating range between 0 - VSP 198CVS User Manual...

  • Page 52: Quick Menu -- Save Function

    Details please refer to the instructions in the manual：How to Set up the LOAD . QUICK MENU --PIP FUNCTION Press the PIP button ,button led light turn on ,enter the pip function menu.OLED screen as follows: VSP 198CVS User Manual...

  • Page 53: Quick Menu-Split Function

    QUICK MENU—SPLIT FUNCTION Press the SPLIT button ,button led light turn on ,enter the SPLIT function menu.touch the knob and turn the knob,open split function ,OLED screen as follows: —>SPLIT H TOTAL 1920 H TOTAL 1080 H POS VSP 198CVS User Manual...

  • Page 54: Quick Menu --Scale Function

    H SIZE: Width setting. V SIZE: Height setting. H POS: Horizontal phase setting. V POS: Vertical phase setting. RESET:Restore the factory Settings Details please refer to the instructions in the manual：How to Set up the image scale . VSP 198CVS User Manual...

  • Page 55: Communication Software Guideline

    The following topics are discussed: Software Installation  Software Operation  How to Connect Upper Monitor by RS232 Interface?  How to Connect Upper Monitor by USB Interface?  How to Connect PC through LAN Interface?  VSP 198CVS User Manual...

  • Page 56: Software Installation

    Also it can be customized with schedule function. Double click to install, English version default for use, click ― select‖ to next dialog: And in next dialog is the user agreement of the software, click Agree to go VSP 198CVS User Manual...
  • Page 57 5. Communication Software Guideline Software Installation User can select ― Change‖ to choose the VSP 198CVS install software: VSP 198CVS User Manual...
  • Page 58 5. Communication Software Guideline Software Installation Click ― Next‖ to go on: Click ― Next‖ to go on： VSP 198CVS User Manual...
  • Page 59 5. Communication Software Guideline Software Installation Click ― Next‖ to go on: Click ― Finish‖ and ready to run VSP 198CVS console: VSP 198CVS User Manual...

  • Page 60: Software Operation

    5. Communication Software Guideline Software Installation Software Operation Install communication which comes with the package of VSP 198CVS device. Double click icon from home screen to run the software. Double click icon, then choose and double click to run the software.
  • Page 61 COM1. Confirm used COM and open control software, click 【communication】 page，enter setup option，Serial is the default COM，click icon refresh COM number，choose available COM，default Baud rate is115200. VSP 198CVS User Manual...
  • Page 62 PC software. Please refer to ― How to control processor with console software by USB?‖ for more detailed information. Note RS 232 COM line can upgrade 100M program, while USB can’t. Ethernet ， user can fill any number less than 1023 in local port， the remote VSP 198CVS User Manual...

  • Page 63: Use

    ，status on the left button showing 。 File Toolbar ：Open script. User can open saved script and alter its parameters. ： Save script. Save current user parameters as script to the prescribed path. VSP 198CVS User Manual...
  • Page 64 If user choose open device when start, user can use last run, use script file or none when user start. User can click to choose which script user want to open. If user choose execute schedule when start, the next dialogue will display when software run. VSP 198CVS User Manual...

  • Page 65: Communication Toolbar

    5. Communication Software Guideline Software Installation ：Language: The software supports Chinese, English and German version. Communication Toolbar ：Open COM. ：Close COM ：Set COM. Device Toolbar ：Synchronization. ：Save to flash. VSP 198CVS User Manual...
  • Page 66 5. Communication Software Guideline Software Installation Note Same as MENU SAVE ：Load form Flash. Note Same as MENU LOAD ：Factory setup； ：Advance Note Advance is only done by engineer. Please connect us for password. VSP 198CVS User Manual...

  • Page 67: Schedule Toolbar

    5. Communication Software Guideline Software Installation Schedule Toolbar ：Customize schedule ：Execute schedule. Execute tasks according to schedule. Help Toolbar About: Display information of software； VSP 198CVS User Manual...

  • Page 68: Output Resolution Toolbar

    5. Communication Software Guideline Software Installation Output Resolution Toolbar User can choose different output resolution by selecting from pull down list. VSP 198CVS has 20 output resolutions for users selection. Note Same as MENU OUTPUT FORMAT Images Display Mode Toolbar Choose to work in single channel or dual channel.

  • Page 69: Aspect Ratio Toolbar

    VGA, green toolbar says it has chosen the current interface for channel 1 input interface, the default last single channel chosen interface for channel 2 input interface, the currently selected channel will be shown on the right VSP 198CVS User Manual...

  • Page 70: Screen Parameter Toolbar

    Display toolbar Users can set Alpha value of ― dynamic Video‖ and ― static current frame‖ through display toolbar. When it is in dynamic Video, the video plays properly; when it is in static current frame, the video stop VSP 198CVS User Manual...

  • Page 71: Output Image Setup Toolbar

    Gamma function. For further information, users can contact with our customer service team. Note Same as MENU ADJUST GAMMA Output Image Setup Toolbar User can customize the brightness and the contrast. Note Same as MENU IMAGE QUALTY VSP 198CVS User Manual...

  • Page 72: Images Display Toolbar

    Users can recall the saved user mode1, mode2 or mode3 Log Toolbar User can save or delete the operate log file. Information Toolbar It is the VSP 198CVS software version, core board version, firmware version and the serial number in bottom of the software interface. 【Video Processor】Options VSP 198CVS...
  • Page 73 5. Communication Software Guideline Software Installation Layout: Through the layout of the user can set a variety of double-image mode.single image mode is off。 Device Schedule: Users can set up VSP 198CVS to play the appointed input video VSP 198CVS User Manual...
  • Page 74 It takes effect immediately after users change IP through serial port; and when users change IP through network, it takes effect after reopen the software. Clock： Users can set or adjust lower computer time through‖ clock‖ VSP 198CVS User Manual...
  • Page 75 5. Communication Software Guideline Software Installation Input Config： Define VGA1and VGA2 Input source types ，VGA input compatible with YPBPR. Note Same as MENU ADJUST 1/VGA2 SIGNAL TYPE VSP 198CVS User Manual...

  • Page 76: How To Connect Upper Monitor By Rs232 Interface

    Take out the RS 232 cable as following（RS-232, with 9-pin on one end， RJ 11 on the other side）. Connect one side of the RJ11 download line to the RS232 on the video processor VSP 198CVS, and the other side to be connected to the serial port on the PC.
  • Page 77 Click【Device Manager】― +‖ on the left，check the COM number，as following， COM1 is offered. Remember the COM you are using and then run the control software, find 【Communication】option. In default，first time user have to click button, as following: VSP 198CVS User Manual...
  • Page 78 5. Communication Software Guideline How to Connect Upper Monitor by RS232 Interface? Check and tap【Serial】 ，Serial Port , for example, is COM6 which is checked from device manager. Set VSP 198CVS Boud Rate to be :115200，Click【Confirm】after setting. Click 【open serial】 ，check if 【COM】icon is on the bottom right corner，when there is the prompt green...

  • Page 79: How To Connect Upper Monitor By Usb Interface

    Connect the USB cable to the PC and the video processor. Turn on the VSP 198CVS, for the first time to use USB, the PC will remind finding the new hardware and ask to install the driver for this new driver: Install from the list or specified location, press ―...
  • Page 80 5. Communication Software Control Guide How to Connect Upper Monitor by USB Interface? When the installation finish, can go to check the installed COM port inside the device management, as following image shows: VSP 198CVS User Manual...
  • Page 81 How to Connect Upper Monitor by USB Interface? Install the console software, and run after install, shows the interface of the console as following: Select the COM as installed just now, and set the VSP 198CVS Boud Rate to be: 115200. Press to start communication，when there is green point in the right...

  • Page 82: How To Connect Pc Through Lan Interface

    ETHERNET， check the IP address of the equipment ,the equipment factory default IP address : 192.168.0.100； The second step： check computer IP address： Click start, then press button Run ， Enter <cmd>,then click< ok> ， Enter <ipconfig> VSP 198CVS User Manual...
  • Page 83 For example, the computer IP address is 218.032.010.201；We need to revise the computer IP address to 192.168.0.xxx. Open network connections, right click on properties, Select Internet protocol (TCP/IP),then Click properties, ， VSP 198CVS User Manual...
  • Page 84 Input equipment IP address, click 【OK】 。 Click to open the serial port, if the 【Comm】button (in the lower-right corner of the control software interface) is green, and log outputs information smoothly, then you would control the device through PC software. VSP 198CVS User Manual...

  • Page 85: System Setup And Operations

    How to Realize the test pattern output and settings  How to Set Up the Playlist  How to add LAN remote control settings  How to Set up the SAVE  How to Set up the LOAD  VSP 198CVS User Manual...

  • Page 86: Interface And Input Signal Option

    VGA output Interface RJ11(RS232) control Interface Power input interface 16，17. DVI have default the main image output , use for connecting the sending card of LED screen, VSP 198CVS support resolution format as following: 800x600x60Hz, 1024x768x60Hz, 1024x768x75Hz, 1280x720x60Hz, 1280x720x50Hz, 1280x768x60Hz, 1280x800x60Hz, 1280x1024x60Hz,...
  • Page 87 HDMI cable to connect the computer graphics HDMI output or DVD HDMI output; 3G SDI （BNC Port） Can receive video signal from HD player, and HD camera, connect interface 20 via 75 ohms BNC port. Connect LED screens via network cable. VSP 198CVS User Manual...

  • Page 88: User Guideline

    The fourth step set up LED screen width size, The fifth step set up LED screen horizontal size, The sixth step set up LED screen Vertical size, The seventh step set up input source, The eighth step up save . VSP 198CVS User Manual...

  • Page 89: How To Realize Single Image Switching

    (input signal source by original CV1 switching to DVI).The same method can be switched CV2, VGA1, VGA2, DVI,HDMI, SDI. Note Seamless switch: means signal switch will not appear any flash point, black, shaking or delay VSP 198CVS User Manual...

  • Page 90: How To Set Up The Pip

    ALPHA: Can set the image display transparency, regulating range between 0 - 16. SELECT: Can choose to set the size or position of IMAGE A or IMAGE B individually. Note SPLIT Function reuse kye ,selecting image A or image B VSP 198CVS User Manual...

  • Page 91: How To Set Up The Split

    How to Set up the PIP How to Set up the SPLIT SPLIT is used when multiple VSP 198CVS are used in cascade mode. For DVI input as mapping source, user can use DVI loop though to cascade two pieces VSP 198CVS together and do the mapping for each of them, each VSP 198CVS will support port of the display which connected by the sending card or control system separately.
  • Page 92 6. System Setup and Operation How to Set up the PIP Following is the example to cascade multiple VSP 198CVS for mapping. VSP 198CVS User Manual...

  • Page 93: How To Set Up The Size And Position Of The Single Image

    ,OLED screen as follows: H SIZE 1920 V SIZE 1080 H POS V POS H SIZE: Width setting; V SIZE: Height setting; H Pos: Horizontal phase setting; V Pos: Vertical phase setting; VSP 198CVS User Manual...

  • Page 94: How To Do Customized Output Resolution

    After the digital push Knob will add * , means before * is the vertical size. Same operation by push digital buttons to set the refresh rate. For example to input refresh rate 60.； 自定义分辨率 1536*1536*60Hz VSP 198CVS User Manual...
  • Page 95 6. Syetem Setup and Operation How to do customized output resolution After input all the values, push Knob to enable VSP 198CVS to output this resolution. VSP 198CVS will take 5-10Sseconds to enable this output resolution； Note All the resolution inside the value 2048 x 1152 x 60 = 141557760 can support.

  • Page 96: How To Scale The Screen Size And Full Size Switching

    How to Scale the Screen Size and Full Size Switching VSP 198CVS supports the screen parameters to meet the requirement where user want to switch between scale screen size and full display size (like monitor). This is only enable for a single display window. Following is an example of a screen size is 1408 x 832.
  • Page 97 6. System Setup and Operation How to Realize the Screen Size and Full Size Switching MODE—display mode option, enable SCREEN SIZE； VSP 198CVS User Manual...

  • Page 98: How To Set Up Image Zoom

    H RIGHT--Zoom in horizontal and the image will be zoom in to the right direction from its left part； H LIFT/RIGHT--Zoom in horizontal but in both left and right direction from its middle part； CENTER—Zoom in 4 corner direction from center. VSP 198CVS User Manual...

  • Page 99: How To Realize The Text Overlay Setting

    BLEND LEVEL, and set the image display transparency, regulating range between 0 - 16; 6. Press MENU, return to【TEXT OVERLAY】, rotate the knob, choose the color value: RED: The value range of color RED that to be set, regulating range VSP 198CVS User Manual...
  • Page 100 BLUE: The value range of color BLUE that to be set, regulating range between 0~255; 7. At the same time, you can view the effect through the screen, to get a better setting. Note: All the above settings are available only for IMAGE B. VSP 198CVS User Manual...

  • Page 101: How To Realize Test Pattern Output And Settings

    Test Patten is used to calibrate the screen or system, especially when there is not standard input measure instrument. VSP 198CVS equipped with 66 kinds of common test patterns. They are very useful for the LED display testing. Push [MENU] button and go into the main menu, turn Knob and go to <SYSTEM>...
  • Page 102 If set the Test Pattern enable as auto switching mode, VSP 198CVS will output all the Test Pattern one by one, and the interval between each is 1-10S； MODE TEST PATTERN ->TEST PATTERN 》 ->TEST PATTERN AUTO SWITCH VSP 198CVS User Manual...

  • Page 103: How To Set Up The Playlist

    How to Set Up the Playlist How to Set up the Playlist Users can set up VSP 198CVS in ― Device Schedule‖ in PC software to play the appointed input video automatically in appointed time and operation of single or dual channels, also can set up the ratio and position.
  • Page 104 6. If need to get certain timing content, input the timer index, and click the get icon to see the specific content. For example: choose timer index 2, show the interface as follows: VSP 198CVS User Manual...
  • Page 105 6. System Setup and Operation How to Set Up the Playlist 7. The software default "Device Schedule" function close, user should click on icon to realize automatically play. VSP 198CVS User Manual...

  • Page 106: How To Use Black

    Mixing-100 Black provides effect processing on Program output, Black use fade in fade out effect. Operation is as below: 1. Just press BLACK button, then Program output turns to BLACK with fade in fade out effect. As shown below: VSP 198CVS User Manual...

  • Page 107: How To Realize Lan Remote Control Settings

    WAN port is used for connecting to outer net. Sketch map as below: Step two: IP address setting (processor’s default IP address is 192.168.0.100) Firstly change computer’s local connection to ― automatically getting the IP‖, showed as below: VSP 198CVS User Manual...
  • Page 108 VSP 628S via windows control software. Method two: Change router’s gateway. Type in 192.168.1.1 on the browser and go into router setting; Type in default account and code (please refer to the router user manual for the information); VSP 198CVS User Manual...
  • Page 109 Go to router setting part and find out ― LAN port setting‖, change the default value ― 192.168.1.1‖ to be ― 192.168.0.1‖; Save the setting and restart the router, then user can directly control on VSP 628S via windows control software. VSP 198CVS User Manual...

  • Page 110: How To Set Up The Save

    6. System Setup and Operation How to Save the Parameter How to Set up the SAVE Save user mode to the customer for different scene directly call; leave out the edit operation inconvenience, VSP 198CVS provides ten save preferences. SAVE 1. Press button, the key lights, the SAVE function open.

  • Page 111: How To Set Up The Load

    6. System Setup and Operation How to Load the Saved Parameter How to Set up the LOAD Save user mode to the customer for different scene directly call; leave out the edit operation inconvenience, VSP 198CVS provides ten save preferences; LOAD 1. Press button, the key lights, the LOAD function open.

  • Page 112: Common Questions And Solution

     Large Screen only Display Part of the Image  No Display in the Second Half Part of Large Screen  Left of the Screen Appears Two Black Sides  All Key Lights Light Simultaneously  VSP 198CVS User Manual...

  • Page 113: No Output In Large Screen

    If display normally shows and no flash point, please check whether DVI outlets put tight or replace to DVI line of sending card. If display flash point, please judge if input signal, wire, and interface is normal. VSP 198CVS User Manual...

  • Page 114: Large Screen Only Display Part Of The Image

    OUTPUT RES, and touch knob to confirm. Sending card can't take lower part TS 802 can control the max horizontal resolution 2048, and vertical resolution 640. Each CAT5 output is 320 pixels. Left of the Screen Appears Two Black Sides VSP 198CVS User Manual...

  • Page 115: Adjust De Deviation

    Check if dial switches are normal Shut the power, check if two red dial switches near CV are upward. Reboot if they face down, and reboot. The function of the red dial switched is mainly upgrade. VSP 198CVS User Manual...

  • Page 116: Specification

    TMDS pwl,single pixel input,165MHz bandwidth Format Standard HDMI 1.3 DVI Loop Output Number of Inputs Connector Standard DVI-I socket Supported Resolution SMPTE：625/25/50 PAL, 525/29.97/59.94 NTSC, 1080P50,1080P59.94/60,1080i50,1080i59.94/60, 720p50,720p59.94/60 VESA：800×600×60Hz,1024×768×60Hz,1280×768×60Hz, 1280×1024×60Hz,1600×1200×60Hz,1920×1080×60Hz Signal Level TMDS pwl,single pixel input,165MHz bandwidth Format Standard HDMI 1.3 VSP 198CVS User Manual...
  • Page 117 3G,200m self-adaptive Balance 1.485G,350m self-adaptive 270Mbps TMDS pwl , 165MHz bandwidth Signal Level SDI Loop-through (3G module) Number Loop-through Connector Standard BNC Socket Signal Level 800mV±10% SMPTE：625/25 PAL, 525/29.97 NTSC,625/50p PAL,525/59.94p Supported Resolution NTSC, 720p50,720p59.94/60,1080i50,1080i59.94/60,1080p50,1080p59. 94/60, VSP 198CVS User Manual...
  • Page 118 Transition effects Fade in and fade out switching between any two inputs Extras Communication RS232 USB TCP/IP Power Supply 85-264V IEC-3 Working Environment 0°C~45°C Stored Environment 10% to 90% Product Warranty 3-year parts and labor warranty VSP 198CVS User Manual...

  • Page 119: Contact Information

    All video products are designed and tested to the highest quality standard and backed by a full 3-year parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related...

  • Page 120: Upgrading Software

    Firstly, users can choose the right serial port, set the Baud rate to 9600, choose LPC2368, and to load the aim document (hex file) for IP board upgrading; Secondly, tick the item below to confirm. Finally, click the ― start‖ button. VSP 198CVS User Manual...
  • Page 121 After download, exit the program, turn off the power, tack the two coding switch back, as below restart the equipment power, check if the equipment work normally. Note Flash Magic download website: http://www.flashmagictool.com/download.html&d =FlashMagic.exe VSP 198CVS User Manual...

Table of Contents
