C H A P T E R 7
Maintaining your interactive flat panel

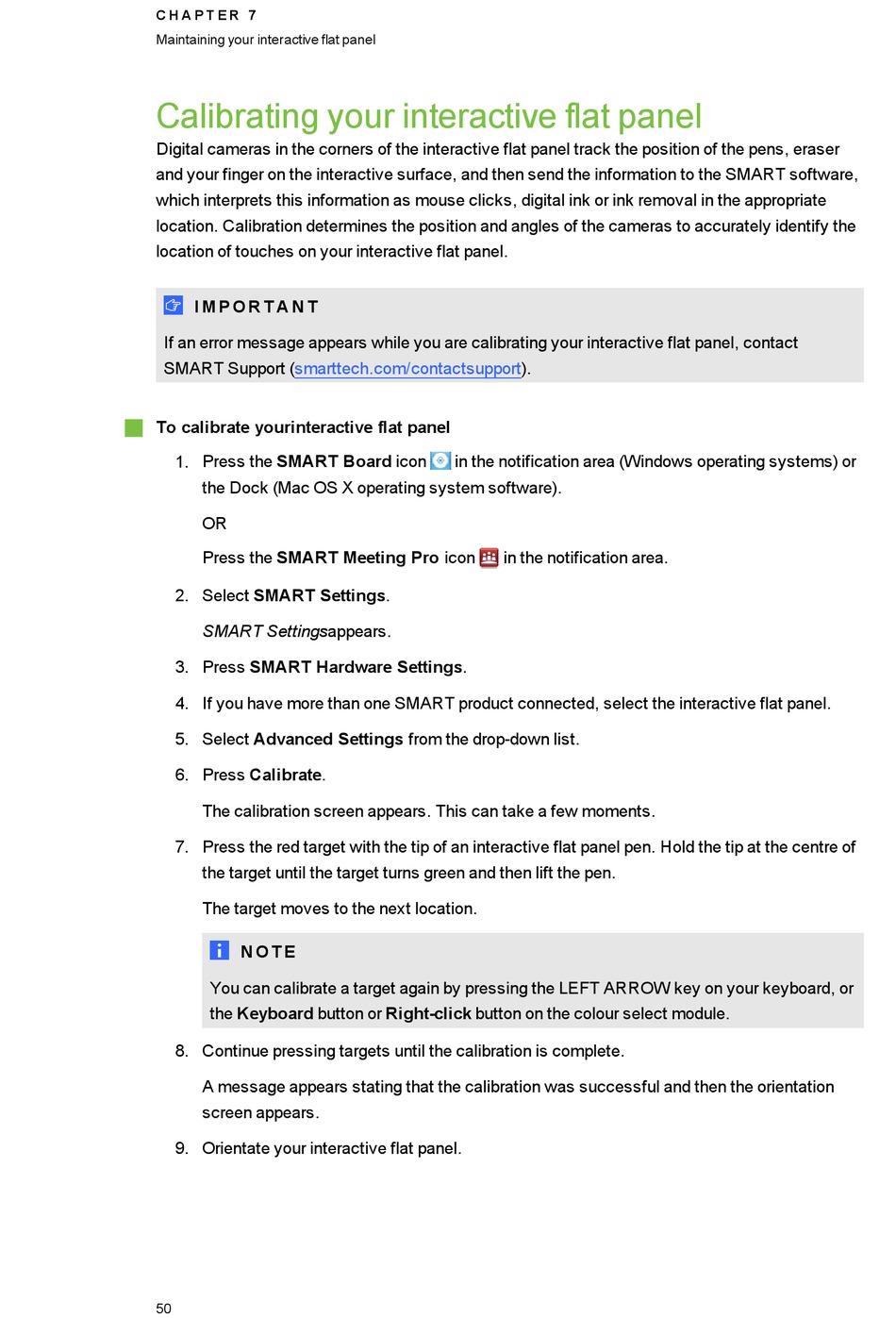

Calibrating your interactive flat panel

Digital cameras in the corners of the interactive flat panel track the position of the pens, eraser
and your finger on the interactive surface, and then send the information to the SMART software,
which interprets this information as mouse clicks, digital ink or ink removal in the appropriate
location. Calibration determines the position and angles of the cameras to accurately identify the
location of touches on your interactive flat panel.
I M P O R T A N T
If an error message appears while you are calibrating your interactive flat panel, contact
SMART Support (smarttech.com/contactsupport).
g
To calibrate yourinteractive flat panel
1. Press the SMART Board icon
the Dock (Mac OS X operating system software).
OR
Press the SMART Meeting Pro icon
2. Select SMART Settings.
SMART Settingsappears.
3. Press SMART Hardware Settings.
4. If you have more than one SMART product connected, select the interactive flat panel.
5. Select Advanced Settings from the drop-down list.
6. Press Calibrate.
The calibration screen appears. This can take a few moments.
7. Press the red target with the tip of an interactive flat panel pen. Hold the tip at the centre of
the target until the target turns green and then lift the pen.
The target moves to the next location.
N O T E
You can calibrate a target again by pressing the LEFT ARROW key on your keyboard, or
the Keyboard button or Right-click button on the colour select module.
8. Continue pressing targets until the calibration is complete.
A message appears stating that the calibration was successful and then the orientation
screen appears.
9. Orientate your interactive flat panel.
50
in the notification area (Windows operating systems) or
in the notification area.
