C H A P T E R 3
Connecting computers and peripheral devices

Connecting to power and computer 1

Computer 1 (the room computer) is the default computer for your interactive flat panel. Connect
this computer to your interactive flat panel with a VGA cable and a USB cable.

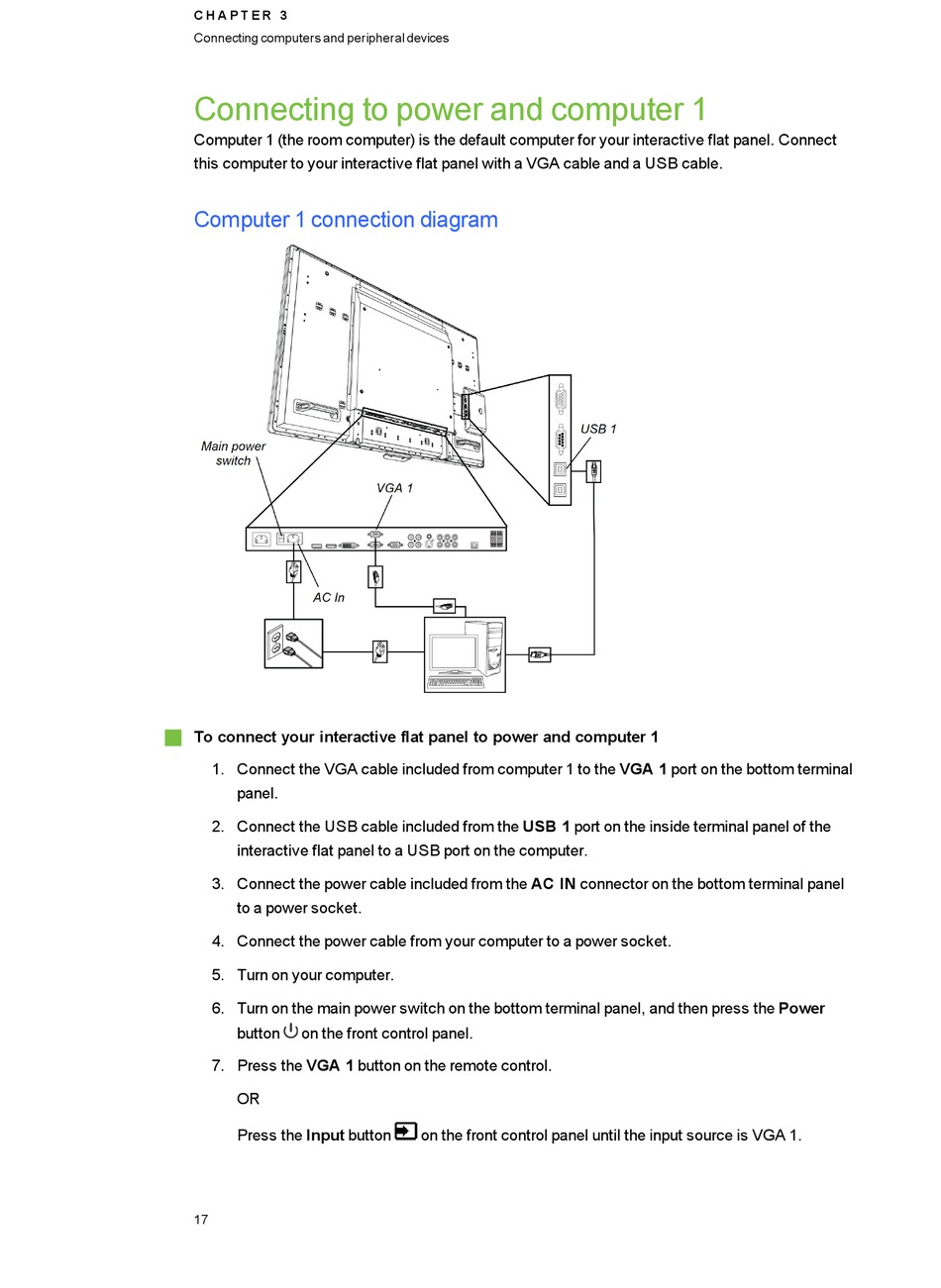

Computer 1 connection diagram

g
To connect your interactive flat panel to power and computer 1
1. Connect the VGA cable included from computer 1 to the VGA 1 port on the bottom terminal
panel.
2. Connect the USB cable included from the USB 1 port on the inside terminal panel of the
interactive flat panel to a USB port on the computer.
3. Connect the power cable included from the AC IN connector on the bottom terminal panel
to a power socket.
4. Connect the power cable from your computer to a power socket.
5. Turn on your computer.
6. Turn on the main power switch on the bottom terminal panel, and then press the Power
button on the front control panel.
7. Press the VGA 1 button on the remote control.
OR
Press the Input button
17
on the front control panel until the input source is VGA 1.
