C H A P T E R 2
Installing your interactive flat panel

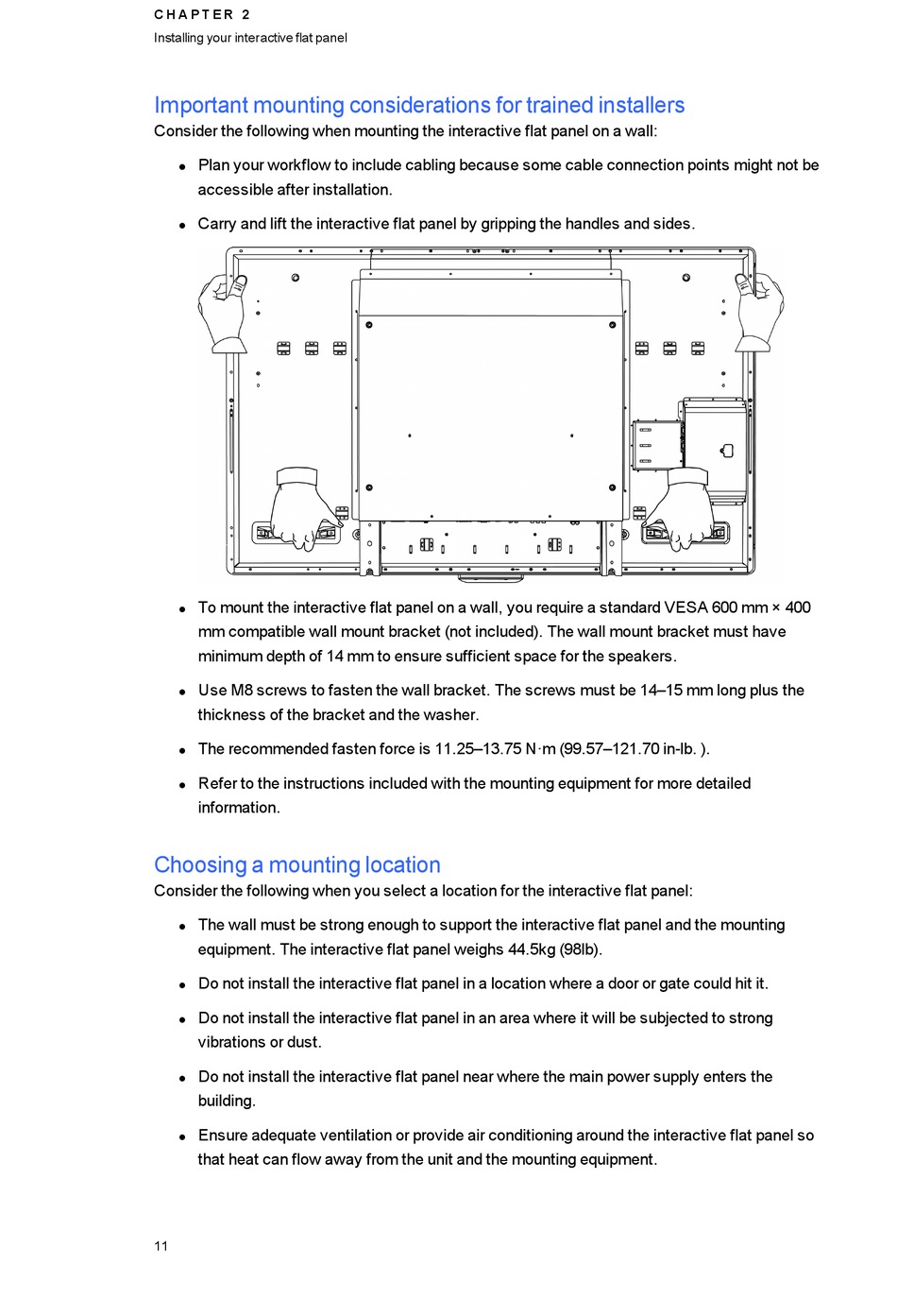

Important mounting considerations for trained installers

Consider the following when mounting the interactive flat panel on a wall:
Plan your workflow to include cabling because some cable connection points might not be
l l
accessible after installation.
Carry and lift the interactive flat panel by gripping the handles and sides.
l
To mount the interactive flat panel on a wall, you require a standard VESA 600 mm × 400
l
mm compatible wall mount bracket (not included). The wall mount bracket must have
minimum depth of 14 mm to ensure sufficient space for the speakers.
Use M8 screws to fasten the wall bracket. The screws must be 14–15 mm long plus the
l
thickness of the bracket and the washer.
The recommended fasten force is 11.25–13.75 N·m (99.57–121.70 in-lb. ).
l
Refer to the instructions included with the mounting equipment for more detailed
l
information.

Choosing a mounting location

Consider the following when you select a location for the interactive flat panel:
The wall must be strong enough to support the interactive flat panel and the mounting
l
equipment. The interactive flat panel weighs 44.5kg (98lb).
Do not install the interactive flat panel in a location where a door or gate could hit it.
l
Do not install the interactive flat panel in an area where it will be subjected to strong
l
vibrations or dust.
Do not install the interactive flat panel near where the main power supply enters the
l
building.
Ensure adequate ventilation or provide air conditioning around the interactive flat panel so
l
that heat can flow away from the unit and the mounting equipment.
11
