C H A P T E R 3
Connecting computers and peripheral devices
2. Remove the screw securing the cut-out with a Phillips screwdriver. Retain the screw and
cut-out.
3. Locate the black jumper connector on the circuit board inside the panel.
4. Pull the black jumper connector off of the circuit board with the pliers.
C A U T I O N
To prevent damage to the circuit board, do not touch the circuit board with the pliers.
I M P O R T A N T
You can install the jumper connector again to enable the USB port.
Connecting peripheral devices to your
interactive flat panel
Connect peripheral devices to the bottom terminal panel.
C A U T I O N
The AC power socket is designated for a component of the SMART Board 8055ie-SMP
interactive flat panel with appliance.See Replacing the appliance on your SMART product
(FRU - Appliance - SB8) (smarttech.com/kb/170062).

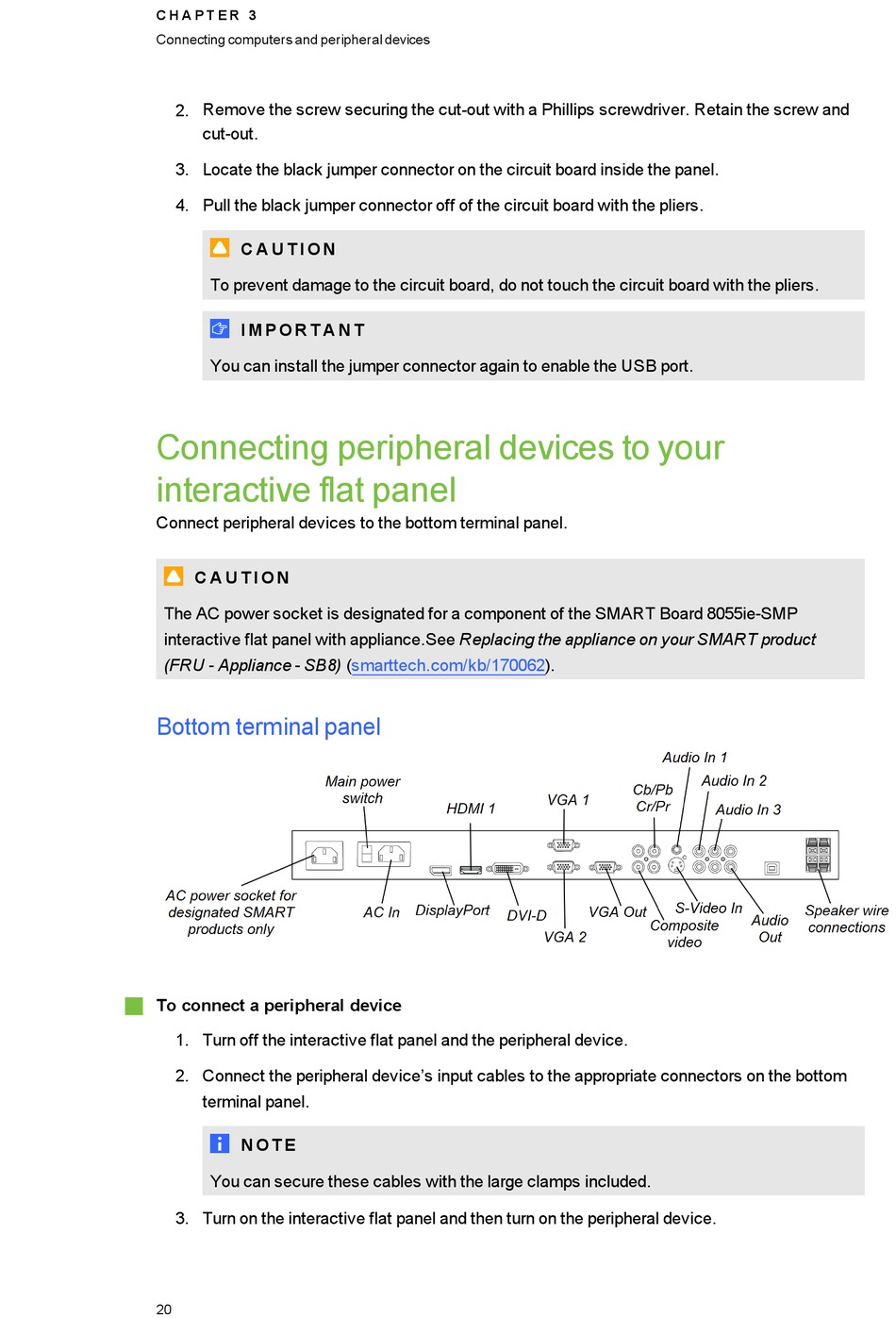

Bottom terminal panel

g
To connect a peripheral device
1. Turn off the interactive flat panel and the peripheral device.
2. Connect the peripheral device's input cables to the appropriate connectors on the bottom
terminal panel.
N O T E
You can secure these cables with the large clamps included.
3. Turn on the interactive flat panel and then turn on the peripheral device.
20
