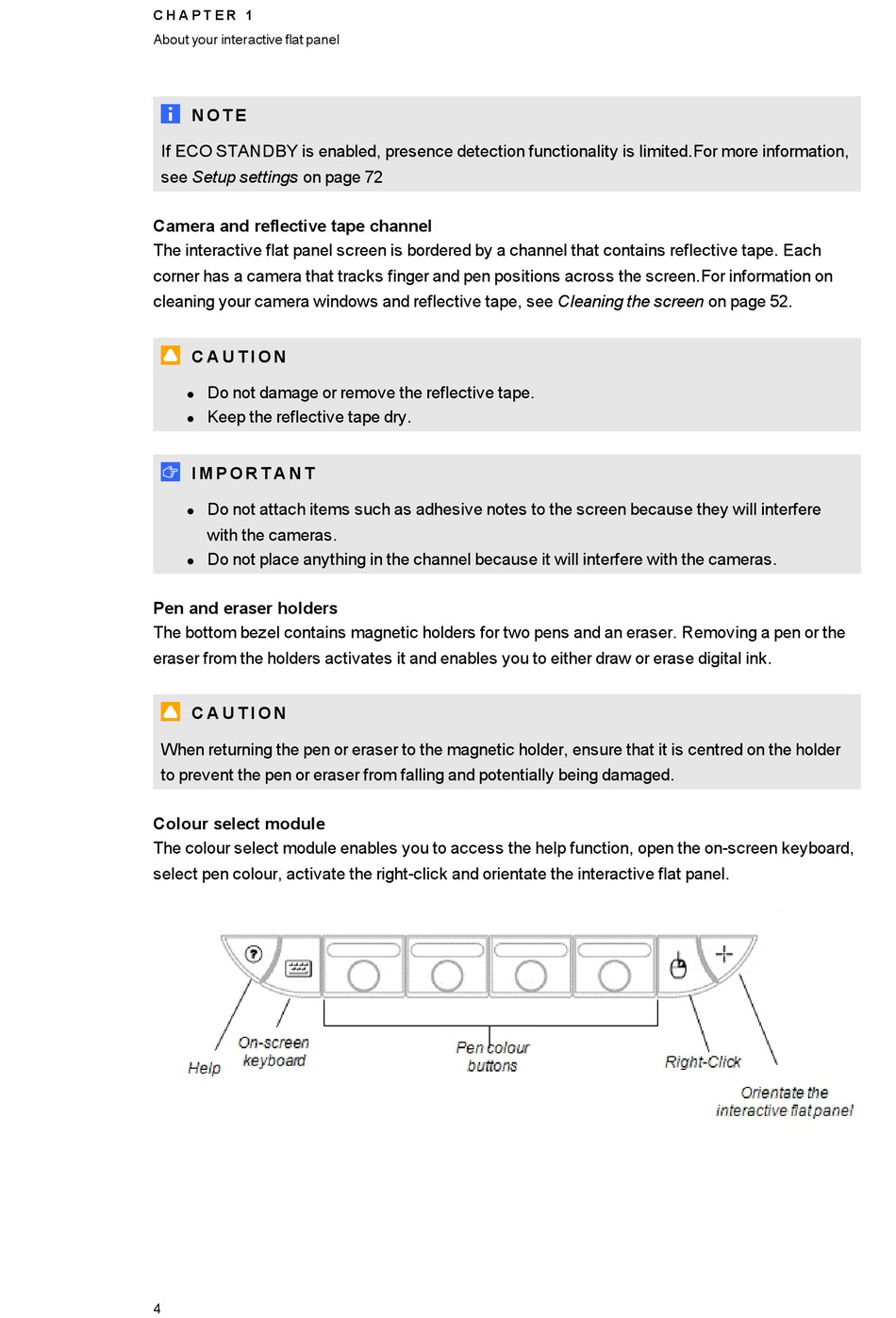

C H A P T E R 1
About your interactive flat panel
N O T E
If ECO STANDBY is enabled, presence detection functionality is limited.For more information,
see Setup settings on page 72

Camera and reflective tape channel

The interactive flat panel screen is bordered by a channel that contains reflective tape. Each
corner has a camera that tracks finger and pen positions across the screen.For information on
cleaning your camera windows and reflective tape, see Cleaning the screen on page 52.
C A U T I O N
Do not damage or remove the reflective tape.
l
Keep the reflective tape dry.
l
I M P O R T A N T
Do not attach items such as adhesive notes to the screen because they will interfere
l
with the cameras.
Do not place anything in the channel because it will interfere with the cameras.
l

Pen and eraser holders

The bottom bezel contains magnetic holders for two pens and an eraser. Removing a pen or the
eraser from the holders activates it and enables you to either draw or erase digital ink.
C A U T I O N
When returning the pen or eraser to the magnetic holder, ensure that it is centred on the holder
to prevent the pen or eraser from falling and potentially being damaged.

Colour select module

The colour select module enables you to access the help function, open the on-screen keyboard,
select pen colour, activate the right-click and orientate the interactive flat panel.
4
