C H A P T E R 3
Connecting computers and peripheral devices

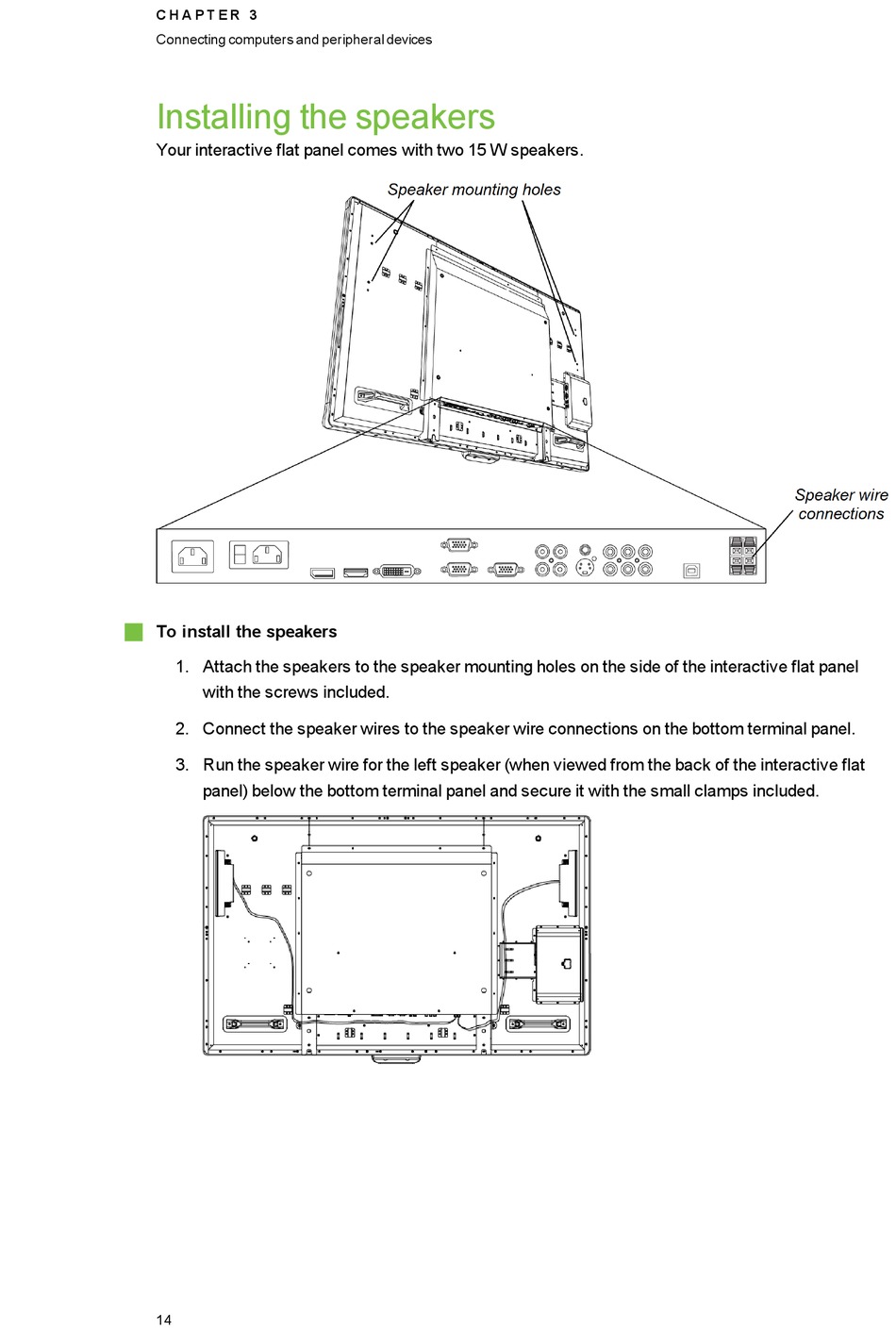

Installing the speakers

Your interactive flat panel comes with two 15 W speakers.
g
To install the speakers
1. Attach the speakers to the speaker mounting holes on the side of the interactive flat panel
with the screws included.
2. Connect the speaker wires to the speaker wire connections on the bottom terminal panel.
3. Run the speaker wire for the left speaker (when viewed from the back of the interactive flat
panel) below the bottom terminal panel and secure it with the small clamps included.
